Verktyg Jims Big Twin crankcases 58-99

18 040 kr

Jims heningsverktyg för vevhusets pinion-lagerbana
Läs mer

978411 Jims
  • Används för att hena pinion-lagerbanan i det högra vevhuset
  • Avverkar mer material på kortare tid och med högre precision än konventionella verktyg
  • Styrs från båda sidor av pinion-lagerbanan för maximal stabilitet
  • Kamdrevssidans stöd uppnås via en bottenplatta som lokaliseras på samma styrpinnar som kamkåpan
  • Borrstyrningsbussningen hålls inom .0002" mot vevhusstyrpinnarna och inom .0002" från vevhusets centrumlinje
  • Vänster sida hålls fixerad utan spel av en specialslipad lagerhylsa istället för flytande Timken-lager
  • Båda ändar av verktyget centreras exakt i samma centrumlinje som svänghjulsenheten
  • Kan drivas med lågvarvig borrmaskin utan risk för vibrationer, eller med traditionell handvev

Det rekommenderas att använda verktyget för låsring Jims 978341, särskilt på vevhus från 90-99. Se 978412 för ett 1-3/4" O.D. heningshuvud som ersättning.

Passar: Big Twin crankcases 58-99

Crankcase lap tool

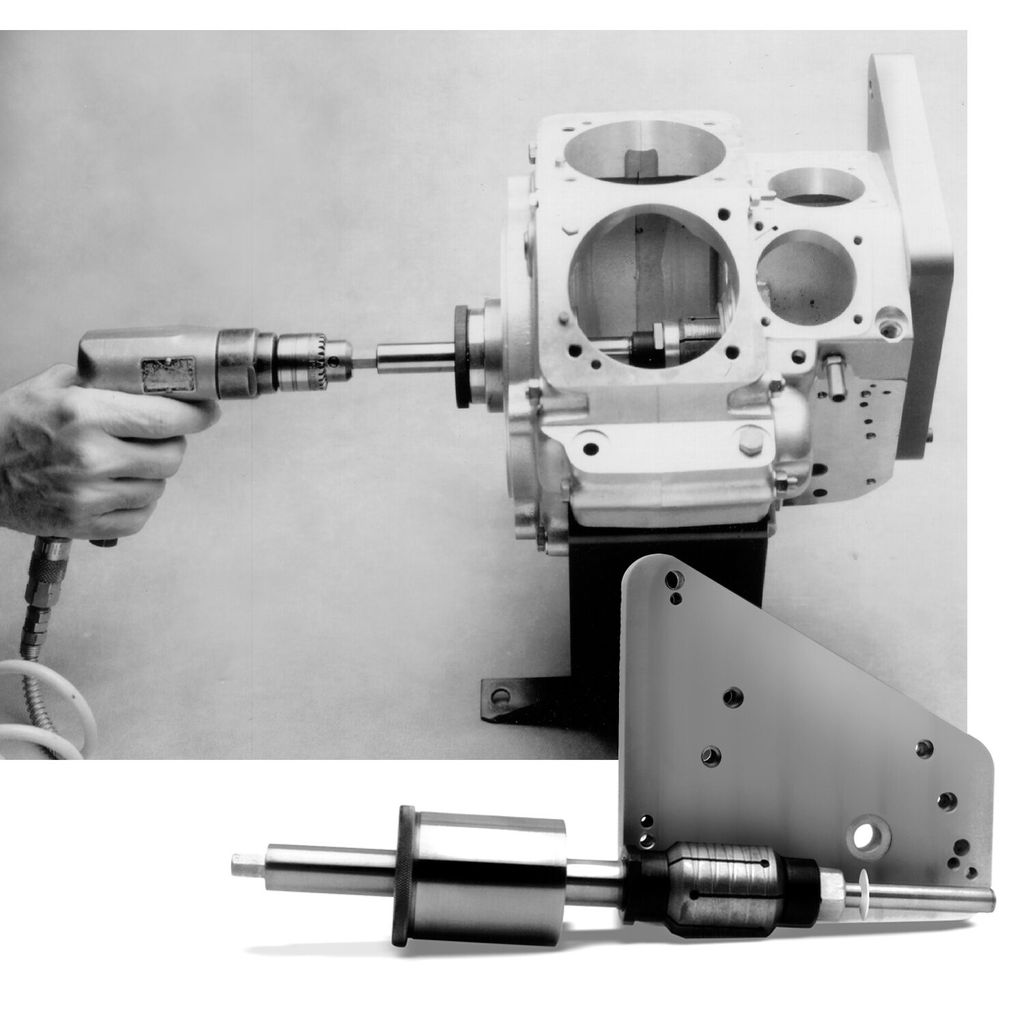

  • Used to lap pinion bearing race in the right crankcase
  • Removes more material in less time but with greater accuracy than a conventional lap
  • The JIMS case lap is guided on both sides of the pinion bearing race
  • This additional support on the cam gear side of the bearing race is achieved by means of a bolt on the base plate that precisely locates a drill bushing in which the lap turns
  • This base plate is located on the same engine case pins as the cam cover
  • The positioning of this drill bushing is held within .0002" to the engine case pins and within .0002" of the case centerline
  • Now, instead of guiding only from the left side with Timken bearings, which are a floating fit, the JIMS case lap uses a special ground bearing sleeve to hold the left side of the lapping shaft without movement
  • Both ends of the lap are supported precisely in the same centerline as the flywheel assembly
  • With this extreme rigid arrangement it is possible to power the lap with a low speed drill motor without fear of chatter in the lapped bearing race
  • The JIMS lap can still be powered by the conventional hand crank when desired
  • It is recommended to use JIMS 978341 (snap ring installer & remover tool), especially on 90-99 crankcases
  • Note: See 978412 vor the replacement 1-3/4" O.D. lap head

Fits: 58-99 Big Twin crankcases (Excl. Twin Cam) (NU)
