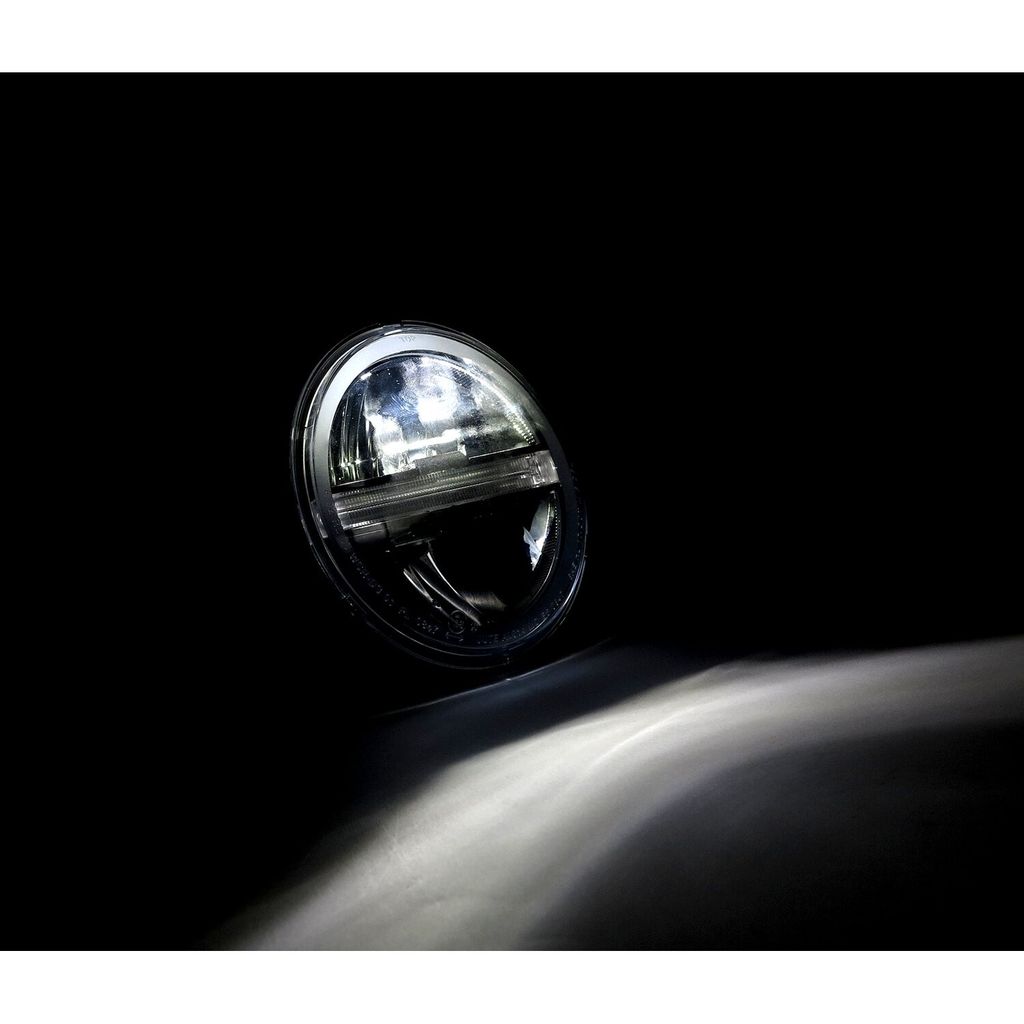

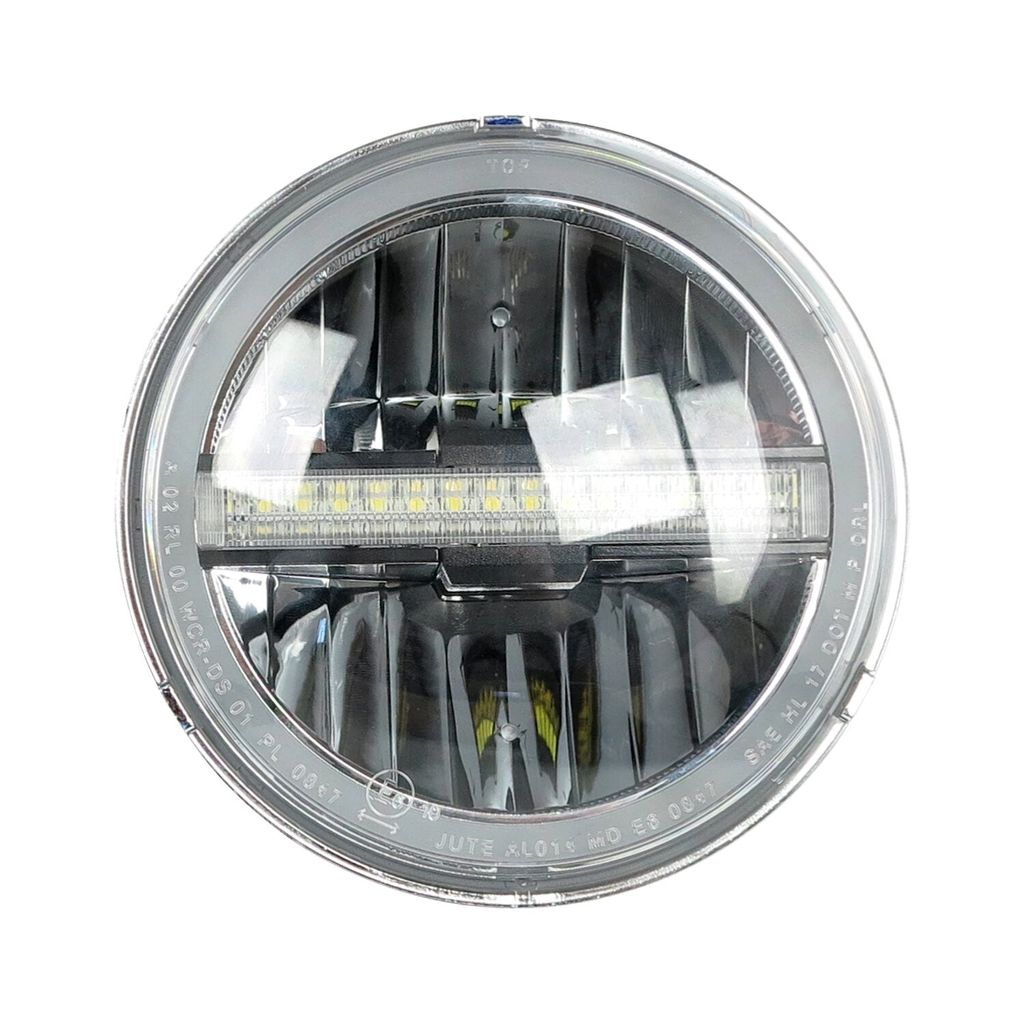

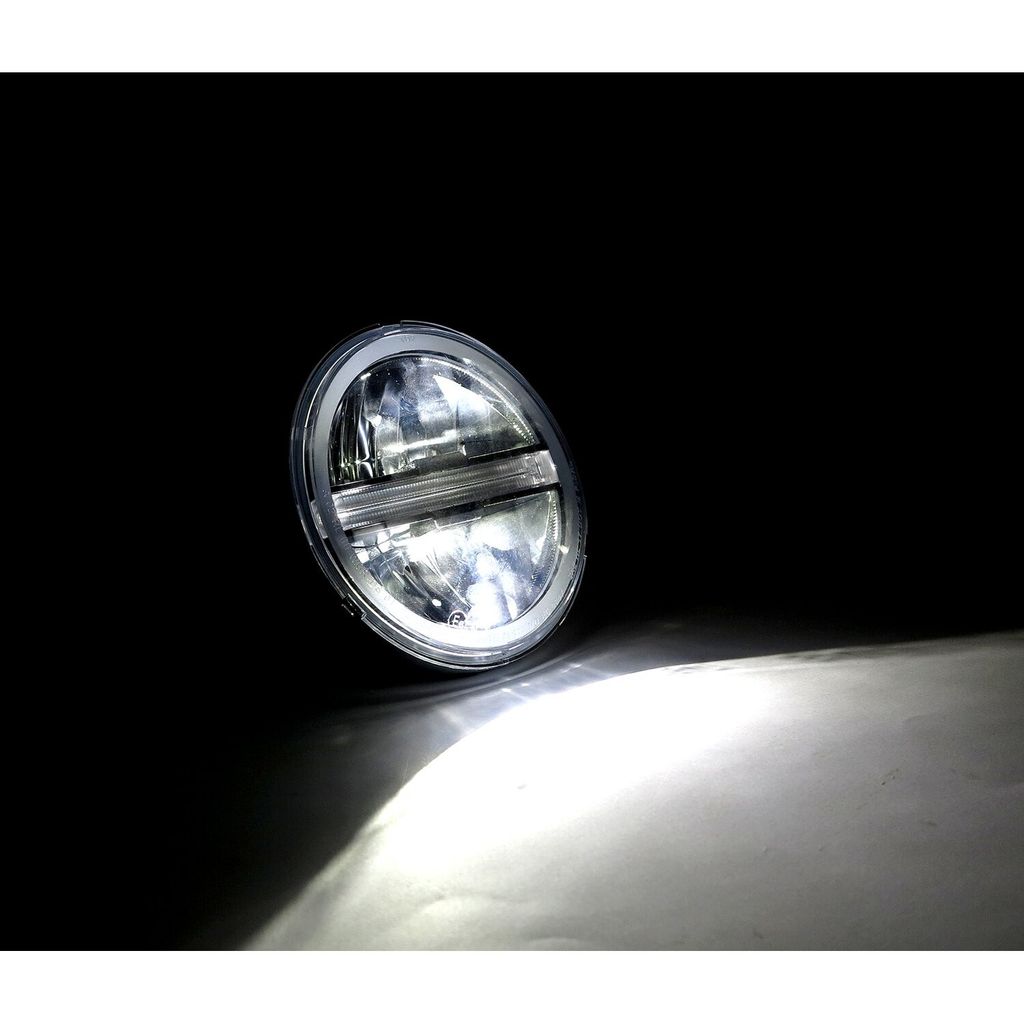

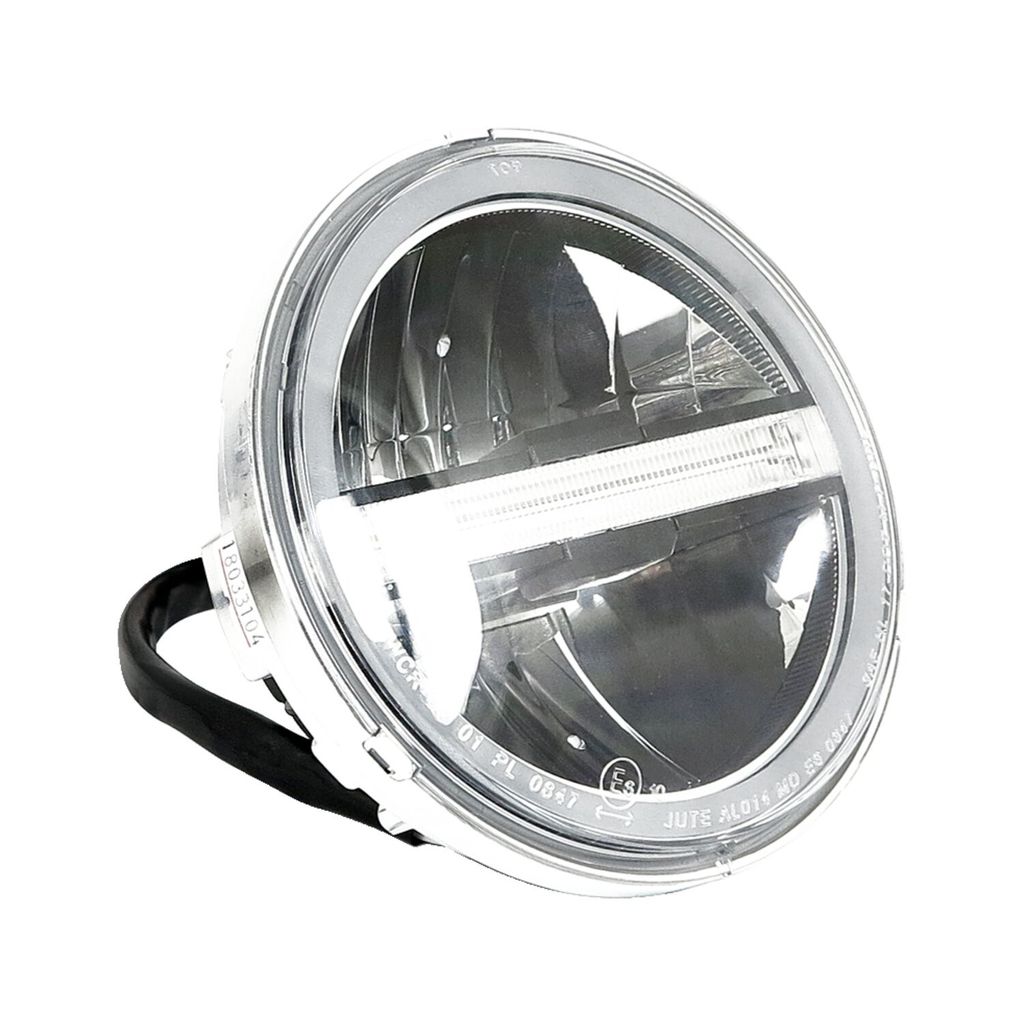

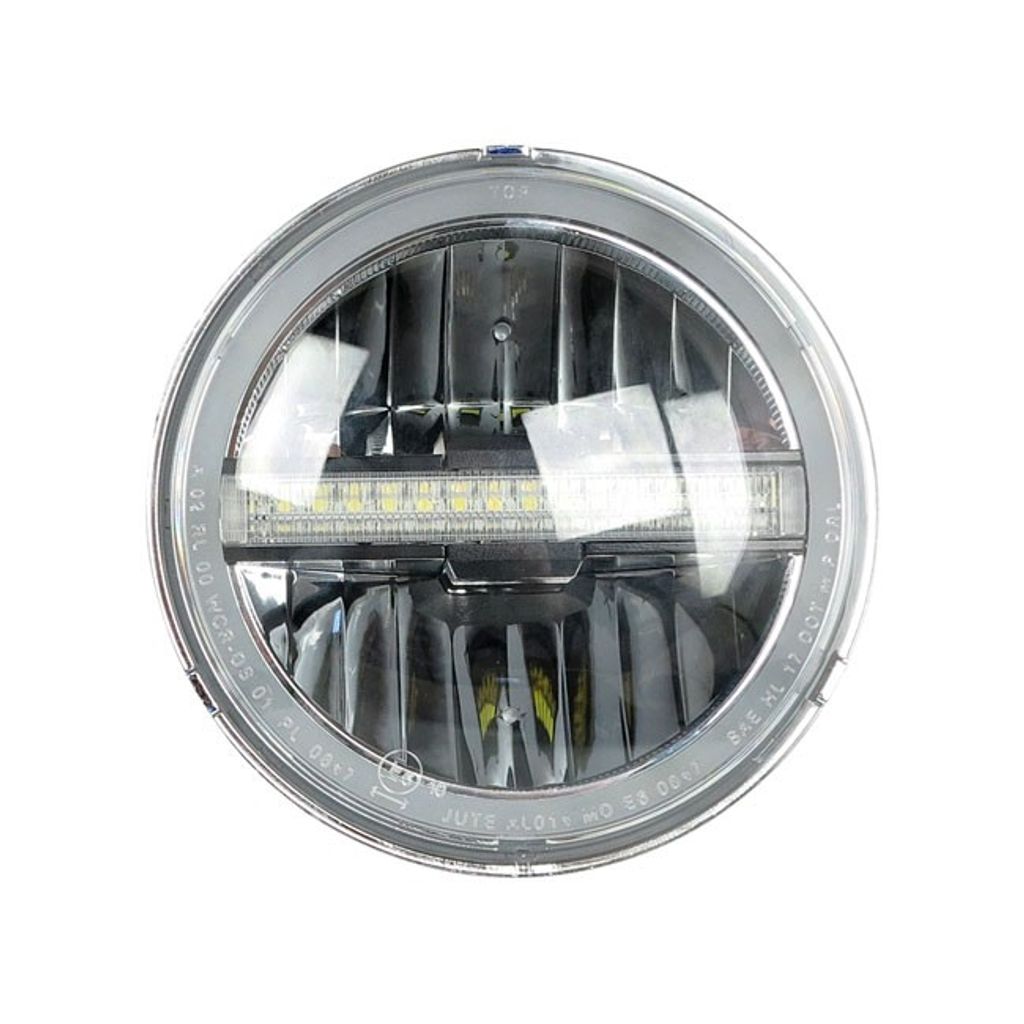

Strålkastare MCS Vulcano II 5-3/4" LED

2 600 kr

5-3/4" LED-strålkastarinsats, Vulcano II
Läs mer

565493 MCS
  • Passar vanliga strålkastare i Bates-stil
  • 12V, 27W / 15W
  • ECE- och DOT-godkänd

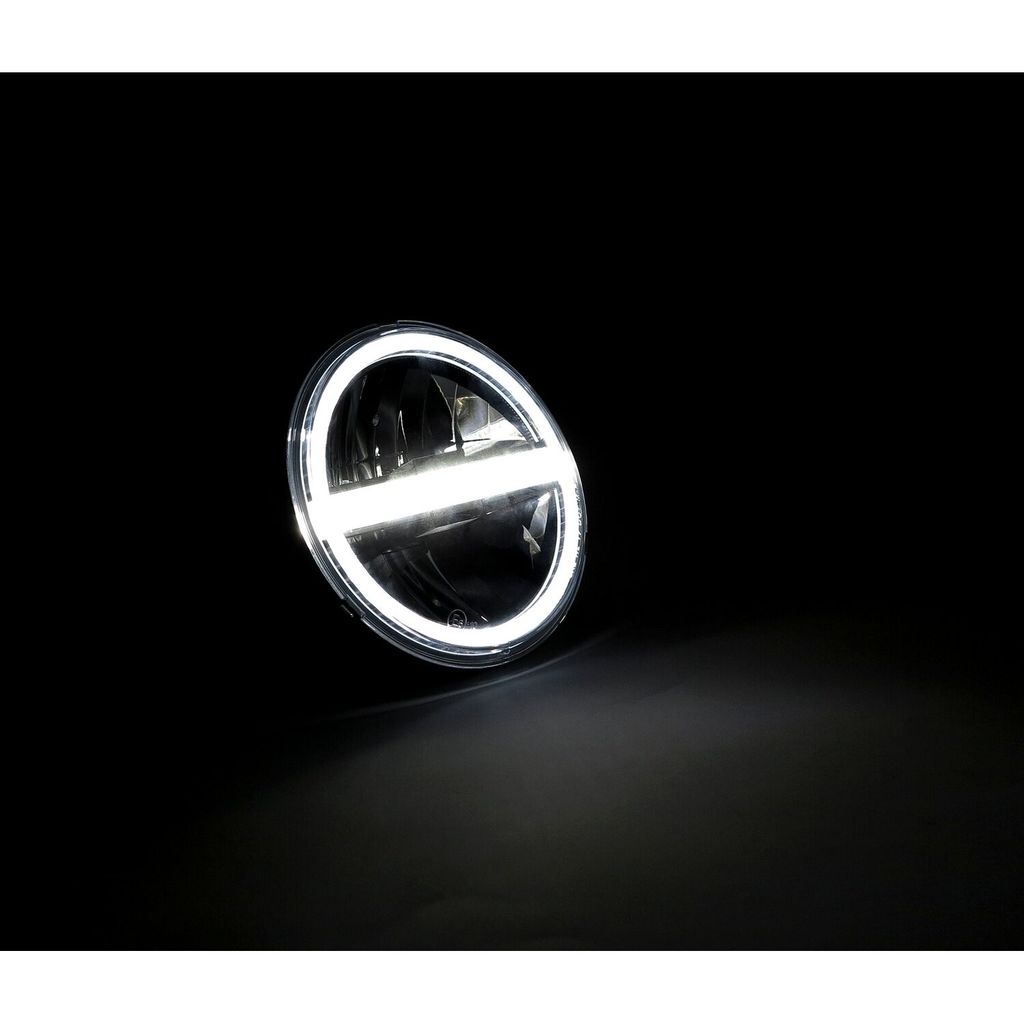

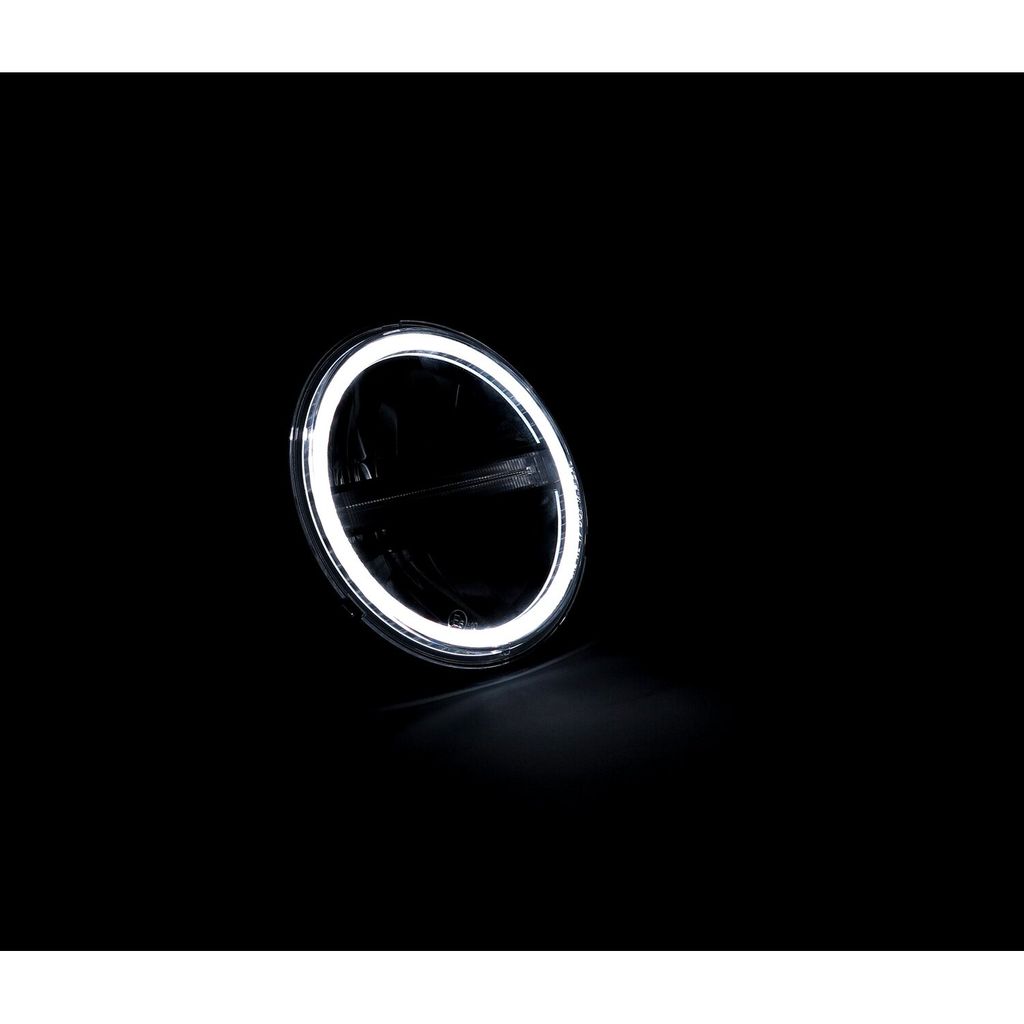

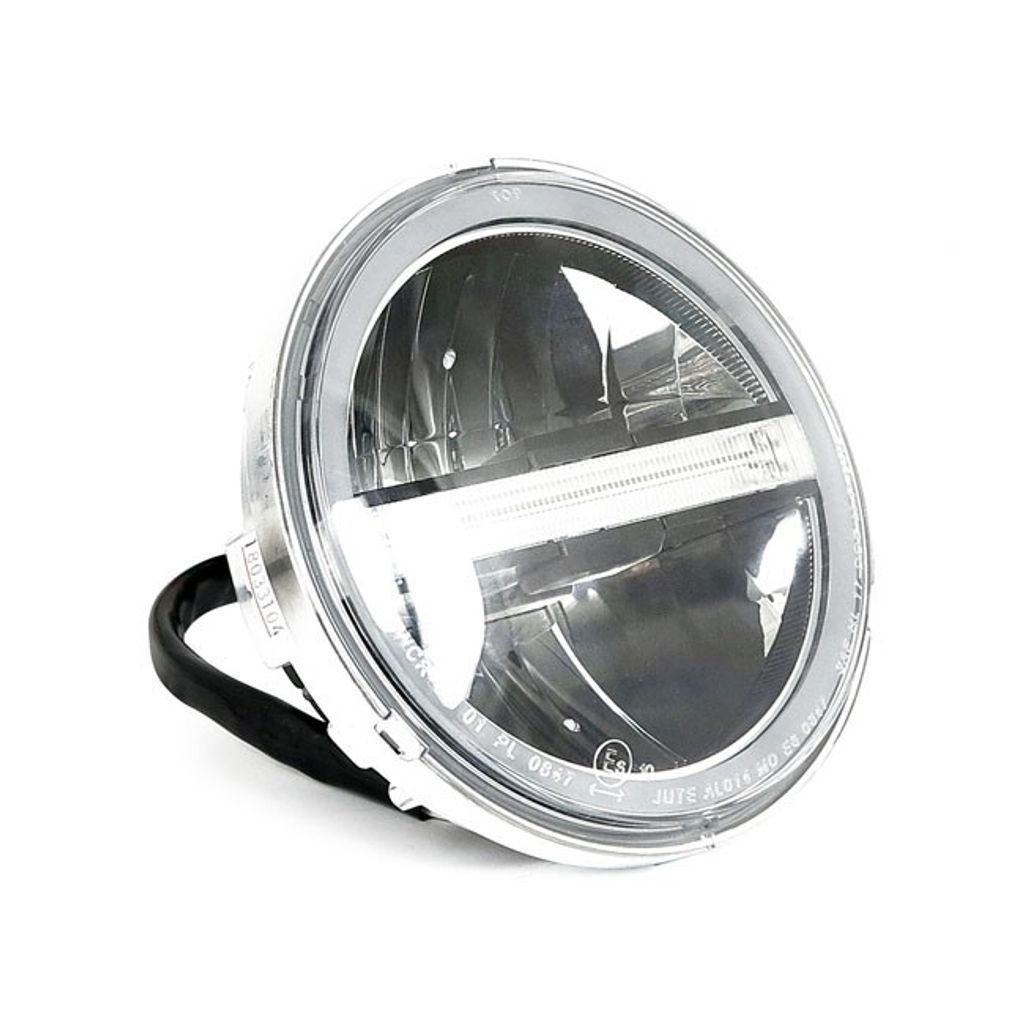

  • Komplett med LED halo-ring som positionsljus
  • Inkluderar 15 st 0.5W LED varselljusramp och 30 st 0.2W LED ringpositionsljus
  • Hög ljusstyrka, bred ljusbild och låg strömförbrukning
  • Mått ca: Totalt djup 101 mm, total diameter 143 mm

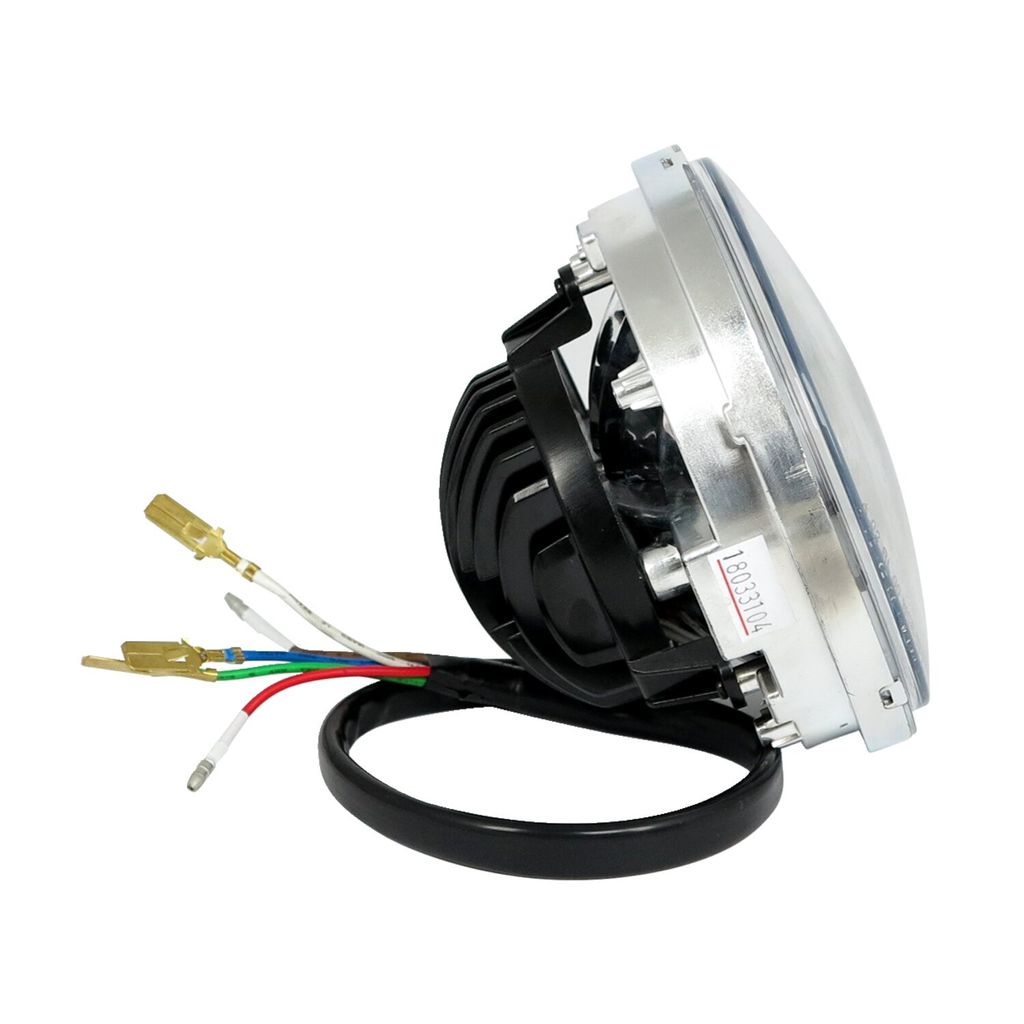

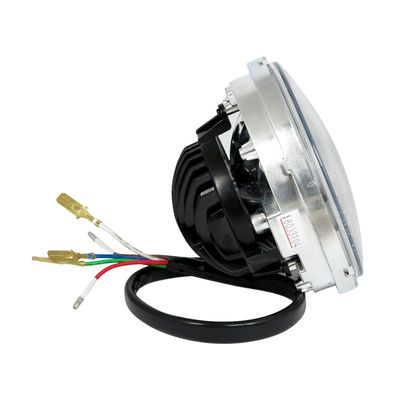

  • Kopplingsschema: Vit=halvljus, blå=helljus, grön=jord, röd=varselljus, brun=positionsljus
Kategori Headlamps
Produkt-typ Headlamps

Vulcano II, 5-3/4" LED headlamp unit

  • 12V
  • ECE & DOT approved
  • Complete with LED halo ring position light
  • Provides excellent reliability, superior LED brightness, low amperage draw and a nice wide beam
  • Fits Standard Bates style headlamps
  • 27W / 15W
  • Includes 0.5W 15-piece LED daylight driving bar and 0.2W 30-piece LED ring position light
  • Approx. dimensions: Overall depth 101mm, overall diameter 143mm
  • Wiring diagram: White=low beam, blue=high beam, green=ground, red=daytime running light, brown=position light
