Tändmodul Altmann AMM-P3 enkel All 99-17 Twin Cam AMMP3CUSTOM
Altmann AMM-P3 single fire tändmodul
Läs mer
- Fullt justerbar single fire tändmodul för H-D-motorer
- Tre vred ger 4 inställningar för max tändförställning, tändkurvor och varvtalsstopp (5750, 6000, 6250 och 6500 RPM)
- Justeringar kan göras med motorn avstängd eller igång utan dator
- Kompatibel med original vevaxelgivare och tändspole
- Stabil tomgång vid 900 RPM eller ner till 350 RPM
- Mått: 6x7x3 cm, utan spolfästen
- Levereras komplett med bruksanvisning
Passar utmärkt vid konvertering från insprutning till förgasare samt för bränsleinsprutade Evo-modeller och 08-10 Buell XB med vevaxelgivare. På originalmotorcyklar behöver ECU inte tas bort, vilket gör att original startspärr fungerar och ECU styr hastighetsmätaren. På CAN-bus-modeller (HD-LAN) fungerar inte killswitch och varvräknare.
Passar: Alla 99-17 Twin Cam
| Kategori | Ignition modules |
| Produkt-typ | Ignition modules |

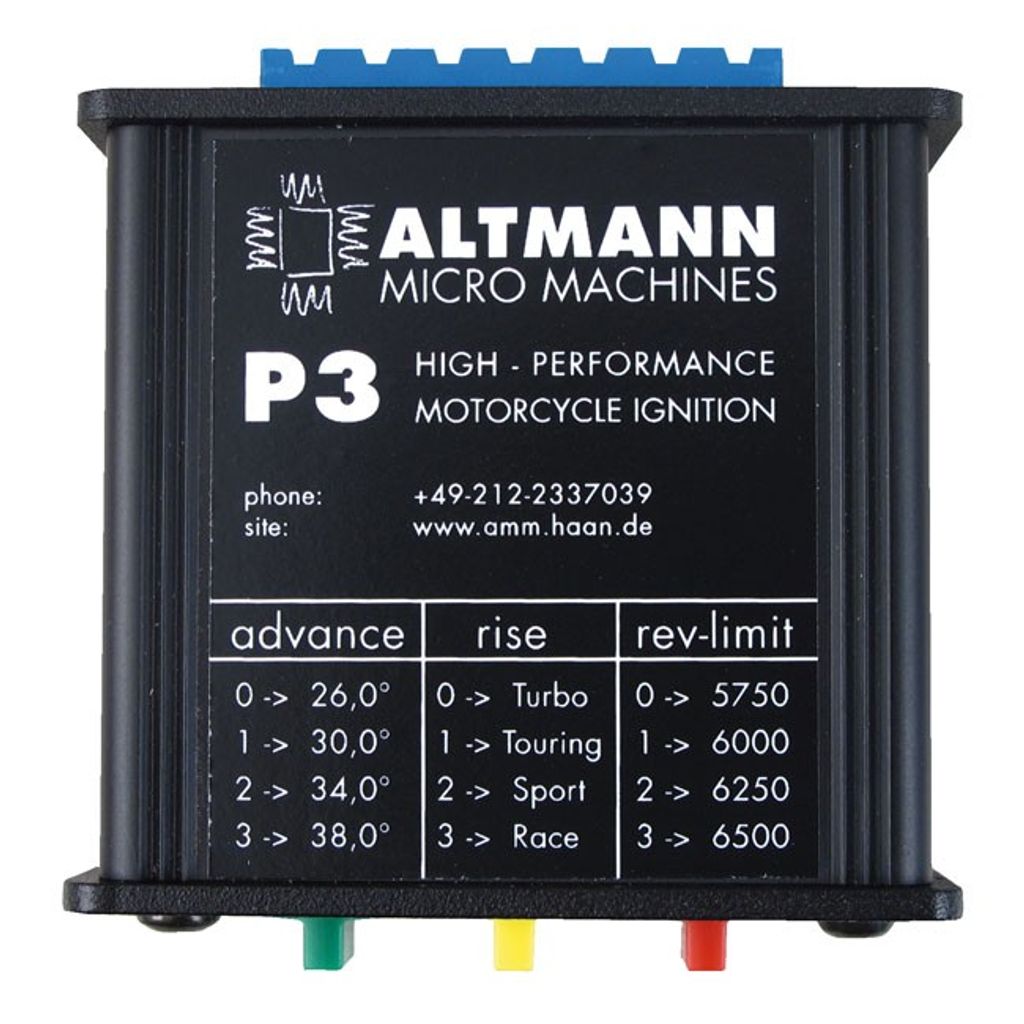

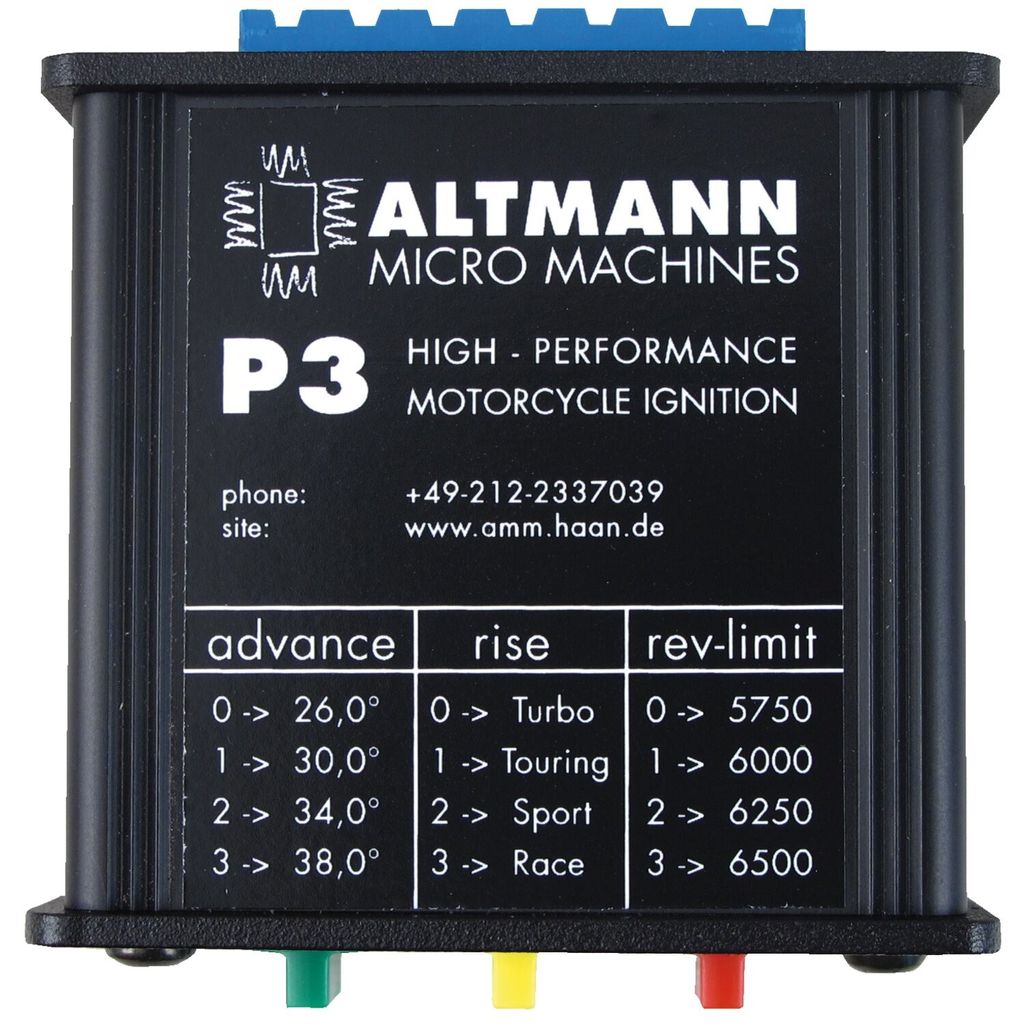

AMM-P3 ignition module, single fire
- Custom, no coil mounts

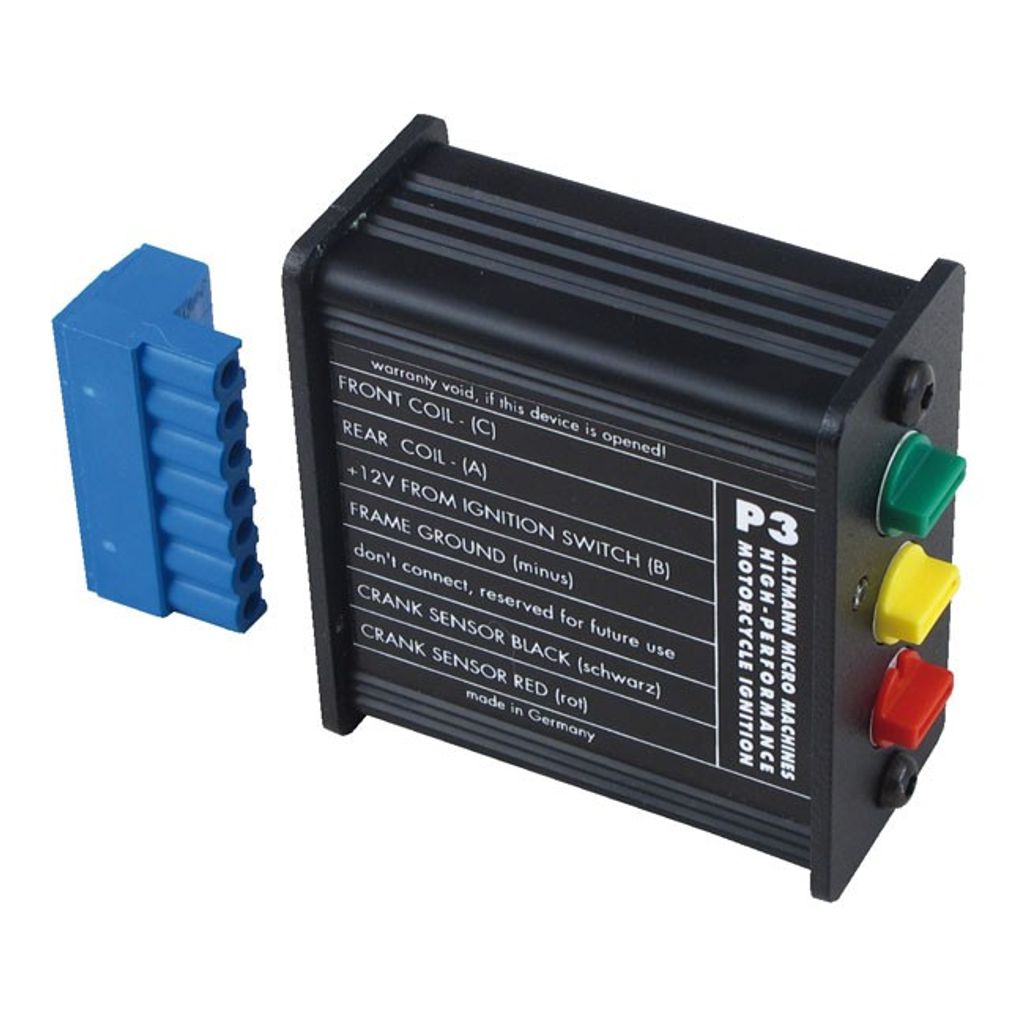

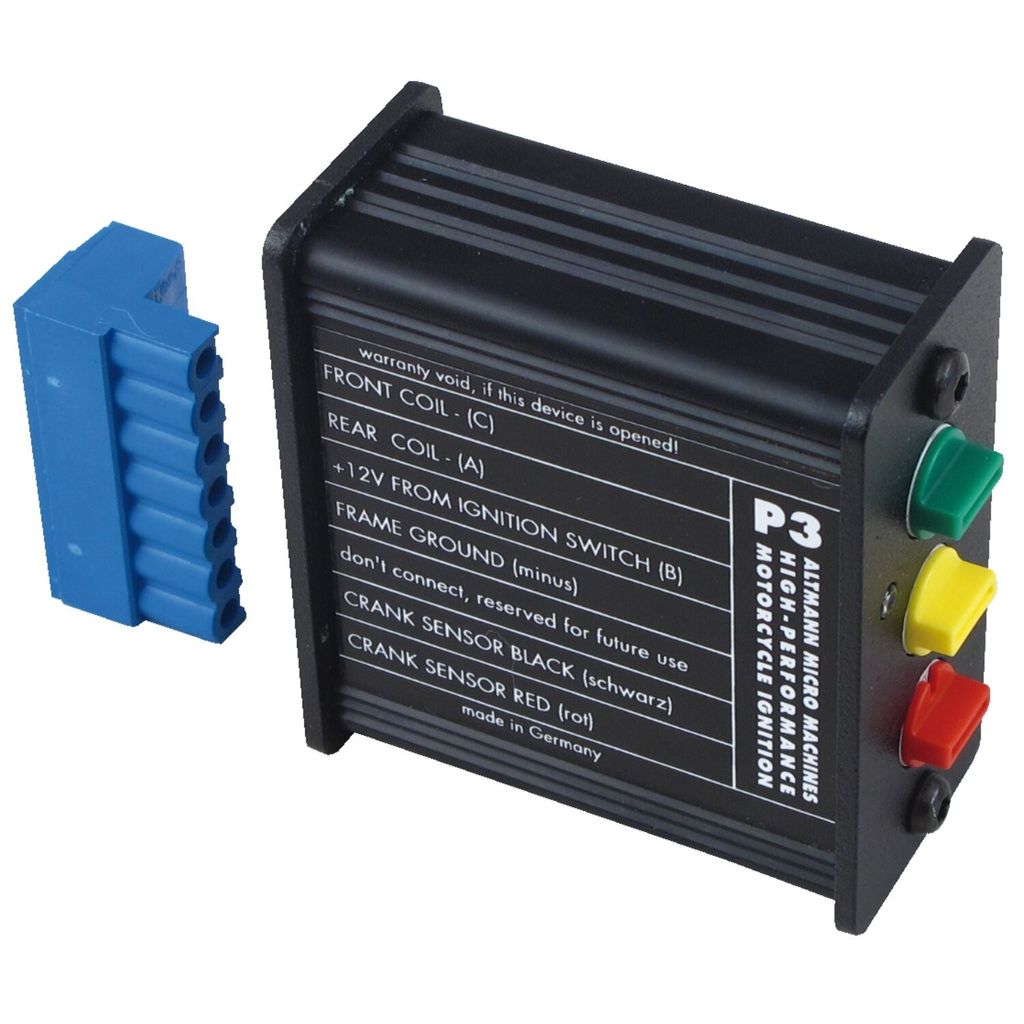

- Compatible with stock crank sensor & coil
- Three control knobs allow 4 settings for each range; maximum advance, advance curves and rev-limiter in 5750, 6000, 6250 and 6500 RPM
- On stock motorcycles the ECU unit does not need to be removed, this way the ignition will work with the stock immobilizer and the ECU will only control the stock electronic speedo
- On CAN-bus (HD-LAN) models the kill switch and tachometer (RPM) will not work
- Will also work on fuel injected Evo models and 08-10 Buell XB (which have a crank sensors)
- Used on H-D engines to install an advanced, fully adjustable and dependable ignition system
- Super simple to set-up, easier than a points ignition!
- Perfect for any stock to performance application and absolutely brilliant to get an engine running when converting from injection to carburetor
- Adjustments can be done with engine off or running
- Custom bikes require nothing else than the Atmann ignition, and the bike will run
- No computer required
- Suitable to provide best timing for maximum power for all engine capacities and tuning levels, including stock
- Perfect idle at 900RPM or even at 350RPM, what ever your preference
- Complete with instruction manual
- Dimensions are 6x7x3cm, smaller than a pack of cigarettes
Fits: All 99-17 Twin Cam; 04-22 XL Sportster. With carburetor or carburetor conversion (NU)
