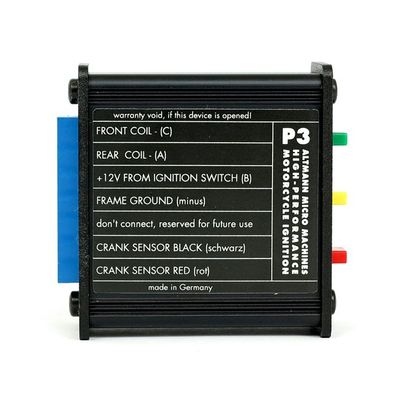

Tändmodul Altmann AMM-P3M8 enkel carbureted M8 engines 17-26

6 700 kr

Altmann AMM-P3M8 single fire tändmodul
Läs mer

569449 Altmann
  • Fullt justerbar och driftsäker tändmodul för H-D-motorer
  • Kompatibel med original vevaxelsensor och tändspole
  • Ej kompatibel med original kabelhärva

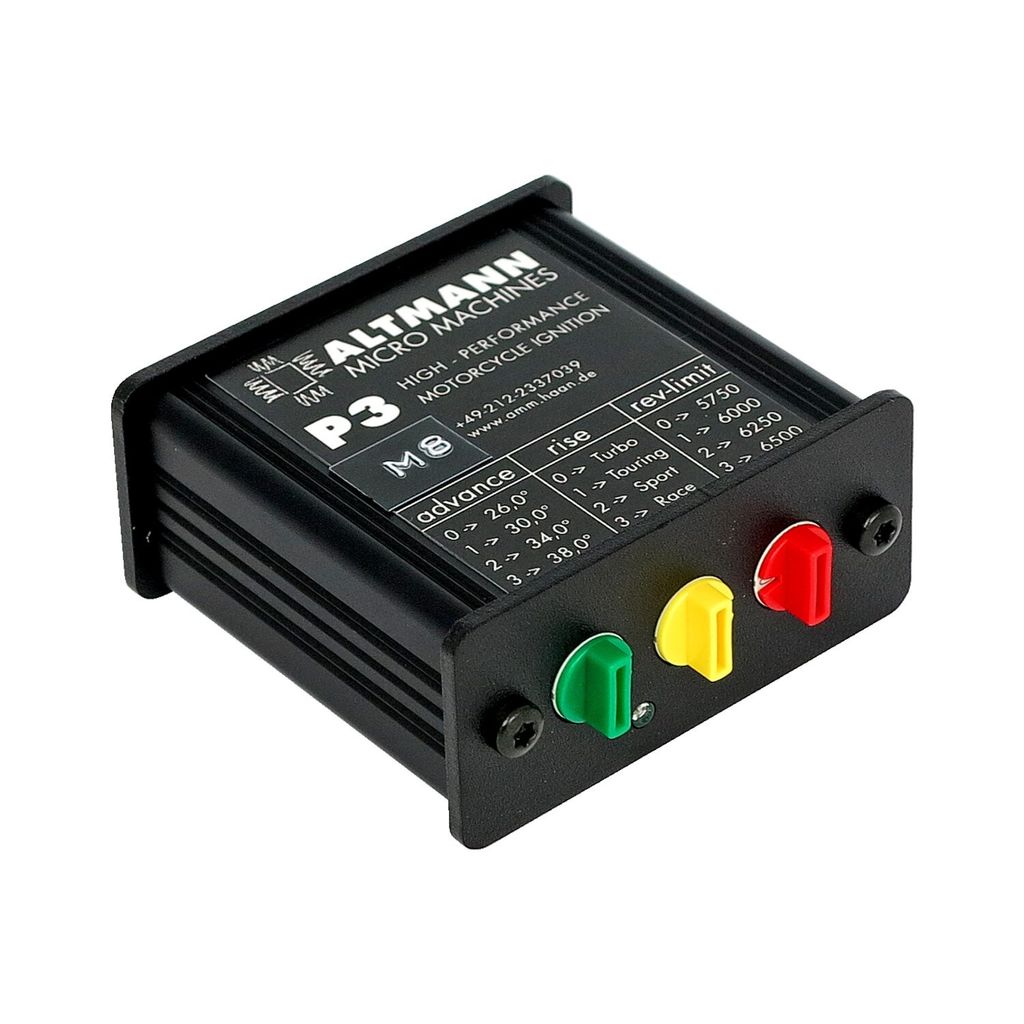

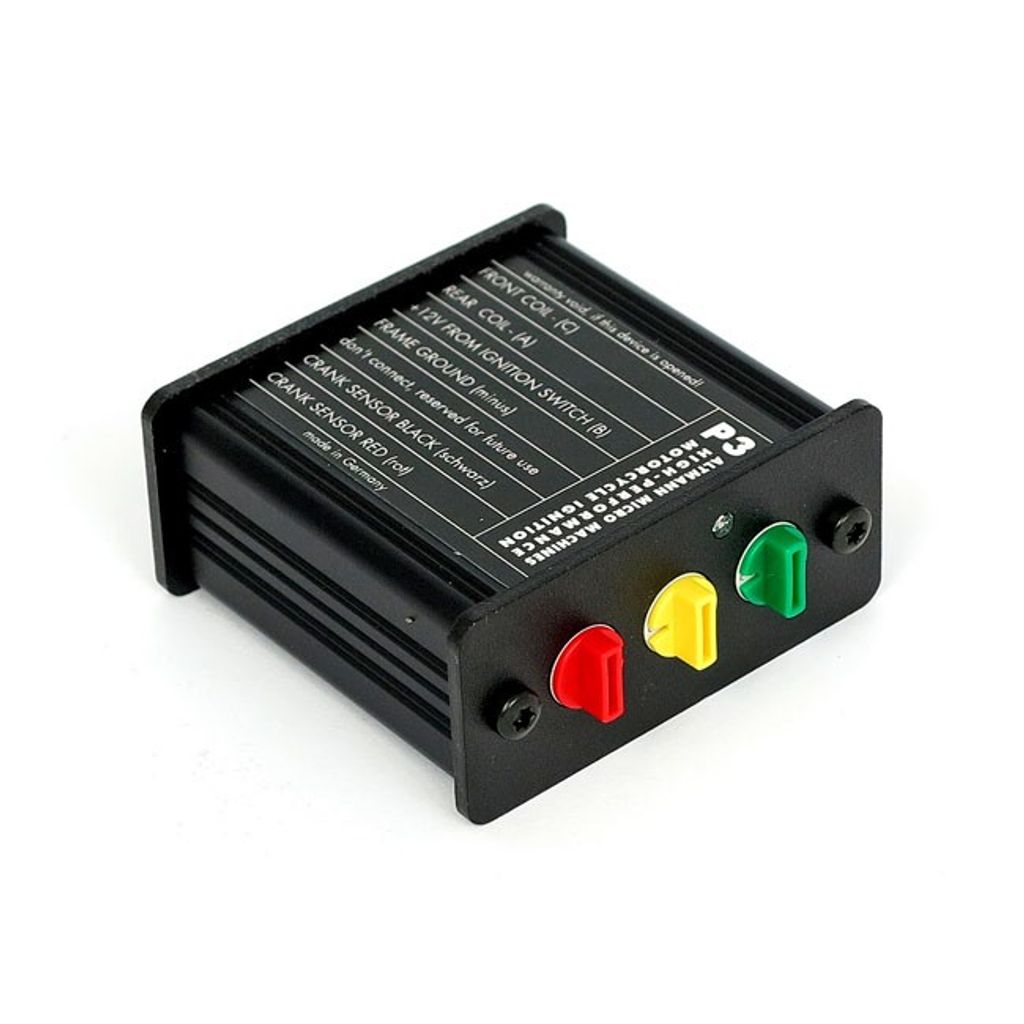

  • Tre vred ger 4 inställningar för max förställning, tändkurvor och varvtalsstopp (5750, 6000, 6250 och 6500 RPM)
  • Justeringar kan göras med motorn avstängd eller igång, helt utan dator
  • Ger stabil tomgång vid 900 RPM eller ända ner till 350 RPM
  • Mått: 6x7x3 cm
  • Bruksanvisning medföljer

Perfekt vid konvertering från insprutning till förgasare samt för alla trimningsgrader från original och uppåt. Mikuni HSR-förgasare ger ett mycket trångt montage mellan M8-toppar och Keihin-förgasare passar inte. Insug är tillverkade av förstärkt polyamid och kräver lämpligt stöd.

Passar: Carbureted M8 engines 17-26

Kategori Ignition modules
Produkt-typ Ignition modules

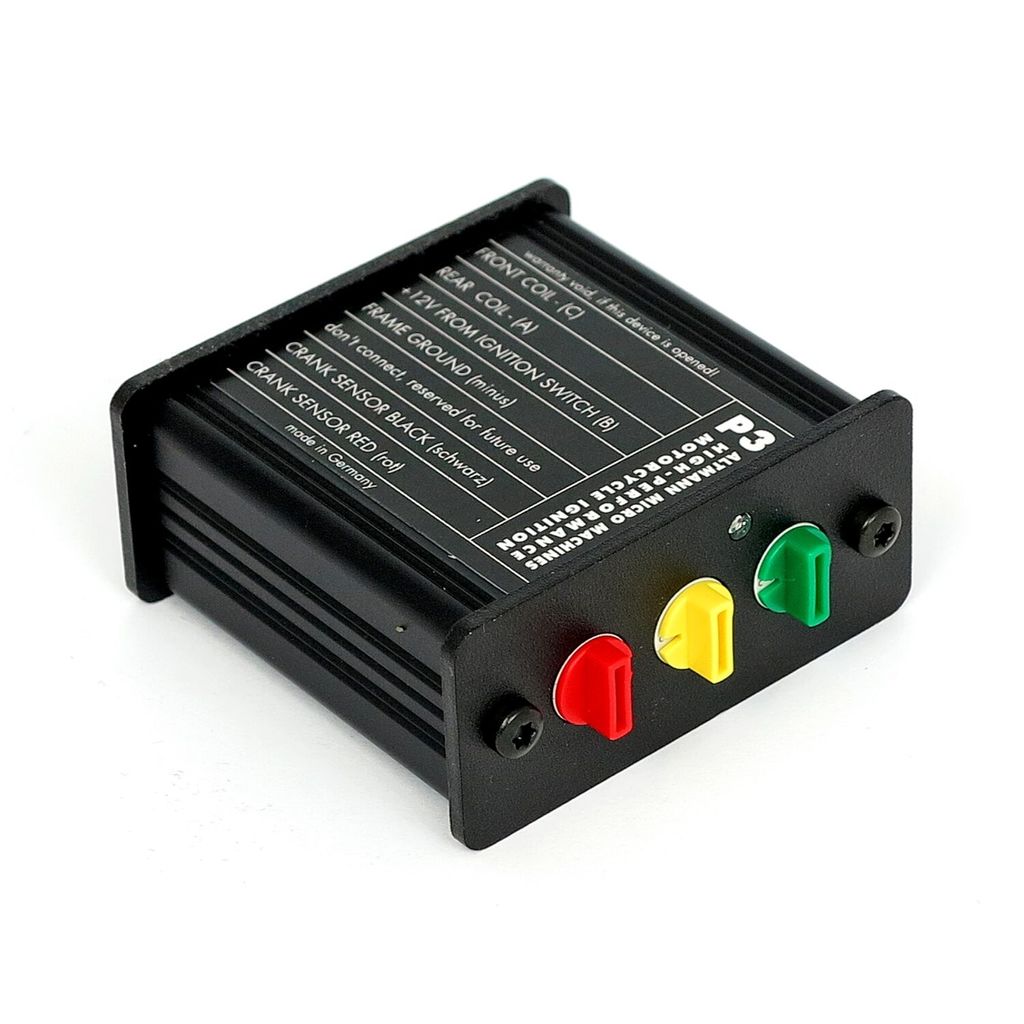

AMM-P3M8 single fire ignition module

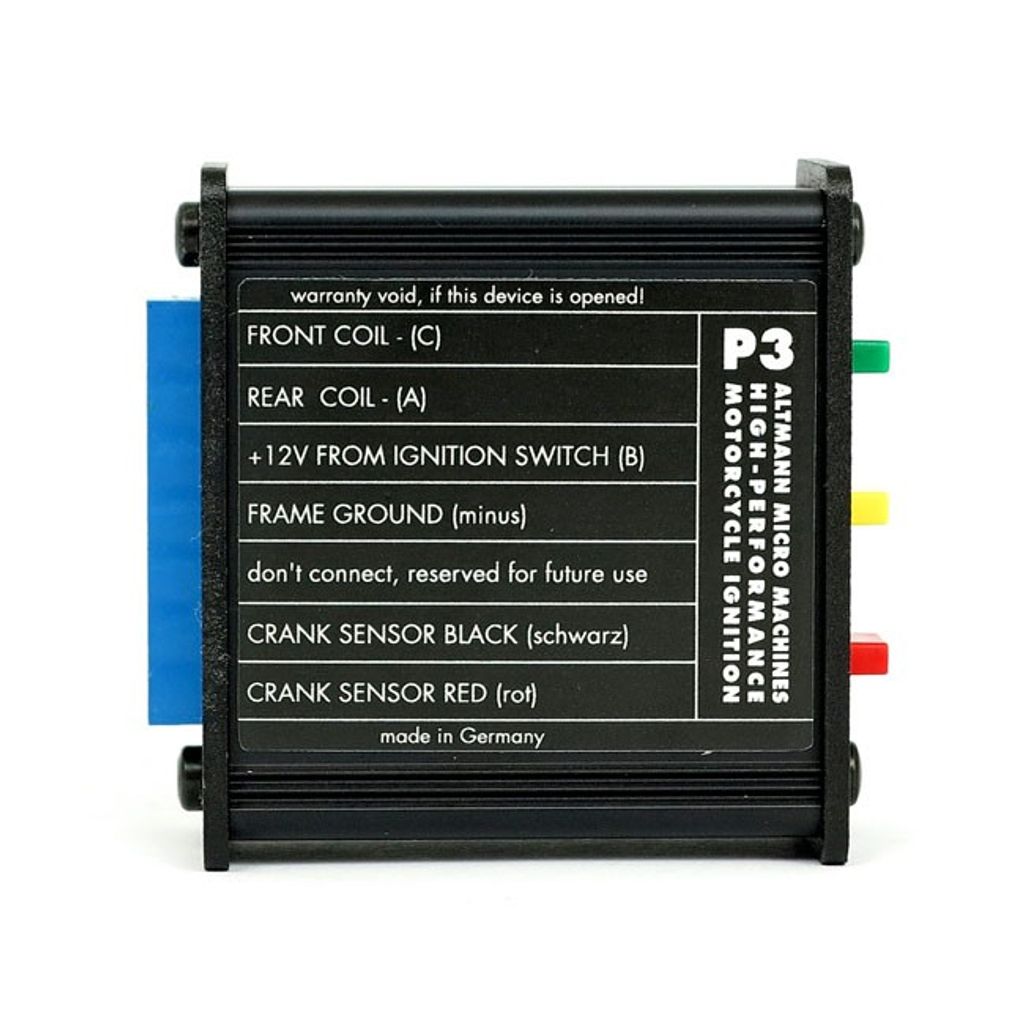

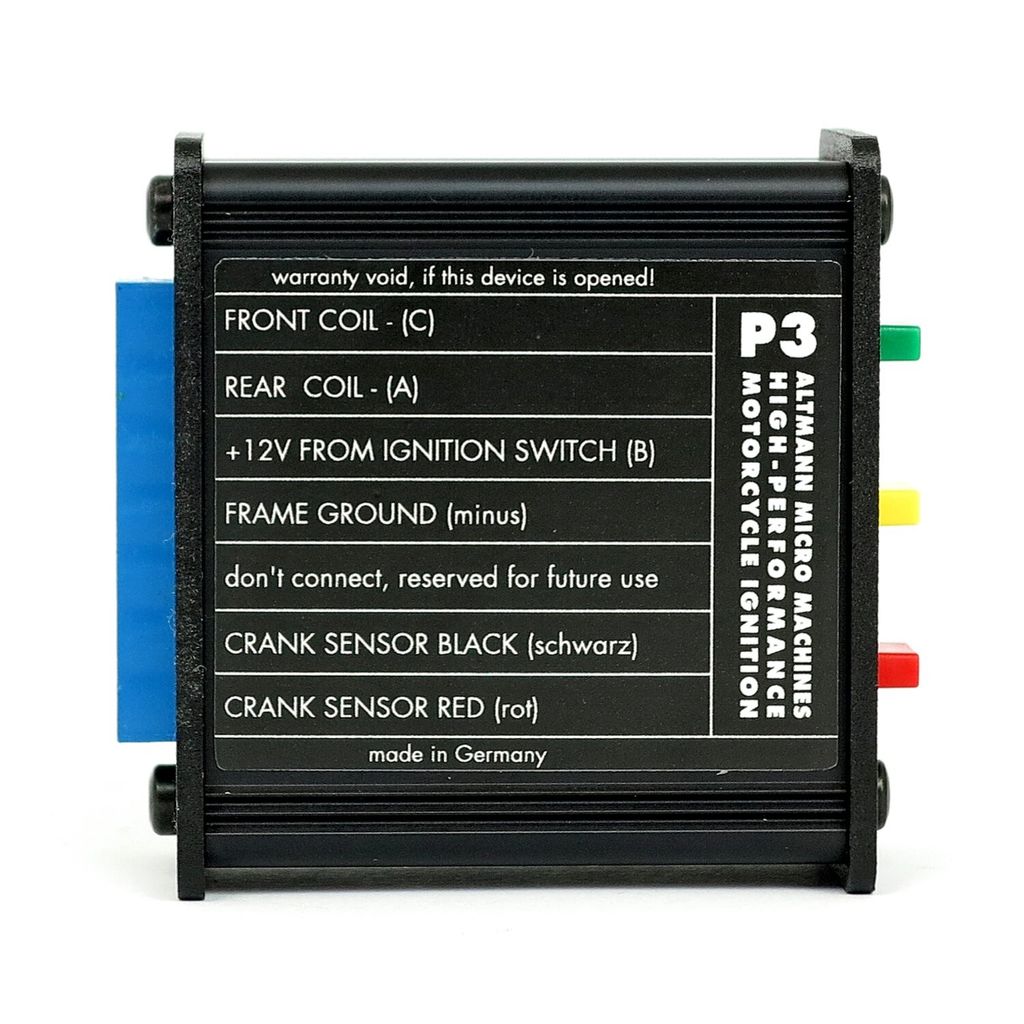

  • Compatible with stock crank sensor & coil

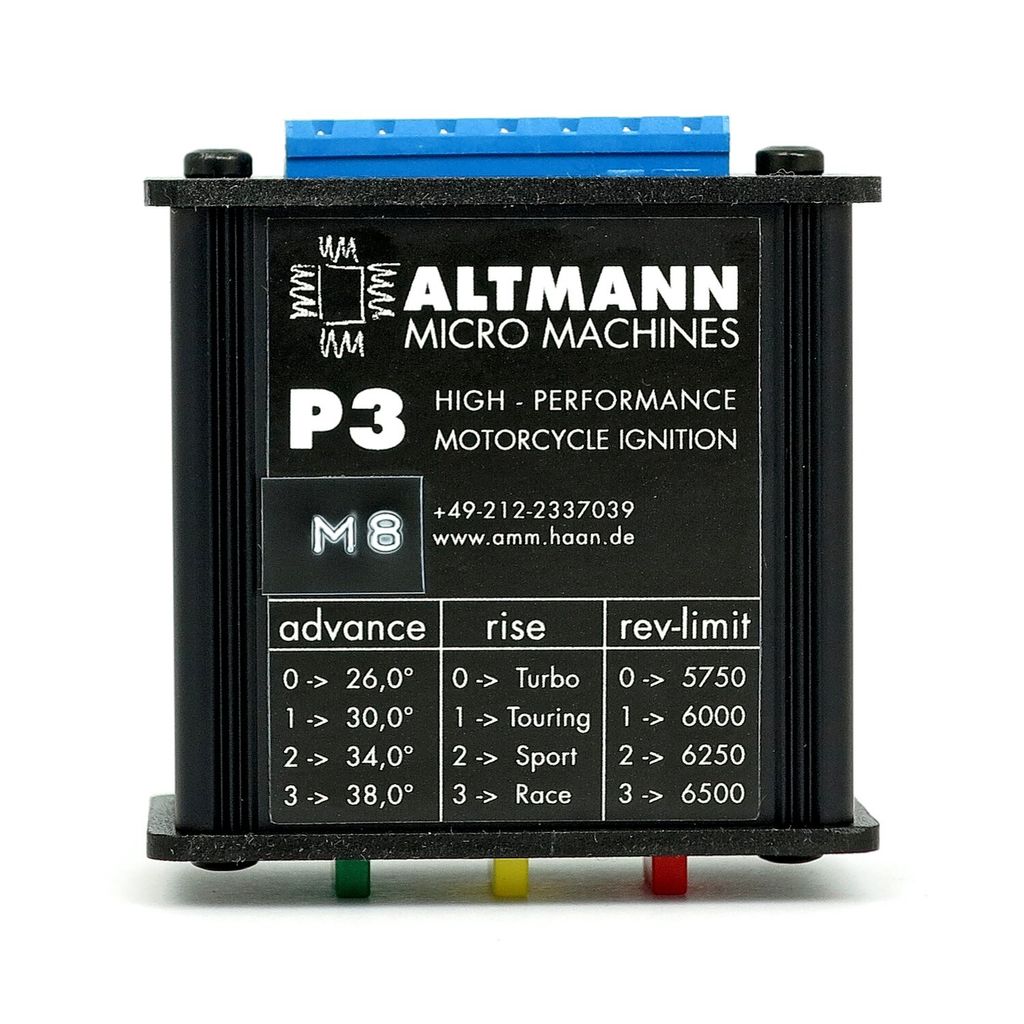

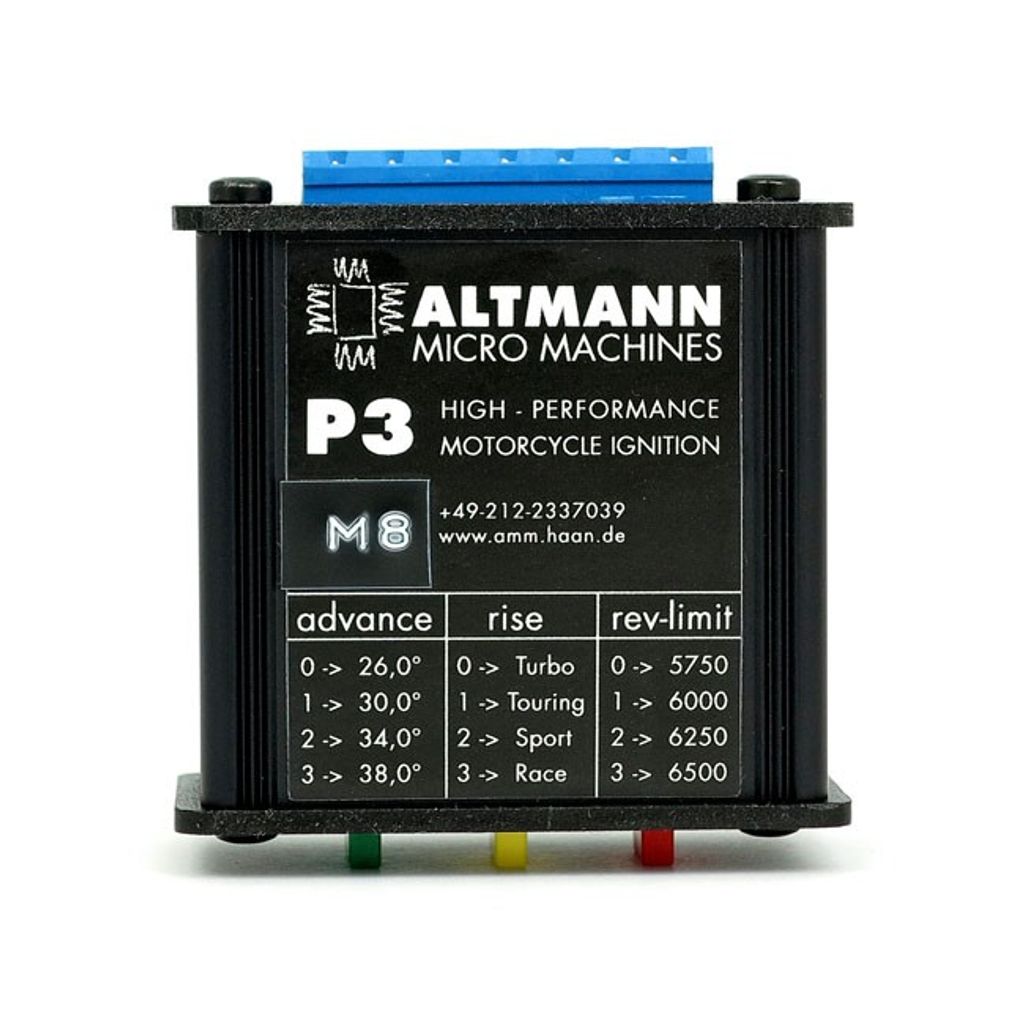

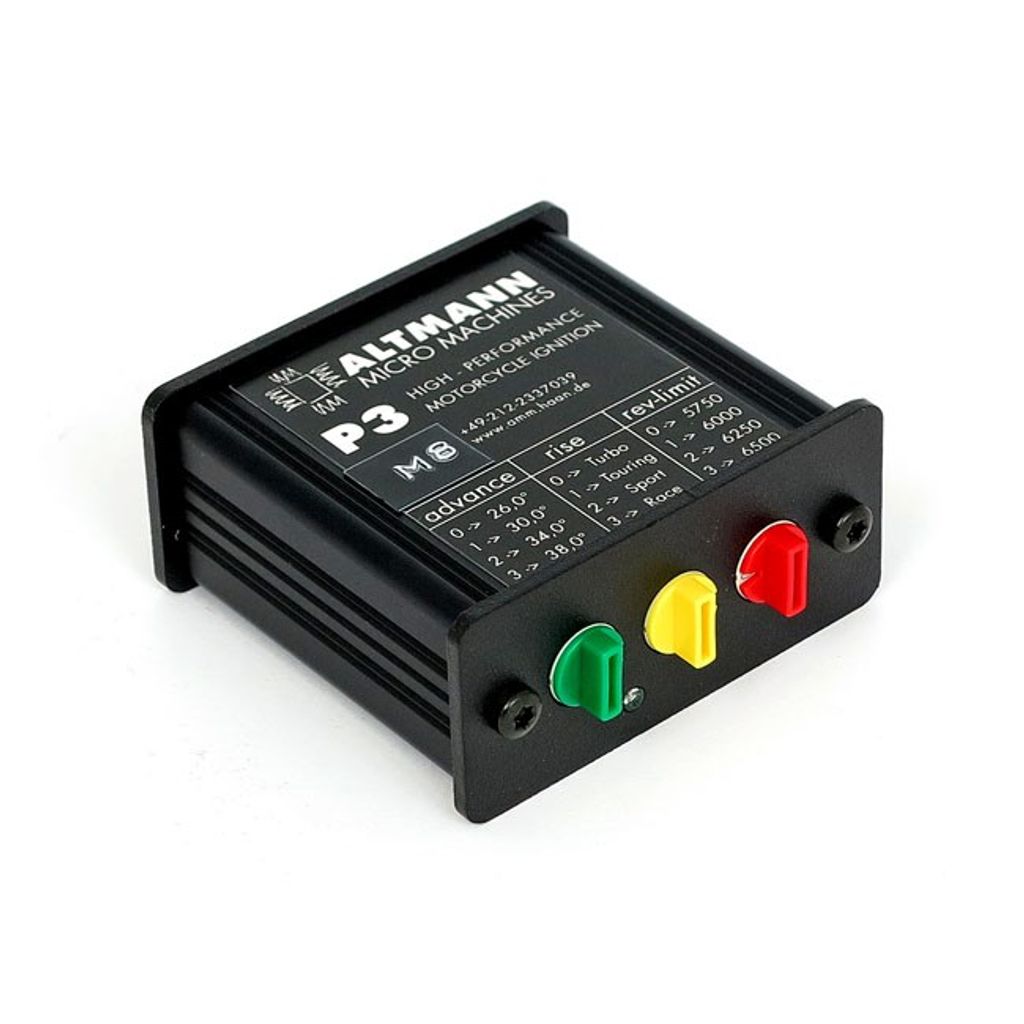

  • Three control knobs allow 4 settings for each range; maximum advance, advance curves and rev-limiter in 5750, 6000, 6250 and 6500 RPM
  • Not compatible with stock wiring harness
  • Used on H-D engines to install an advanced, fully adjustable and dependable ignition system
  • Super simple to set-up, easier than a points ignition!
  • Perfect for any stock to performance application and absolutely brilliant to get an engine running when converting from injection to carburetor
  • Adjustments can be done with engine off or running
  • Custom bikes require nothing else than the Atmann ignition, and the bike will run
  • No computer required
  • Suitable to provide best timing for maximum power for all engine capacities and tuning levels, including stock
  • Perfect idle at 900RPM or even at 350RPM, what ever your preference
  • Complete with instruction manual
  • Dimensions are 6x7x3cm, smaller than a pack of cigarettes
  • Note: Mikuni HSR carbs are a very tight fit between M8 heads, Keihin carbs will not fit
  • Note: Manifolds are made from reinforced polyamide and require adequate support

Fits: 17-26 carbureted M8 engines
