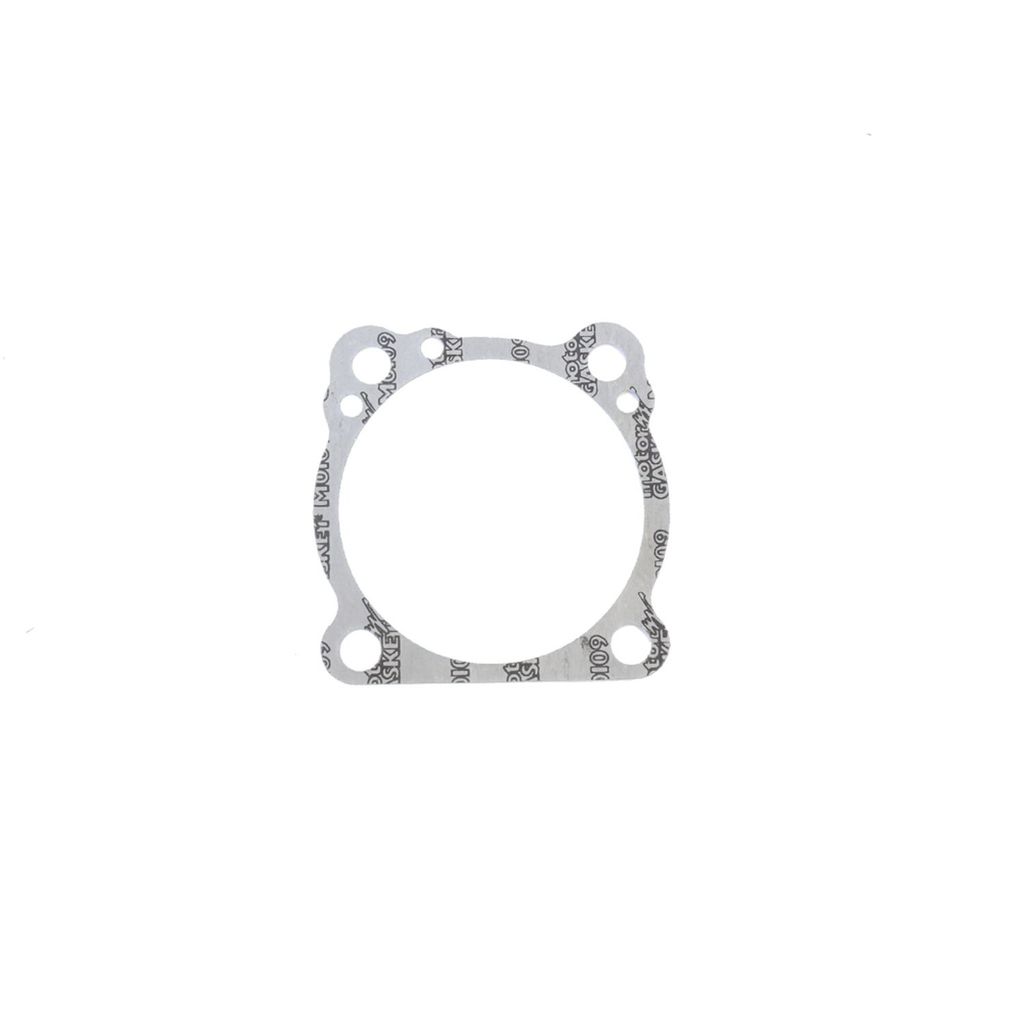

Cylinderfotspackning Athena S410195006001 .020" fram/bak Evo Big Twin 84-99

30 kr

Cylinderfotspackning i förstärkt fiber för främre eller bakre cylinder
Läs mer

  • Säljs styckvis – bilden kan visa flera, priset gäller 1 st
980855 Athena
  • Passar 3" till 3-1/2" cylinderborrning
  • För främre eller bakre cylinder
  • Tjocklek: 0,5 mm (.020"), standardtjocklek
  • Tillverkad i asbestfritt MotorGasket M0109 (mineralfiber, aramidfiber och NBR-gummi)
  • Typ B-utförande
  • Utmärkt tätningsförmåga för gaser och vätskor vid måttligt tryck

Typ B är den senare modellen av packning med samma innerdiameter, oljehål och pinnbulthål som typ A, men med en anpassad ytterkontur.

Passar: Evo Big Twin 84-99

OEM-nr: 16774-86A, 16774-86B

Cylinder base gasket. FR/RR .020"

  • 3" to 3-1/2" bore
  • Front/rear
  • 0.5mm (.020") reinforced fiber
  • Type 'B'
  • Standard thickness
  • This gasket is made of MotorGasket M0109, a material developed and produced by Athena
  • MotorGasket M0109 is a high-quality asbestos-free gasket material, consisting of a blend of mineral fibers, aramid fibers, and NBR rubber
  • It exhibits excellent sealing capabilities with gases and fluids, along with adaptability features, making it suitable for use under moderate pressures
  • OEM replacement reference 16774-86A
  • Note: Type 'A' and 'B' Evolution base gaskets explained
  • There are 2 types of cylinder base gaskets for Evolution models available
  • For convenience sake we call them 'type A' (early style) and 'type B' (late style)
  • Type A' gasket: Was introduced on the 1984 Evolution Big Twin models, and can be used on all of the 84-99 1340cc Evo models and will follow the contours of the cylinder base perfectly
  • They will fit 86-22 Evo XL, but stick out at the cylinder base
  • This can be a problem with silicone beaded base gaskets
  • The 'type B' is the only gasket type that 'The Factory' supplied from 1986 onwards for both Evo Big Twin and Evo XL Sportster models
  • Both type 'A' and type 'B' have identical inner bore diameter, oil hole and stud hole locations
  • Only difference between the 'A' & 'B' gaskets is the outside perimeter

Fits: 84-99 Evo Big Twin; 86-22 XL Sportster (Excl. 08-12 XR1200) (NU)
