Cylinderfotspackning Athena S410195006011 RCS .015" fram/bak Evo Big Twin 84-99

70 kr

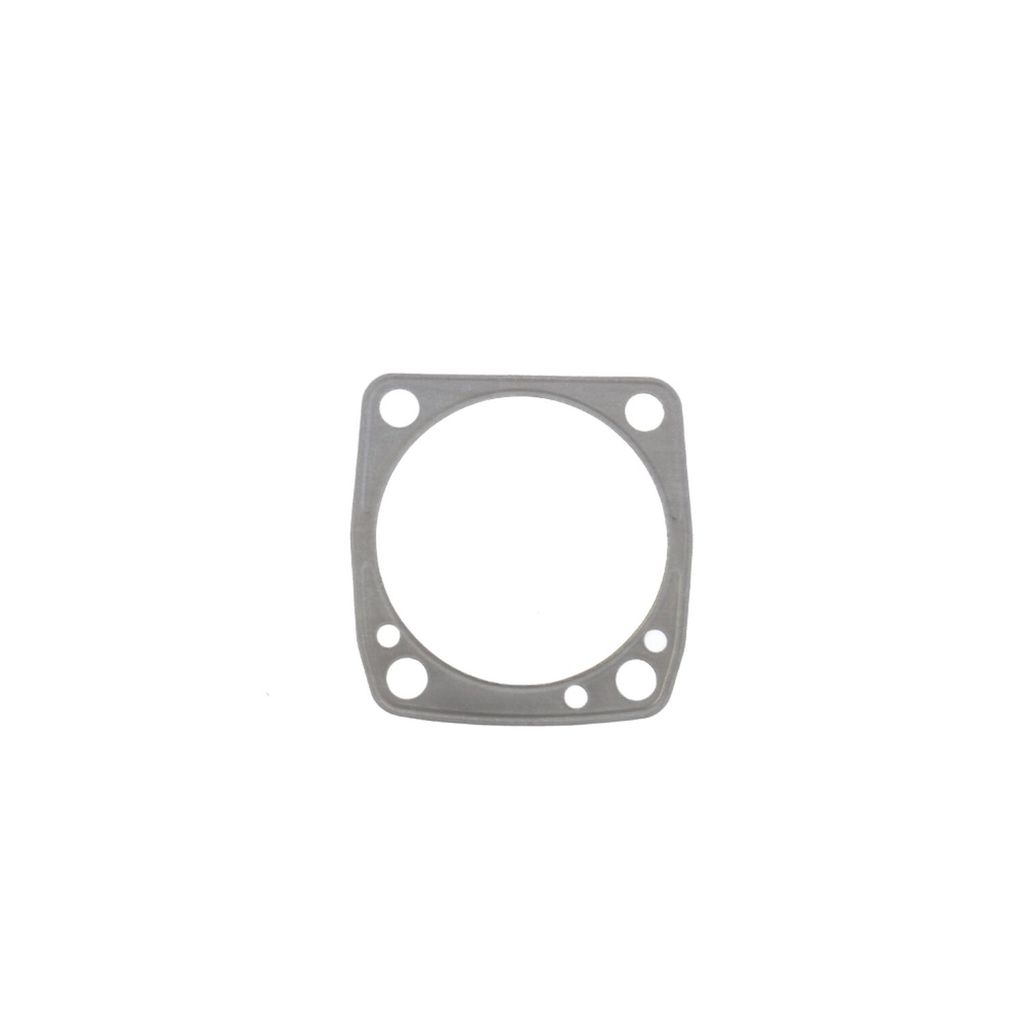

Athena cylinderfotspackning i gummerat stål, .015" (0,4 mm)
Läs mer

  • Säljs styckvis – bilden kan visa flera, priset gäller 1 st
980865 Athena
  • Cylinderfotspackning för främre eller bakre cylinder
  • Passar 3-1/2" borrning
  • Tjocklek: 0,4 mm (.015")
  • Tillverkad i RCS (Rubber Coated Steel)
  • Präglad stålkärna med en .001" tjock beläggning av värmebeständigt nitrilgummi på båda sidor
  • Typ A (tidigt utförande)

Typ A följer cylinderns bas perfekt på 84-99 1340cc Big Twin. Passar även 86-22 Evo XL, men sticker då ut något vid cylinderns ytterkant eftersom yttermåttet skiljer sig mot typ B.

Passar: Evo Big Twin 84-99

OEM-nr: 16774-86C, 16774-86D, 16789-04

Cylinder base gasket. FR/RR .015" RCS

  • 3-1/2" bore
  • Front/rear
  • Type 'A'
  • 0.4mm (.015)" RCS (Rubber Coated Steel)
  • Gasket with an embossed steel core with a .001" thick coating of heat resistant nitrile rubber on both sides
  • OEM replacement reference 16774-86C, 16774-86D, 16789-04
  • Note: Type 'A' and 'B' Evolution base gaskets explained
  • There are 2 types of cylinder base gaskets for Evolution models available
  • For convenience sake we call them 'type A' (early style) and 'type B' (late style)
  • Type A' gasket: Was introduced on the 1984 Evolution Big Twin models, and can be used on all of the 84-99 1340cc Evo models and will follow the contours of the cylinder base perfectly
  • They will fit 86-22 Evo XL, but stick out at the cylinder base
  • This can be a problem with silicone beaded base gaskets
  • The 'type B' is the only gasket type that 'The Factory' supplied from 1986 onwards for both Evo Big Twin and Evo XL Sportster models
  • Both type 'A' and type 'B' have identical inner bore diameter, oil hole and stud hole locations
  • Only difference between the 'A' & 'B' gaskets is the outside perimeter

Fits: 84-99 Evo Big Twin (NU)
