Framgaffel Drag Specialties krom H-D 84-14 MU35212

9 610 kr

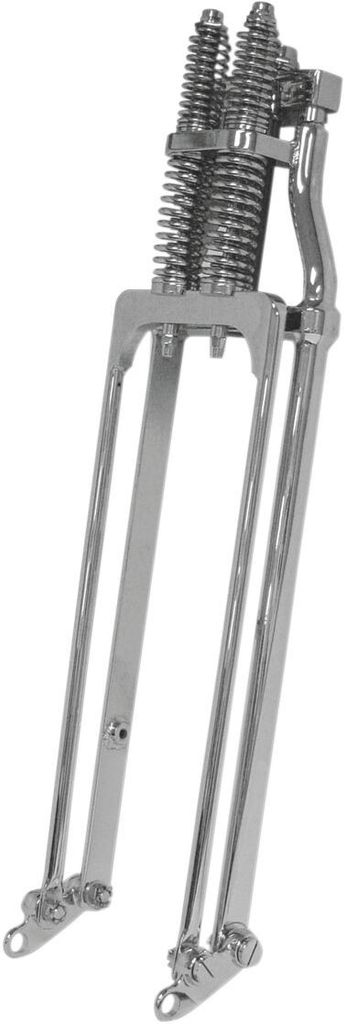

Custom Springer framgaffel
Läs mer

04010074 Drag Specialties
  • Ekonomiskt alternativ till stötdämparförsedda Springer-gafflar
  • Helt monterad med rak övre gaffelkrona (in-line) utan inbyggd rake
  • Standardlängd (31" mätt från övre lagret till hjulaxeln) motsvarar en FXST-framdel i standardlängd
  • Mäts från undersidan av den övre gaffelkronan till mitten av hjulaxeln
  • 1" ytterdiameter på styrstam, utformad för Timken-lager
  • Båda bakre benen är gängade för höger- eller vänsterbroms
  • Satsen innehåller 3/4" hjulaxel med bromsfästesled, tryckbricka och navdistanser
  • Mått mellan rockers är 9-1/4", risers-fästen med 4-3/4" c/c och 1/2"-20 gänga

Kräver ett hjul som är kompatibelt med 3/4" hjulaxel (anpassade distanser kan krävas beroende på hjul). Passar inte europeiska modeller. Kan inte användas med extraljusfästen och saknar skärmfästen.

Passar: H-D 84-14

Färg Chrome
Produkt-typ Fork Assembly
Storlek Standard
Tillverkarens Art. Nr. MU35212

Custom Springer Forks

  • Economical alternative to a shock dampened-type Springer
  • Fully assembled with an in-line top bracket without a built-in rake
  • The standard length Springer (31" measured from top bearing to the axle) is comparable to a standard-length FXST front end
  • 1" O.D. steering stem designed for Timken type bearings
  • Both rear legs are threaded for right or left brakes
  • The 3/4" O.D. axle kit includes a brake mount pivot with thrust washer and hub spacers (custom spacers may be required depending on the wheel used)
  • Measures 9-1/4" between Rockers
  • Riser mounts are on 4-3/4" centers and threaded 1/2"-20
  • Requires wheel compatible with 3/4" O.D. axle
  • These Springers are measured from the bottom of the top tree to the center of the axle
  • Springers do not accept spotlight bars; no fender mounts.

These spring forks will not fit European models. The standard length Springer (31" measured from top bearing to the axle) is comparable to a standard-length FXST front end.
