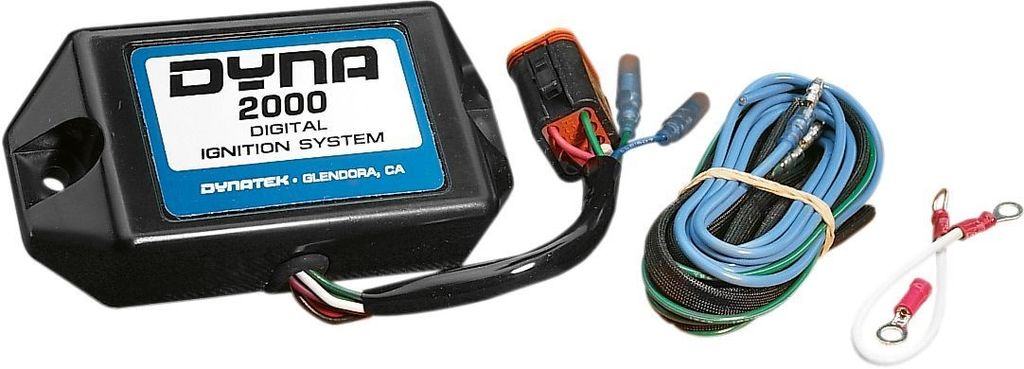

Tändmodul Dynatek 2000 HDE PC-Programmable Dual-fire H-D 90-98

3 680 kr

Dynatek 2000-HDE PC-programmerbar digital tändmodul
Läs mer

21010044 Dynatek
  • Mikrodatorstyrd tändmodul med plug-in-anslutning till originalkablage med 7-polig kontakt
  • Fyra inbyggda tändkurvor för allt från original till kraftigt modifierade motorer
  • Fyra valbara varvtalsstopp från 6000 till 7500 rpm
  • PC-programmerbar för kurvor vid full- och delgas, varvstopp, startvarv och offset för bakre cylinder
  • Separat varvräknarutgång för stabil funktion vid varvtalsbegränsning och single-fire
  • Diagnostisk LED-indikator på baksidan för felsökning och statisk tändinställning
  • Monteras på originalplatsen och är tillverkad i USA

Endast för användning med dubbeltändning (dual-fire). Passar inte modeller med bränsleinsprutning och HDE-system är ej kompatibla med Dyna "S"-system. Kräver avstörda tändkablar av kolfibertyp (eller Harley-Davidson original) – använd inte kopparkablar då dessa kan orsaka störningar.

Passar: H-D 90-98

Produkt-typ Module
Tillverkarens Art. Nr. DD2000-HD2EP

2000-HDE PC-Programmable Digital Ignition Module

  • A plug-in upgrade to the electronic advance ignition found on late model Harleys, these ignitions are micro-computer controlled, generating extremely accurate control over the entire ignition process
  • Allow riders to tailor the advance curve and rev limiter to the specific needs of their particular engine; four built-in advance curves cover the needs of stock to highly modified engines over a variety of operating conditions; four independent rev limiter choices from 6000 to 7500 rpm set the exact protection level needed
  • PC programmability allows you to define a wide-open and part-throttle curve, rev limits, dead-cranking revs and rear cylinder offset
  • A separate tach output wire allows clean tach operation during rev limiting and when in single-fire mode
  • A diagnostic LED indicator is included on the back of the control module to assist trouble shooting and static timing
  • Made in the USA
  • IMPORTANT: On any electronic advance ignition such as the Dyna 2000-HD1 or the stock Harley ignition, you must use carbon fiber-type suppression spark plug wires to reduce radio frequency interference. Use of copper wires may cause malfunction of the ignition due to severe electrical noise generated at the spark plugs. The original wire supplied by Harley-Davidson should be okay.
  • Not for fuel-injected models.
  • HDE systems are not compatible with Dyna "S" systems. Use HD1/HD2 systems only.

For use with a dual-fire ignition only; it simply plugs right into your 7-pin stock harness and mounts right in the original ignition mounting area.
