Tändmodul Dynatek 2000 HDE PC-Programmable Single/dual-fire H-D 94-03

3 680 kr

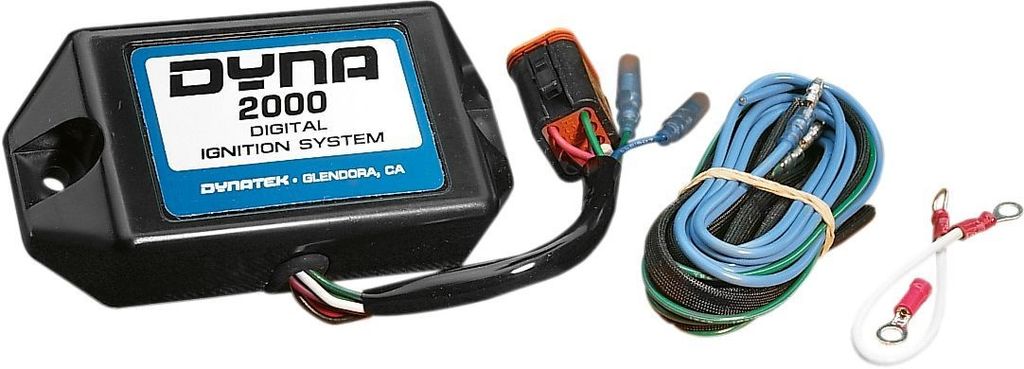

Dynatek 2000-HDE PC-programmerbar digital tändmodul
Läs mer

21010045 Dynatek
  • Plug-in-uppgradering som monteras externt med 8-polig Deutsch-kontakt
  • Mikrodatorstyrd tändning för både single-fire och dual-fire
  • 4 förinställda tändkurvor och 4 varvtalssteg från 6000 till 7500 rpm
  • Snabbkurva som simulerar en mekanisk tändförställare för trimmade motorer
  • PC-programmering för kurvor vid full- och delgas, varvstopp, startvarv och bakre cylinder-offset
  • Möjlighet till vakuumkompensering via VOES samt tändretardering med 5°, 7° eller 10°
  • Separat utgång för varvräknare och diagnostisk LED-indikator på baksidan
  • Tillverkad i USA

Passar inte modeller med bränsleinsprutning. HDE-system är ej kompatibelt med Dyna S-system (använd endast HD1/HD2-system). Tändkablar av kolfibertyp måste användas för radioavstörning, tändkablar i koppar får inte användas då störningar vid tändstift kan orsaka fel i tändningen (originalkablar från Harley-Davidson fungerar normalt).

Passar: Softail 96-99

Produkt-typ Module
Tillverkarens Art. Nr. DD2000-HD1E8P
  • 21010045_DD2000-HD1E8P.pdf
    218.59 KB
    Hämta

2000-HDE PC-Programmable Digital Ignition Module

  • A plug-in upgrade to the electronic advance ignition found on late model Harleys, these ignitions are micro-computer controlled, generating extremely accurate control over the entire ignition process
  • Allow riders to tailor the advance curve and rev limiter to the specific needs of their particular engine; four built-in advance curves cover the needs of stock to highly modified engines over a variety of operating conditions; four independent rev limiter choices from 6000 to 7500 rpm set the exact protection level needed
  • PC programmability allows you to define a wide-open and part-throttle curve, rev limits, dead-cranking revs and rear cylinder offset
  • A separate tach output wire allows clean tach operation during rev limiting and when in single-fire mode
  • A diagnostic LED indicator is included on the back of the control module to assist trouble shooting and static timing
  • Made in the USA
  • IMPORTANT: On any electronic advance ignition such as the Dyna 2000-HD1 or the stock Harley ignition, you must use carbon fiber-type suppression spark plug wires to reduce radio frequency interference. Use of copper wires may cause malfunction of the ignition due to severe electrical noise generated at the spark plugs. The original wire supplied by Harley-Davidson should be okay.
  • Not for fuel-injected models.
  • HDE systems are not compatible with Dyna "S" systems. Use HD1/HD2 systems only.
  • 8-pin Deutsch connector
  • Used in combination with the OEM HD ignition system
  • The system must mount externally and lets you control advance curves by using 4 preset modes and the R.P.M. limiter lets you choose from 4 R.P.M. limits from 6000 to 7500

Comes with 8-pin connectors; operates in single-fire or dual-fire modes Offer a quick curve which simulates a mechanical advancer for hot rod motors; option to use vacuum advance compensation via a VOES switch and retard mode, which allows selection of ignition retard of 5°, 7° or 10° upon activation of a retard input

Fits: 96-99 Softail; 96-98 Dyna; 94-98 FLT/Touring; 94-97 XL Sportster (NU)
