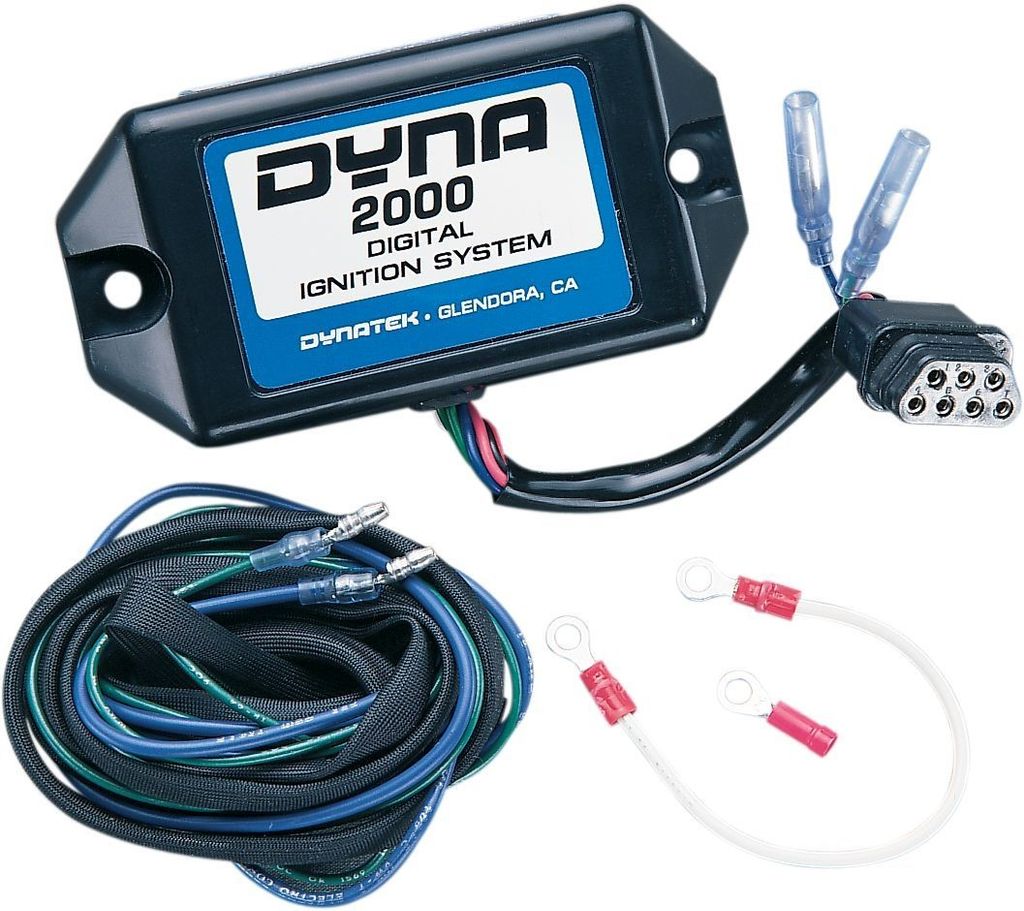

Tändmodul Dynatek 2000 HDE PC-Programmable Single/dual-fire H-D 90-98
Dynatek 2000-HDE PC-programmerbar digital tändmodul
Läs mer
- Mikrodatorstyrd tändmodul som kopplas in som uppgradering till originalsystemet
- Fyra inbyggda tändkurvor för allt från original till kraftigt modifierade motorer
- Fyra valbara varvtalstak från 6000 till 7500 rpm
- PC-programmering för kurvor vid full- och delgas, varvtalsstopp, startvevning och bakre cylinderns offset
- Kan användas med en tändspole (dual fire) eller två tändspolar (single-fire)
- Separat varvräknarutgång för stabil visning även vid varvtalsbegränsning och i single-fire-läge
- Diagnostisk LED-indikator på modulens baksida för felsökning och statisk tändinställning
- Levereras med 7-stiftskontakt och monteras externt, tillverkad i USA
Passar inte modeller med bränsleinsprutning. HDE-system är ej kompatibla med Dyna "S"-system. Tändkablar av kolfibertyp måste användas för radioavstörning, tändkablar i koppar får ej användas. Se kabeladapter 915688 för användning på 84-90 H-D-modeller.
Passar: Softail, Dyna, FXR 91-95
| Tillverkarens Art. Nr. | DD2000-HD1EP |
| Produkt-typ | Module |
-
Hämta21010043_DD2000-HD1EP.pdf218.59 KB
2000-HDE PC-Programmable Digital Ignition Module
- A plug-in upgrade to the electronic advance ignition found on late model Harleys, these ignitions are micro-computer controlled, generating extremely accurate control over the entire ignition process
- Allow riders to tailor the advance curve and rev limiter to the specific needs of their particular engine; four built-in advance curves cover the needs of stock to highly modified engines over a variety of operating conditions; four independent rev limiter choices from 6000 to 7500 rpm set the exact protection level needed
- PC programmability allows you to define a wide-open and part-throttle curve, rev limits, dead-cranking revs and rear cylinder offset
- A separate tach output wire allows clean tach operation during rev limiting and when in single-fire mode
- A diagnostic LED indicator is included on the back of the control module to assist trouble shooting and static timing
- Made in the USA
- IMPORTANT: On any electronic advance ignition such as the Dyna 2000-HD1 or the stock Harley ignition, you must use carbon fiber-type suppression spark plug wires to reduce radio frequency interference. Use of copper wires may cause malfunction of the ignition due to severe electrical noise generated at the spark plugs. The original wire supplied by Harley-Davidson should be okay.
- Not for fuel-injected models.
- HDE systems are not compatible with Dyna "S" systems. Use HD1/HD2 systems only.
- Used in combination with the OEM HD ignition system
- The system must mount externally and lets you control advance curves by using 4 preset modes and the R.P.M. limiter lets you choose from 4 R.P.M. limits from 6000 to 7500
- Note: See 915688 wiring adapter harness for use on 84-90 H-D models
Comes with a 7-pin connector; can be used with either one ignition coil firing both cylinders (dual fire), or with two ignition coils, one firing each cylinder (single-fire); no other ignition offers this flexibility.
Fits: 91-95 Softail, Dyna, FXR; 91-93 FLT/Touring; XL Sportster; 84-89 H-D models in combination with 915688 wiring harness adapter (NU)
