Kamkåpssats Feuling HP+ 543 kedjedrift konvertering med hydrauliska spännare H-D 96-06
Feuling HP+ kamaxelsats för konvertering till hydrauliska kedjespännare
Läs mer
- Uppgraderar äldre mekaniska kamaxlar och spännare till hydrauliskt system
- Ger 25°–35° lägre motortemperatur och 15–30 PSI högre oljetryck
- Motverkar wet-sumping, blow-by och olja i luftfiltret
- Inkluderar Reaper 543-kamaxlar med effektregister mellan 1 900–6 000 rpm
- Satsen innehåller HP+ oljepump med hög volym, High Flow kamplatta och HP+ hydrauliska rull-lyftare
- Innehåller one-piece stötstänger, hydrauliska kedjespännare, kedjor, drev och brickor
- Levereras komplett med Timken kamlager, avgaspackningar, packningar, o-ringar och ARP-fästelement
För '99-'06 Twin Cam (utom '06 Dyna). Ventilfjädrar för prestandabruk krävs på '99-'04-motorer. Svarar bra på ökat kompressionsförhållande, prestandaavgassystem och högflödesluftfilter.
Passar: H-D 96-06
HP+ Chain Drive Conversion Kit with Hydraulic Tensioners
- Update old mechanical style cams and tensioners to hydraulic tensioner system
- 25°-35° cooler engine temperatures
- 25°-35° cooler engine temperatures
- 15-30 more PSI of oil pressure
- Eliminate wet sumping, blow by and oily air cleaners
- Kit includes Feuling HP+ high volume oil pump, High Flow camplate, Reaper series camshafts, HP+ hydraulic roller lifters, quick install adjustable pushrods or one-piece pushrods, Timken bearings, gaskets, o-rings, exhaust gaskets, ARP fasteners, washers moly paste, Loctite, and hardware
- Conversion camshafts for '99-'06 Twin Cam engines utilize the '99-'06 inner cam journals with the '07-'16 outer cam journals allowing the use of '07-'16 camplates, oil pump, hydraulic chain tensioners and chain drive system (includes sprockets, hydraulic tensioners, chains and spacers needed for installation)
- For '99-'06 Twin Cam, except for '06 Dyna.
- Hp+ Camchest Kit
- FOR HYDRAULIC CHAIN TENSIONER CONVERSION UPGRADE FEULING complete camchest kits include all necessary components from top to bottom of the camchest conveniently packaged under 1 part #
- These combination kits not only ensure each individual part is designed to work and function together but to do so in total harmony
- These camchest kits take the guess work out of the ordering process and guarantees the engine builder maximum reliability, peak performance and the coolest engine and oil temperatures obtainable
- Fitments available for '99-'17 Twin Cam engines
- 543 CAMS
- The 'Freeway Flyer', a great camshaft for those who want more top end power than our 525 cam without sacrificing low end torque
- Extremely smooth cam lobe layout maintains quiet valvetrain and produces the smoothest cruise power band available
- Excellent bolt in camshaft for stock to mild 96" and 103" engines and works well in 88" & 95" engines
- This cam is easy starting, increases throttle response and fuel mileage
- Responds well to increased compression ratio, performance exhaust and a high flow air cleaner
- Performance valve springs are required on ’99-’04 engines and performance pushrods and lifters are recommended but not required
- RPM 1,900
- 6,000 Note: Special Order Product only
- To order please contact your MCS sales representative

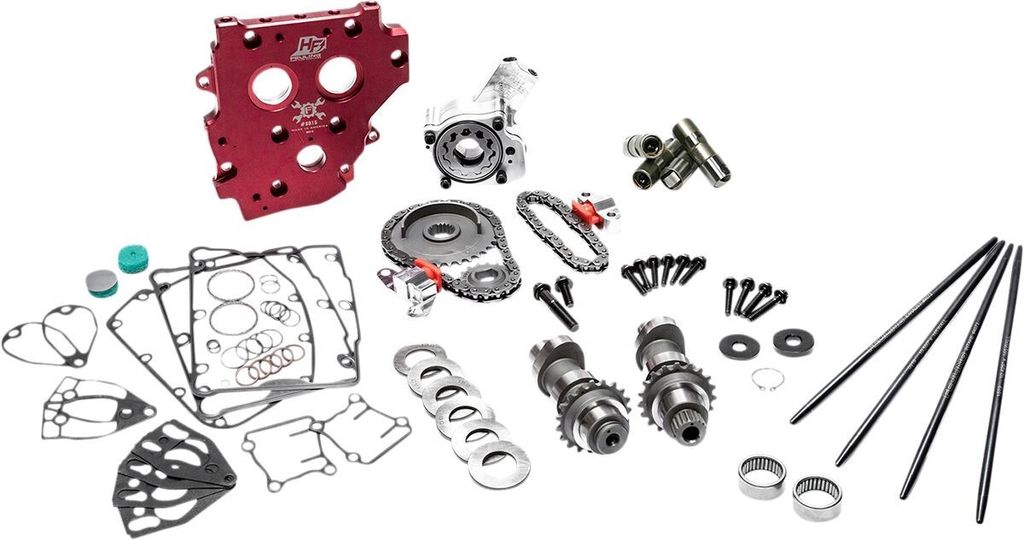

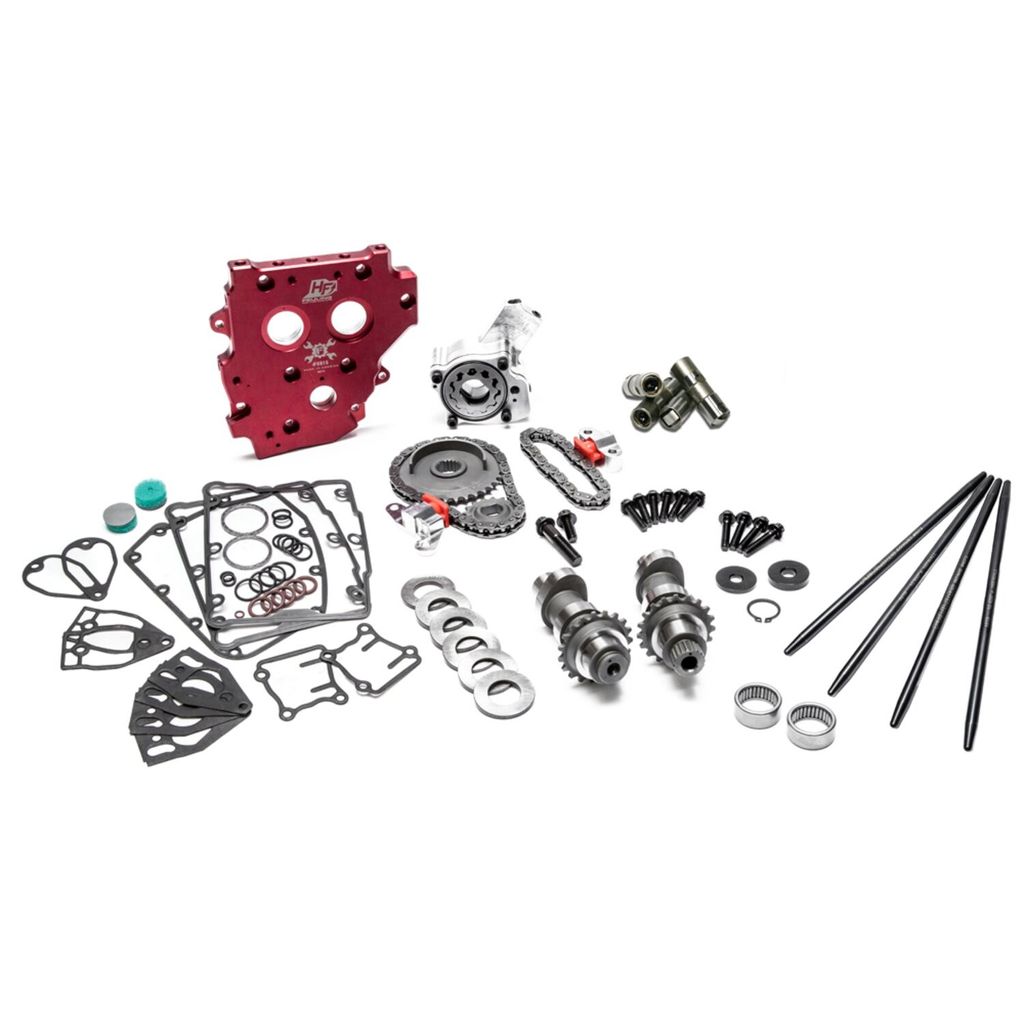

1900 - 6000 rpm power range. Includes: • HP+ High Volume Oil Pump • High Flow Camplate • Reaper Series Conversion Camshafts • HP+ Hydraulic Roller Lifters • One Piece Pushrods • Hydraulic Tensioners • Sprockets • Roller Chains • Cam Sprocket Spacers • Timken Cam Bearings • Gaskets • O-Rings • Exhaust Gaskets • ARP Fasteners • Washers • Moly paste • Loctite • Hardware
Fits: 99-06 Twin Cam (Excl. 2006 Dyna), Conversion chain drive cams, 543 Reaper camshafts #1015, Crank sprocket #1091, Cam sprocket with timing tab #1094, Cam install kit #2064, HP+ Lifters #4000, One Piece Pushrods #4072, HP+ oil pump #7060, High Flow camplate #8015, ARP Camplate/Oil Pump Fasteners #8020, Sprocket spacers #8041, Inner cam chain #8060, Outer cam chain #8061, Outer tensioner pad and housing #8075, Inner tensioner pad and housing #8076.
