Kamkåpssats Feuling Race Series 574 kedjedrift konvertering H-D 96-06

38 210 kr

Feuling Race Series Conversion kamaxelsats med kedjedrift
Läs mer

09251395 Feuling
  • Uppgraderar från mekaniska spännare till ett modernt hydrauliskt system
  • Sänker motortemperaturen med 25°–35° och oljetemperaturen med 15°–30°
  • Ger 15–30 lb oljetryck och eliminerar wet sumping, blowby och oljiga luftfilter
  • Varvtalsområde: 2 100–6 500 RPM med kraftigt register i mellan- och toppregister
  • Satsen innehåller Feuling Race Series oljepump med hög volym och high flow kamplatta
  • Innehåller Reaper Series 574 conversion kamaxel och Race Series hydrauliska rull-lyftare
  • Innehåller stötstänger, kedjespännare, kedjor, drev, Timken-lager, ARP-bultar och packningar
  • Tillverkad i USA

Passar inte '06 Dyna. För '99-'06 Twin Cam används inre kamaxellagerlägen för att möjliggöra '07-'16 kamplatta, oljepump och hydrauliskt kedjedrivningssystem. Prestandaventilfjädrar krävs för '99-'04-motorer.

Passar: Twin Cam 99-06

Race Series Conversion Chain Drive Camchest Kit

  • Updates old mechanical style cams and tensioners to new hydraulic tensioner system
  • Eliminate wet sumping, blowby and oily air cleaners
  • All parts work and function together in total harmony
  • 25°-35° cooler engine temperatures
  • 15°-30° cooler oil temperatures
  • 15 lb - 30 lb of oil pressure
  • Kit includes Feuling Race Series high volume oil pump, high flow camplate, REAPER Series conversion camshafts, Race Series hydraulic roller lifters, Quick install adjustable pushrods, sprockets, hydraulic tensioners pads and housings, chains, spacers, Timken bearings, gaskets, O-rings, hardware, ARP fasteners, washers, moly lube and Loctite
  • Made in the USA
  • Does not fit '06 Dyna.
  • '99-'06 Twin Cam engines utilize the '99-'06 inner cam journals allowing the use of the '07-'16 camplates, oil pump, hydraulic chain tensioners and chain drive system (includes sprockets, hydraulic tensioners, chains and spacers needed for installation.
  • FOR HYDRAULIC CHAIN TENSIONER CONVERSION UPGRADE FEULING complete camchest kits include all necessary components from top to bottom of the camchest conveniently packaged under 1 part #
  • These combination kits not only ensure each individual part is designed to work and function together but to do so in total harmony
  • These camchest kits take the guess work out of the ordering process and guarantees the engine builder maximum reliability, peak performance and the coolest engine and oil temperatures obtainable
  • Fitments available for '99-'17 Twin Cam engines
  • Wicked power band for modified engines and an excellent bolt in for stock 96", 103" & 110" engines
  • This is a great all around camshaft with solid low end performance and mind blowing mid and top end power
  • Extremely smooth cam lobe design creates a very smooth valve-train motion
  • Responds very well to modified cylinder heads, increased compression ratio, performance exhaust and intake systems
  • Performance valve springs are required on ’99-’04 engines and performance pushrods and lifters are recommended
  • RPM 2,100
  • 6,500 Note: Special Order Product only
  • To order please contact your MCS sales representative

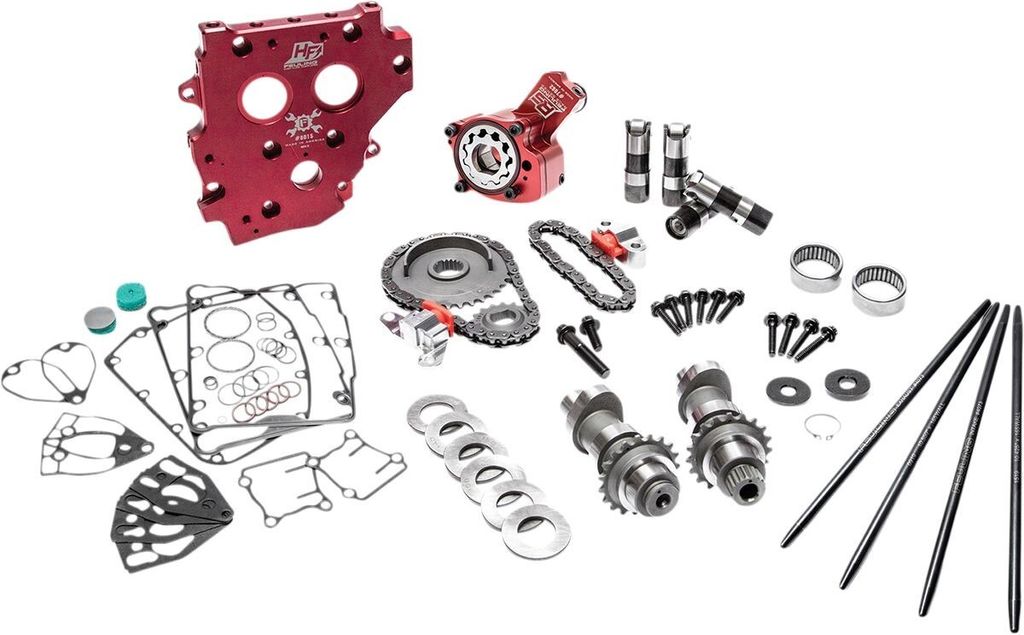

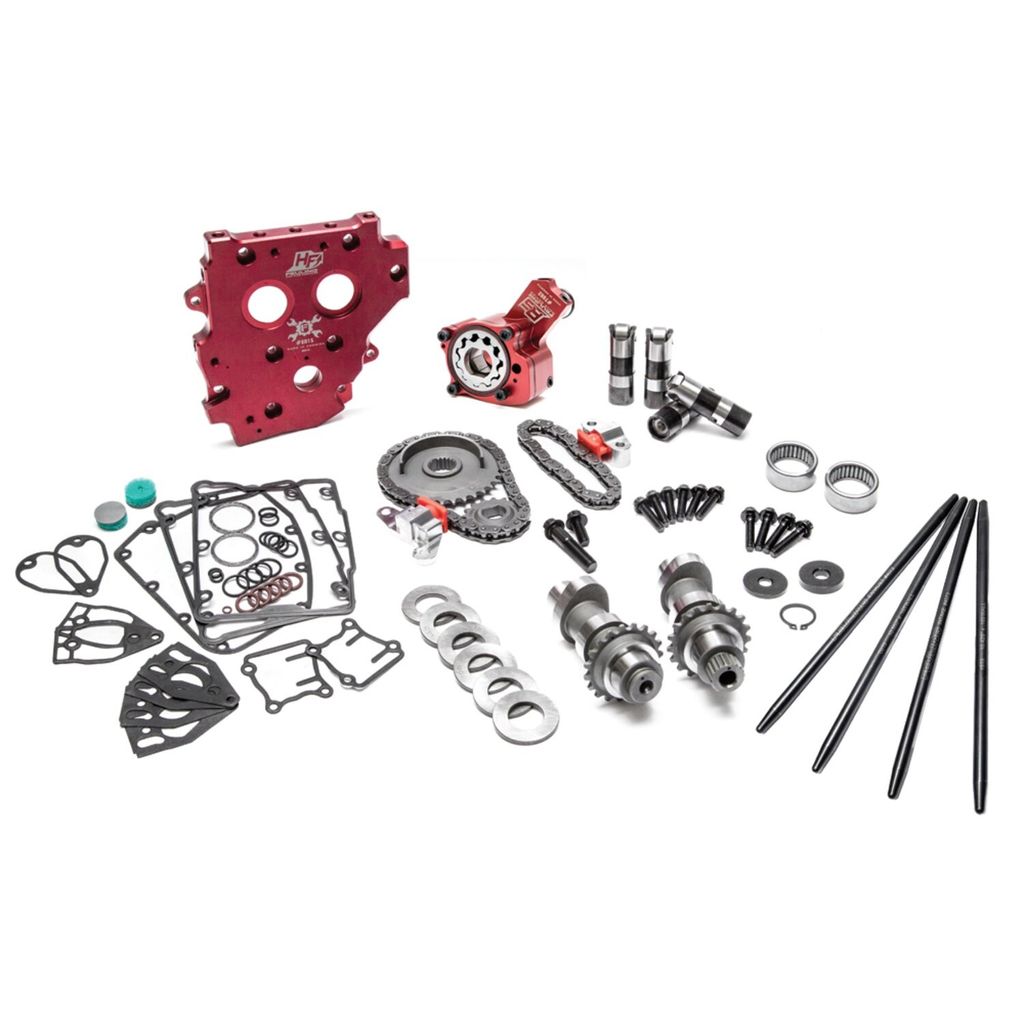

Includes: • Race Series High Volume Oil Pump • High Flow Camplate • Reaper Series 574 Conversion Camshaft • Race Series Hydraulic Roller Lifters • One Piece Pushrods • Hydraulic Tensioner Pads and Housings • Sprockets • Roller Chains • Cam Sprocket Alignment Spacers • Timken Bearings • Gaskets • O-Rings • Exhaust Gaskets • ARP Fastener • Washers • Moly Paste • Loctite • Hardware

Fits: 99-06 Twin Cam (Excl. 2006 Dyna), Conversion chain drive cams, 574 Reaper camshafts #1017, Crank sprocket #1091, Cam sprocket with timing tab #1094, Cam install kit #2064, Race Series Lifters #4050, One Piece Pushrods #4072, Race Series oil pump #7062, High Flow camplate #8015, ARP Camplate/Oil Pump Fasteners #8020, Sprocket spacers #8041, Inner cam chain #8060, Outer cam chain #8061, Outer tensioner pad and housing #8075, Inner tensioner pad and housing #8076.
