Kamkåpssats Feuling Race Series ST 630 kedjedrift konvertering H-D 96-06

38 210 kr

Feuling Race Series kamkåpssats med kedjedrift
Läs mer

09251398 Feuling
  • Uppgraderar från äldre mekaniska spännare till hydrauliskt kedjespännarsystem
  • 25°–35° lägre motortemperatur och 15°–30° lägre oljetemperatur
  • Ger 15–30 lb oljetryck och eliminerar wet sumping, blowby och oljiga luftfilter
  • Varvtalsområde: 2 500 till 6 900+ RPM
  • Satsen innehåller Feuling Race Series oljepump med hög volym och High Flow kamplatta
  • Innehåller Reaper Series 630 conversion-kamaxlar och Race Series hydrauliska rulllyftare med kort fjädringsväg
  • Innehåller Quick Install justerbara stötstänger, stötstångsrör i krom, kedjor, kedjedrev och hydrauliska kedjespännare
  • Innehåller Timken-lager, packningar, avgaspackningar, O-ringar, ARP-fästelement, monteringsdetaljer, smörjpasta och Loctite
  • Tillverkad i USA

Passar inte '06 Dyna. Avsedd för högprestandamotorer med kraftigt modifierade topplock och kompressionsförhållande. Kräver arbete på förgasare och/eller spjällhus tillsammans med högpresterande avgas- och insugssystem.

Passar: Twin Cam 99-06

Race Series Conversion Chain Drive Camchest Kit

  • Updates old mechanical style cams and tensioners to new hydraulic tensioner system
  • Eliminate wet sumping, blowby and oily air cleaners
  • All parts work and function together in total harmony
  • 25°-35° cooler engine temperatures
  • 15°-30° cooler oil temperatures
  • 15 lb - 30 lb of oil pressure
  • Kit includes Feuling Race Series high volume oil pump, high flow camplate, REAPER Series conversion camshafts, Race Series hydraulic roller lifters, Quick install adjustable pushrods, sprockets, hydraulic tensioners pads and housings, chains, spacers, Timken bearings, gaskets, O-rings, hardware, ARP fasteners, washers, moly lube and Loctite
  • Made in the USA
  • Does not fit '06 Dyna.
  • '99-'06 Twin Cam engines utilize the '99-'06 inner cam journals allowing the use of the '07-'16 camplates, oil pump, hydraulic chain tensioners and chain drive system (includes sprockets, hydraulic tensioners, chains and spacers needed for installation.
  • FOR HYDRAULIC CHAIN TENSIONER CONVERSION UPGRADE FEULING complete camchest kits include all necessary components from top to bottom of the camchest conveniently packaged under 1 part #
  • These combination kits not only ensure each individual part is designed to work and function together but to do so in total harmony
  • These camchest kits take the guess work out of the ordering process and guarantees the engine builder maximum reliability, peak performance and the coolest engine and oil temperatures obtainable
  • Fitments available for '99-'17 Twin Cam engines
  • Vicious power gains, wide streetable power band from a high lift profile camshaft for high performance engines with highly modified cylinder heads and compression ratio
  • Carburetor and or throttle body work required along with a performance exhaust and intake system
  • Maintains low end performance with eye blurring mid and top end power
  • RPM 2,500
  • 6,900+ Note: Special Order Product only
  • To order please contact your MCS sales representative

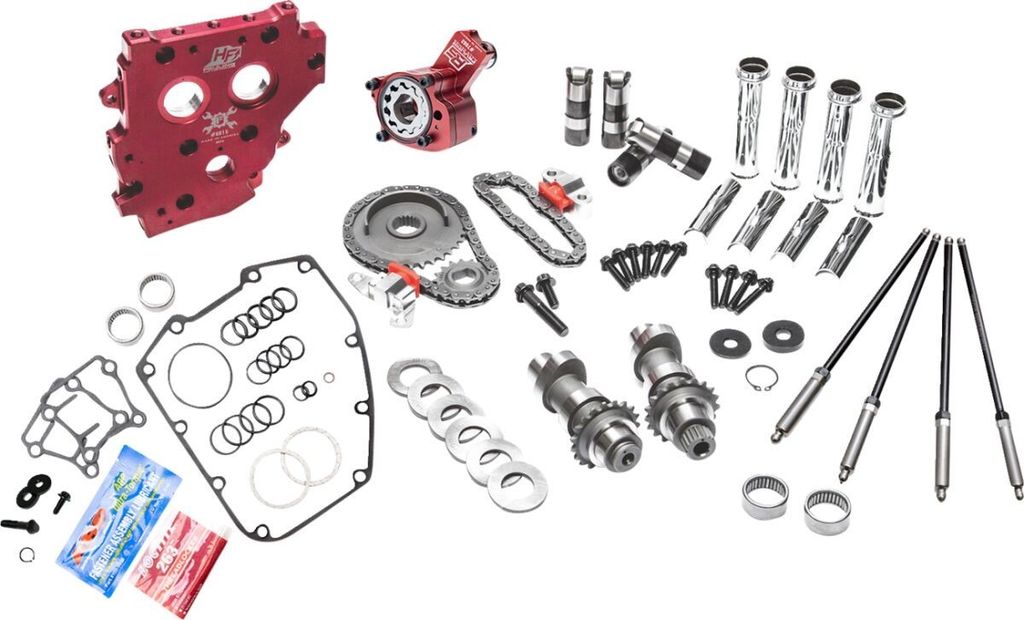

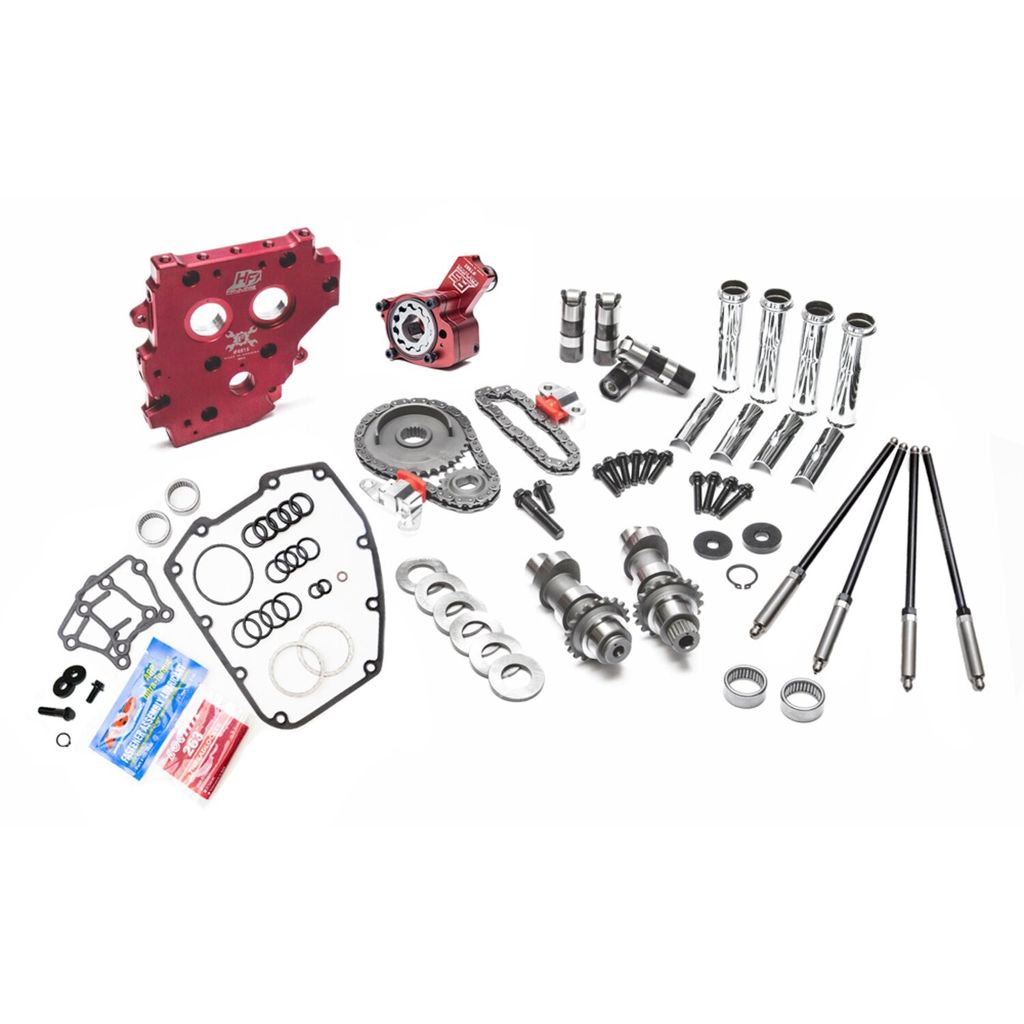

Includes: • Race Series High Volume Oil Pump • High Flow Camplate • Reaper Series 630 Conversion Camshaft • Race Series Short Travel Hydraulic Roller Lifters • Quick Install Adjustable Pushrods • Chrome Pushrod Tubes • Hydraulic Tensioner Pads and Housings • Cam Sprocket with Timing Tab • Crank Sprocket • Roller Chains • Cam Sprocket Alignment Spacers • Timken Bearings • Gaskets • O-Rings • Exhaust Gaskets • ARP Fasteners • Washers • Moly Paste • Loctite • Hardware

Fits: 99-06 Twin Cam (Excl. 2006 Dyna), Conversion chain drive cams, 630 Reaper camshafts #1018, Crank sprocket #1091, Cam sprocket with timing tab #1094, Cam install kit #2063, Race Series Short Travel Lifters #4050ST, Quick Install Adjustable Pushrods #4096, Chrome pushrod tubes #4095, Race Series oil pump #7062, High Flow camplate #8015, ARP Camplate/Oil Pump Fasteners #8020, Sprocket spacers #8041, Inner cam chain #8060, Outer cam chain #8061, Outer tensioner pad and housing #8075, Inner tensioner pad and housing #8076.
