Olja Feuling Parts System H-D 06-17

19 160 kr

Komplett Race Series-uppgraderingssats för motorns oljesystem
Läs mer

09320291 Feuling

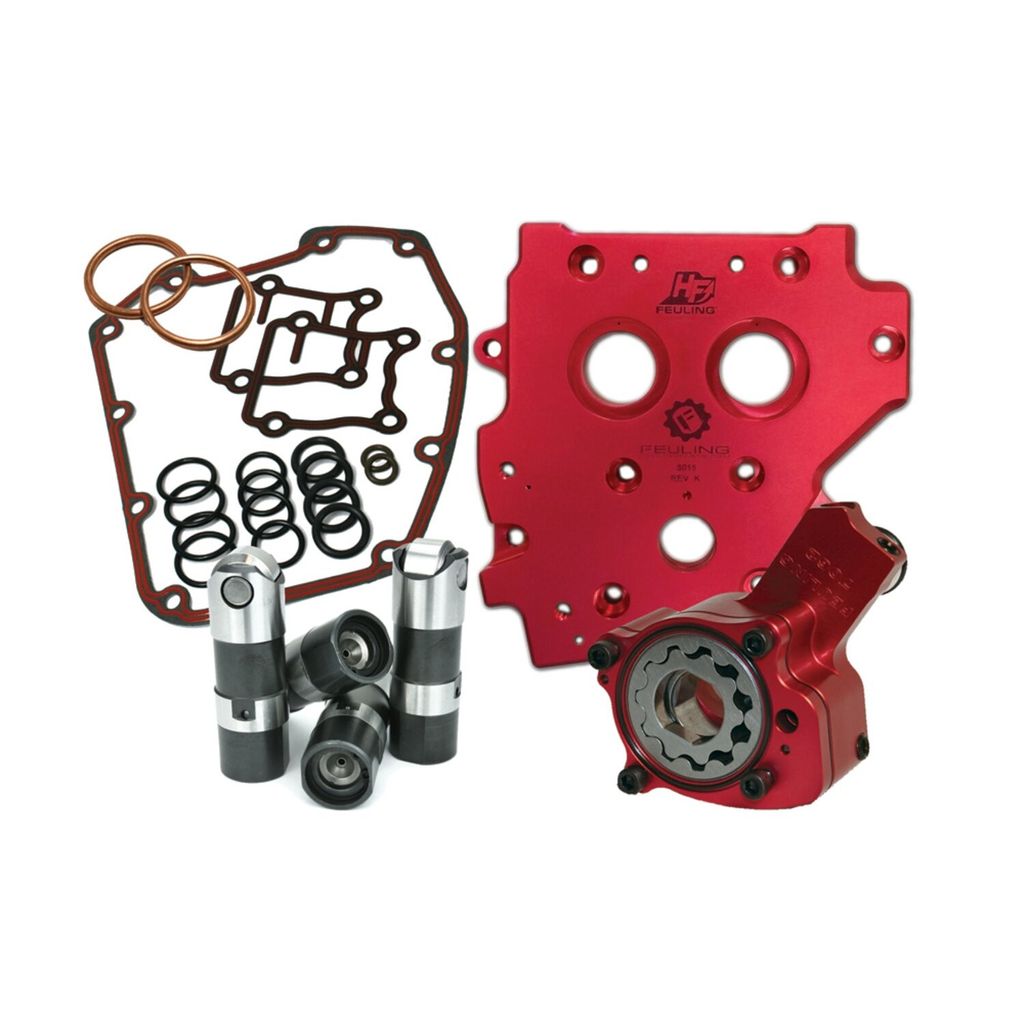

  • Innehåller oljepump, kamplatta, lyftare, packningssats, lagerhållarplatta och monteringsdetaljer
  • Billet 7075 hårdanodiserad oljepump som är 50 % hårdare och starkare än originalpumpen
  • Ökar oljetrycket med 15–30 psi samt ökar returflöde och oljevolym
  • Sänker motortemperaturen med 25°–35° och oljetemperaturen med 15°–30°
  • Eliminerar wet sumping, vevhusventileringsproblem (blow-by) och oljiga luftfilter
  • Race Series short-travel hydrauliska lyftare med .115" slaglängd minskar ventilsläpp och minskar luftinblandning i oljan
  • Testresultat visar en ökning med 3 hästkrafter och 4 ft./lb. i vridmoment på bakhjulet
  • Kompatibel med både originalkedja och eftermarknadskamaxlar med kuggdrivning

Kamaxlar med kuggdrivning kräver separat köp av täckplattor (art.nr 566113 / 0932-0036). Används med stötstänger art.nr 0928-0116 för kamaxlar med standard bascirkel (FEULING 525, 543 och 574) samt art.nr 0928-0117 för kamaxlar med liten bascirkel (FEULING 594 och 630).

Passar: H-D 06-17

Produkt-typ Oil System

Race Series Oil System Pack

  • Combine all the needed components to finish your engine's oiling system
  • Quieter and smoother engine operation
  • Increase oil pressure, scavenge volume and engine oil flow
  • 25°-35° cooler engine temperatures
  • 15°-30° degree cooler oil temperatures
  • 15-30 lbs more psi of oil pressure
  • Eliminate wet sumping, blowby and oily air cleaners
  • Test results show 3 horsepower gain and 4 ft./lb. of torque gain to the rear wheel
  • Billet 7075 aluminum oil pump is 50% harder and stronger than the factory pump; holds tighter tolerances under temperature
  • Race Series full-travel hydraulic lifters have a full .200” of total travel designed with a slower bleed-down rate to handle very heavy valve spring pressures, increase engine rpm before valve float and have increased roller clearance for steep ramped camshafts
  • Race Series short-travel hydraulic lifters have .115” of total travel and will increase rpm by decreasing valve float and valve-train harmonics while maintaining a quiet engine
  • Travel reduction reduces the amount of oil that is required to fill the inside of the lifter which reduces oil aeration inside the lifter on steep, fast action high lift camshaft lobes
  • Includes bearing retainer plate and hardware.
  • Compatible with stock chain or aftermarket gear drive cam systems
  • Kit include all to give your bottom end a fresh start

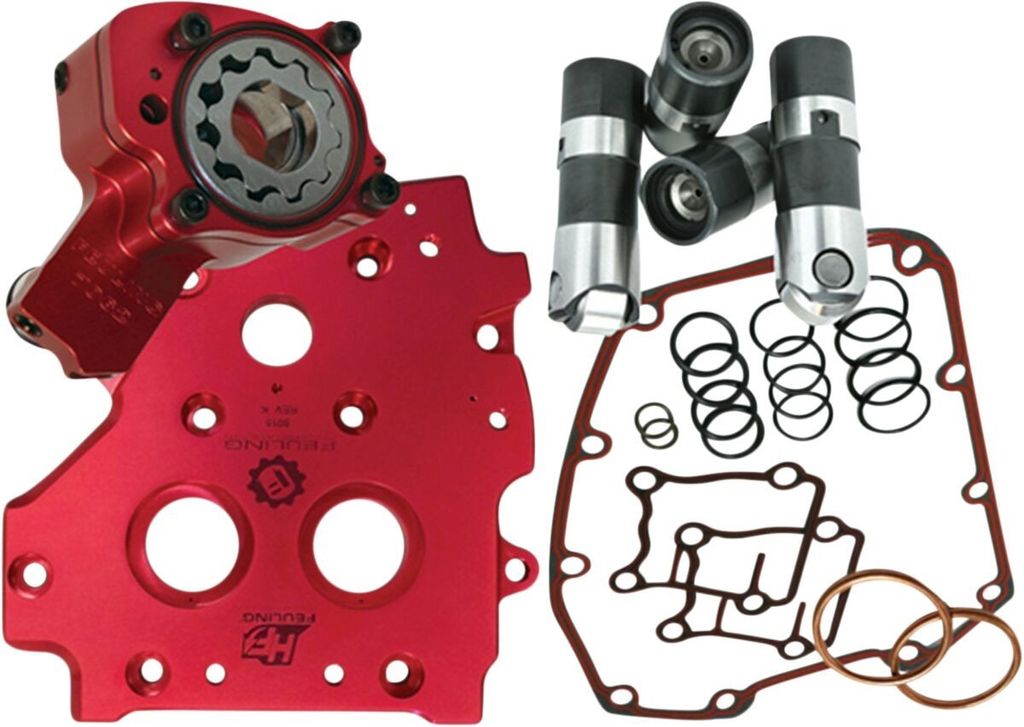

  • Oil pump, cam plate, lifter assembly / tappet assembly and gasket set
  • Great upgrade and a perfect base when installing a set of performance cams
  • Note: Gear drive camshafts require separate purchase of block off plates part 566113
  • Oil is the Life Blood of your Engine!
  • FEULING increases oil flow and volume by enlarging the oil pump reservoirs and critical oil passages including matching the oil port holes throughout the cam plate to the port holes in the engine case which increases engine oil flow to the lifters, piston cooling jets, crankshaft and rod bearings. -RACE SERIES ST Kits include a billet 7075 hard anodized oil pump which is 50% harder and stronger than the factory pump holding tighter tolerances under temperature
  • Includes 566126, 707364, 707384, 566081
  • Note: Special Order Product only
  • To order please contact your MCS sales representative

Gear Drive cam systems require block-off plate kit PART #0932-0036. Use with short-travel pushrods PART #0928-0116 on stock base circle camshafts (FEULING 525, 543 and 574 grinds) and PART #0928-0117 on small base circle camshafts (FEULING 594 and 630 grinds). Includes gasket kit, Race Series short travel lifters, Race Series Oil Pump and anodized camplate.

Fits: 06-17 Dyna; 07-17 Softail; 07-16 Touring (NU)
