Olja Feuling Parts System H-D 96-06 7077ST

19 160 kr

Komplett Race Series oljesystemkit från Feuling
Läs mer

09320292 Feuling

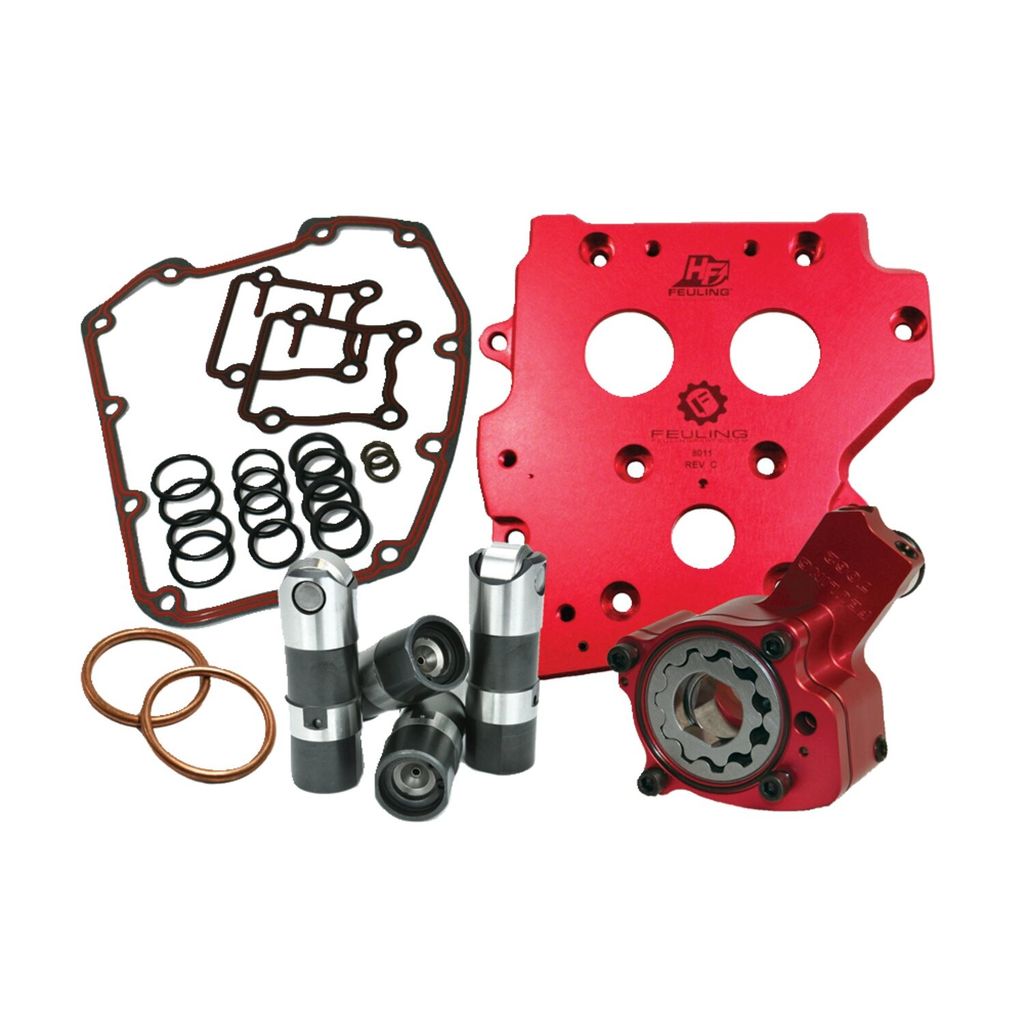

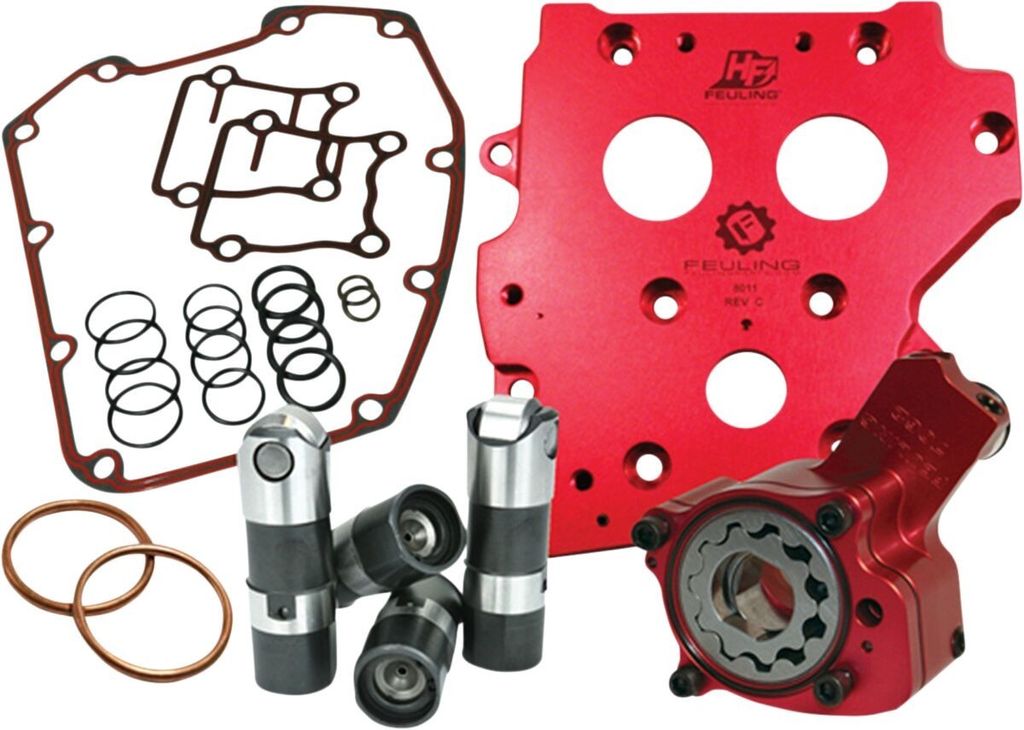

  • Innehåller oljepump, kamplatta, Race Series lyftare, packningssats samt fästplatta för lager och hårdvara
  • Billet 7075 hårdanodiserad oljepump som är 50 % hårdare och starkare än originalpumpen för snävare toleranser vid höga temperaturer
  • Rödanodiserad kamplatta med optimerade oljekanaler för ökat oljeflöde till lyftare, vevaxel, vevstakslager och kolvkylningsmunstycken
  • Race Series short-travel hydrauliska lyftare med .115” fjädringsväg som minskar ventilsläpp och minskar luftbildning i oljan
  • Ger 15–30 lbs högre oljetryck samt ökar returvolym och oljeflöde
  • Sänker motortemperaturen med 25°–35° och oljetemperaturen med 15°–30°
  • Eliminerar wet-sumping, vevhusventilation/blow-by och oljiga luftfilter
  • Testresultat visar en ökning med 3 hästkrafter och 4 ft./lb. i vridmoment på bakhjulet

Används tillsammans med short-travel stötstänger art.nr 0928-0116 vid standard kamlober (Feuling 525, 543 och 574) eller art.nr 0928-0117 vid mindre kamlober (Feuling 594 och 630). Konverteringskamplattan har lagerlägen för '99-'06 Twin Cam kamaxlar med pressade lager, och är utformad för att använda '07-'17 hydrauliska kedjespännare. Kedjespännare, kedjor, drev och brickor säljs separat.

Passar: H-D 96-06

Race Series Oil System Pack

  • Combine all the needed components to finish your engine's oiling system
  • Quieter and smoother engine operation
  • Increase oil pressure, scavenge volume and engine oil flow
  • 25°-35° cooler engine temperatures
  • 15°-30° degree cooler oil temperatures
  • 15-30 lbs more psi of oil pressure
  • Eliminate wet sumping, blowby and oily air cleaners
  • Test results show 3 horsepower gain and 4 ft./lb. of torque gain to the rear wheel
  • Billet 7075 aluminum oil pump is 50% harder and stronger than the factory pump; holds tighter tolerances under temperature
  • Race Series full-travel hydraulic lifters have a full .200” of total travel designed with a slower bleed-down rate to handle very heavy valve spring pressures, increase engine rpm before valve float and have increased roller clearance for steep ramped camshafts
  • Race Series short-travel hydraulic lifters have .115” of total travel and will increase rpm by decreasing valve float and valve-train harmonics while maintaining a quiet engine
  • Travel reduction reduces the amount of oil that is required to fill the inside of the lifter which reduces oil aeration inside the lifter on steep, fast action high lift camshaft lobes
  • Includes bearing retainer plate and hardware.
  • Kit include all to give your bottom end a fresh start
  • Oil pump, cam plate, lifter assembly / tappet assembly and gasket set
  • Great upgrade and a perfect base when installing a set of performance cams
  • Oil is the Life Blood of your Engine!
  • FEULING increases oil flow and volume by enlarging the oil pump reservoirs and critical oil passages including matching the oil port holes throughout the cam plate to the port holes in the engine case which increases engine oil flow to the lifters, piston cooling jets, crankshaft and rod bearings. -RACE SERIES ST Kits include a billet 7075 hard anodized oil pump which is 50% harder and stronger than the factory pump holding tighter tolerances under temperature
  • Includes 566126, 707364, 707384, 566082
  • Note: Special Order Product only
  • To order please contact your MCS sales representative

Use with short-travel pushrods PART #0928-0116 on stock base circle camshafts (Feuling 525, 543 and 574 grinds) and PART #0928-0117 on small base circle camshafts (Feuling 594 and 630 grinds). Conversion camplates use '99-'06 style camshafts; oil system pack requires separate purchase of hydraulic chain drive tensioners, chains, sprockets and spacers. Includes Race Series lifters, Race Series oil pump and red anodized camplate. Conversion camplate system uses the original style ’99 -’06 Twin Cam cam bearing bores for use with the press in bearings. Camplate is designed to use the new style ’07-’17 hydraulic chain tensioner system with the original ’99 -’06 Twin Cam style camshafts.

Fits: 99-06 Twin Cam (excl. 2006 Dyna). When converting to 06-17 hydraulic chain tensioners (NU)
