Olja Feuling Parts System H-D 96-06 7073ST

19 300 kr

Feuling Parts Race Series Oljesystem-kit för kedjedrivna kamaxlar
Läs mer

09320290 Feuling
  • Komplett kit med oljepump, kamplatta, lyftarsats och packningssats
  • Innehåller Race Series oljepump, röd anodiserad kamplatta i 7075 aluminium, Short Travel-lyftare och packningssats
  • Ger 32 % mer tryckvolym och 38 % mer returvolym jämfört med original
  • Race Series Short Travel hydrauliska lyftare med 0.115" slaglängd minskar ventilsprång vid höga varvtal
  • 2" gerotordrev i krommolybdenstål
  • Monteras utan O-ringar på pumphuset
  • Sänker motortemperaturen med 25–35 grader och oljetemperaturen med 15–30 grader
  • Tillverkat i USA

Avsett för modeller med mekanisk fjäderspännare och kedjedrivna kamaxlar. Används med Short Travel-stötstänger art.nr 0928-0116 vid standard baskrets (Feuling 525, 543 och 574) och art.nr 0928-0117 vid liten baskrets (Feuling 594 och 630). För konvertering till senare hydraulisk kedjespännare hänvisas till konverteringskit.

Passar: H-D 96-06

Race Series Oil System Kit

  • FEULING OE+ stock replacement billet oil pumps deliver increased oil pressure and return scavenge volumes over the factory oil pumps
  • OE+ Oil Pumps are designed and manufactured to the highest standard of quality with proven Feuling performance
  • Assembles without O-rings on the pump housings, similar to the Factory and SE oil pumps
  • Increases oil pressure
  • 2” Chrome Moly gerotor gears
  • Stock replacement
  • Made in the USA
  • Use with short-travel pushrods PART #0928-0116 on stock base circle camshafts (Feuling 525, 543 and 574 grinds) and PART #0928-0117 on small base circle camshafts (Feuling 594 and 630 grinds).
  • Race Series Oiling System. Chain drive
  • With chain drive cams
  • With Short Travel lifter set
  • Feuling's Race Series 'Short Travel lifters' comes with a shorter (0.115") of travel, while maintaining a quiet engine
  • The travel reduction reduces the amount of pushrod plunge and oil that is required to fill the inside of the lifter which reduces oil aeration inside the lifter on steep, fast action high lift camshaft lobes
  • Kit include all to give your bottom end a fresh start

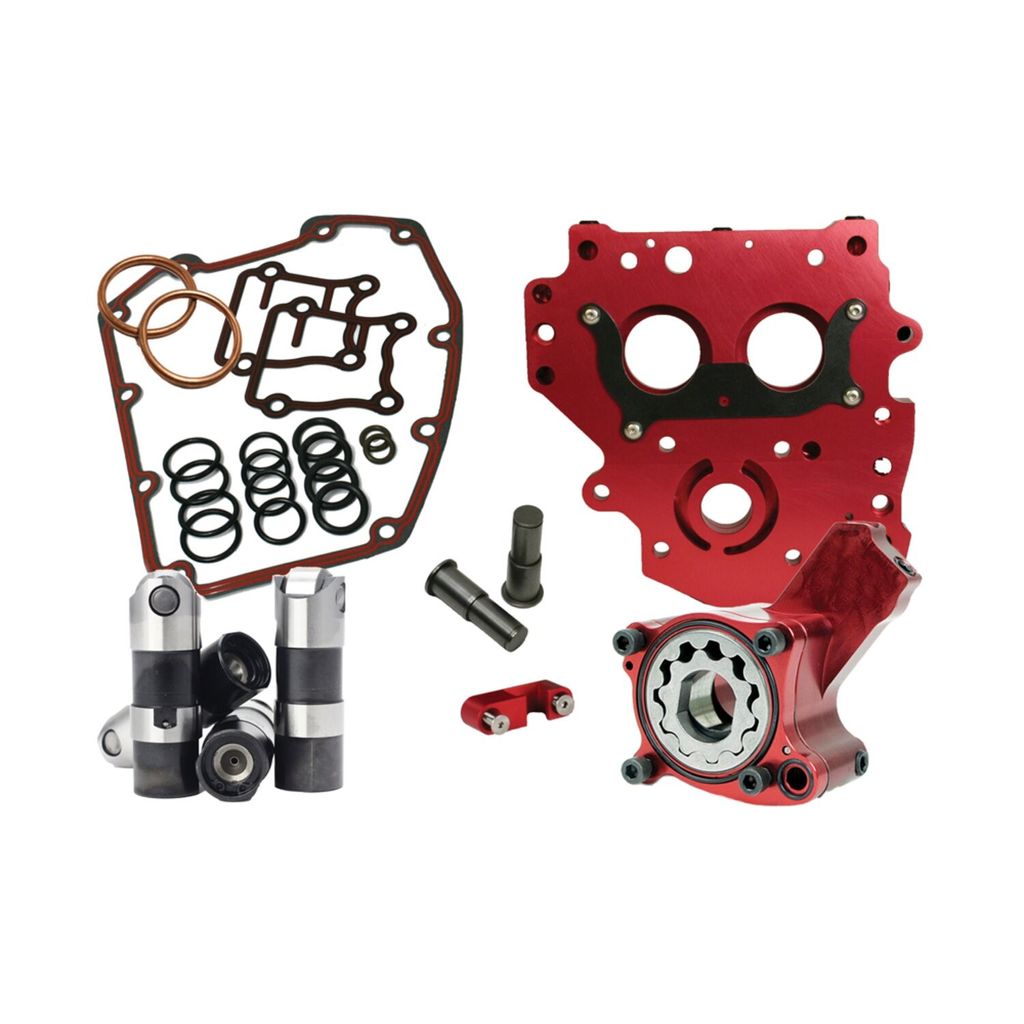

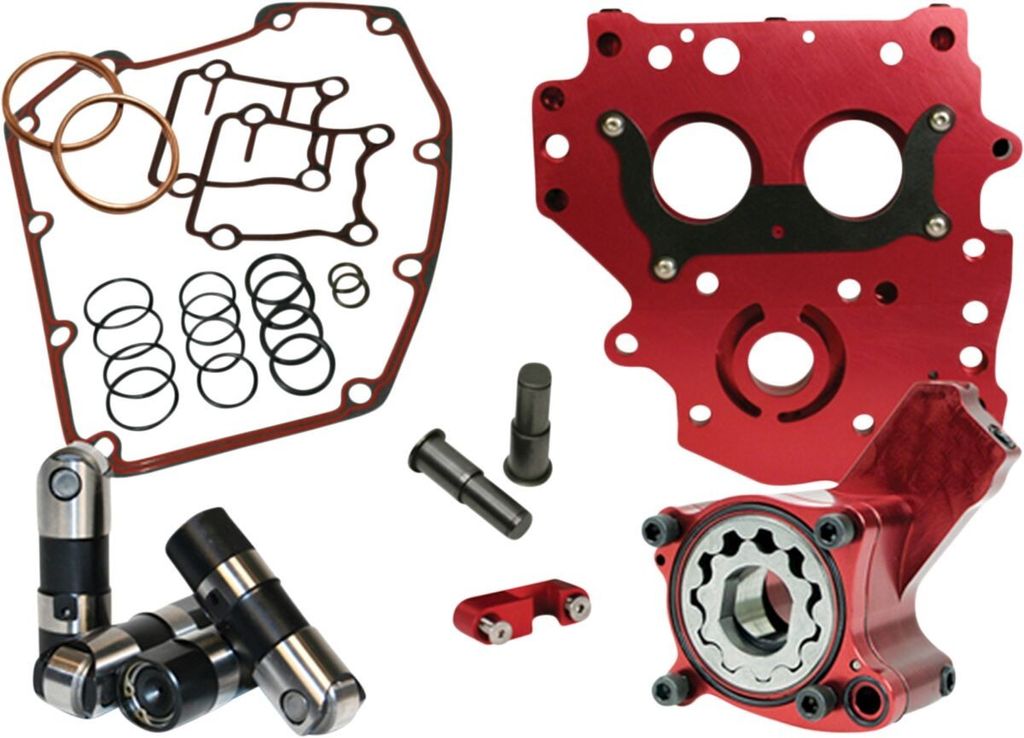

  • Oil pump, cam plate, lifter assembly / tappet assembly and gasket set
  • Great upgrade and a perfect base when installing a set of performance cams
  • Includes Gasket kit 566126, Race Series Short Travel Lifters 707364, Race Series oil pump 707381 & red anodized cam plate 566080
  • NOTE : This oiling system is designed for the original fitment mechanical spring tensioners
  • For hydraulic conversion see part #’s 566085, 707396, 707397, 707401
  • Oil is the Life Blood of your Engine!
  • FEULING oiling system kits combine all the needed components to finish your TC engine's oiling system under 1 Part #, available in HP+ or RACE SERIES kits
  • FEULING oiling system kits increase oil pressure, oil volume, engine oil flow and return oil scavenging, eliminating wet sumping and oily air cleaners
  • Test results show 25-35 degree cooler engine temperatures, 15-30 degree cooler oil temperatures, 15-30 more pounds of oil pressure and quieter smoother engine operation
  • Results also show a substantial increase of oil pressure and 3 H.P. and 4 Ft
  • Lbs. of T.Q to the rear wheel. -Both HP+ and RACE SERIES kits include FEULING'S HIGH FLOW billet cam plate made from 7075 aluminum which is 50% harder and stronger than the factory, SE and other aftermarket cam plates
  • FEULING RACE SERIES Short Travel (ST) hydraulic lifters are a new revolutionary design with 0.115" of total travel vs. a full travel lifter with 0.200"
  • These hydraulic lifters will increase RPM by decreasing valve float and valve-train harmonics while maintaining a quiet engine
  • CONVERSION CAMPLATE Kits #566085 & #707396 utilize the early style '99-'06 camshafts and upgrade the cam chain system to use the late style '07-'17 hydraulic tensioner system. 'Factory' sprockets, tensioners, chain and hardware purchased separately
  • Note: Special Order Product only
  • To order please contact your MCS sales representative

32% more pressure volume over stock and 38% more scavenge volume over stock.

Fits: 99-06 Twin Cam (excl. 2006 Dyna). With chain drive cams (NU)
