Olja Feuling Parts System H-D 96-06 7072ST
Feuling Race Series oljesystem för kuggdriven kamdrivning
Läs mer
- Komplett uppgraderingskit med oljepump, kamplatta, lyftare och packningssats
- Ger 40 % mer tryckvolym och 60 % mer returvolym jämfört med original
- Billet-oljepump i hårdanodiserad 7075-aluminium med 2" gerotordrev i krommolybden
- High Flow-kamplatta i röd anodiserad 7075-aluminium som är 50 % hårdare än original
- Race Series hydrauliska Short Travel-lyftare med 0.115" slaglängd
- Minskar risken för wet-sumping och sänker motor- samt oljetemperatur
- Tillverkad i USA
Avsett för kuggdrivna kamaxlar på Twin Cam-motorer. Används med stötstänger för kort slaglängd: artikelnummer 0928-0116 vid standardbascirkel (Feuling 525, 543 och 574) eller artikelnummer 0928-0117 vid mindre bascirkel (Feuling 594 och 630).
Passar: Twin Cam 99-06
Race Series Oil System Kit
- FEULING OE+ stock replacement billet oil pumps deliver increased oil pressure and return scavenge volumes over the factory oil pumps
- OE+ Oil Pumps are designed and manufactured to the highest standard of quality with proven Feuling performance
- Assembles without O-rings on the pump housings, similar to the Factory and SE oil pumps
- Increases oil pressure
- 2” Chrome Moly gerotor gears
- Stock replacement
- Made in the USA
- Use with short-travel pushrods PART #0928-0116 on stock base circle camshafts (Feuling 525, 543 and 574 grinds) and PART #0928-0117 on small base circle camshafts (Feuling 594 and 630 grinds).
- Race Series Oiling System. Gear drive
- For gear driven cams
- With Short Travel lifter set
- Feuling's Race Series 'Short Travel lifters' comes with a shorter (0.115") of travel, while maintaining a quiet engine
- The travel reduction reduces the amount of pushrod plunge and oil that is required to fill the inside of the lifter which reduces oil aeration inside the lifter on steep, fast action high lift camshaft lobes
- Kit include all to give your bottom end a fresh start

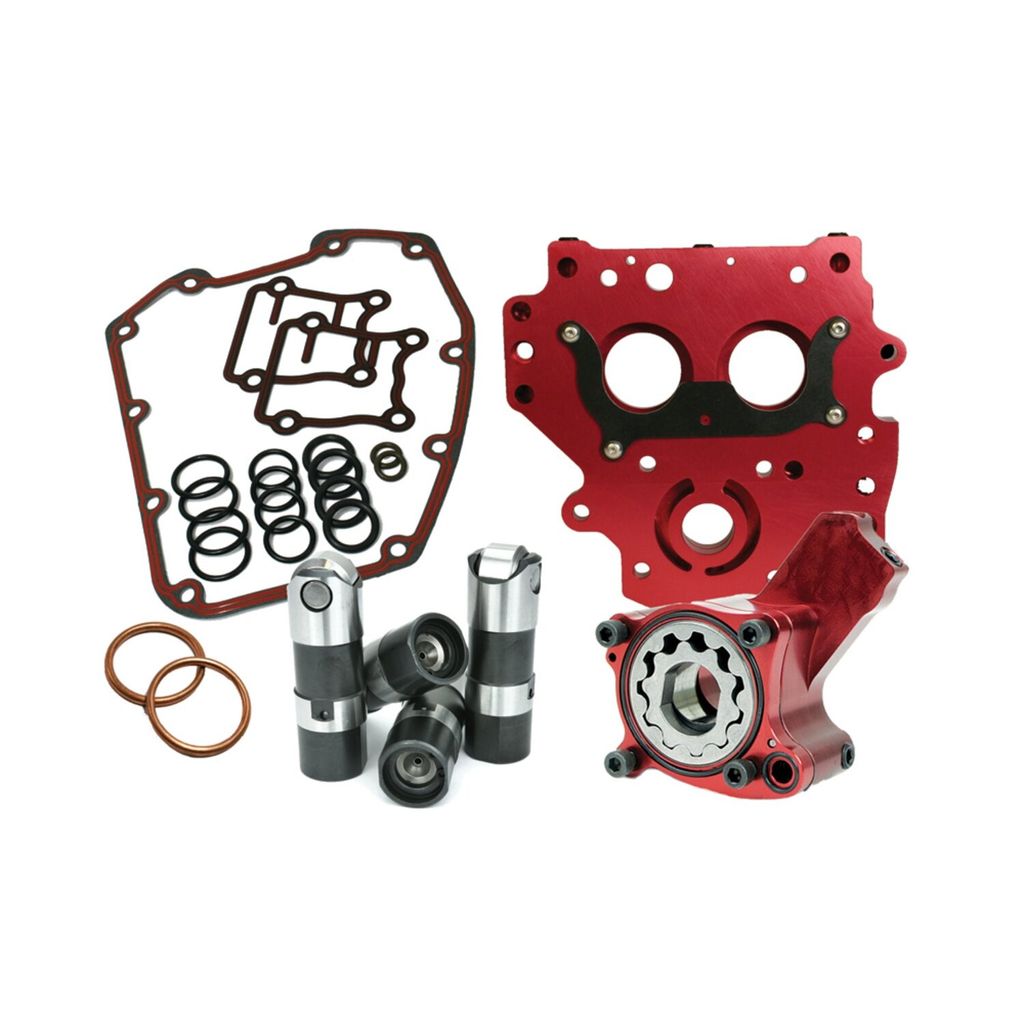

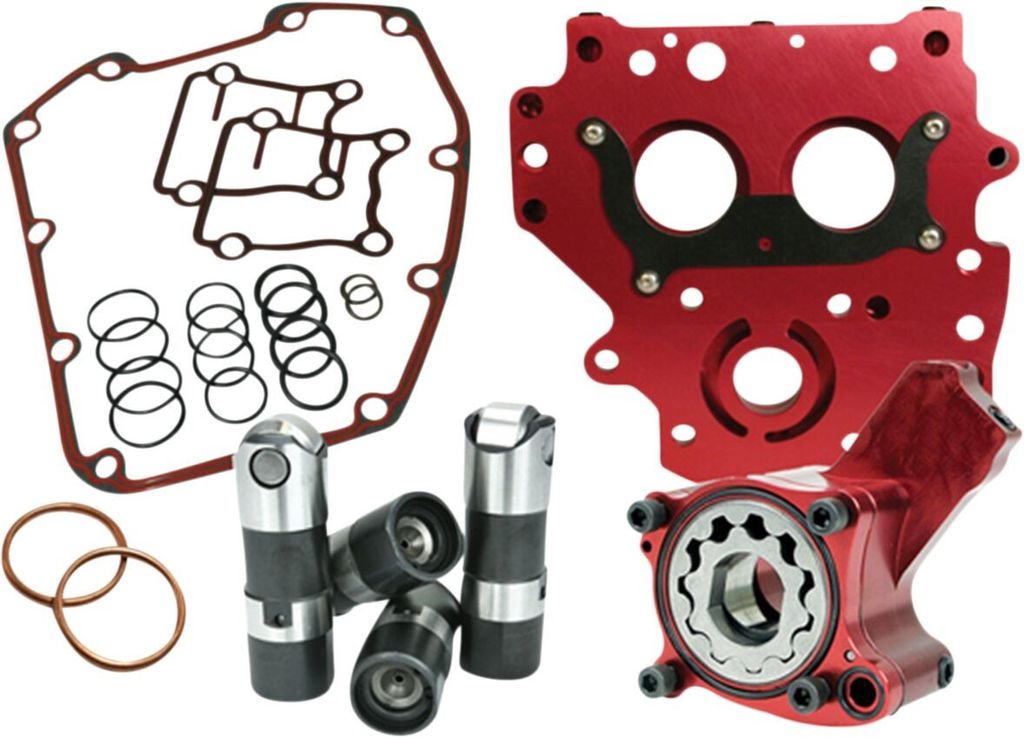

- Oil pump, cam plate, lifter assembly / tappet assembly and gasket set
- Great upgrade and a perfect base when installing a set of performance cams
- Includes gasket kit 566126, Race Series short travel lifters 707364, Race Series oil pump 707381 & red anodized cam plate 566079
- Oil is the Life Blood of your Engine!
- FEULING oiling system kits combine all the needed components to finish your TC engine's oiling system under 1 Part number, available in HP+ or RACE SERIES kits
- FEULING oiling system kits increase oil pressure, oil volume, engine oil flow and return oil scavenging, eliminating wet sumping and oily air cleaners
- Test results show 25-35 degree cooler engine temperatures, 15-30 degree cooler oil temperatures, 15-30 more pounds of oil pressure and quieter smoother engine operation
- Results also show a substantial increase of oil pressure and 3 H.P. and 4 Ft
- Lbs. of T.Q to the rear wheel. -Both HP+ and RACE SERIES kits include FEULING'S HIGH FLOW billet cam plate made from 7075 aluminum which is 50% harder and stronger than the factory, SE and other aftermarket cam plates
- FEULING increases oil flow and volume by enlarging the oil pump reservoirs and critical oil passages including matching the oil port holes throughout the cam plate to the port holes in the engine case which increases engine oil flow to the lifters, piston cooling jets, crankshaft and rod bearings. -RACE SERIES ST Kits include a billet 7075 hard anodized oil pump which is 50% harder and stronger than the factory pump holding tighter tolerances under temperature
- FEULING RACE SERIES Short Travel (ST) hydraulic lifters are a new revolutionary design with 0.115" of total travel vs. a full travel lifter with 0.200"
- These hydraulic lifters will increase RPM by decreasing valve float and valve-train harmonics while maintaining a quiet engine
- Note: Special Order Product only
- To order please contact your MCS sales representative
40% more pressure volume over stock and 60% more scavenge volume over stock.
Fits: 99-06 Twin Cam (excl. 2006 Dyna). With gear drive cams (NU)
