Framgaffel Öhlins CVO GLIDE Touring 23-upp FGRT 307

55 570 kr

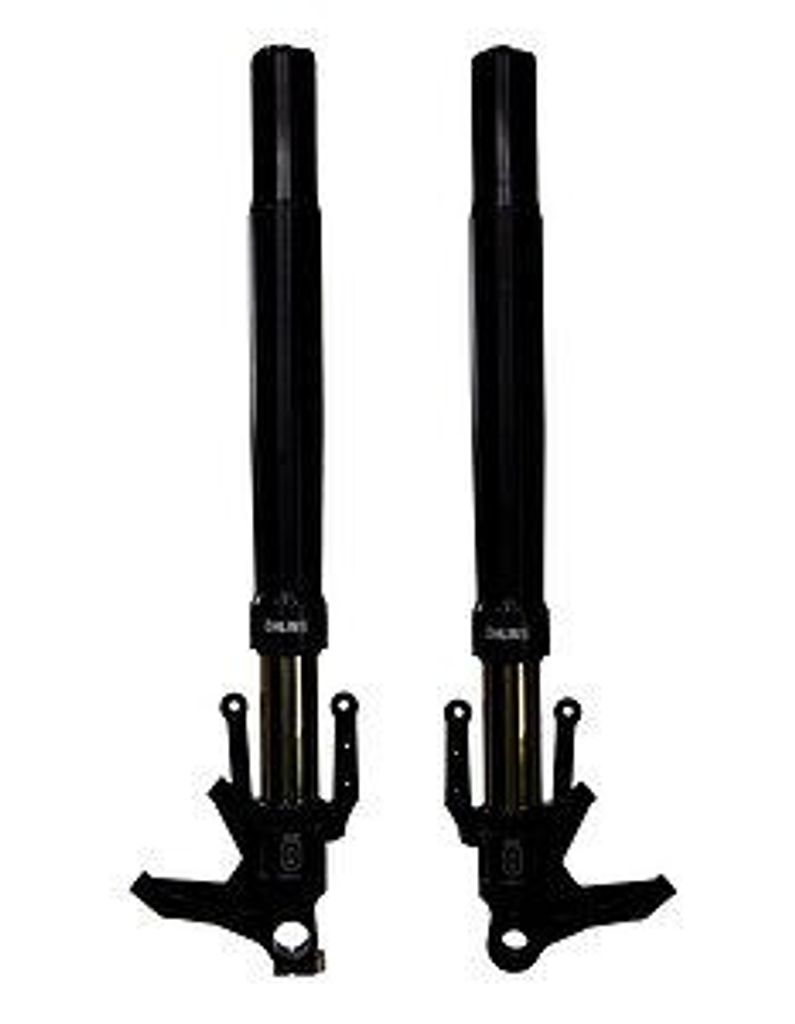

Öhlins FGRT 307 Blackline inverterad framgaffel för CVO Touring
Läs mer

04020016 Öhlins
  • 30 mm NIX-dämpningssystem med separat kompression och retur i vardera gaffelben

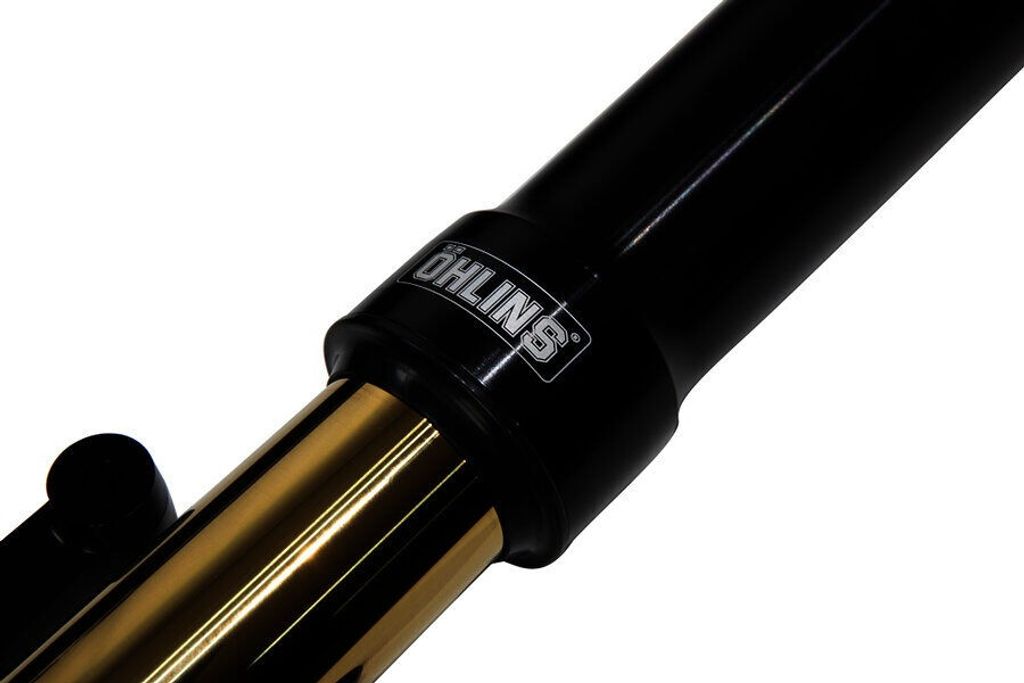

  • Innerslang behandlad med guld titannitrid för minskad friktion
  • Justerbar förspänning, kompression och retur via topplocken

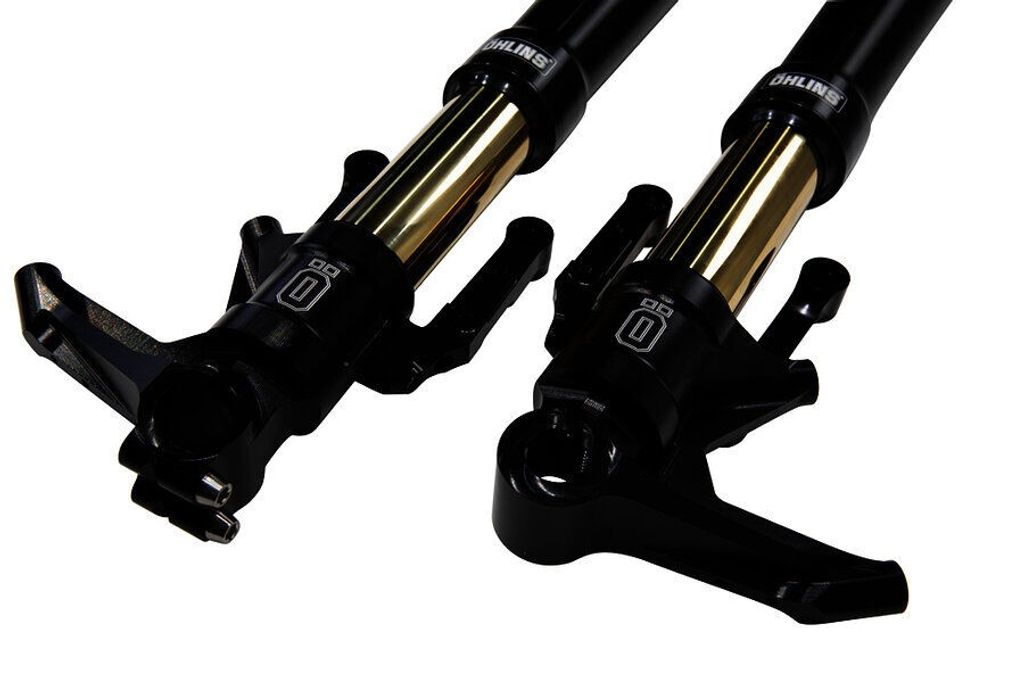

  • Vikt- och påkänningsoptimerade gaffelfötter inspirerade av Bagger Racing
  • Längd: 740 mm, slaglängd: 117 mm
  • 100 mm hålavstånd för radiellt monterade original Brembo-bromsok
  • Monterad fjäder: 13 N/mm (08444-13 i 08444-serien)
  • Extra fjädersats medföljer i förpackningen (12 N/mm och 14 N/mm)

Plug & Play för CVO-modeller med inverterad gaffel och radiellt monterade H-D/Brembo-bromsok. Passar endast modeller med 19" framhjul. Passar inte standard Road Glide eller Street Glide. Rekommenderad gaffelolja: 01309 (oljenivå 170 mm).

Passar: 23-26 CVO Touring: 23-25 FLTRXSE, 24-26 FLTRXSTSE, 23-26 FLHXSE, 2026 FLXSTSE, 2026 FLHXLSE. Endast modeller med 19" framhjul

OEM-nr: 08444-13

FORK HD CVO ROAD/STREET GLIDE

  • The American V-Twin 48 Blackline Fork marks the debut of Öhlins’ front-end suspension technology for Harley-Davidson. It features a weight- and stress-optimized fork bottom design for an ultra-smooth, comfortable ride, along with updated Öhlins logos to enhance the Blackline aesthetic. Incorporating cutting-edge technology, it is designed to elevate the riding experience for Harley-Davidson enthusiasts.
  • Drawing on Öhlins' racing heritage, the fork incorporates a 30 mm NIX damping system, which isolates compression and rebound damping for enhanced precision and stability. The fork’s inner tubes are also treated with a titanium nitrate coating to reduce friction, contributing to an ultra-plush ride quality.
  • Upgrade your bike with this must-have front fork and experience the difference of Öhlins suspension.
  • Features
  • NIX technology
  • Separate rebound and compression adjustment
  • Spring preload adjustment in the top cap
  • Fork bottom design inspired by Bagger Racing
  • Signature Blackline design with black outer tubes and fork bottoms
  • Road & Track 740mm Blackline Fork Legs. Black
  • This Öhlins FGRT 307 American V-Twin 48 Blackline inverted / upside down front fork leg kit is a direct upgrade replacement for late model Tourings
  • Set up and model specific built with a weight- and stress-optimized fork bottom design to accommodate the heavy Touring models
  • Inside the 30mm piston NIX-technology is used with its separated compression and rebound functions into each fork legs
  • This allows precise adjustments for improved stability, with easy access for all adjustments at the top caps
  • The inner tubes are gold titanium nitrate coated which drastically reduces friction
  • It will increase grip, bump absorption and performance which gives better comfort, tire feel and brake support with allround improved road holding
  • Plug & Play for CVO models with an upside down fork and the OEM radial Brembo caliper
  • 100mm mount hole distance for stock H-D radial caliper
  • Reduced friction
  • Length: 740 mm
  • Stroke: 117 mm
  • Rate N/mm: 13 N/mm
  • Position: front
  • Mounted spring: 08444-13
  • Spring series: 08444-Serie
  • Recommended oil: 01309
  • Packing included: with spring Set 12 N/mm and 14 N/mm
  • Oil level mm: 170mm
  • Packaging unit: kit Note: With approval
  • Check your local MCS dealer or the MCS sales department for exact type of approval and validity on bike model and years on the test report
  • Note: Does not fit standard Road/Street Glide models
  • For 19" front wheel use only

Fits: 23-26 CVO Touring: 23-25 FLTRXSE; 24-26 FLTRXSTSE; 23-26 FLHXSE; 2026 FLXSTSE; 2026 FLHXLSE. With 19" front wheel models only
