Framgaffel Öhlins CVO GLIDE Touring 23-upp FGRT 308

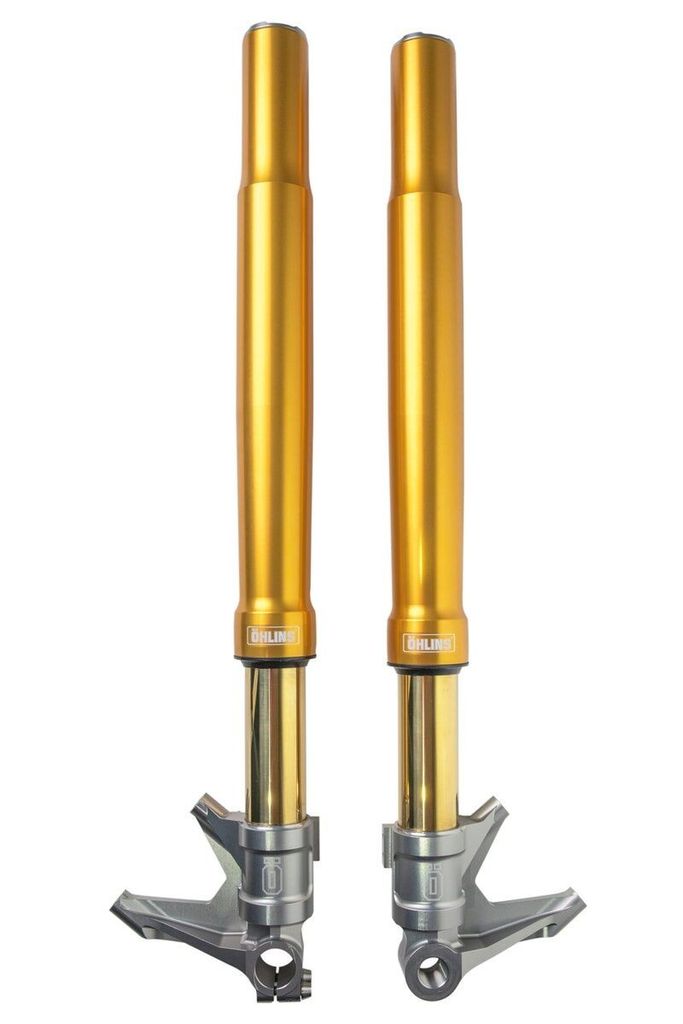

Öhlins FGRT 308 American V-Twin 48 inverterad framgaffel, 740 mm
Läs mer
- Inverterad framgaffel (upside-down) med 30 mm NIX-dämpningssystem
- Separat justering för kompression och retur samt fjäderförspänning i topplocken

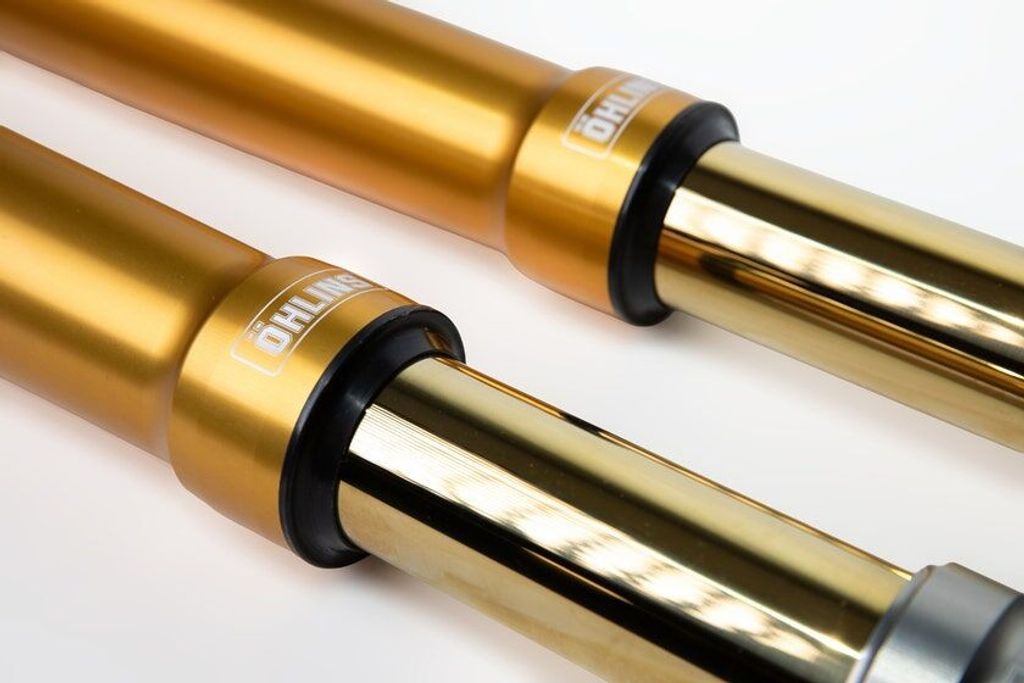

- Innerslang behandlad med titannitrid för minskad friktion
- Blackline-design med svarta ytterben, svarta gaffelfötter och guldiga gaffelben
- Gaffelfötter anpassade för OEM H-D radiella bromsok med 100 mm hålavstånd
- Längd: 740 mm, slaglängd: 117 mm
- Monterad fjäder: 13 N/mm (fjäderserie 08444)
- Fjädersats med 12 N/mm och 14 N/mm medföljer i förpackningen
Plug & Play för CVO-modeller med inverterad framgaffel och OEM radiella Brembo-bromsok. Rekommenderad gaffelolja är 01309 med 170 mm oljenivå.
Passar: 23-26 CVO Touring: 23-26 FLTRXSE, 24-26 FLTRXSTSE, 23-26 FLHXSE
OEM-nr: 08444-13
FORK HD CVO ROAD/STREET GLIDE
- The American V-Twin 48 Blackline Fork marks the debut of Öhlins’ front-end suspension technology for Harley-Davidson. It features a weight- and stress-optimized fork bottom design for an ultra-smooth, comfortable ride, along with updated Öhlins logos to enhance the Blackline aesthetic. Incorporating cutting-edge technology, it is designed to elevate the riding experience for Harley-Davidson enthusiasts.
- Drawing on Öhlins' racing heritage, the fork incorporates a 30 mm NIX damping system, which isolates compression and rebound damping for enhanced precision and stability. The fork’s inner tubes are also treated with a titanium nitrate coating to reduce friction, contributing to an ultra-plush ride quality.
- Upgrade your bike with this must-have front fork and experience the difference of Öhlins suspension.
- Features
- NIX technology
- Separate rebound and compression adjustment

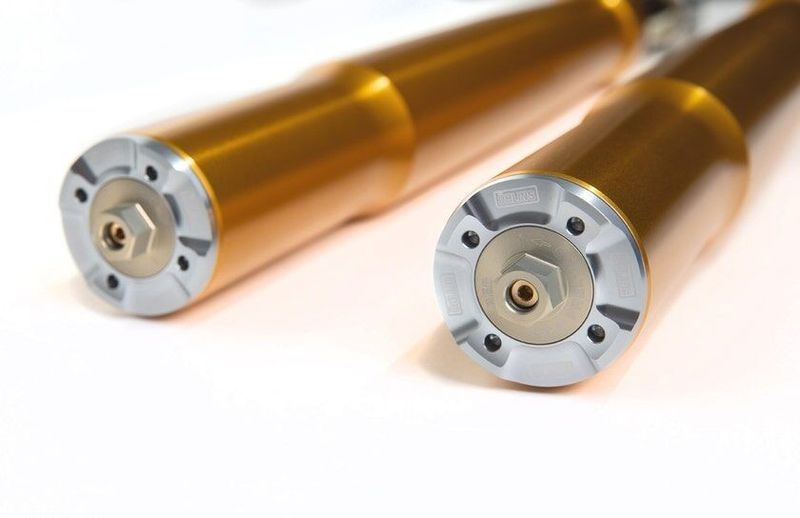

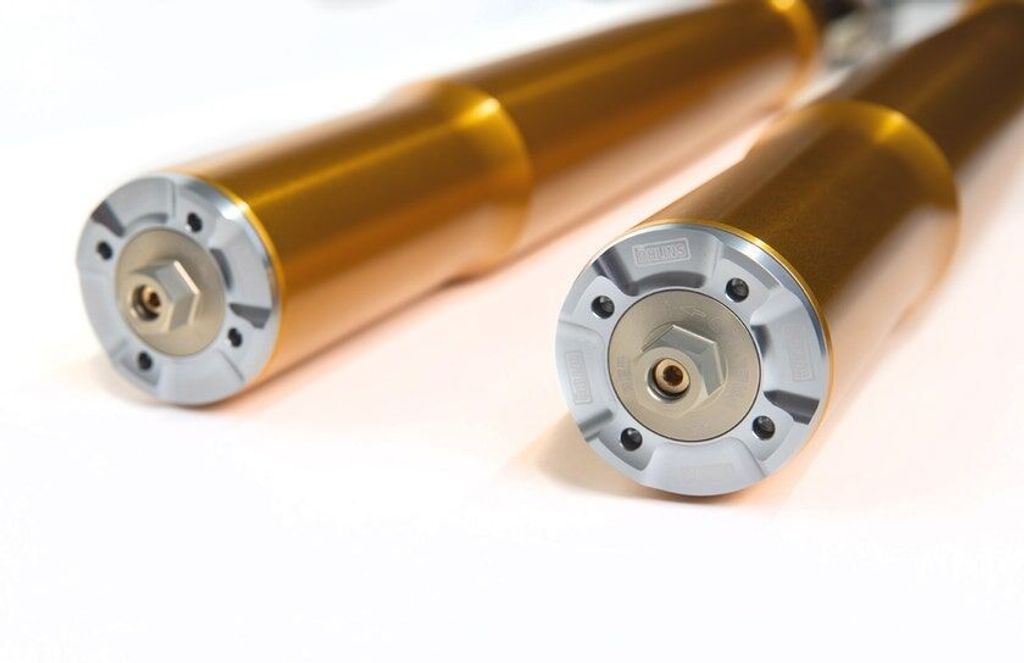

- Spring preload adjustment in the top cap

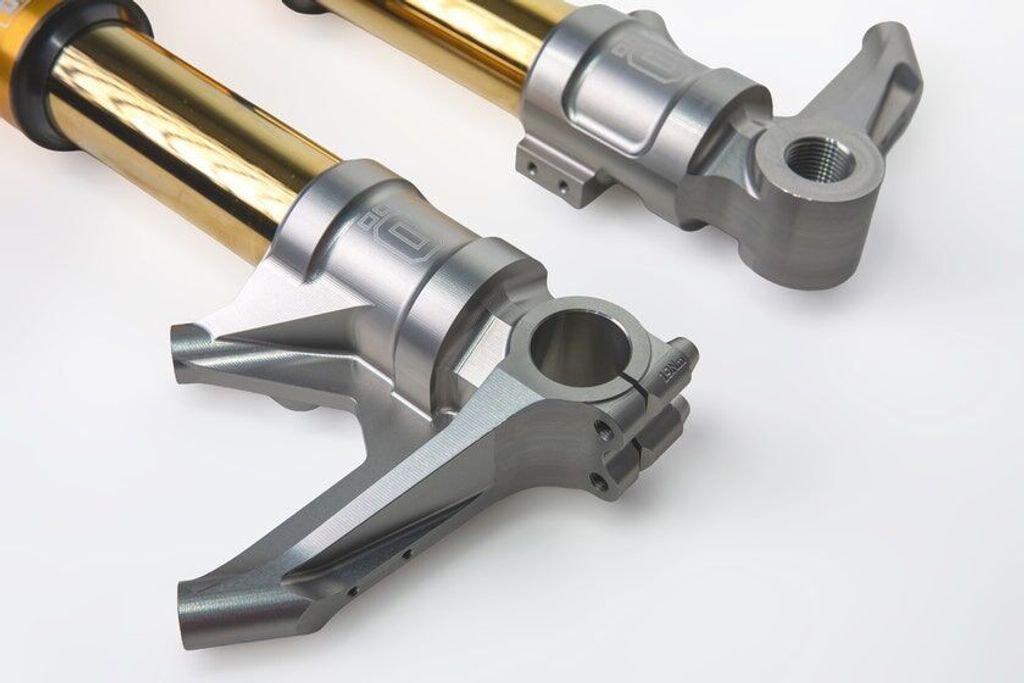

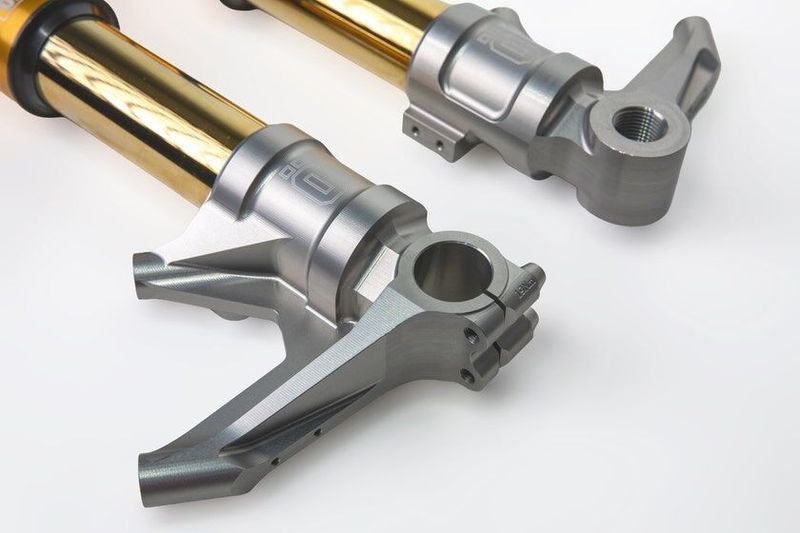

- Fork bottom design inspired by Bagger Racing
- Signature Blackline design with black outer tubes and fork bottoms
- Road & Track 740mm Fork Legs. Gold
- Note: Special Order Product only
- To order please contact your MCS sales representative
- This Öhlins FGRT 308 American V-Twin 48 inverted / upside down front fork leg kit is a direct upgrade replacement for late model Tourings
- Set up and model specific built with a weight- and stress-optimized fork bottom design to accommodate the heavy Touring models
- Inside the 30mm piston NIX-technology is used with its separated compression and rebound functions into each fork legs
- This allows precise adjustments for improved stability, with easy access for all adjustments at the top caps
- It will increase grip, bump absorption and performance which gives better comfort, tire feel and brake support with allround improved road holding
- Plug & Play for CVO models with an upside down fork and the OEM radial Brembo caliper
- 100mm mount hole distance for stock H-D radial caliper
- Reduced friction
- Length: 740 mm
- Stroke: 117 mm
- Rate N/mm: 13 N/mm
- Position: front
- Mounted spring: 08444-13
- Spring series: 08444-Serie
- Recommended oil: 01309
- Packing included: with spring Set 12 N/mm and 14 N/mm
- Oil level mm: 170mm
- Packaging unit: kit Note: With approval
- Check your local MCS dealer or the MCS sales department for exact type of approval and validity on bike model and years on the test report
Fits: 23-26 CVO Touring: 23-26 FLTRXSE, 24-26 FLTRXSTSE, 23-26 FLHXSE
