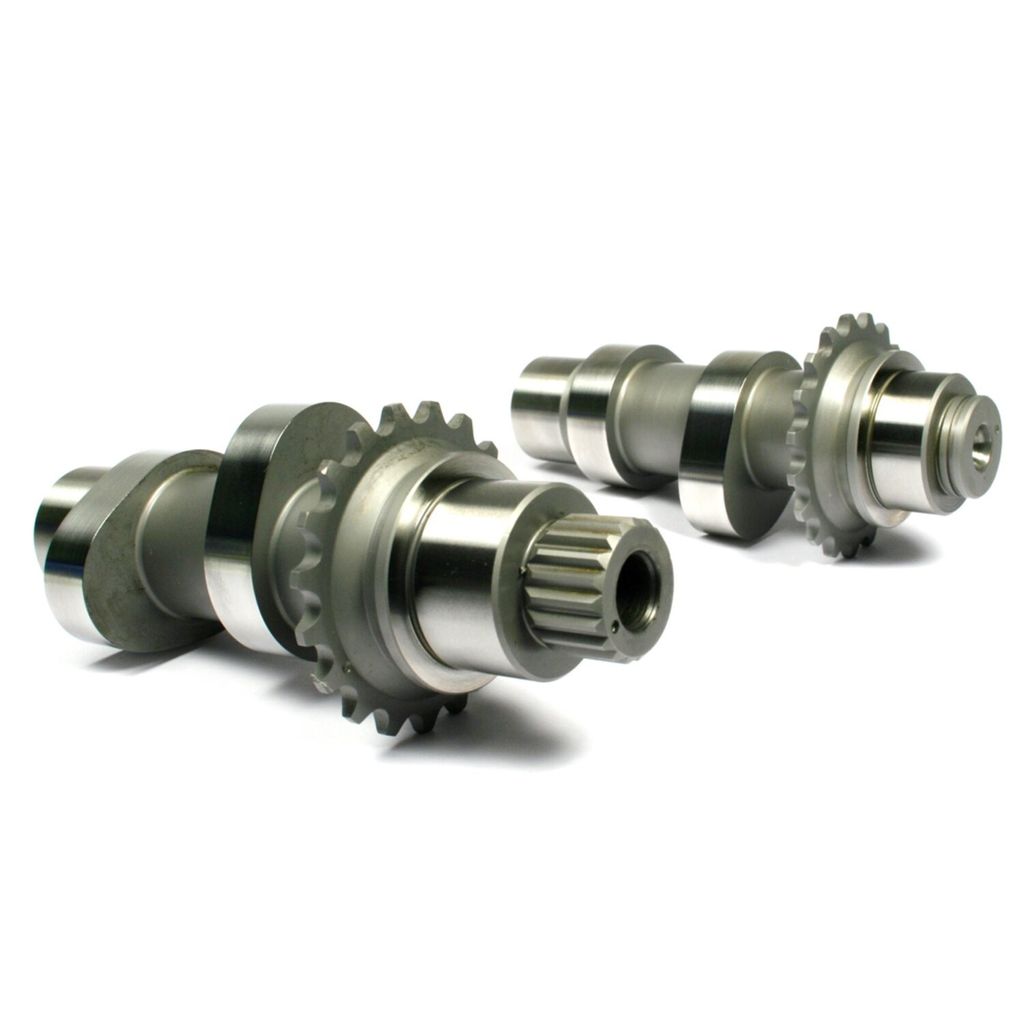

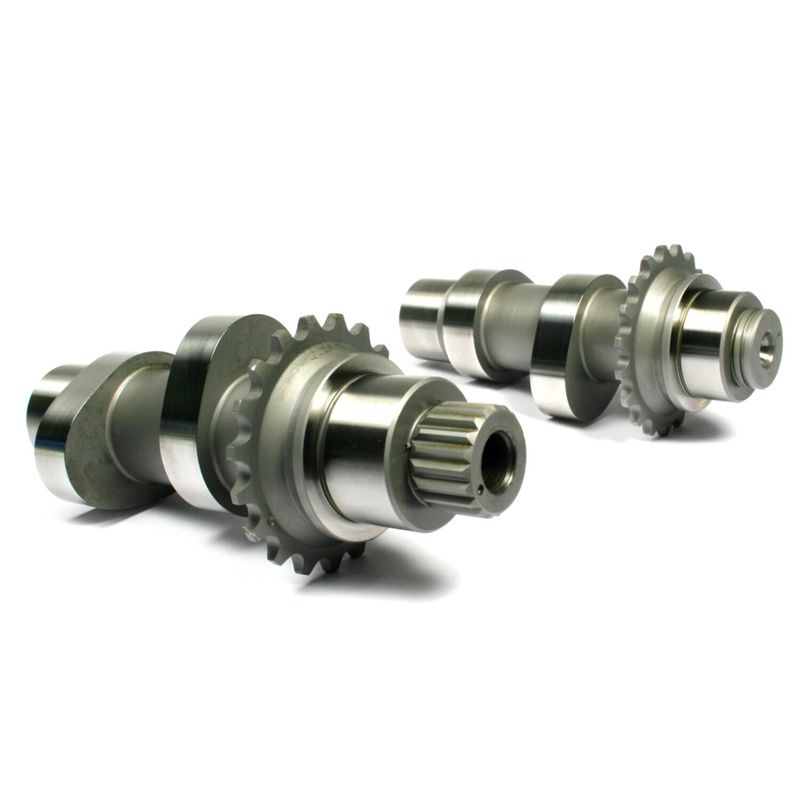

Kamaxel Feuling Reaper 630 Conversion 630" Twin Cam 99-06

6 400 kr

Feuling Reaper 630 konverteringskamaxelsats för Twin Cam
Läs mer

707505 Feuling
  • Konverteringskamaxel för att uppgradera 99-06 Twin Cam till 06-17 hydrauliska kedjespännare som drivs av oljetryck
  • 0,630" ventillyft för insug och avgasventil
  • Mycket högpresterande kamaxel med kraftiga effektökningar för stora motorer (2 500–6 900 RPM)
  • Konstruerad med 99-06 inre kamtappar och 07-17 yttre kamtappar
  • Tillåter användning av 07-17 kamplattor, oljepump, hydrauliska kamkedjespännare och kedjehjul
  • Kräver mappning/justering samt högpresterande ventilfjädrar, stötstänger, lyftare och koppling

Passar inte med konverteringskamplatta. Kräver Feuling OE+ konverteringskit (707402 för 99-00 Twin Cam samt 2001 FLT, eller 707403 för 01-06 Twin Cam exkl. 2001 FLT och 2006 Dyna) samt kompletterande kedjor, kedjehjul, spännare och Feuling schimssats för korrekt kedjeinriktning. Modeller 99-01 Twin Cam med Magneti Marelli-tändning kräver Andrews kedjehjul 503707 istället för 34-tänders originalkamdrev.

Passar: Twin Cam 99-06

OEM-nr: 25675-06, 25683-06, 25673-06, 25728-06, 39968-06, 39969-06, 25729-06, 25731-06, 25734-06, 25736-06

Reaper 630 Twin Cam conversion cam set

  • Used to convert 99-06 Twin Cams, with the stock mechanical spring adjusted chain tensioners, to 06-17 style hydraulic chain tensioners that work on engine oil pressure
  • This 06-17 hydraulic system is better and used in all late model Twin Cams
  • 630" intake & exhaust valve lift
  • Very High performance cam
  • Offers vicious performance gains for large engines (2.500 -6.900 RPM)
  • Tuning required
  • High performance valve springs, pushrods, lifters, and clutch required
  • Fitment notes:
  • Additional parts are required
  • Conversion camshafts for ’99-’06 Twin Cam engines use 99-06 inner cam journals with the 07-17 outer cam journals allowing the use of the stock 07-17 cam plates, oil pump, hydraulic chain tensioners and chain drive sprockets
  • This conversion camshaft will not fit a conversion cam plate
  • See 'Additional parts required for installation' below
  • These are not available through Motorcycle Storehouse, unless the MCS part number is mentioned
  • Required components for 99-06 to 06-17 conversion camshaft kits: Feuling, OE+ hydraulic cam chain tensioner conversion kit 707402 99-00 Twin Cam; 2001 FLT or 707403 01-06 Twin Cam (excl
  • 2001 FLT; 2006 Dyna)
  • Therefore also requires following parts: 707246 Outer chain
  • Repl
  • 25675-06
  • 707245 Inner chain
  • 25683-06
  • 921614 Outer crank sprocket 17 tooth
  • 25673-06
  • 25728-06
  • 948489 Outer hydraulic tensioner unit
  • 39968-06
  • 39969-06
  • Feuling spacer kit: Kit included one thrust washer and one of each size cam alignment spacers
  • 25729-06 Thrust washer front cam .100"
  • Use as required
  • Note: Installation requires qty
  • Note: Correct spacer thickness is a must for proper sprocket alignment
  • 99-01 Twin Cam with Magneti Marelli ignition: 99-01 engines with Magneti Marelli ignition require the use of Andrews sprocket 503707 in replacement of the stock 34 tooth outer cam drive sprocket 25728-06
  • 503707 99-01 TCA/B
  • Andrews with ignition trigger ring

Fits: 99-06 Twin Cam (Excl. 2006 Dyna) (NU)
