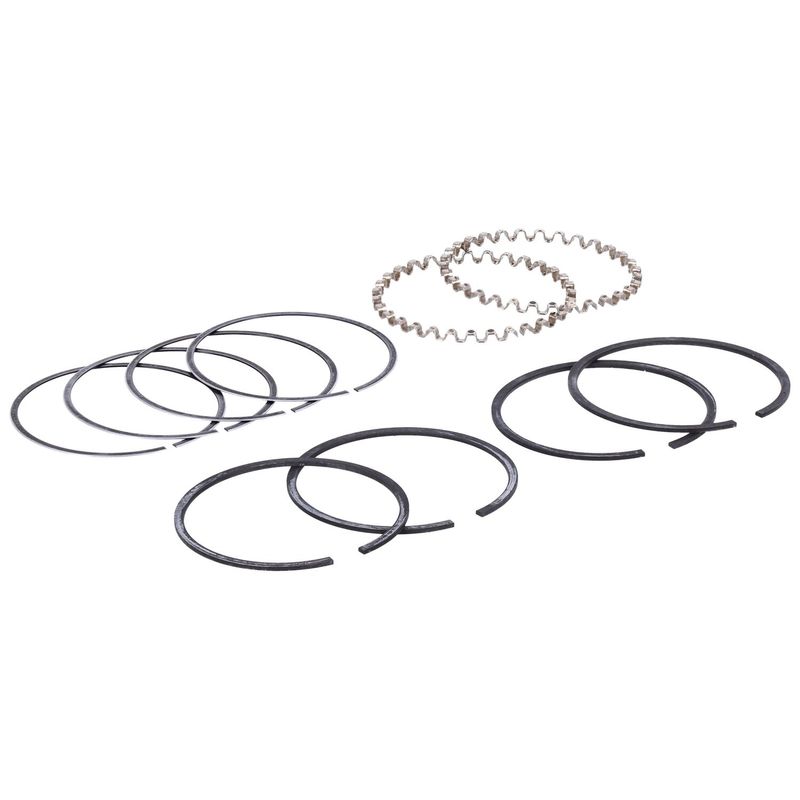

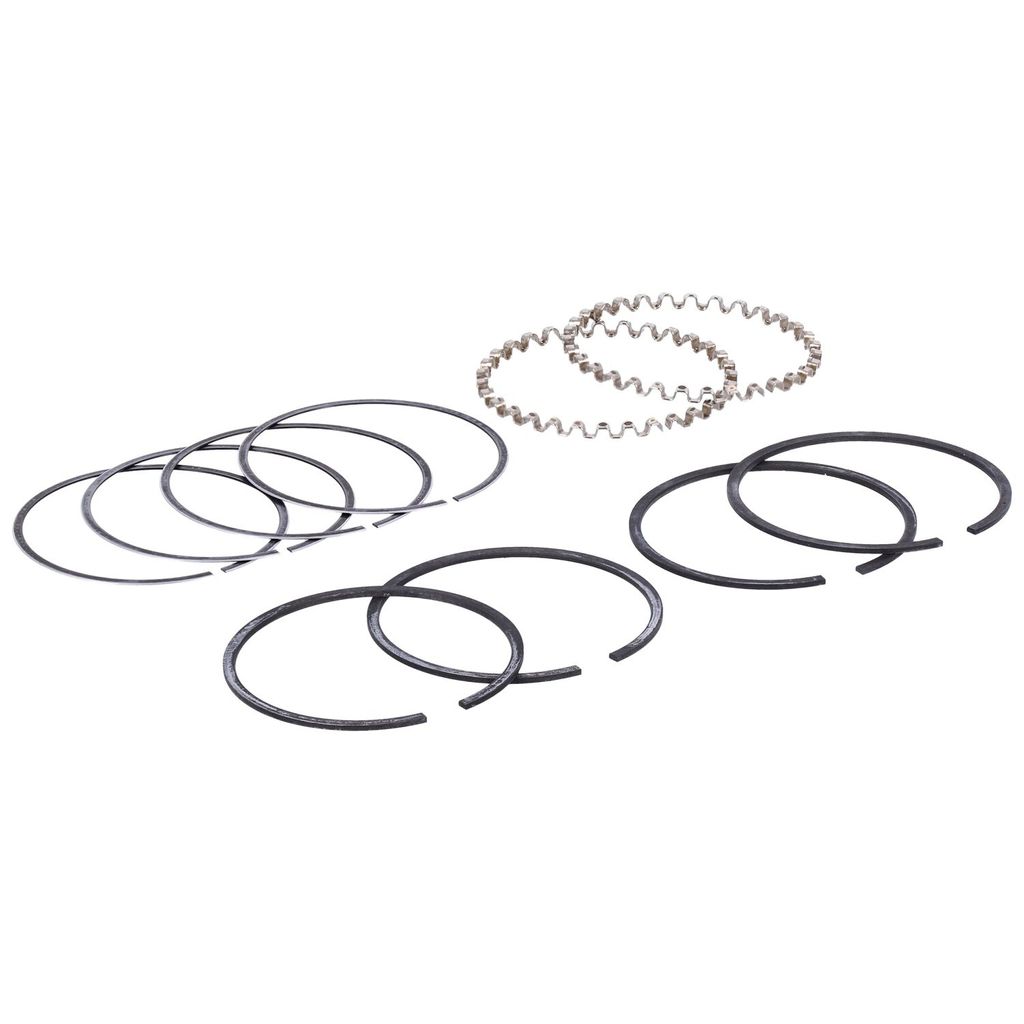

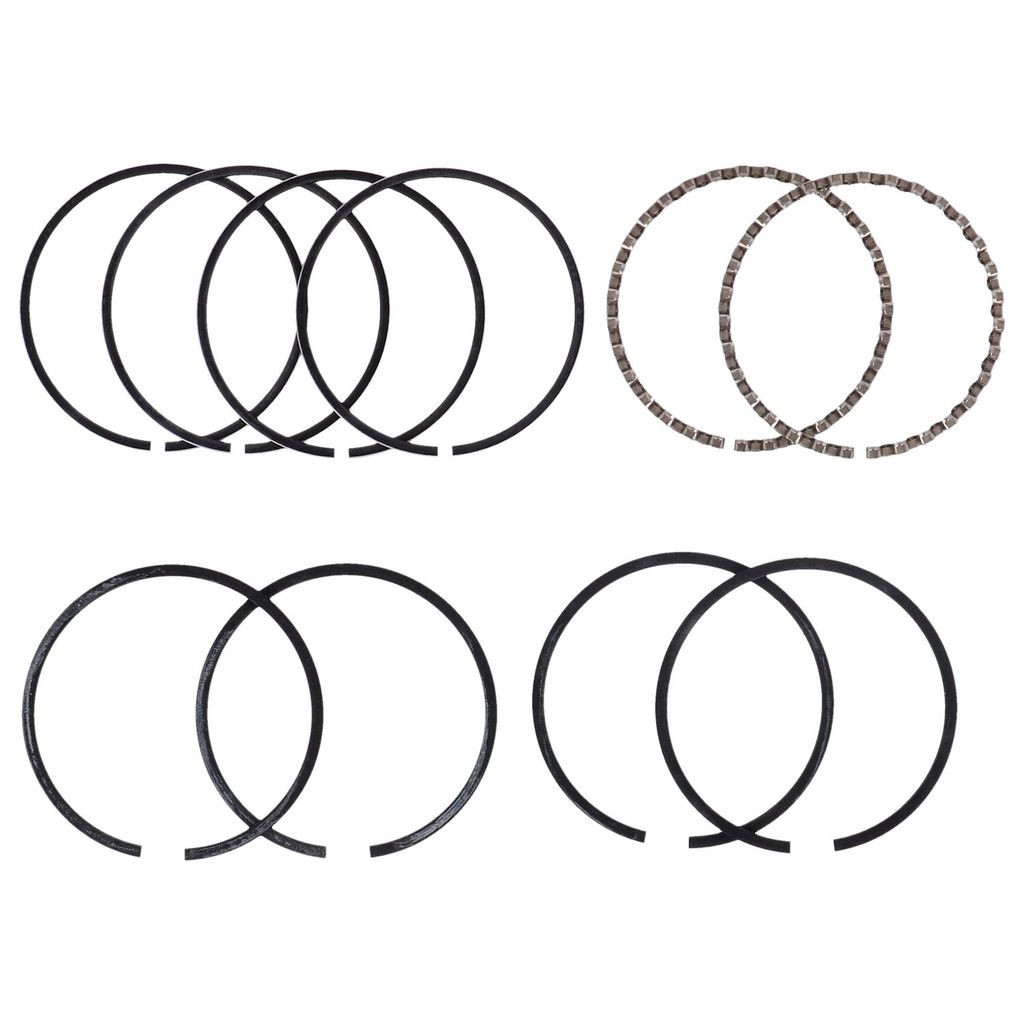

Kolvringssats Hastings 2-3/4" +.020 45" 50-73

650 kr

Hastings kolvringssats, 2-3/4" borrning (+.020")
Läs mer

946454 Hastings
  • Borrning: 2-3/4"
  • Överstorlek: +.020"
  • Standardborrning: 2.745" (69,723 mm)
  • Första kompressionsring: 1,6 mm (1/16") i fosfaterat (parkerized) gråjärn
  • Tredelad oljering av flex-vent-typ i krom
  • Avsedd för kolvar av senare typ (1950–1973)

Passar inte tidiga kolvar från 1929–1949 med 3/32" (2,3 mm) kompressionsringar och 1/8" (3,2 mm) oljering. Mät kolvringspårens höjd i kolven för att säkerställa korrekt passform.

Passar: 45" 50-73

2-3/4" bore piston ring set. +.020"

  • Used with late style 1950-1973 type pistons with 1/16" gray iron parkerized compression rings and the 3-piece flex-vent style chrome oil rings
  • Also fits 52-56 K, KH, KHK 55" (900cc) Flathead models
  • Std Bore: 2.745" (69.723mm)
  • 1st ring: 1.6mm
  • Note: OEM 1929-1949 pistons are equipped with 3/32" (2.3mm) 1st. & 2nd rings and 1/8" (3.2mm) oil ring, for these Hastings rings see 1950-1973 Flathead model years
  • These rings will not fit the 1929-1949 early type pistons
  • Tech tip: Piston grooves vs piston rings
  • It's not difficult to determine if a Hastings piston ring set will fit a certain piston
  • You should measure the height of the piston groove in the piston itself
  • Ring heights are listed for reference
  • For each oversize cylinder diameter will increase with .010" (0.254mm)
  • The standard bore of the cylinder is listed for reference. (Tech tip information provided by Hastings Manufacturing Company, Inc.)

Fits: 50-73 45" (750cc) Flathead; all 52-56 K 45" (750cc) and KH, KHK 55" (900cc) Flathead models (NU)
