Kolvsats cylinder S&S M8 HC 132/136" 8.5 910-0910A

26 390 kr

S&S 132"/136" Big bore-sats med cylindrar och kolvar för M8
Läs mer

709939 S&S
  • Big bore-sats med 4.320" cylindrar och smidd kolvsats (HC +8.5cc)
  • Bultmonterad installation utan behov av bearbetning eller upptagning av vevhus
  • Behåller motorns originalhöjd och fungerar med originaltoppar
  • Kompressionsförhållande: 12.7:1 för 132" och 13.1:1 för 136" med 88cc originaltoppar
  • Svart pulverlackerad finish utan bearbetade flänsar för att matcha OEM-utförande
  • Satsen innehåller cylindrar, kolvsats, 2 MLS .040" toppackningar, 2 cylinderfotspackningar, 4 styrpinnar, avgaspackningar och ett S&S-emblem för kamkåpa
  • Tillverkad i USA

132" (2162cc) uppnås på 114"/117"-motorer med 4-1/2" slag. För att uppnå 136" krävs S&S svänghjul med 4-5/8" slag (säljs separat). Ej kompatibel med 107" (4.375" slag), M8 121" CVO eller Harley-Davidsons 4-5/8" svänghjul. Justering av bränsleinsprutning och tändning kan krävas.

Passar: 17-25 114" M8-modeller, 17-25 M8-modeller med S&S 923270 4-5/8" (4.625" ) stroker-svänghjul (exkl. CVO)

132" High Compression / 136" Big Bore Kit

  • 132" high compression kit will work on 114"/117" motors with 4-1/2" stroke flywheels only
  • Bolt-on, does not require machining of the crankcases
  • Made in the USA
  • To achieve 136" big bore, S&S flywheel with 4-5/8" stroke is required (sold seperately).
  • Not compatible with Harley Davidson 4-5/8" stroke flywheel.
  • Not for M8 with 121" CVO.
  • M8 132/136" big bore cylinder & piston kit. HC +8.5cc
  • Black cylinders without highlighted fins
  • Compression ratio 12.7:1 for 132" and 13.1:1 for 136" with stock 88cc heads
  • 132" (2162cc) is achieved when used with stock 114" flywheels
  • Works with stock crankcases, case boring is not required, stock heads and retains stock engine height

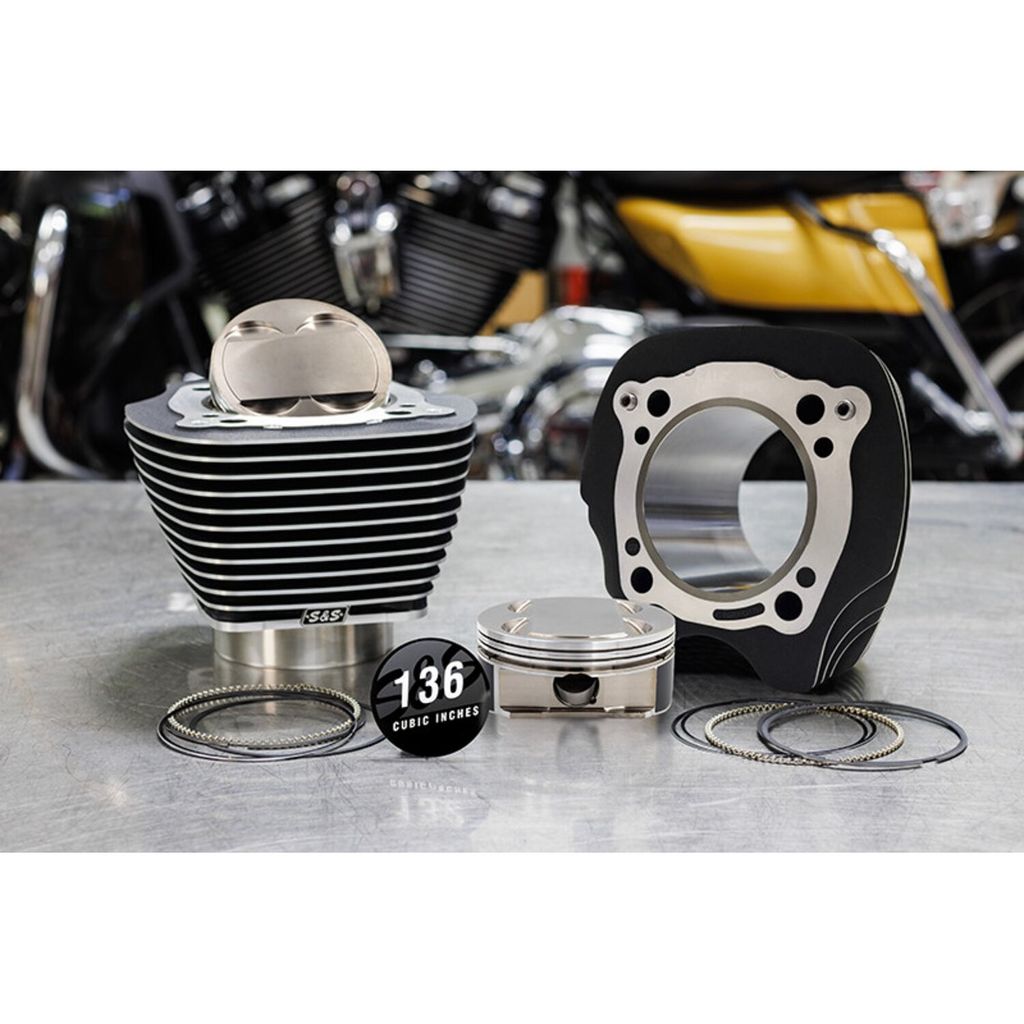

  • Kit includes a forged 4.320" big bore forged piston kit, 4.320" big bore cylinders, 2 MLS (Multi-Layer-Steel) .040" head gaskets, 2 cylinder base gaskets, 4 cylinder dowels, exhaust gaskets and an S&S cubic inch cam cover badge
  • Black powder coated finish to match the OEM finish
  • Note: For the 132" kit S&S measured 135.51HP and 145.83 torque with stock heads, a 550 cam, stock throttle body and a high flow Stealth air cleaner kit
  • Note: Tuning of fuel injection and ignition may be required
  • Note: Not compatible with 107" (4.375" stroke) engines

Fits: 17-25 114" M8 Models; 17-25 M8 models with S&S 923270 4-5/8" (4.625" ) stroker flywheels (excl. CVO) (NU)
