Kolvsats cylinder S&S M8 HC 132/136" 8.5 910-0911A

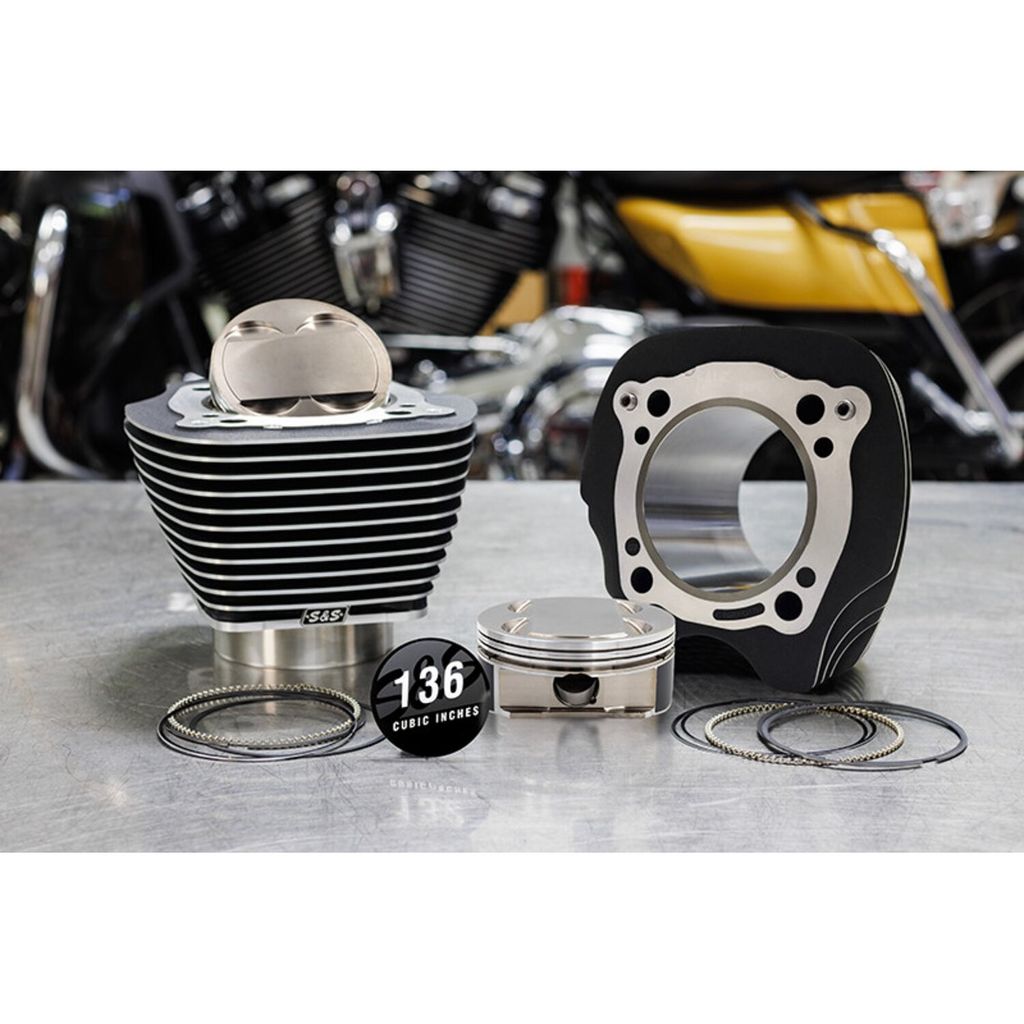

S&S 132"/136" Big bore-sats med cylindrar och kolvar
Läs mer
- Big bore-sats för M8 med cylindrar och smidd 4.320" kolvsats (HC +8.5cc)
- Bultmonterad installation utan krav på bearbetning av vevhus
- Behåller motorns originalhöjd och fungerar med originaltoppar
- Kompressionsförhållande: 12.7:1 för 132" och 13.1:1 för 136" med 88cc originaltoppar
- Black Granite-cylindrar med pulverlackerad OEM-finish och maskinbearbetade flänsar
- Satsen innehåller 4.320" cylindrar, smidd kolvsats, 2 MLS .040" topplockspackningar, 2 cylinderfotspackningar, 4 styrpinnar, avgaspackningar och S&S cubic inch-emblem för kamkåpa
- Tillverkad i USA
132"-satsen passar endast 114"/117"-motorer med 4-1/2" slag. För 136" krävs S&S svänghjul med 4-5/8" slag (säljs separat). Ej kompatibel med 107"-motorer (4.375" slag), M8 121" CVO eller Harley-Davidson 4-5/8" slagsvänghjul. Justering av bränsleinsprutning och tändning kan krävas.
Passar: 17-24 114" M8-modeller, 17-24 M8-modeller med S&S 923270 4-5/8" (4.625" ) stroker-svänghjul (exkl. CVO)
132" High Compression / 136" Big Bore Kit
- 132" high compression kit will work on 114"/117" motors with 4-1/2" stroke flywheels only
- Bolt-on, does not require machining of the crankcases
- Made in the USA
- To achieve 136" big bore, S&S flywheel with 4-5/8" stroke is required (sold seperately).
- Not compatible with Harley Davidson 4-5/8" stroke flywheel.
- Not for M8 with 121" CVO.
- M8 132/136" big bore cylinder & piston kit. HC +8.5cc
- Black Granite cylinders with highlighted fins
- Compression ratio 12.7:1 for 132" and 13.1:1 for 136" with stock 88cc heads
- 132" (2162cc) is achieved when used with stock 114" flywheels
- Works with stock crankcases, case boring is not required, stock heads and retains stock engine height
- Kit includes a forged 4.320" big bore forged piston kit, 4.320" big bore cylinders, 2 MLS (Multi-Layer-Steel) .040" head gaskets, 2 cylinder base gaskets, 4 cylinder dowels, exhaust gaskets and an S&S cubic inch cam cover badge
- Black powder coated finish to match the OEM finish
- Note: For the 132" kit S&S measured 135.51HP and 145.83 torque with stock heads, a 550 cam, stock throttle body and a high flow Stealth air cleaner kit
- Note: Tuning of fuel injection and ignition may be required
- Note: Not compatible with 107" (4.375" stroke) engines
- Note: Special Order Product only
- To order please contact your MCS sales representative
Fits: 17-24 114" M8 Models; 17-24 M8 models with S&S 923270 4-5/8" (4.625" ) stroker flywheels (excl. CVO) (NU)
