Kolvsats S&S 9 1CR 3-1/2" +.010 1340cc/80" Shovel 79-84
S&S smidd kolvsats för 3-1/2" cylinderlopp (+.010")
Läs mer
- Kompressionsförhållande på 9:1 (53cc dome)
- Smidd kolv i avancerad legering och kjoldesign för tyst gång och lång livslängd
- Avsedd för 3-1/2" cylinderlopp och 4-1/4" originalslaglängd (ersättning för 1340cc/80" Shovelhead)
- Överdimension: +.010"
- Levereras med kolvbultar, kolvbultsklipps och kolvringar
- Rekommenderat kolvspel: tight passform .0030" till .0035", lös passform .004" till .005"
Montering och nödvändiga justeringar bör utföras av en kunnig mekaniker som kontrollerar komponenternas kompatibilitet före installation. Följ gällande inkörningsrutiner för nyrenoverade motorer.
Passar: 1340cc/80" Shovel 79-84

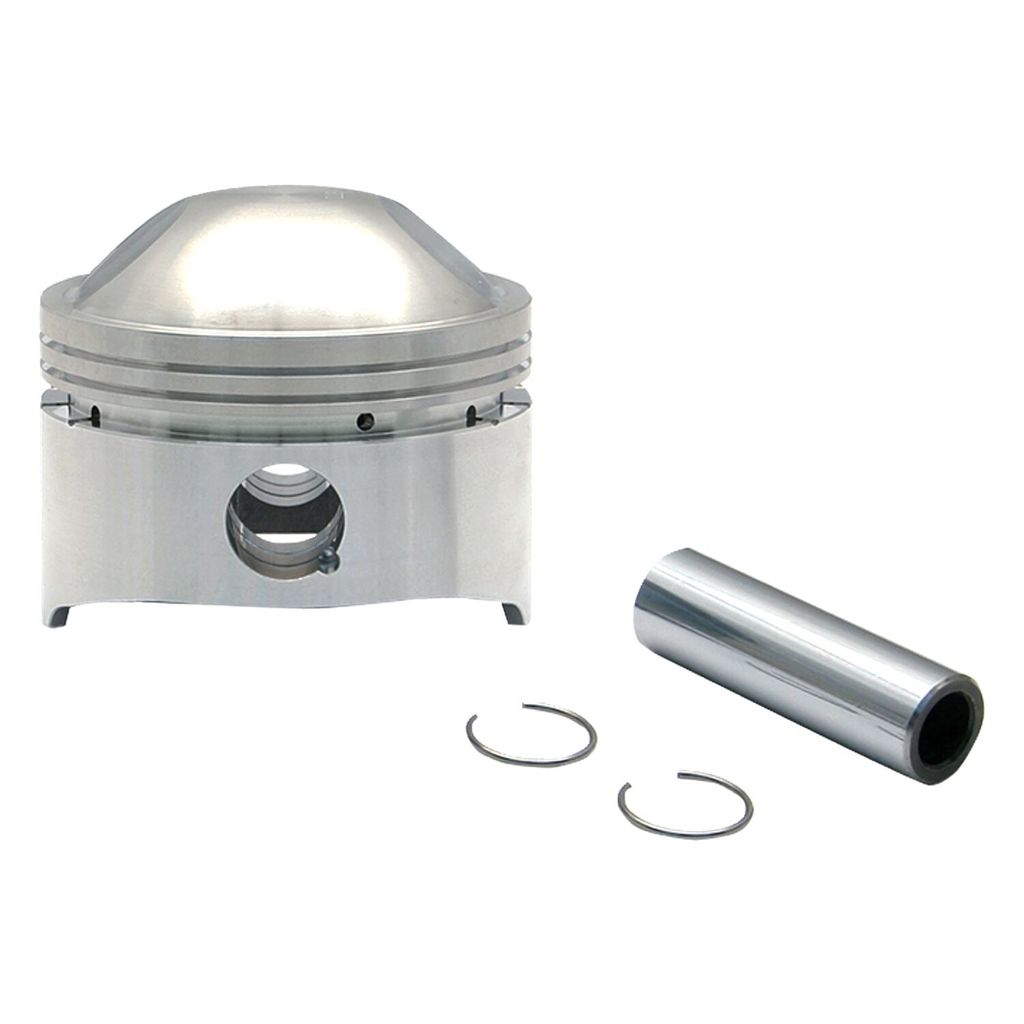

3-1/2" bore 9:1CR piston kit. +.010"
- High 9:1 (53cc dome) compression ratio
- Fits as a direct replacement for 1340 (80") Shovelhead models, 3-1/2" bore with stock 4-1/4" stroke
- These S&S forged pistons come in an advanced alloy and skirt profiles, resulting in a quiet engine and long life, previously only achievable with cast pistons
- This is an excellent choice to overhaul your stock 1340cc Shovel with a higher compression piston
- Pistons include wrist pins, wrist pin clips and piston rings
- Note: S&S piston fit recommendations: Close fit .0030" to .0035", loose fit .004" to .005"
- Note: In any and all applications the technician must be able to judge components for their suitability in combination with the other engine components, prior to installation
- It is of importance that a knowledgeable mechanic will install & make adjustments as required
- The rider must follow standard break-in and riding procedures for overhauled engines
Fits: 79-84 1340cc/80" Shovel (NU)
