Kolvsats S&S 9 1CR 3-1/2" +.030 1340cc/80" Shovel 79-84
S&S smidd kolvsats för 3-1/2" cylinderdiameter med 9:1 kompressionsförhållande
Läs mer
- Överdimension: +.030"
- Kompressionsförhållande på 9:1 (53cc dome)
- Smidda kolvar i avancerad legering och kolvskörtsprofil för tyst gång och lång livslängd
- Inkluderar kolvbultar, kolvbultsklipps och kolvringar
- Rekommenderat kolvspel: tight passform .0030" till .0035", lös passform .004" till .005"
Direkt ersättning för 1340cc (80") Shovelhead med 3-1/2" cylinderdiameter och 4-1/4" originalslaglängd. Monteringen bör utföras av en kunnig mekaniker som kontrollerar komponenternas kompatibilitet och gör nödvändiga justeringar. Följ gängse inkörningsprocedurer för nyrenoverade motorer.
Passar: 1340cc/80" Shovel 79-84
3-1/2" bore 9:1CR piston kit. +.030"
- High 9:1 (53cc dome) compression ratio
- Fits as a direct replacement for 1340 (80") Shovelhead models, 3-1/2" bore with stock 4-1/4" stroke
- These S&S forged pistons come in an advanced alloy and skirt profiles, resulting in a quiet engine and long life, previously only achievable with cast pistons
- This is an excellent choice to overhaul your stock 1340cc Shovel with a higher compression piston

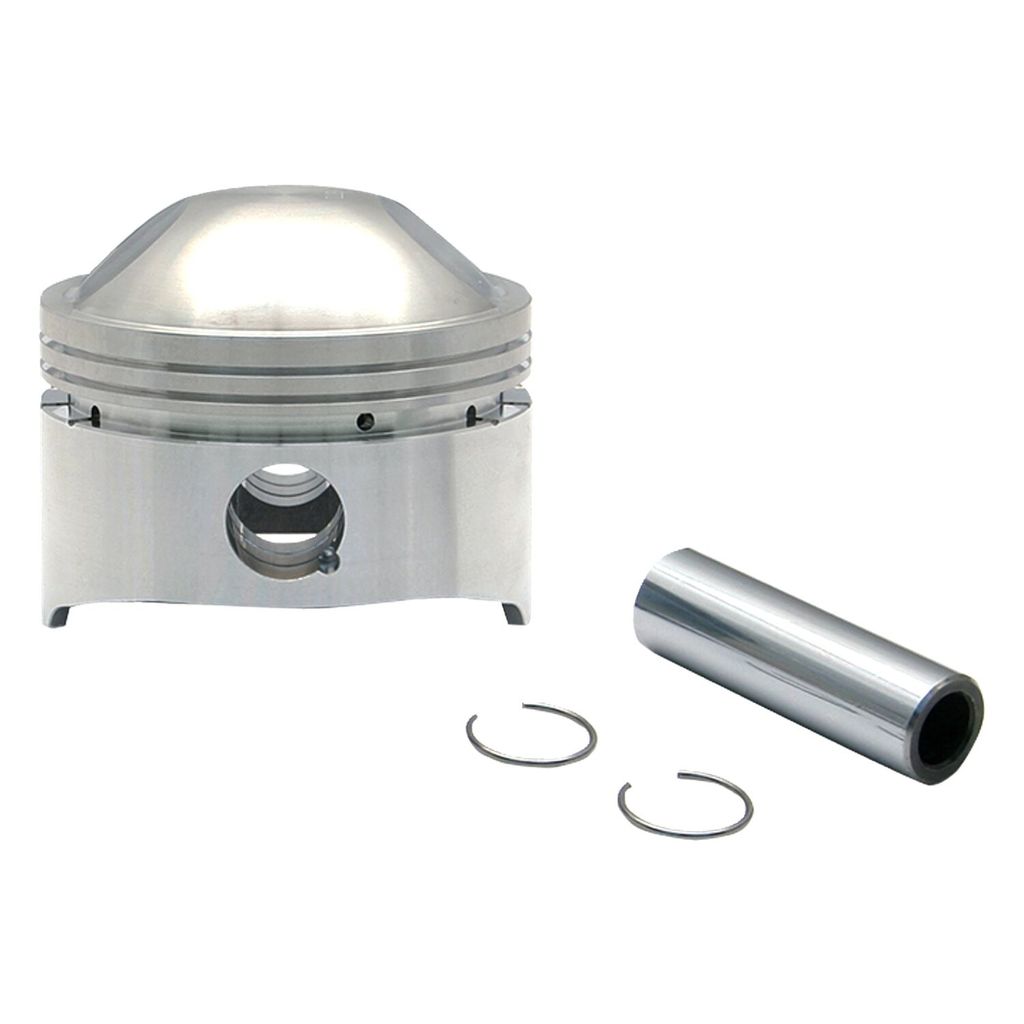

- Pistons include wrist pins, wrist pin clips and piston rings
- Note: S&S piston fit recommendations: Close fit .0030" to .0035", loose fit .004" to .005"
- Note: In any and all applications the technician must be able to judge components for their suitability in combination with the other engine components, prior to installation
- It is of importance that a knowledgeable mechanic will install & make adjustments as required
- The rider must follow standard break-in and riding procedures for overhauled engines
Fits: 79-84 1340cc/80" Shovel (NU)
