Kolvsats S&S M8 107" 124" +.010 107" Softail 18-24

9 540 kr

S&S Big Bore kolvsats från 107" till 124", +.010"
Läs mer

580355 S&S
  • 11.1:1 kompressionsförhållande

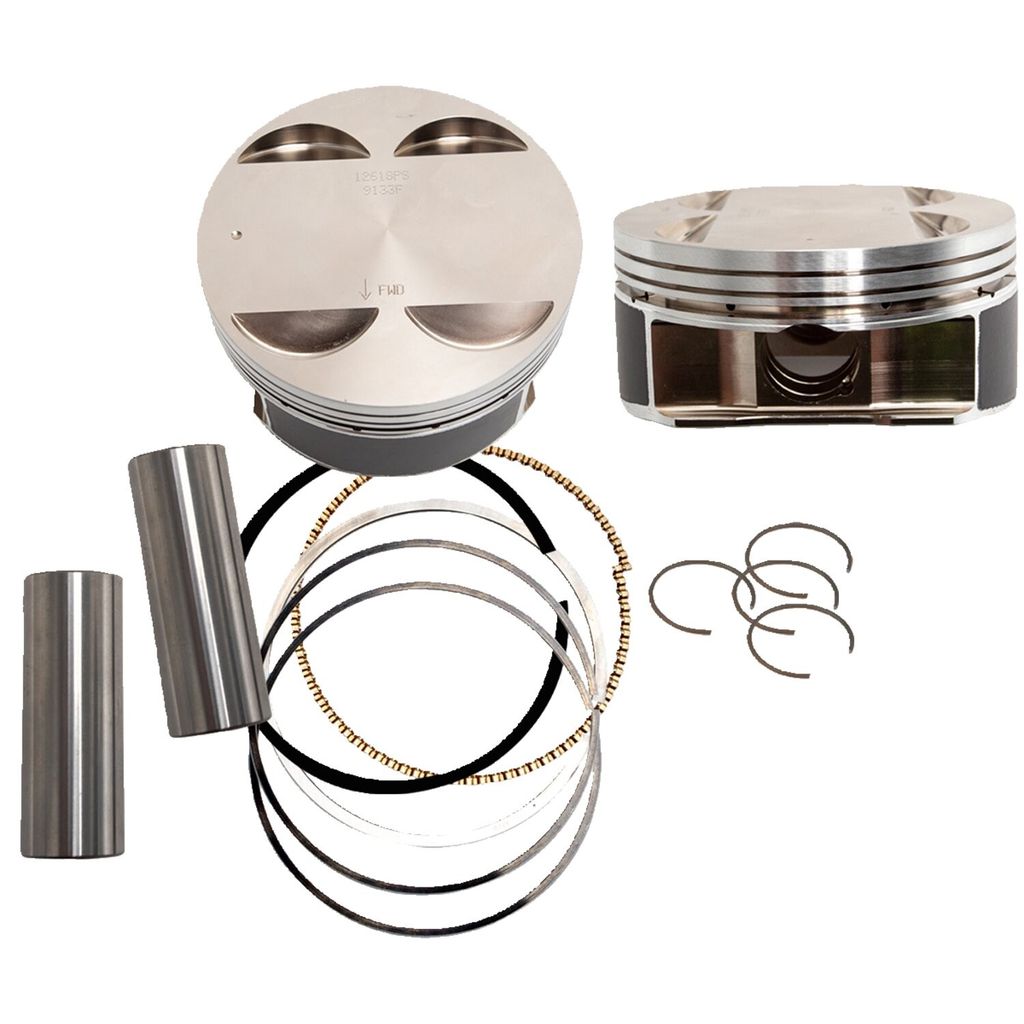

  • Satsen innehåller smidda kolvar, kolvringar, kolvbultar och clips
  • Kräver ingen uppborrning av vevhus
  • Kräver 4.250" Big Bore-cylindrar (originalcylindrar kan inte borras till 4.250")
  • Kolvarna har 1.143" däckshöjd och är kompatibla med 107" originalslaglängd på 4.375"

För 4.250" Big Bore-cylindrar se S&S 574121 eller 547122. Packningar säljs separat (topplockspackning 591055, cylinderfotspackning 591054 eller packningssats 591056). S&S rekommenderar kamaxel i S&S 550-serien med kedje- eller kuggdrivning.

Passar: 107" Softail 18-24

M8 107" to 124" big bore piston kit. +.010"

  • 11.1:1 compression ratio
  • Piston kit includes forged pistons, rings, wristpins and clips
  • Crankcases do not require boring
  • Big bore 4.250" cylinders are required, OEM cylinders can not be bored to 4.250"
  • 107" to 124" pistons come with 1.143" deck height and are compatible with the OEM 107" 4.375" stroke
  • Note: For 4.250" big bore cylinders only see S&S 574121 (black wrinkle) or 547122 (black wrinkle with highlighted fins)
  • Note: Gaskets are sold separately as 591055 head gaskets, 591054 base gaskets or 591056 head & base gasket kit
  • Note: S&S recommends an S&S 550 series cam, which are available in both chain or gear drive
  • Note: In any and all applications the technician must be able to judge components for their suitability in combination with the other engine components, prior to installation
  • It is of importance that a knowledgeable mechanic will install & make adjustments as required
  • The rider must follow standard break-in and riding procedures for overhauled engines

Fits: 18-24 107" Softail; 17-24 107" FLT/Touring (NU)
