Varvräknare hastighetsmätare Koso D2 Dyna FXDB Street Bob 11-17

3 100 kr

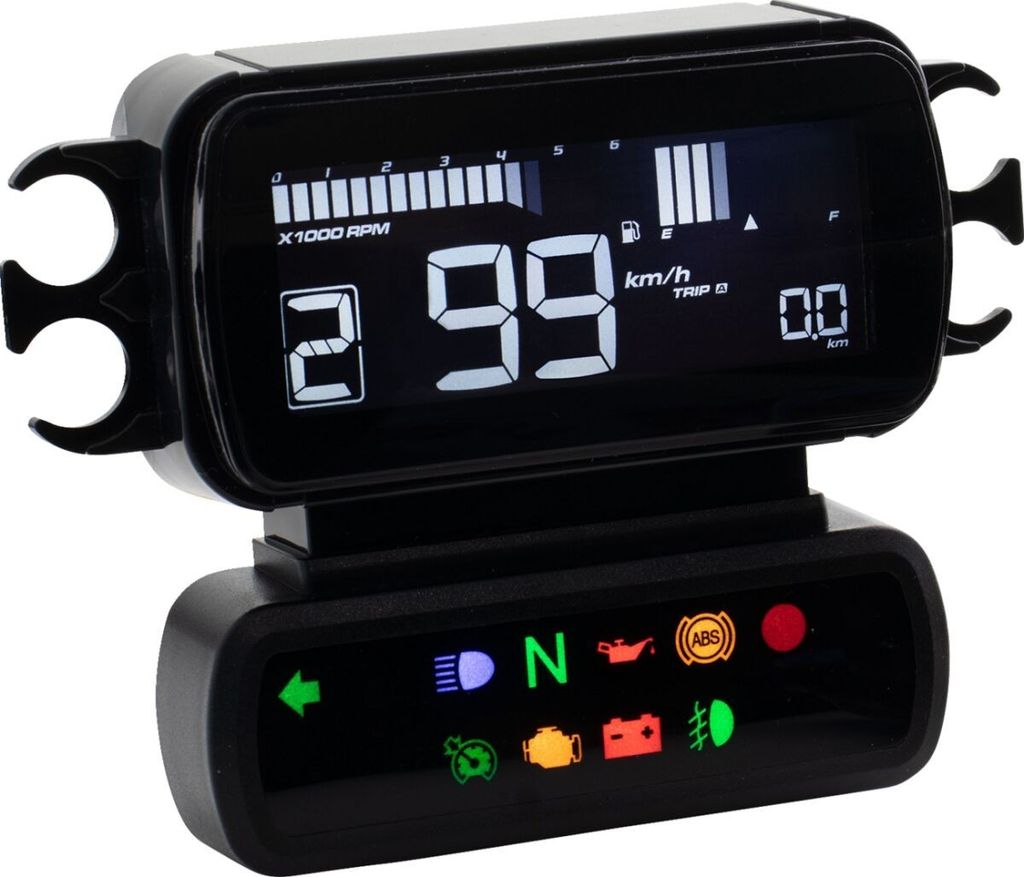

Multifunktionell hastighetsmätare och varvräknare från Koso
Läs mer

22100661 KOSO
  • 100 % plug & play custom-ersättning för originalmätaren på Street Bob
  • LCD-display med 8 valbara bakgrundsfärger och justerbar ljusstyrka i 5 nivåer
  • Hastighetsmätare 0–199 km/h (0–124 mph) och varvräknare upp till 10 000 RPM
  • Vägmätare upp till 999 999 km, dubbla trippmätare samt underhållsintervall
  • Indikatorer för bland annat blinkers, ABS, oljetryck, neutral, helljus och motorlampa
  • Visar bränslenivå (10 nivåer), motortemperatur, klocka (12/24 h) och däcktryck via TPMS
  • Justerbar däckomkrets från 50 till 210 %
  • Mått: 88,2 x 67,0 x 35,2 mm, vikt ca 70 gram

Mätaren uppfyller kraven enligt JIS D 0203 (S2).

Passar: Dyna FXDB Street Bob 11-17

D2 LCD Multifunction Meter

  • High quality plug & play meter that is equipped with an 8-color changeable LCD display
  • Designed to mount below cutout top handlebar clamp for a sleek look (handlebar riser kit with gauge cutout or gauge relocation kit may be required depending on application)
  • Features a tachometer/speedometer combination with a programmable shift light and includes gear indicator
  • Features vital reads such as engine temperature, battery voltage, tire pressure and a complete system of indicator lights to monitor vital signs on bike
  • Plugs directly into the stock harness and works directly with CANBUS system
  • Display range: 0-124 mph
  • Effective temperature range: -4°F-185°F (-20°C-85°C)
  • 12VDC battery voltage
  • Measures 3-7/16” L x 1-1/16” W x 2-5/8” H
  • XL models may require purchase of separate fuel level sensor kit (OEM PART #6120008) for fuel meter to function properly.
  • Kit contains: 1 x LCD Meter, 1 x Meter adapter box and 1 x Zip tie (4.6 x 300mm)

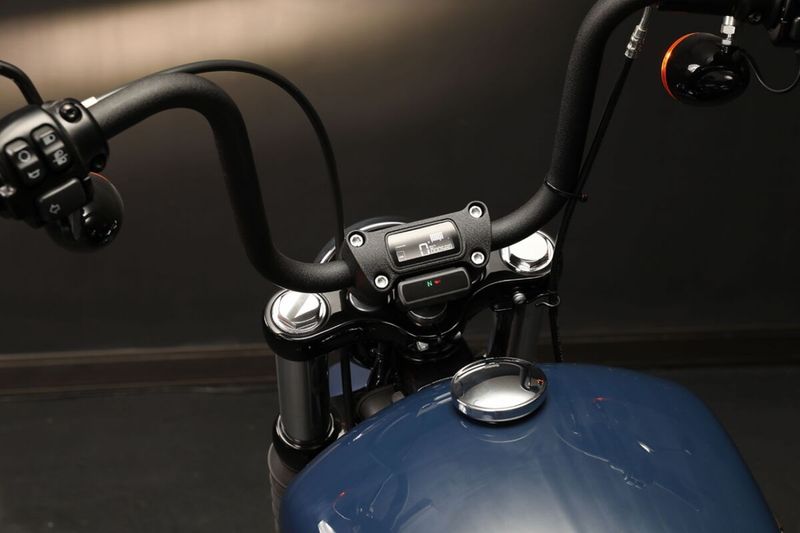

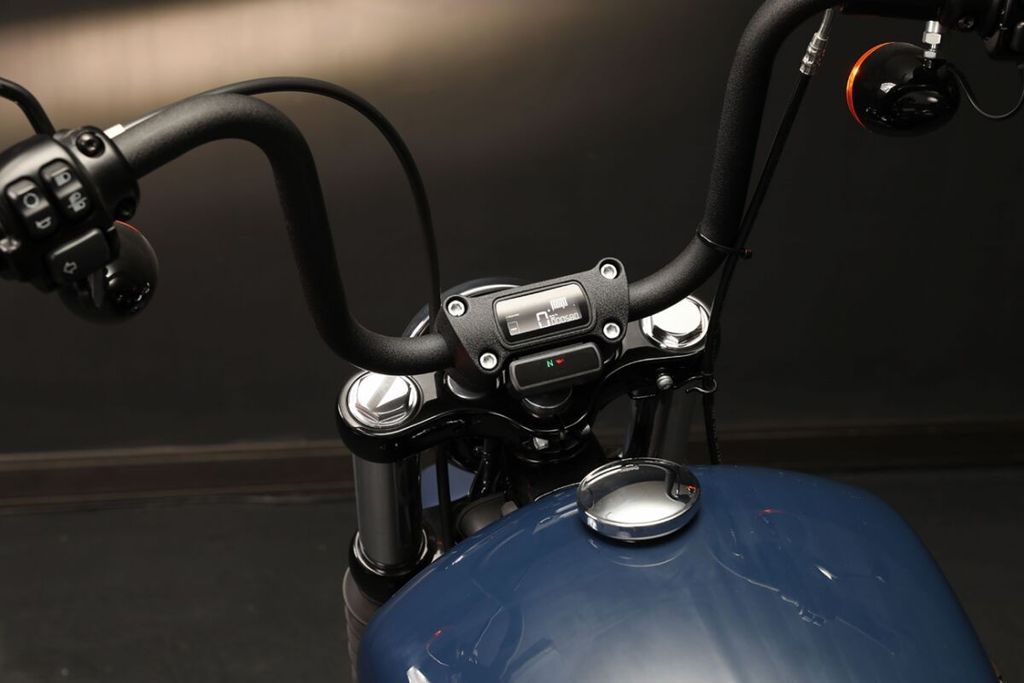

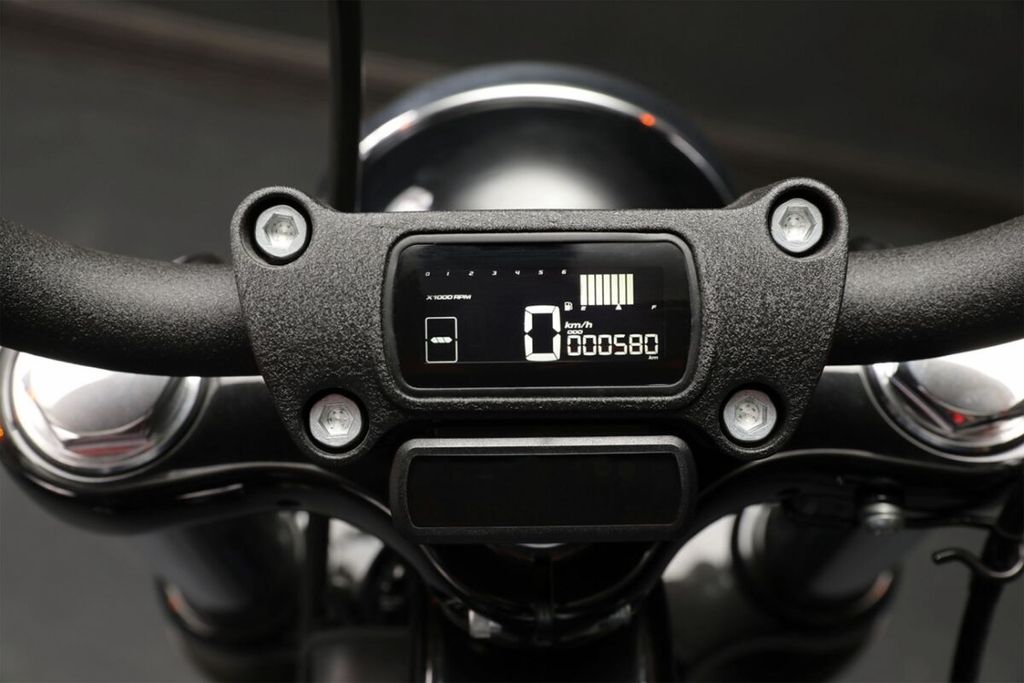

  • The installation images are for demonstration purposes only. The plate is not included.
