Mätare Koso North America HD- Four-Piece 03L LED blå Touring 14-24

17 250 kr

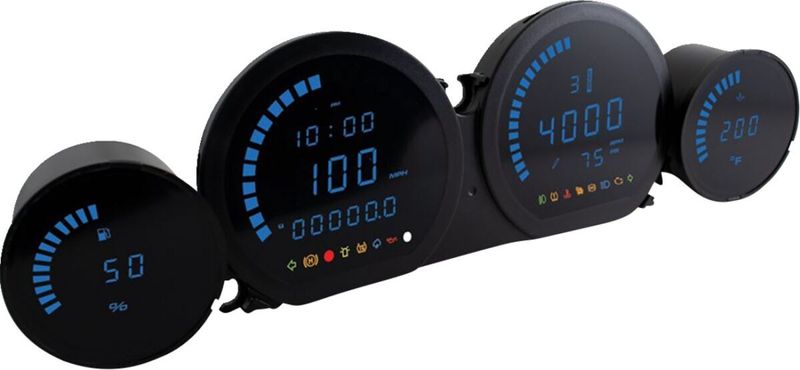

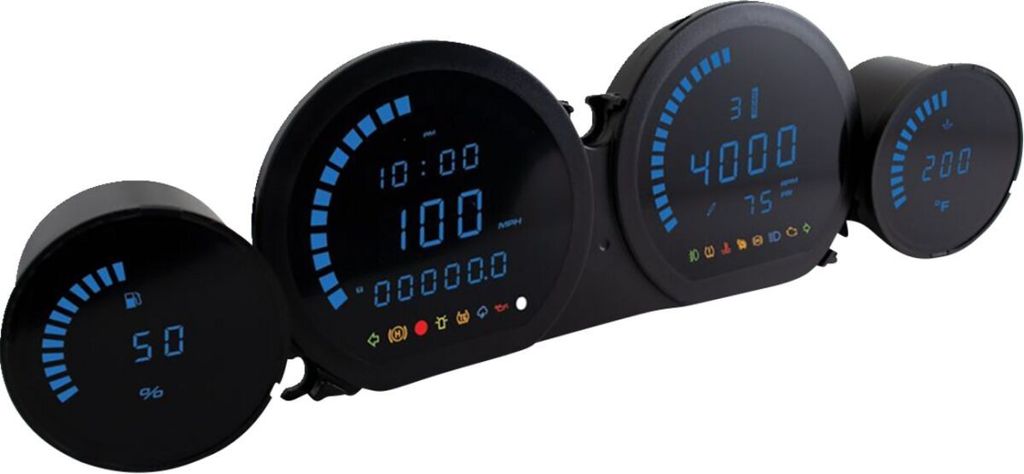

Koso 4-delat LED-mätarkit med blå display
Läs mer

22100664 KOSO
  • Plug-and-play-ersättning som ansluts direkt i originalkontakter och kåpa
  • Innehåller hastighetsmätare, varvräknare, oljetemperatur och bränslenivåmätare
  • Blå visningsfärg med justerbar ljusstyrka i 5 nivåer (helt svarta vid avstängd tändning)
  • Hastighetsmätare 0–299 km/h (0–199 mph) och varvräknare 0–9 999 RPM med växlingslampa
  • Visar växelindikator, trippmätare, klocka, bränsleförbrukning, räckvidd och luftfjädring (0–150 PSI)
  • Integrerade indikatorlampor för blinkers, olja, motorvarning, helljus, dimljus, ABS med mera
  • ABE-godkänd

Tryckgivare för modeller med luftfjädring säljs separat. På CVO-modeller måste run/stop-knappen stå i läge ON för att ändra inställningar på displayen.

Passar: Touring 14-20

HD-03L Four-Piece LED Gauge Kit

  • Plug-and-play
  • Fits directly on OEM dash and connectors
  • Digit Brightness levels from 1 (darkest) - 5 (brightest)
  • Include multifunction speedometer, tachometer, odometer, volt meter, air suspension meter, gear indicator, trip meter, engine temperature, oil temperature, and fuel level gauges
  • Indicator lights for oil, engine warning, warning light, high beam, fog light, voltage, anti-theft, cruise, ABS, and turn signals
  • Optional air pressure sensor for models equipped with air suspension is available separately
  • Specifications:
  • Tachometer (0 - 9,999), RPM Shift Light (2,000 - 8,000 RPM), Maximum RPM (0 - 8,000 RPM)
  • Speedometer (0 - 199 MPH), Maximum Speed Record (0 - 199 MPH), Overspeed Warning (19 - 199 MPH)
  • Odometer (0 - 999,999 miles), Tripmeter A/B (0 - 9,999 miles), Mileage Maintenance (300 - 10,000 miles)
  • Engine Temperature (Standard/Customize), Oil Temperature Meter (32° F - 248° F), Maximum Oil Temperature Record (32° F - 248° F), Effective Temperature Range (14° F - 140° F)
  • Fuel Meter (6 levels | 1 level = 16.6%), Fuel Tank Volume (Off/1 - 9.9 US Gallons), Average Fuel Consumption (Off/MPG), Remaining Mileage (0 - 6,249 miles)
  • Volt Meter (DC 8V - 18V), Effective Voltage (DC 12V)
  • On CVO models the run/stop switch must be in the ON position to change settings on the display.
  • HD-06 4-piece gauge kit. Blue display
  • ABE approved
  • Plug & play replacement for the OEM instruments

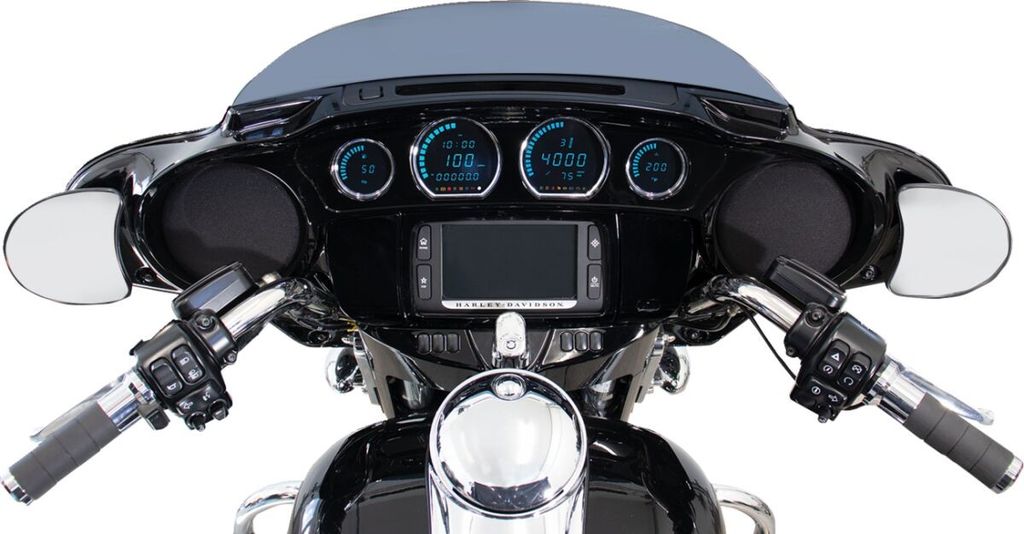

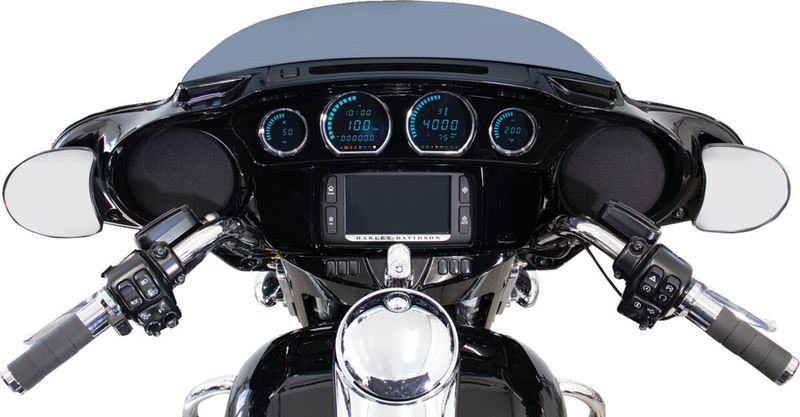

  • Plug OEM connectors into instruments and install into the fairing
  • Ready!
  • Offers a single display color option (Blue) and 5 intensity levels for the digits and graphics in each individual instrument
  • Once the ignition is off, all instruments are completely black for a great custom look
  • Speedometer: 0 to 299 km/h (0 to 199 mph)
  • Display refresh rate: 211 Ω, Off LCD when 30%
  • Average fuel consumption: OFF / MPG (US spec) / MPG (UK spec) L/ 100 km / km/L
  • Fuel 'remaining distance': LCD shows 'LO RNG' and flashes as a warning when remaining range is less than 16 km (10 miles)
  • Clock: 12h / 24h
  • Air pressure gauge: Display: Display - - - if no sensor is installed, 0 – 150 PSI
  • Displays per: 1 PSI
  • Calibration unit: 1 PSI
  • Default value: 0 PSI
  • Works from -10°C to 60°C
  • JIS D 0203 (S2) standard specified
  • Weight speedometer & tachometer: 286 gram
  • Weight oil temp.: 81 gram
  • Indicator lights: Turn signal right + left (green), Photometric detection, Oil (red), Check engine light (yellow), Cruise control (orange/green), Anti-theft device (red), Water temperature (blue), Warning light (orange/green), High beam (blue), Fog light (green), ABS (yellow)

Fits: 14-20 Touring (excl. CVO & Road King) (NU)
