Oljesticka Feuling Dyna 06-17

4 840 kr

Ventilerad oljesticka från Feuling med polerat lock
Läs mer

07100264 Feuling
  • Ventilerar övertryck från vevhuset via oljetanken
  • Skruvas direkt i originalets oljepåfyllningsrör som ersättning
  • PCV-ventilation med oljeseparator, perforerad skiva, utbytbar filterinsats och paraplyventil
  • Minskar oljenivån i sumpen, sänker blowby och ger en mer lättvarvad motor
  • Två avläsningslägen för varm motor: på sidostödet (FHS) eller upprätt (FHU)
  • Två medföljande ventilationsalternativ: 1/8" NPT med invändig filterinsats eller snabbkoppling med slang och filter

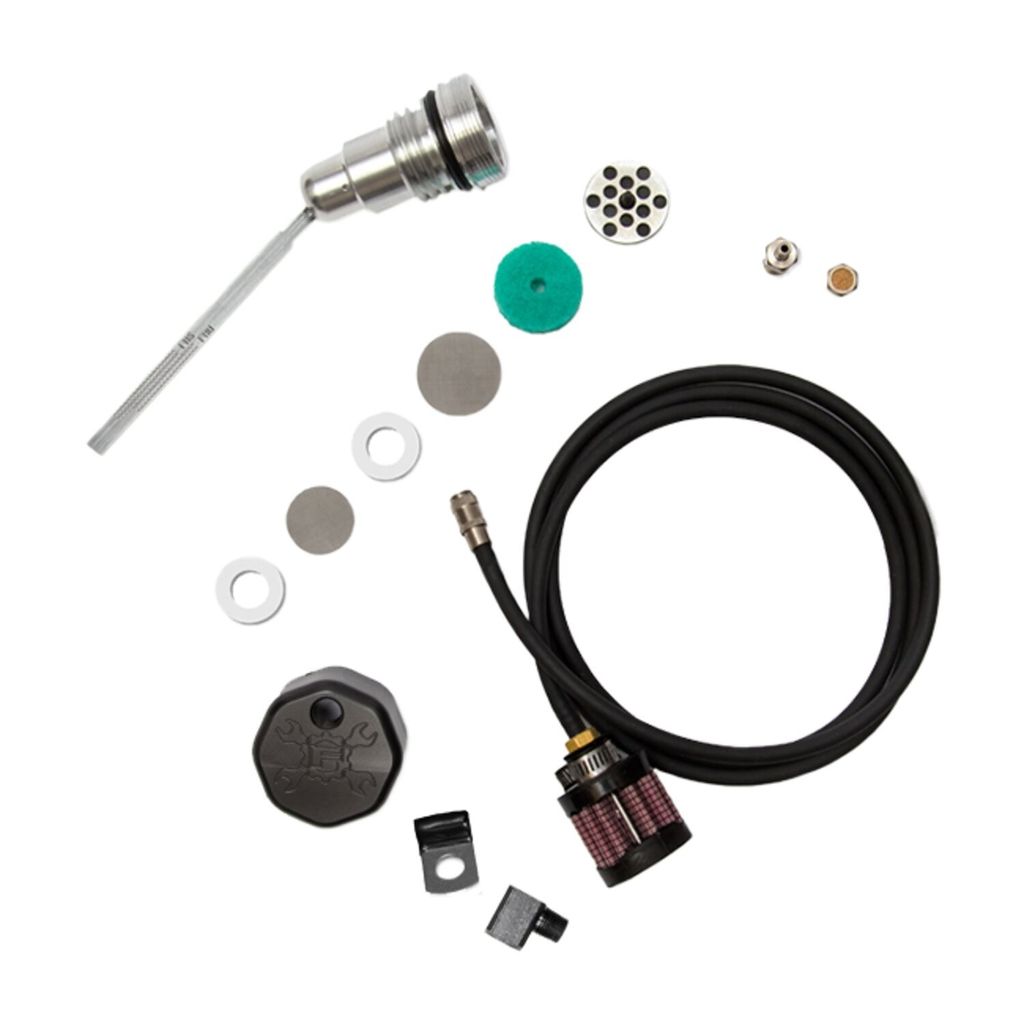

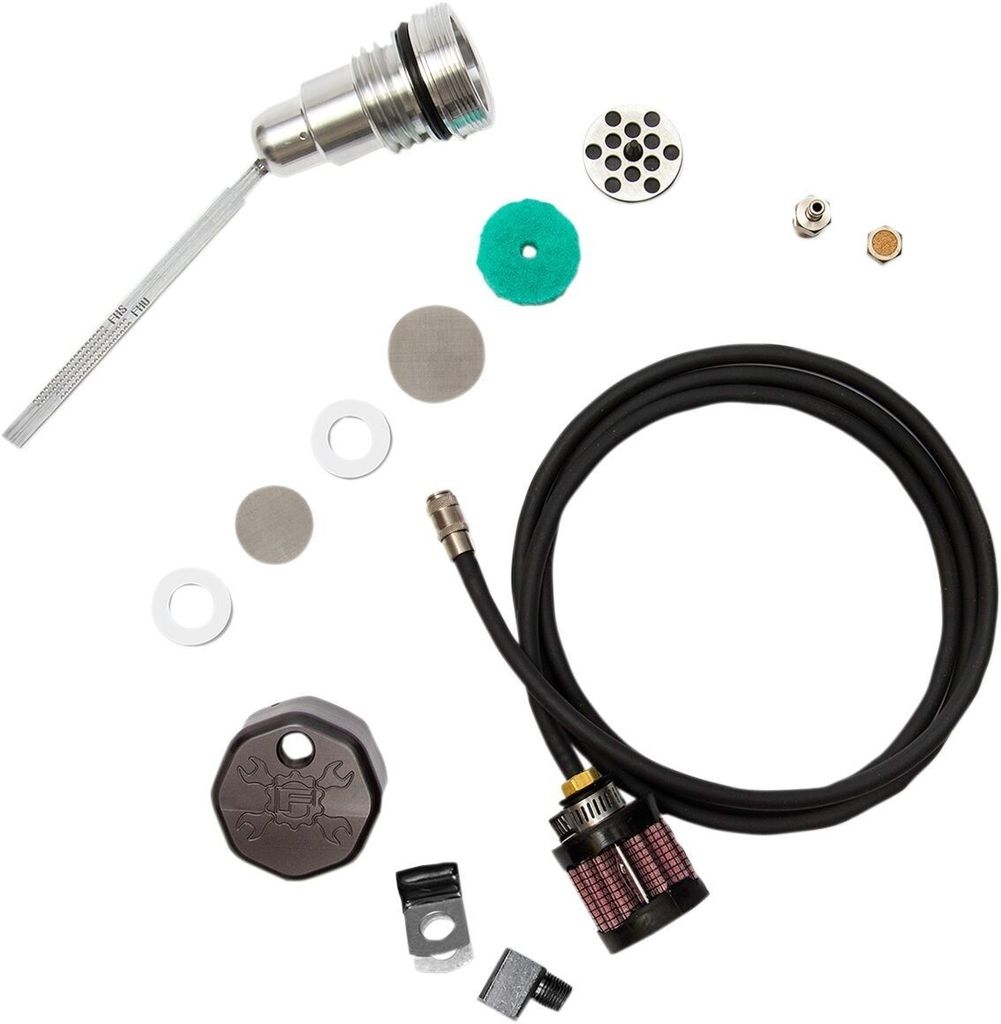

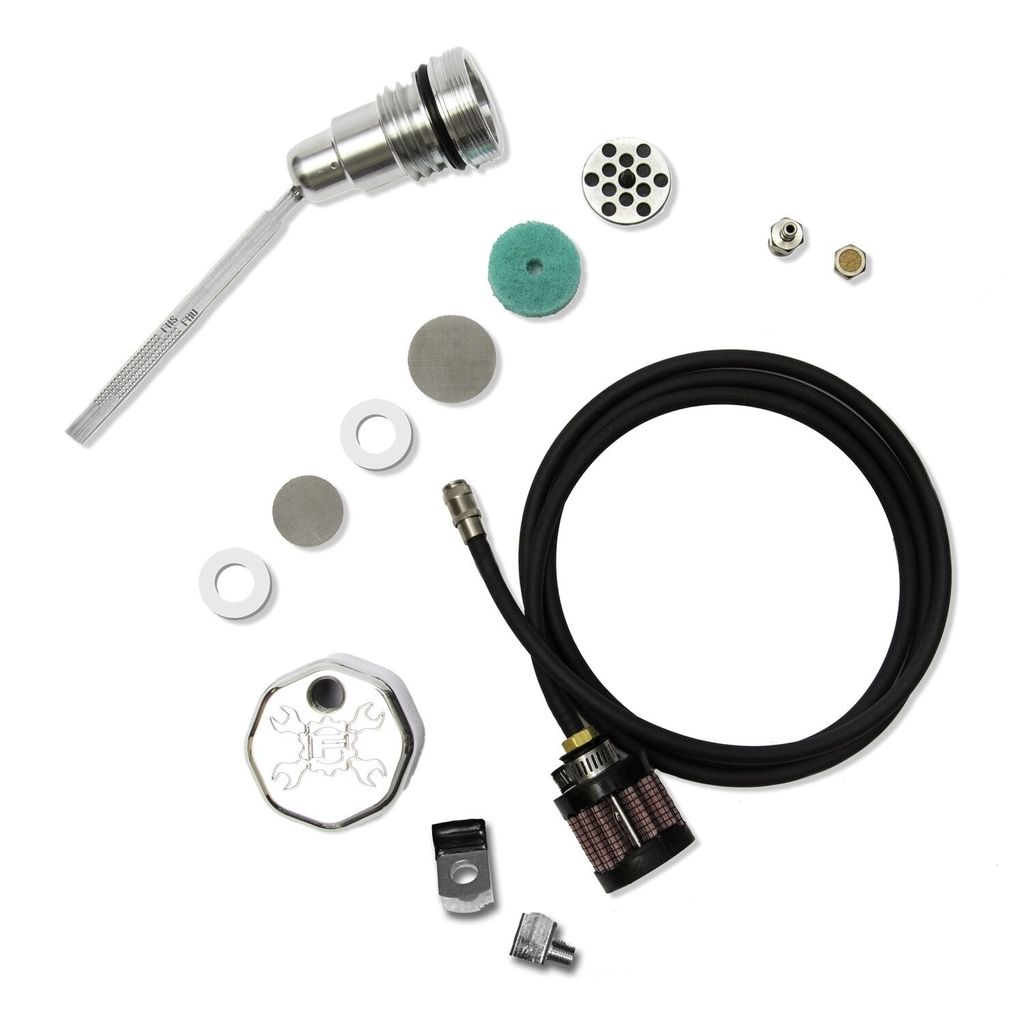

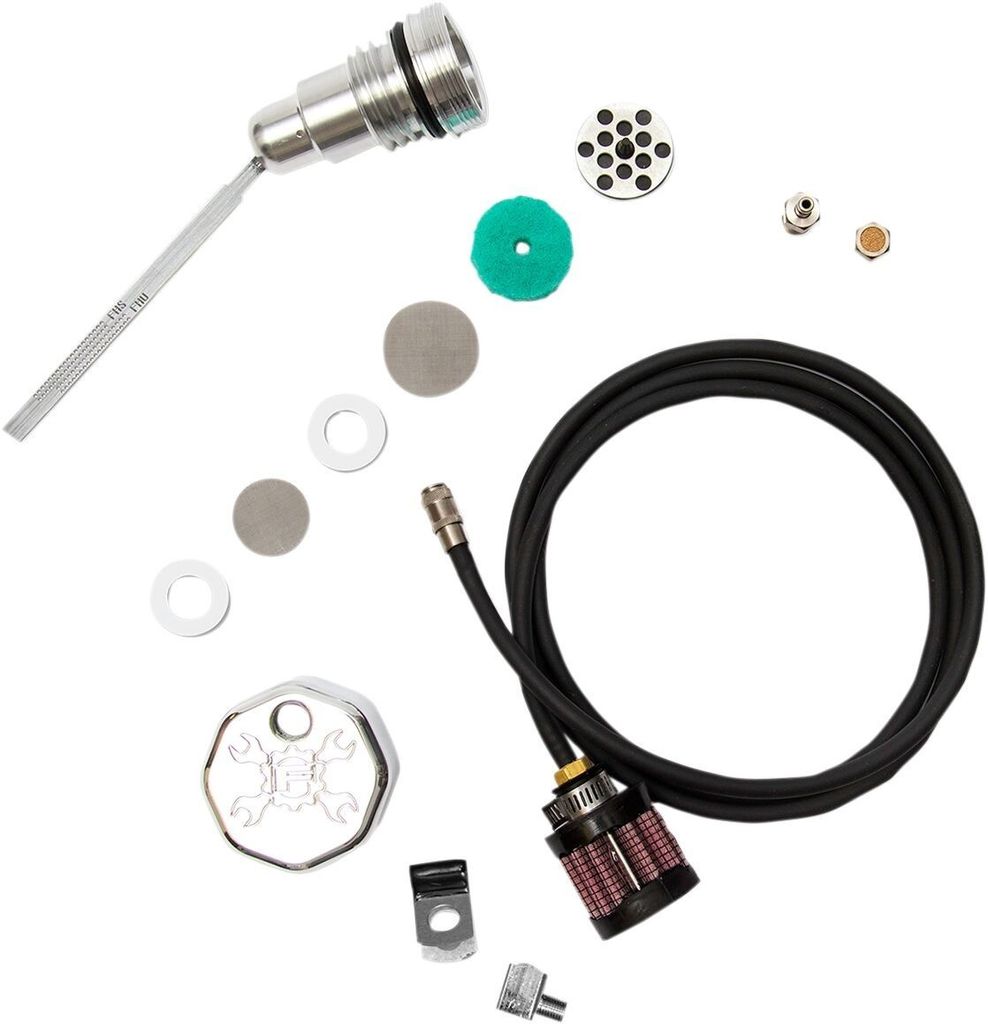

  • Komplett sats med ventilerad oljesticka, filter, flätad klar PVC-slang samt packningar där det krävs
  • Tillverkad i USA med lock i polerat rostfritt stål

Feuling rekommenderar en oljenivå på 90–99 % vid varm motor. Oljestickan blir varm under körning, använd handskar vid kontroll av oljenivån.

Passar: Dyna 06-17

Färg Black
Material Aluminum
Produkt-typ Oil Dipstick
Tillverkarens Art. Nr. 3090
Färg Polished
Tillverkarens Art. Nr. 3089

Vented Dipstick

  • Billet dipsticks vent/breathe excessive crank case pressure from the oil tank through a PCV style breather, consisting of an oil separator system, perforated disc, replaceable filter element and umbrella flapper valve
  • Screws into the factory oil fill spout as a stock replacement part
  • Blowby is pressure that is forced past the rings and cylinders, pushed into the crankcase and then forced into the oil tank
  • Fueling test results show a decrease in engine oil sump levels, more freely/smoothe revving engine and increased MPG and decreased blowby
  • Removes unwanted build-up of blow by pressure in the oil tank
  • There are two ways to read the oil level with this dipstick, with the bike on the jiffy stand (FHS) Full Hot Stand or the bike upright and level (FHU) Full Hot Upright
  • Includes 2 different venting style options for installing the dipstick: option 1 - 1/8 NPT breather vent fitting with internal porous filter element, option 2 - quick disconnect coupler fitting with rubber hose and filter element
  • It is important to get the correct hot oil level in your bike. Feuling recommends running the oil level 90%-99% full when hot
  • The oil pick up port is on the right side of the engine. Letting the bike idle or warm up on the kickstand will naturally fill the engine case and skew the oil level in the tank
  • Made in the USA
  • This dipstick does get hot, use a glove when checking oil level.
  • Oil tank breather kit & vented dipstick. Black cap

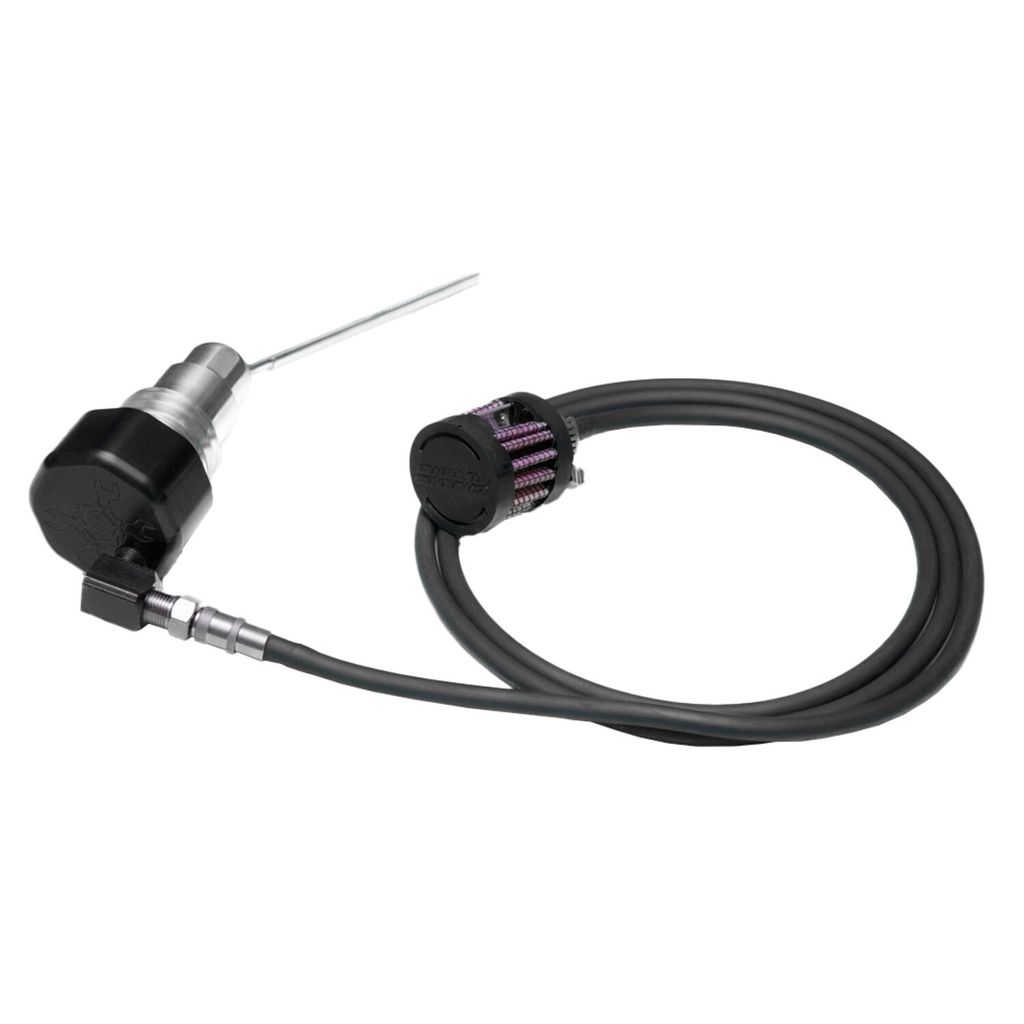

  • Comes as complete kit with vented dipstick, filter, braided clear PVC covered line
  • Dyna models have the oil tank mounted under the transmission
  • The engine, with two massive pistons going up and down, breathes in to the oil tank
  • This system is a way to vent the oil tank to help reduce pressure build-up and reduce power robbing pressures and stops dipstick blow-out
  • Note: Gaskets are supplied where required

Fits: 06-17 Dyna (NU)
