Drev vevhusventilation S&S stål +.030″ H-D 77-99

3 160 kr

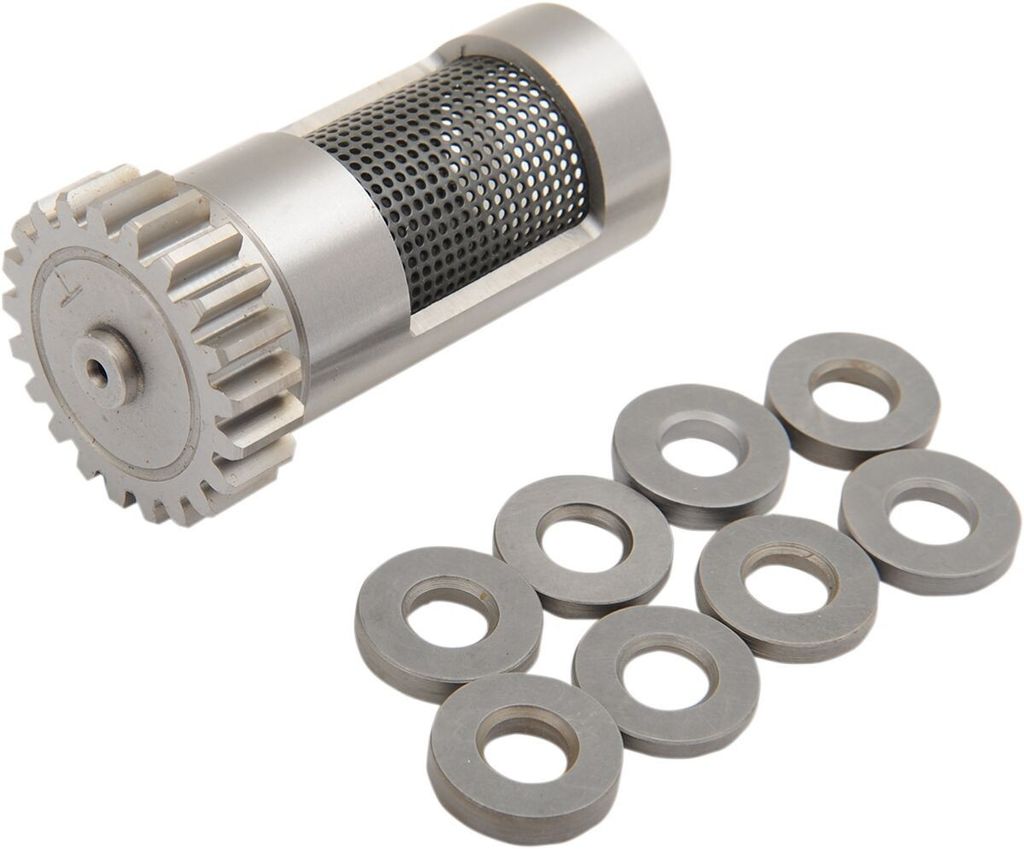

Drev och bricka för vevhusventilation i stål från S&S (+.030" OD)
Läs mer

DS194471 S&S
  • Tillverkad i stål
  • Överdimension: +.030" OD för att rädda slitna eller skadade vevhus
  • Satsen innehåller drev för vevhusventilation samt distansbricka
  • Lämplig som ersättning för original eller högprestandamotorer
  • Förlängda ventilationshål ökar undertiden för vakuum så mer olja evakueras från topplocken
  • Optimerad timing för förbättrad oljeevakuering i högprestandamotorer och motorer med stor cylindervolym
  • Kräver matchande kam- och piniondrev
  • Tillverkad i USA

För sen 77-99 Big Twin ändrades timingen år 2000, den äldre specifikationen kan uppnås genom att montera ventilationsdrevets timingmärke en kugg medsols från kamdrevets märke. Brotschverktyg +.030" från JIMS finns tillgängligt separat (artikelnr 978343).

Passar: H-D 77-99

Produkt-typ Gear
Tillverkarens Art. Nr. 33-4260

Steel Breather Gear Kit

  • Kit comes with gear and spacer
  • Require the use of corresponding cam and pinion gear
  • Made in the U.S.A.
  • Steel breather valve & spacer set. +.030" OD
  • Used to save worn or damaged crankcases
  • Okay for stock or high performance replacement
  • Note: JIMS has a +.030" breather hole reamer tool which is available as 978343
  • Note: S&S breather valves come with elongated breather holes to increase the duration of the vacuum, allowing more oil to be drawn from the cylinder heads
  • This has no disadvantage in any model year, either stock or Big Inch motor
  • Tech tip: The timing for S&S breather valves, only for late 77-99 Big Twin models, has been changed by S&S in the year 2000
  • This is done to improve oil scavenging and reduce oil carry-over in high performance / large displacement engines
  • Old opening was at TDC and closing at 65° after BDC
  • The old timing specification can be obtained by installing the timing mark on the breather gear one tooth clockwise from the timing mark on the cam gear
  • Also the breather's cavity oil evacuation hole (opposite of the drive gear), which used to be a round hole, has been elongated (made longer) to increase the duration of suction to the crankcase breather 'settling' cavity
  • The new specifications are not useful in most stock engines, but harmless
  • Breather windows in S&S cases will typically open at 7° after TDC and close 92° after BDC
  • Builders using other crankcases may modify crankcase breather opening to obtain these specifications for maximum breather efficiency and performance

Fits: L77-99 Big Twin (Excl. TC)
