Modul Thundermax Integral Auto Tune Softail 11

17 710 kr

ThunderMax ECM-modulsats med integrerad Auto-Tune
Läs mer

10201848 Thundermax
  • Ersätter original-ECM och ansluts direkt till befintligt kablage
  • Slutet reglersystem med bredbandslambdasonder som kontinuerligt självjusterar bränsle/luftblandningen
  • Inkluderar ECM med Auto-Tune-modul, kablage, två bredbandssensorer, programvara och USB-kabel
  • Hundratals nedladdningsbara mappar baserade på modell, motorstorlek, avgassystem och luftfilter
  • Justerbar tomgång, varvtalsstopp och hastighetsmätarkalibrering
  • Justerbara mappar för AFR per cylinder, tändning och start
  • Stödjer turbo, lustgas och kompressor
  • Kräver ingen bänkning (dyno tuning) och är tillverkad i USA

På grund av eventuella utrymmesproblem kan vissa eftermarknadsavgassystem kräva modifiering eller flytt av anslutningarna för lambdasond.

Passar: Softail 11

ThunderMax Engine Control Module Kit with Integral Auto Tune

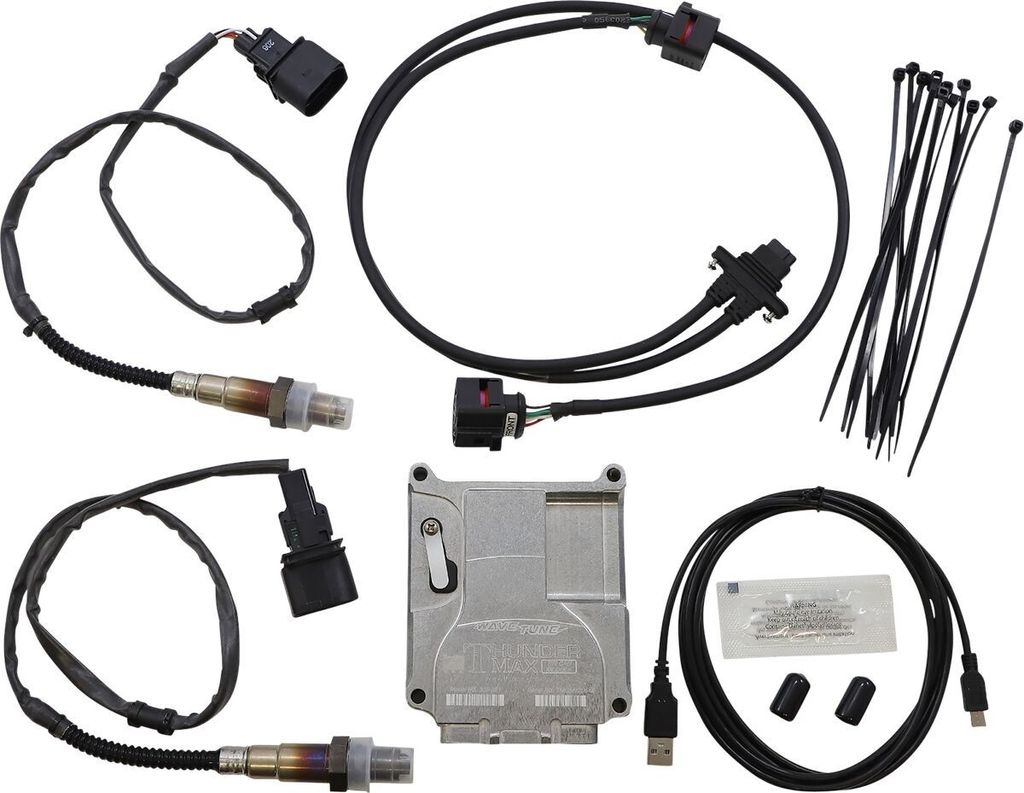

  • Includes ThunderMax ECM with Auto-Tune Module, plug-in harness and two wide-band sensors, TMax software and communication USB cable, Quick-Start Easy Install and Comprehensive User's Manual, technical support and free software and updates
  • Hundreds of maps available to download for your bike (based on model, engine size, exhaust system air cleaner, pistons, cams, etc.) - load the map of your choice and the integral auto-tune will do the rest
  • Software program allows live monitoring, recording and examination of diagnostic codes and datalogs including number of starts, engine temperature and rpm operation
  • Utilizes wide-band oxygen sensors and works as a closed-loop control system to continuously self-adjust and properly tune the motorcycle's air/fuel ratio for all riding conditions

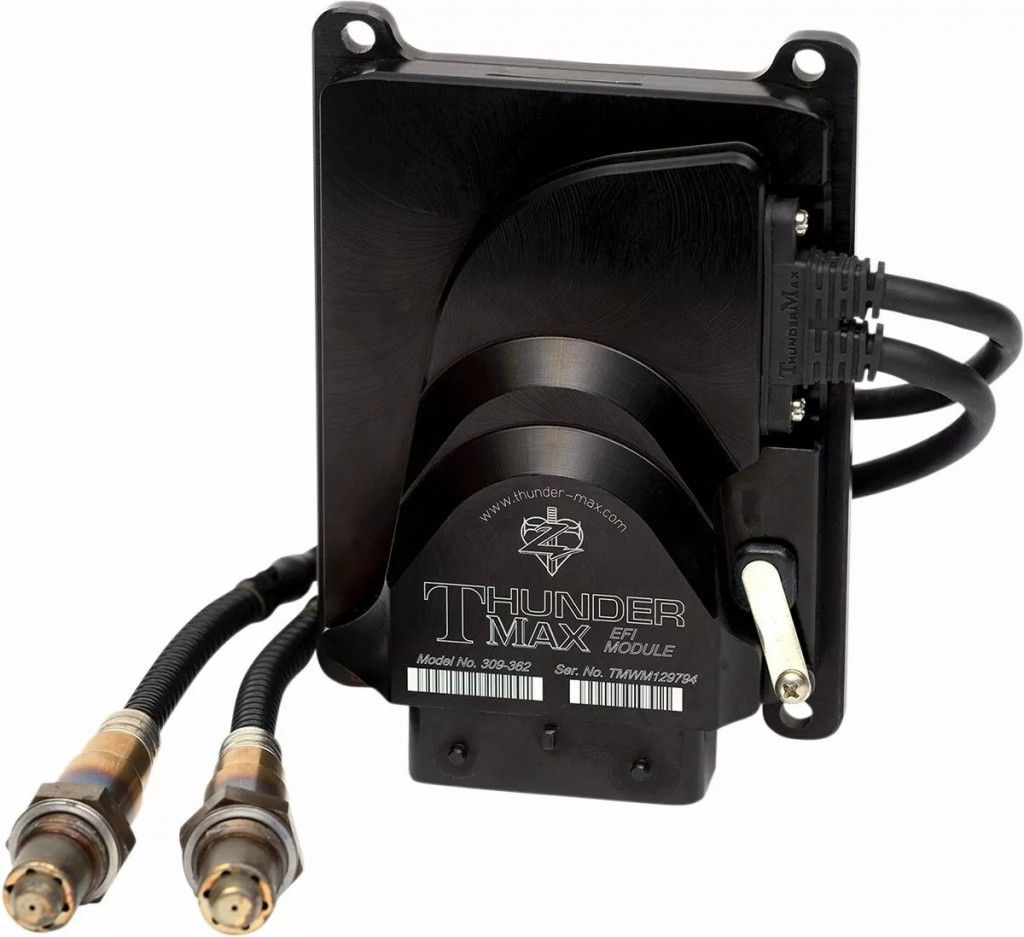

  • ThunderMax ECM with Auto-Tune module mounts conveniently in place of the factory ECM and plugs in to the existing harness
  • Easy installation: replace the factory ECM, install new oxygen sensors and harness, load the correct map for your bike, and ride
  • New maps, software, firmware updates, map analysis and tech support available online at no charge
  • Adjustable front and rear cylinder AFR maps, ignition timing (spark) maps, and startup maps
  • Works with all popular exhaust systems and is compatible with high-performance camshafts
  • Rider can adjust idle speed, rev limit and speedometer calibration
  • Improves throttle response, exhaust sound and driveability
  • Supports turbo, nitrous and supercharger applications
  • Does not require dyno tuning
  • Made in the USA

Because of possible clearance issues, some of the aftermarket exhaust systems may require modifications or relocation of their oxygen sensor port bungs.
