Modul Thundermax Integral Auto Tune Touring 17-24, Trike 17-19

17 710 kr

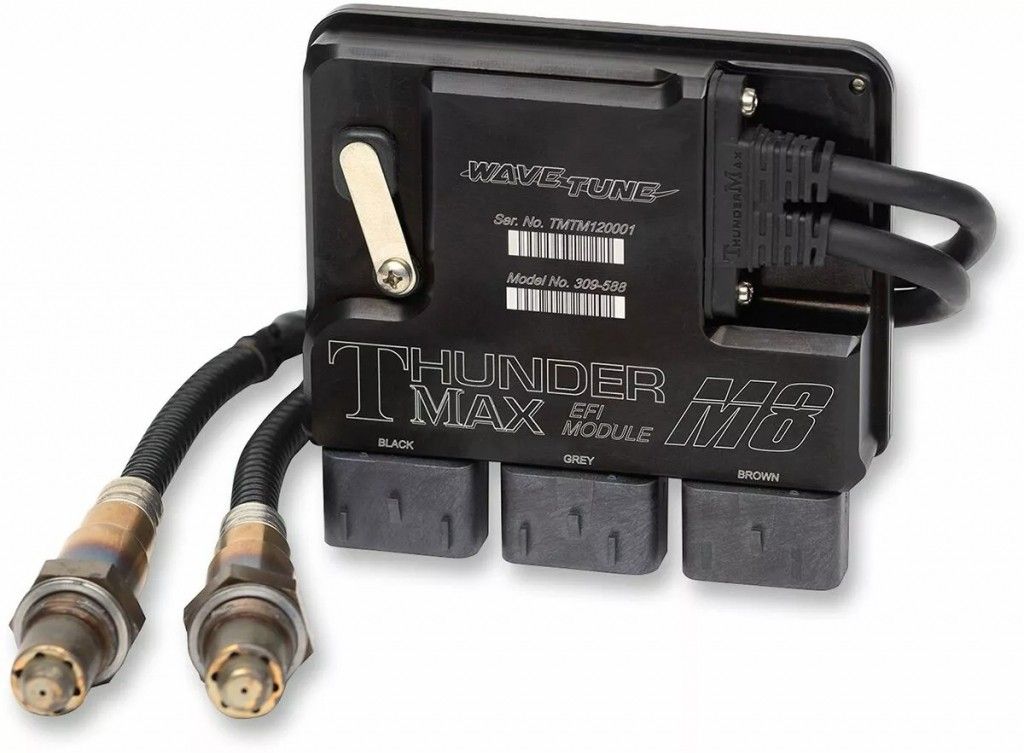

ThunderMax ECM motorstyrenhet med integrerad Auto-Tune
Läs mer

10202664 Thundermax

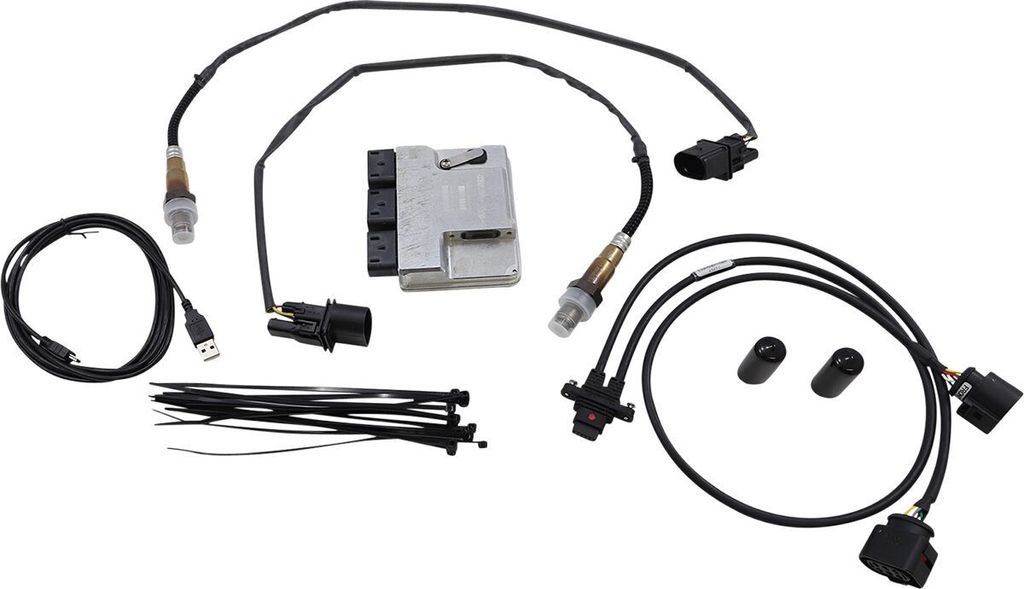

  • Komplett kit med ThunderMax ECM, Auto-Tune-modul, kablage och två bredbandssensorer
  • Inkluderar TMax-programvara, kommunikationskabel och installationsmanualer
  • Slutet reglersystem som kontinuerligt självjusterar bränsle/luftblandningen under körning
  • Monteras på original ECM-plats och ansluts direkt i befintligt kablage
  • Justerbar tomgång, varvtalsbegränsning samt kalibrering av hastighetsmätare
  • Justerbara AFR-mappar för främre och bakre cylinder, tändningsmappar och startmappar
  • Kompatibel med populära avgassystem, luftfilter, trimkamaxlar, turbo, lustgas och kompressor
  • Kräver ingen bänkning (dyno tuning) och tillverkas i USA

Passar inte trikes med antispinn (traction control). Modulen använder 18 mm bredbands-lambdasonder, 18 mm gänghylsor kan behöva svetsas in i originalkrökarna, 3"-4" från topplock på både främre och bakre rör.

Passar: Touring 17-24, Trike 17-19

ThunderMax Engine Control Module Kit with Integral Auto Tune

  • Includes ThunderMax ECM with Auto-Tune Module, plug-in harness and two wide-band sensors, TMax software and communication USB cable, Quick-Start Easy Install and Comprehensive User's Manual, technical support and free software and updates
  • Hundreds of maps available to download for your bike (based on model, engine size, exhaust system air cleaner, pistons, cams, etc.) - load the map of your choice and the integral auto-tune will do the rest
  • Software program allows live monitoring, recording and examination of diagnostic codes and datalogs including number of starts, engine temperature and rpm operation
  • Utilizes wide-band oxygen sensors and works as a closed-loop control system to continuously self-adjust and properly tune the motorcycle's air/fuel ratio for all riding conditions
  • ThunderMax ECM with Auto-Tune module mounts conveniently in place of the factory ECM and plugs in to the existing harness
  • Easy installation: replace the factory ECM, install new oxygen sensors and harness, load the correct map for your bike, and ride
  • New maps, software, firmware updates, map analysis and tech support available online at no charge
  • Adjustable front and rear cylinder AFR maps, ignition timing (spark) maps, and startup maps
  • Works with all popular exhaust systems and is compatible with high-performance camshafts
  • Rider can adjust idle speed, rev limit and speedometer calibration
  • Improves throttle response, exhaust sound and driveability
  • Supports turbo, nitrous and supercharger applications
  • Does not require dyno tuning
  • Made in the USA

Will not work on trikes with traction control. ThunderMax modules use wide band 18 mm O2 sensors; users may need to weld-in 18 mm bungs in the stock head pipe, 3"-4" from cylinder heads on both front and rear.
