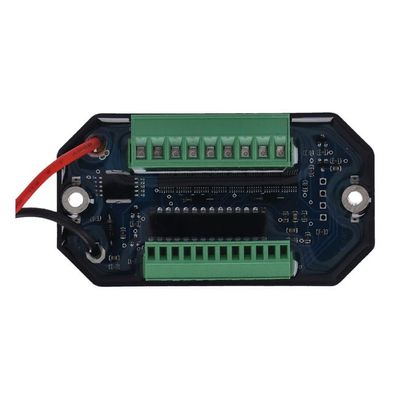

Axel Joost Elektronik, B-Box brain box

2 650 kr

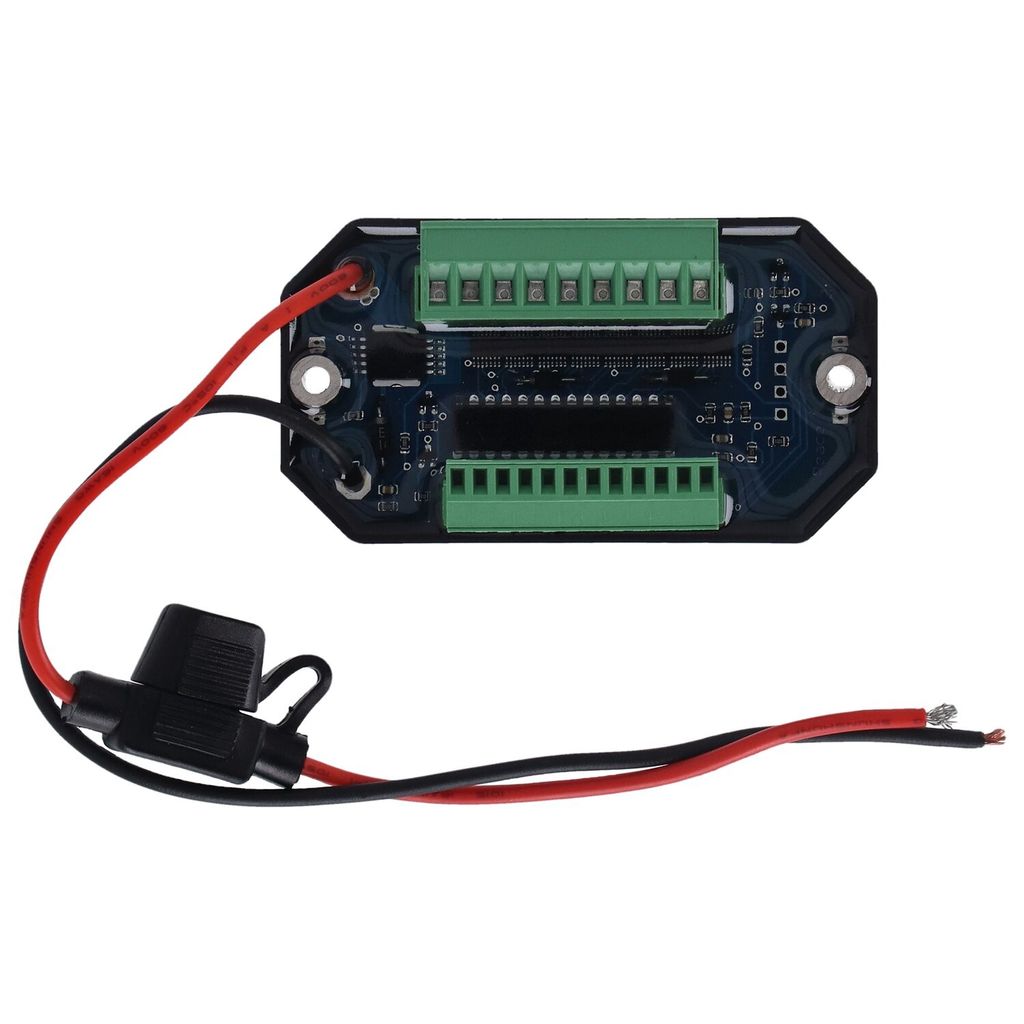

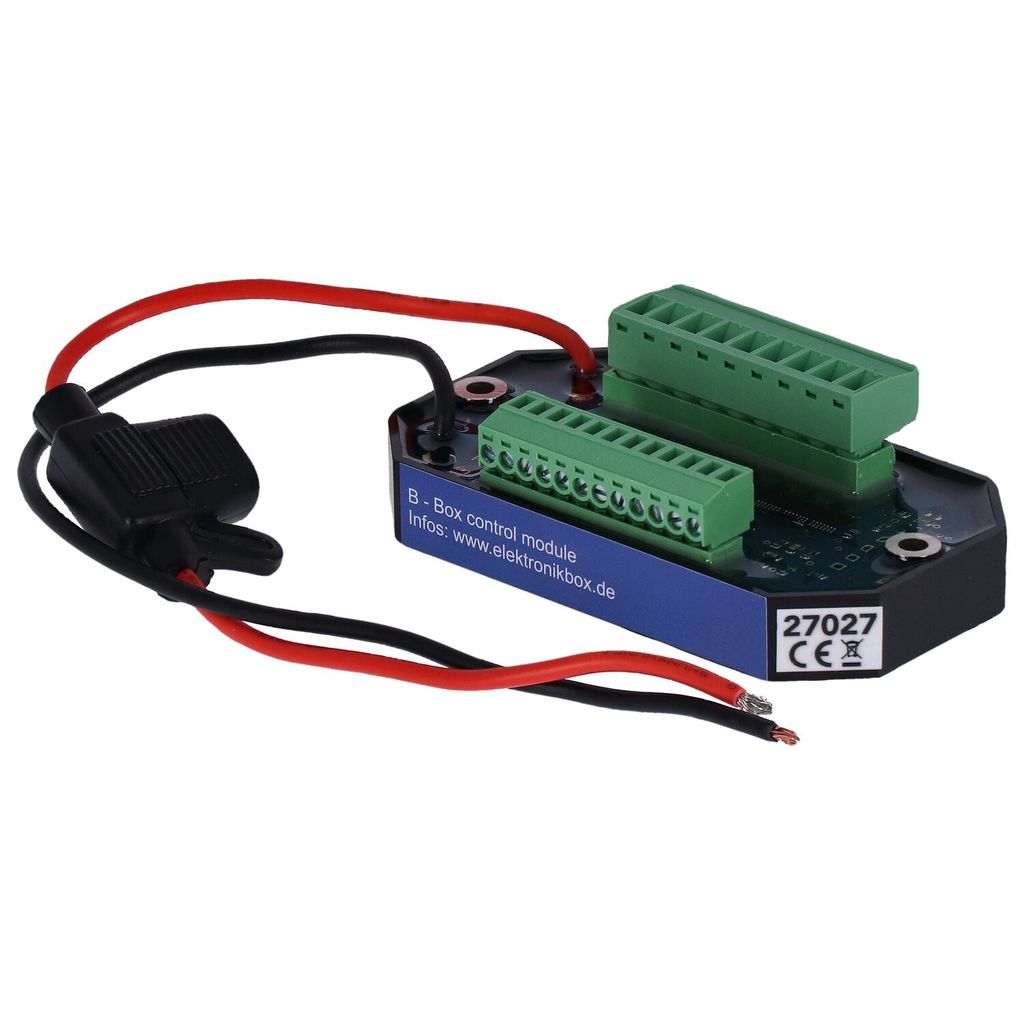

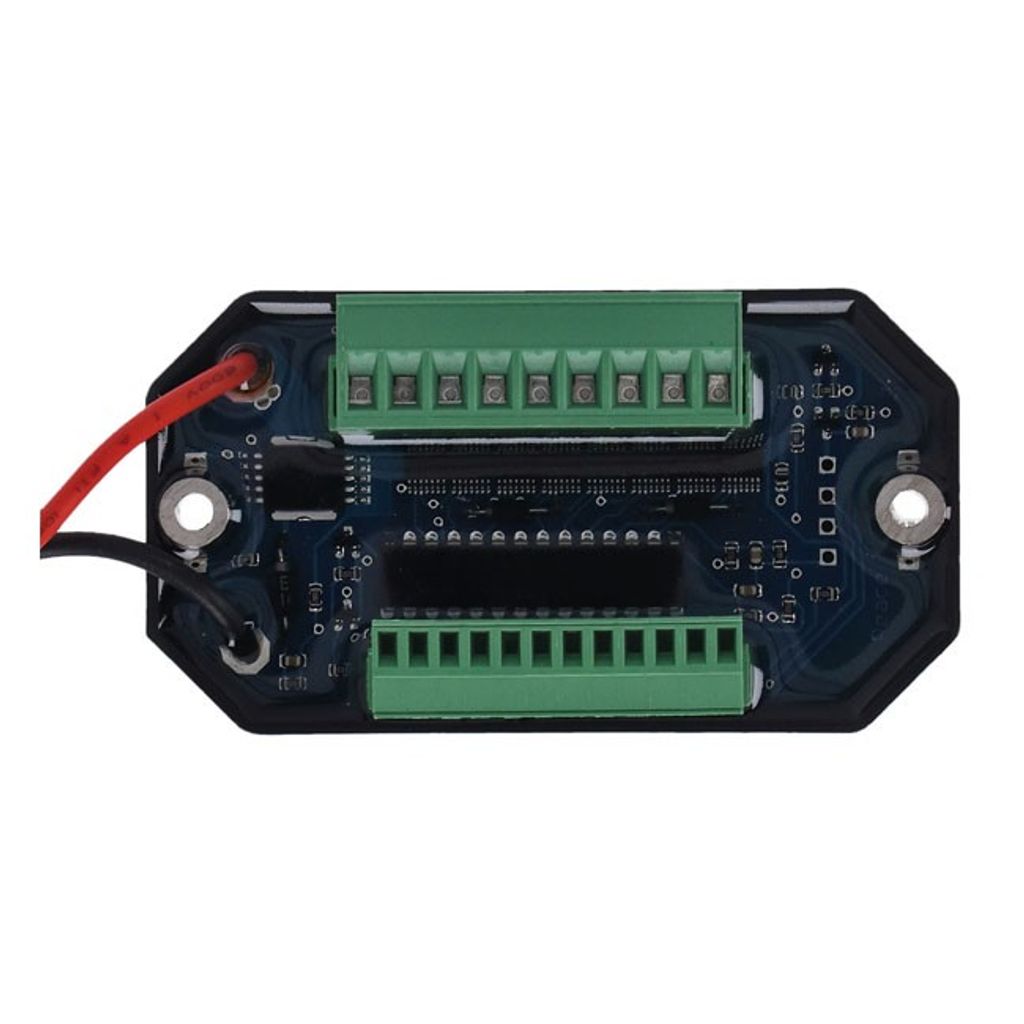

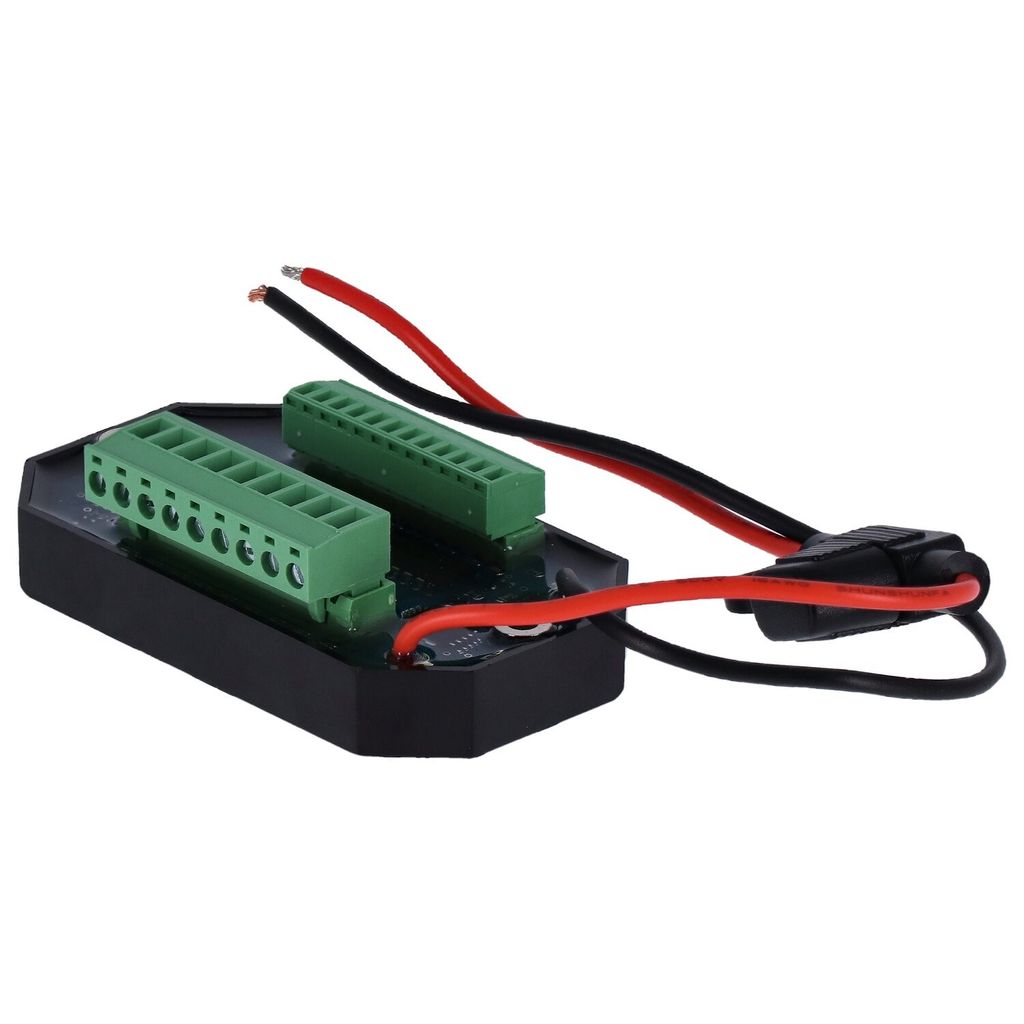

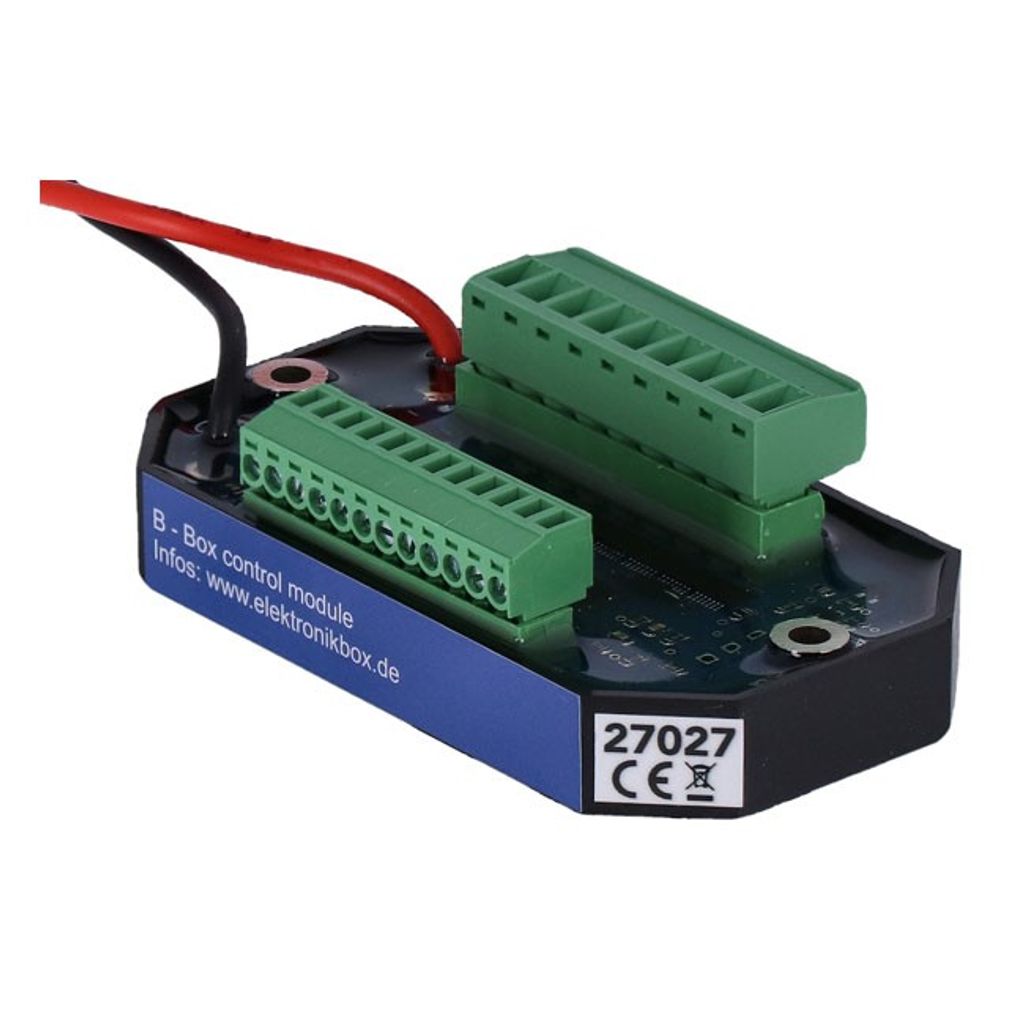

Axel Joost Elektronik B-Box styrenhet med skruvanslutningar
Läs mer

954136 Elektronik Box
  • Styrbox med skruvanslutningar för snabb och smidig kabeldragning
  • Funktioner för tändning (med/utan sidostödsbrytare), startmotor och parkeringsljus
  • Styrning av strålkastare, blinkersrelä, bromsljus med valbar blinkfunktion samt signalhorn
  • Styrning möjlig via tryckknappar eller brytare
  • Tillverkad i stöttålig ABS-plast, ingjuten och vattentät med svart hölje
  • Mått: 92 mm x 50 mm x 36 mm inklusive anslutningsterminaler
  • Huvudanslutningar: 2,5 qmm
  • Driftspänning 7–18 V, maximal ström 20 A och viloström ca 0,2 mA

Tål en maximal omgivningstemperatur på upp till 80 grader Celsius.

Kategori Wiring misc
Produkt-typ Wiring misc

Axel Joost Elektronik, B-Box brain box

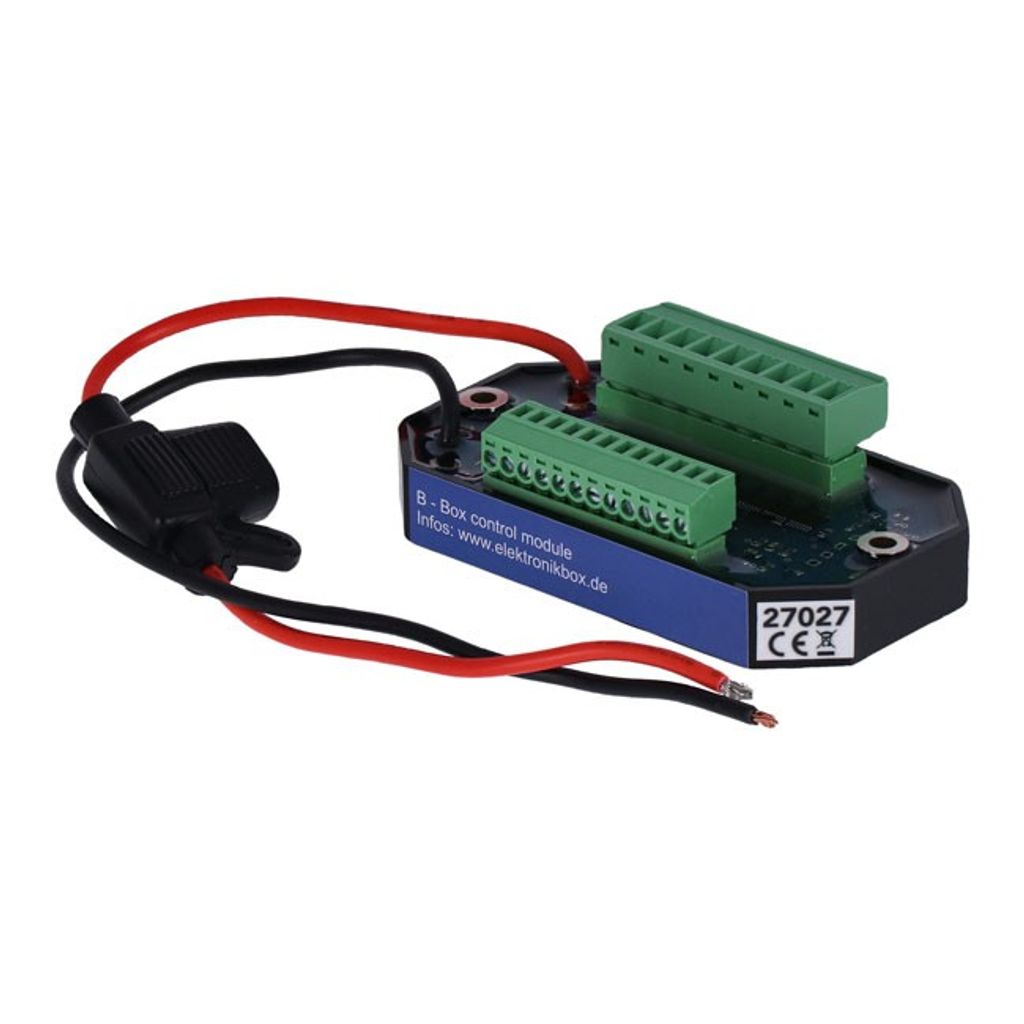

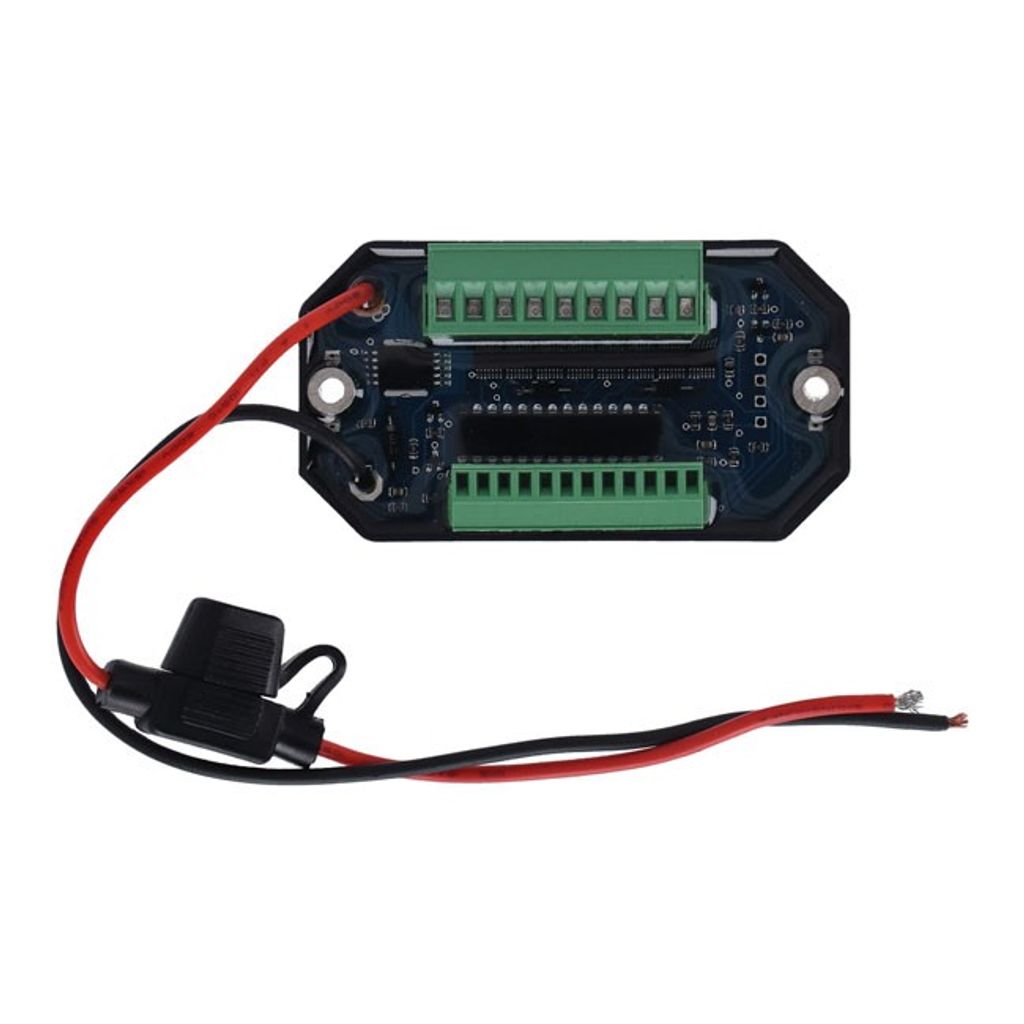

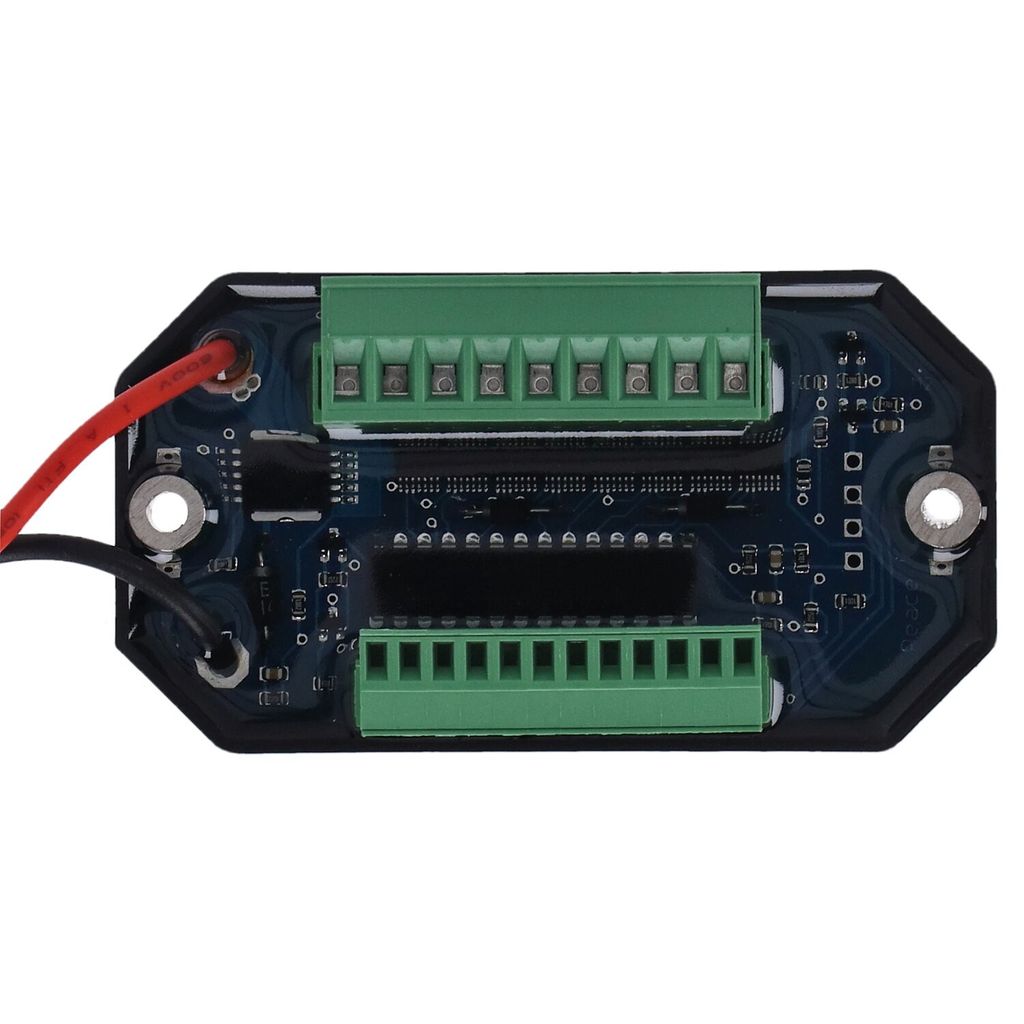

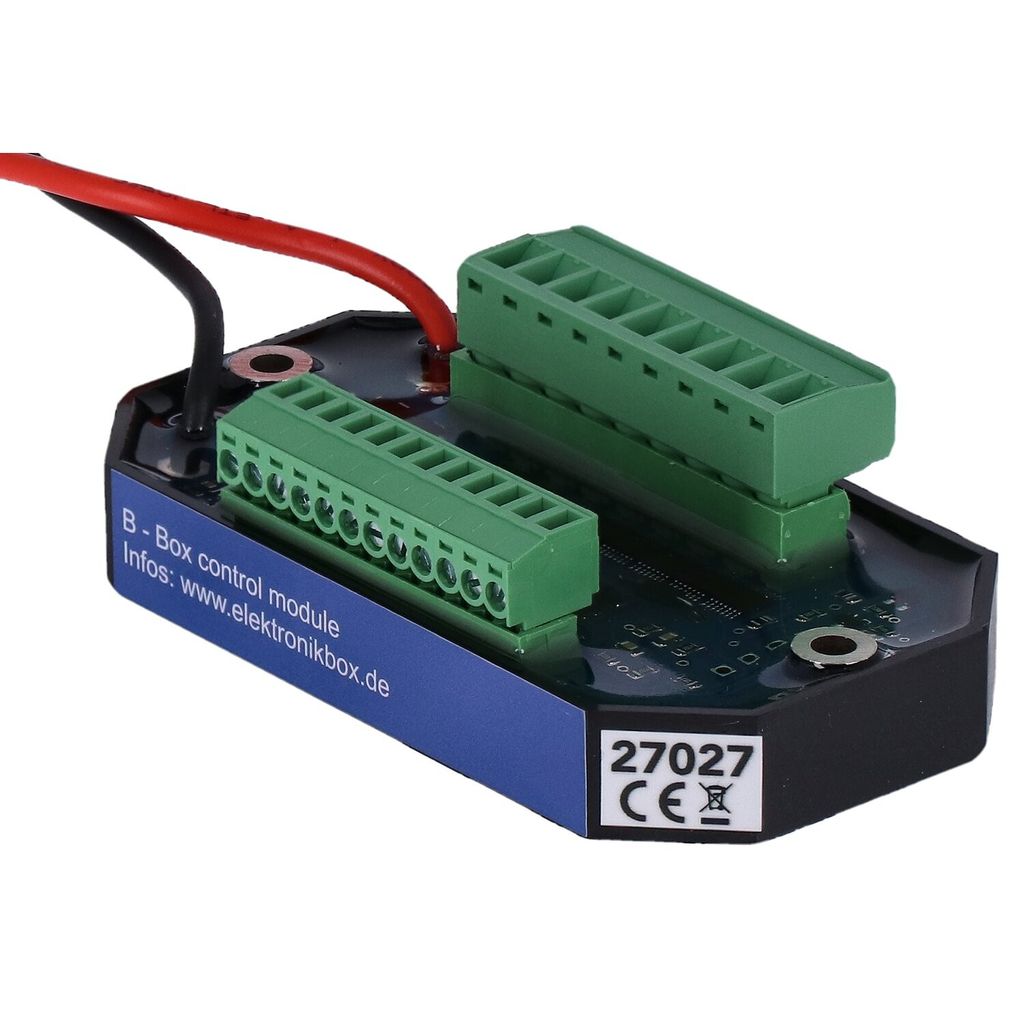

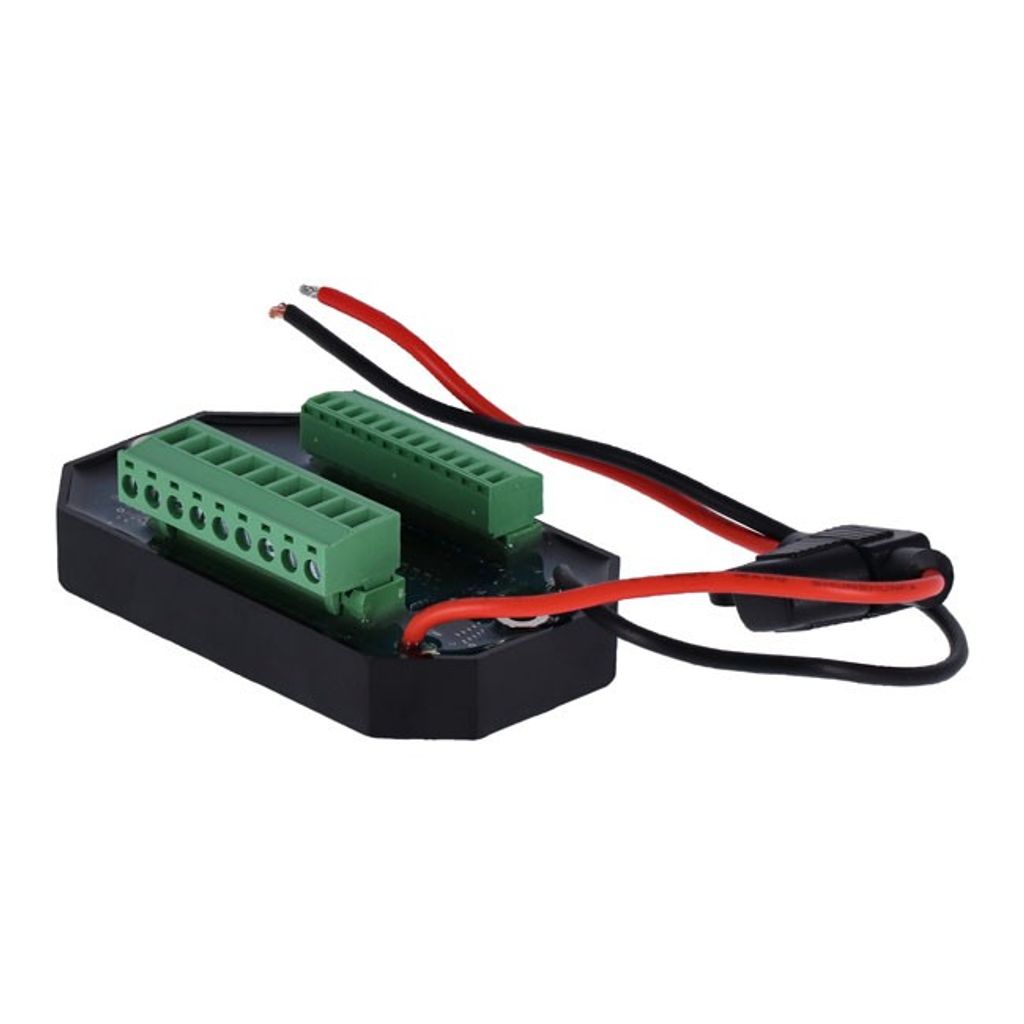

  • Controlbox (Box-B brain box) with screw connectors
  • Perfect if sufficient room is available and a quick wiring installation is required

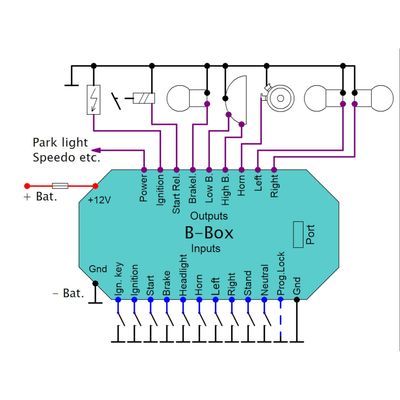

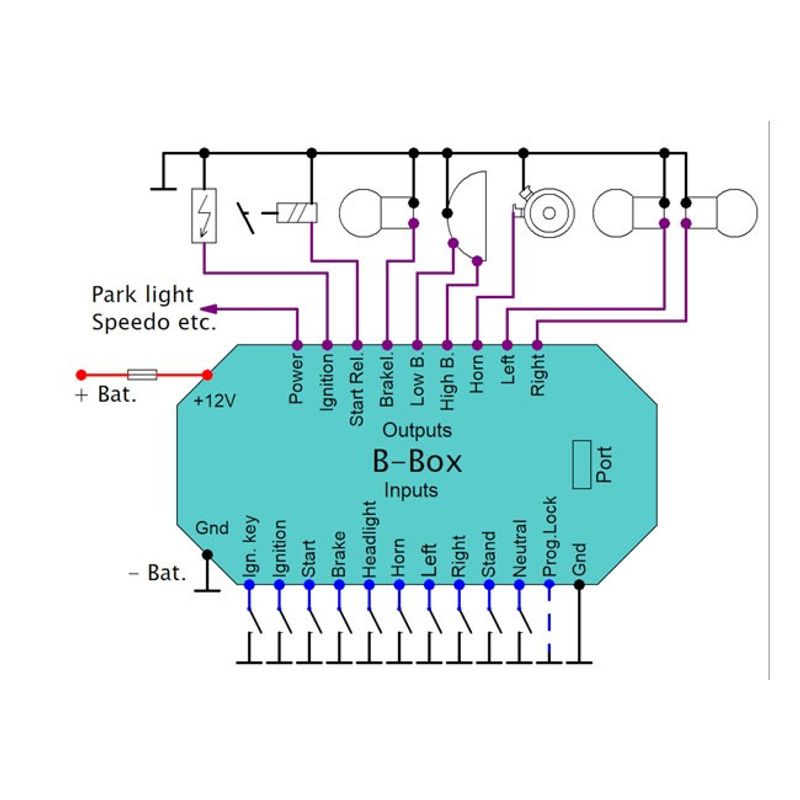

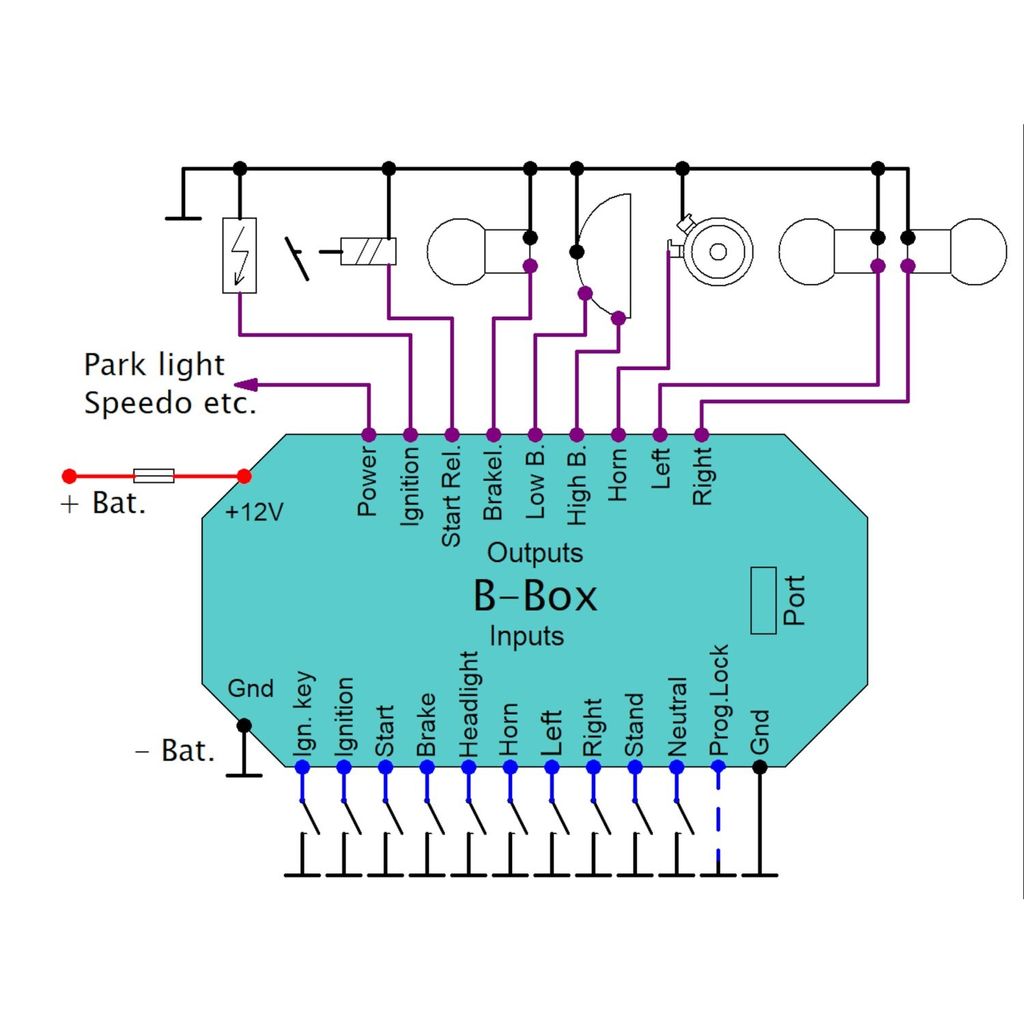

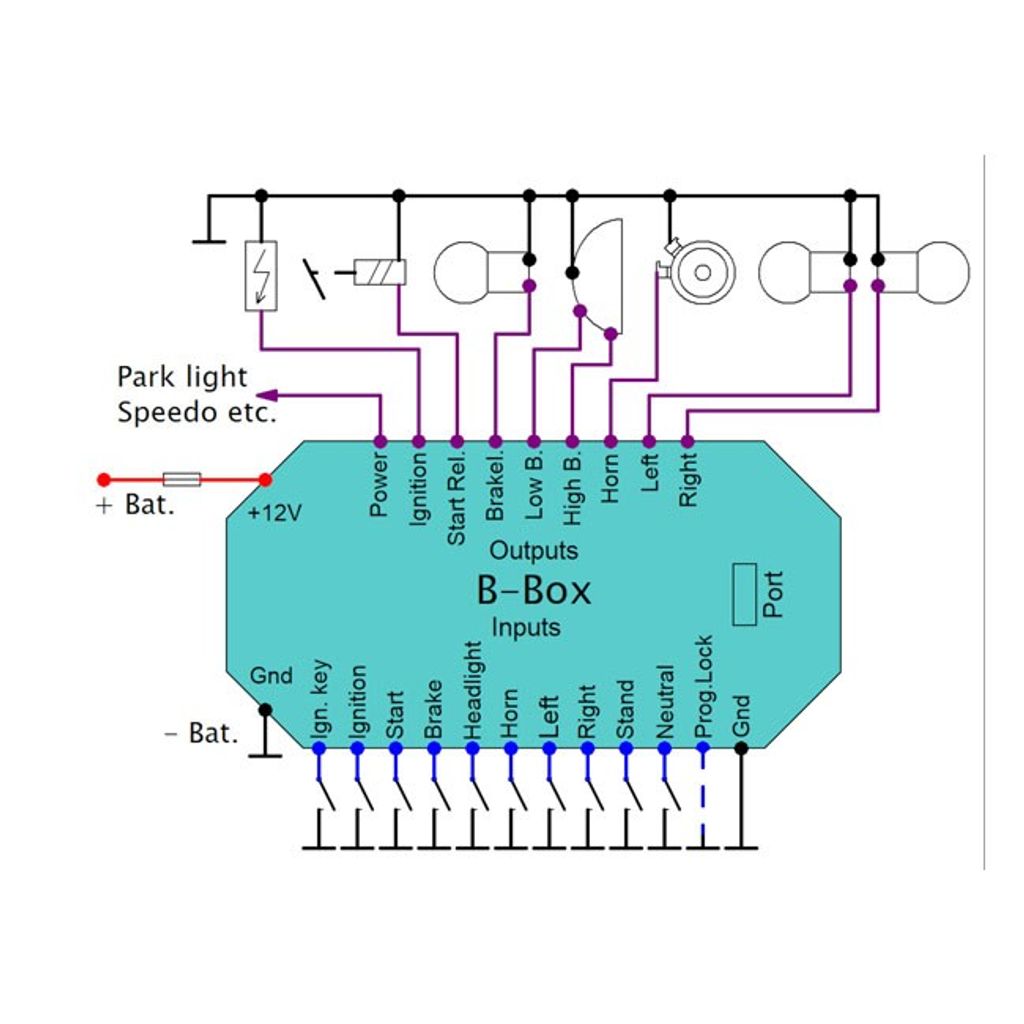

  • Functions:
  • Ignition (with or without side stand switch control) via the ignition switch
  • Switch output, for parking light etc
  • Starter (with or without neutral switch control)
  • Headlamp with button or switch control
  • Turn signal relay, controlled with buttons or switches
  • Brake light with selectable flasher function
  • Horn
  • Dimensions: 92 mm x 50 mm x 36 mm including connector terminals
  • Body material: shock resistant ABS plastic, waterproof poured resin
  • Case Color: Black
  • Main connections: 2.5 qmm
  • Power consumption in standby: About 0.2 mA
  • Maximum ambient temperature: 80 degree Celsius
  • Input voltage range: 7
  • 18 Volt
  • Maximum current / Box: 20 Ampere
