Strömbrytare Elektronikbox Axel Joost Elektronik Touch

730 kr

Elektronikbox Touch 2 Switch, 2-kanals effektrelä
Läs mer

954137 Elektronik Box
  • 2-kanals effektrelä styrt av två återfjädrande tryckknappar
  • Kan användas för tändning av/på, styresvärme eller växla hel-/halvljus
  • Växlar utgång mellan på och av vid varje knapptryck, oavsett koppling till plus eller minus
  • Kan kopplas som standardstrålkastarläge genom att koppla båda ingångskablarna till en knapp
  • Effekthantering per utgång: 50 W kontinuerlig belastning, 70 W / 7 A toppeffekt
  • Mått: 38 mm x 16 mm x 11 mm
  • Material: ABS med ingjuten vattentät 2K-epoxi
  • Spänningsintervall 6–18 Volt, anslutningar: ingångar 0,14 mm², utgångar 0,75 mm²

Modulen ryms i nästan alla styren tack vare sin kompakta storlek. Klarar en maximal omgivningstemperatur på upp till 80 grader Celsius.

Kategori Switches
Produkt-typ Switches

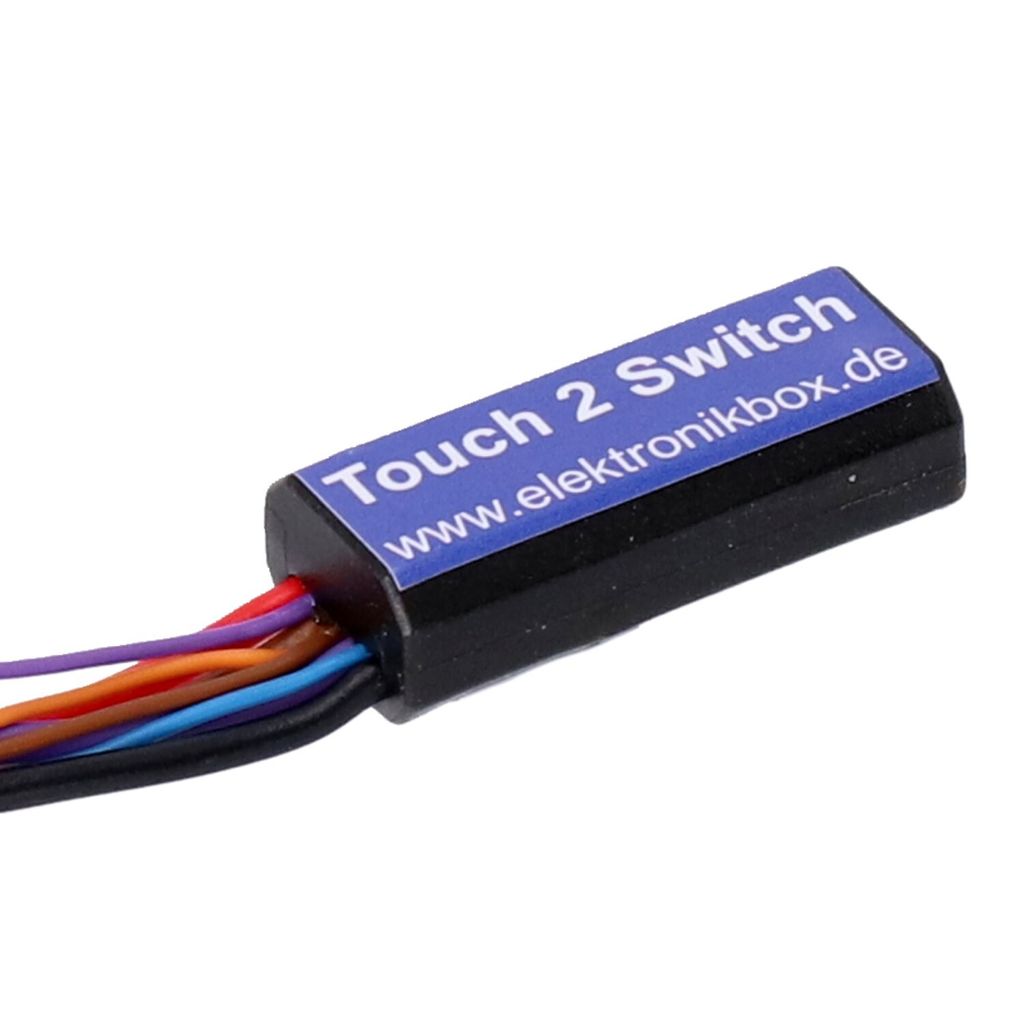

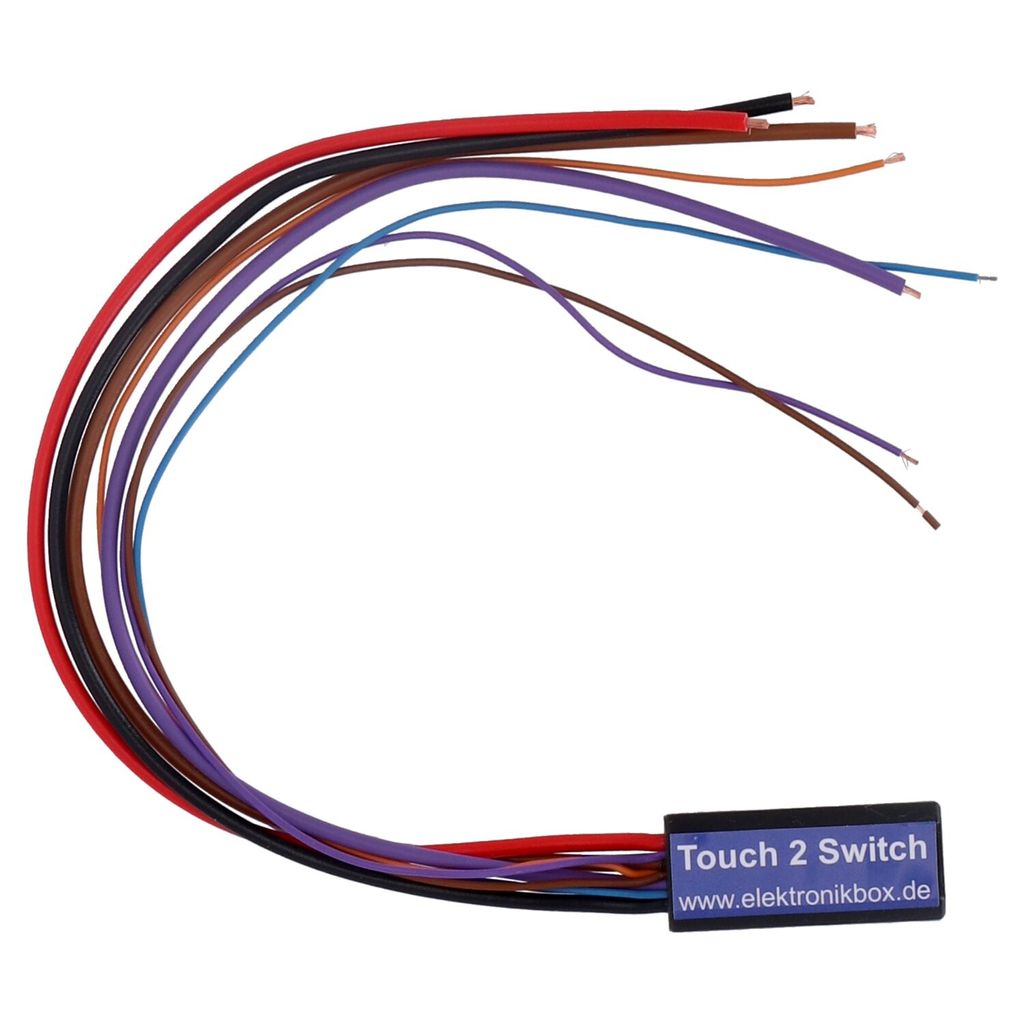

Axel Joost Elektronik, Touch 2 Switch. 2 channel relay

  • Perfect to switch lights high-low, on-off, ignition on-off, handlebar grip heating etc
  • This Axel Joost Touch 2 Switch is a 2 channel power relay that is controlled by 2 momentary push buttons

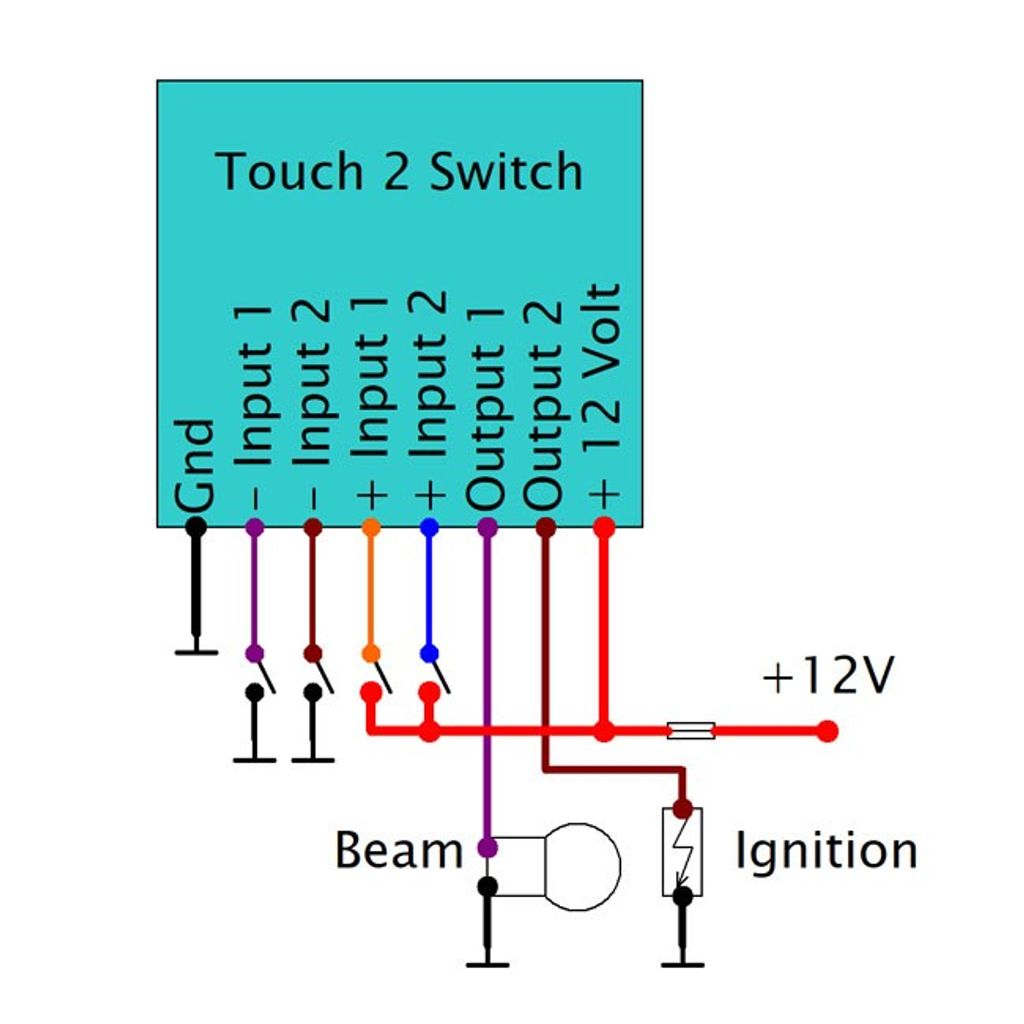

  • Every press on a button will toggle the corresponding output between on and off, no matter if they are wired to plus or minus
  • Or use the module as a standard (low beam /high beam) headlamp relay

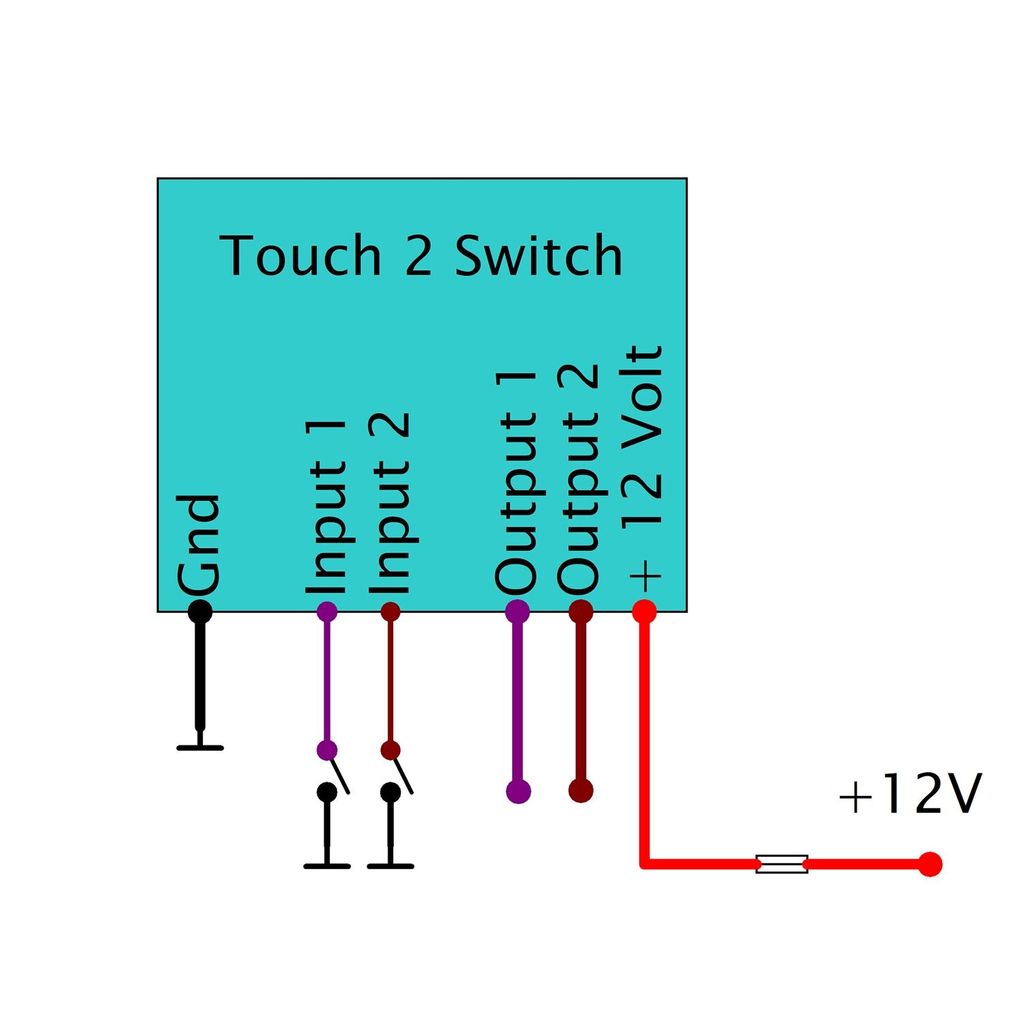

  • Just wire the 2 thin input cables together to one push button
  • The outputs can handle 70 Watt peak and 50 Watt continuous load
  • The module fits inside almost every handlebar due to its small size
  • Pushbutton controlled on-off switching
  • Dimensions: 38 mm x 16 mm x 11 mm
  • Body material: ABS with waterproof poured 2k epoxy resin
  • Input voltage range: 6
  • 18 Volt

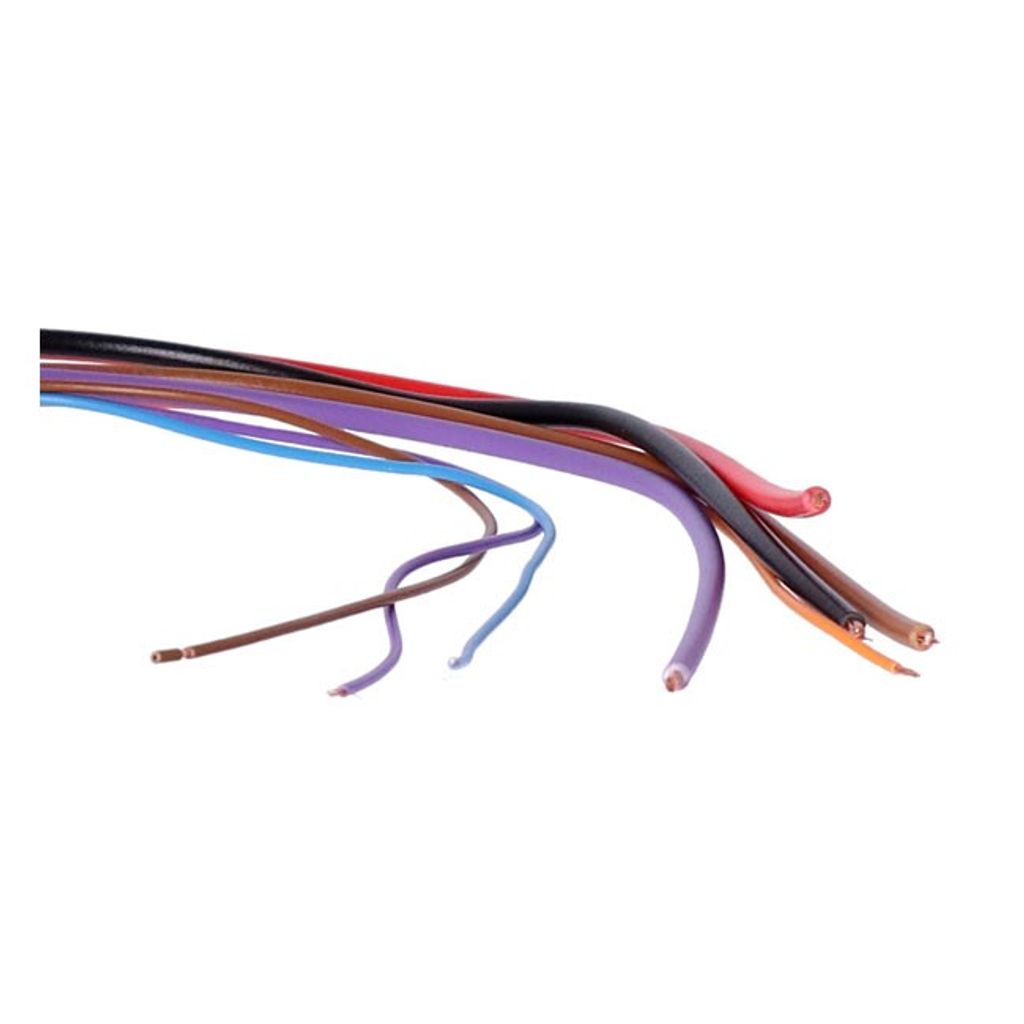

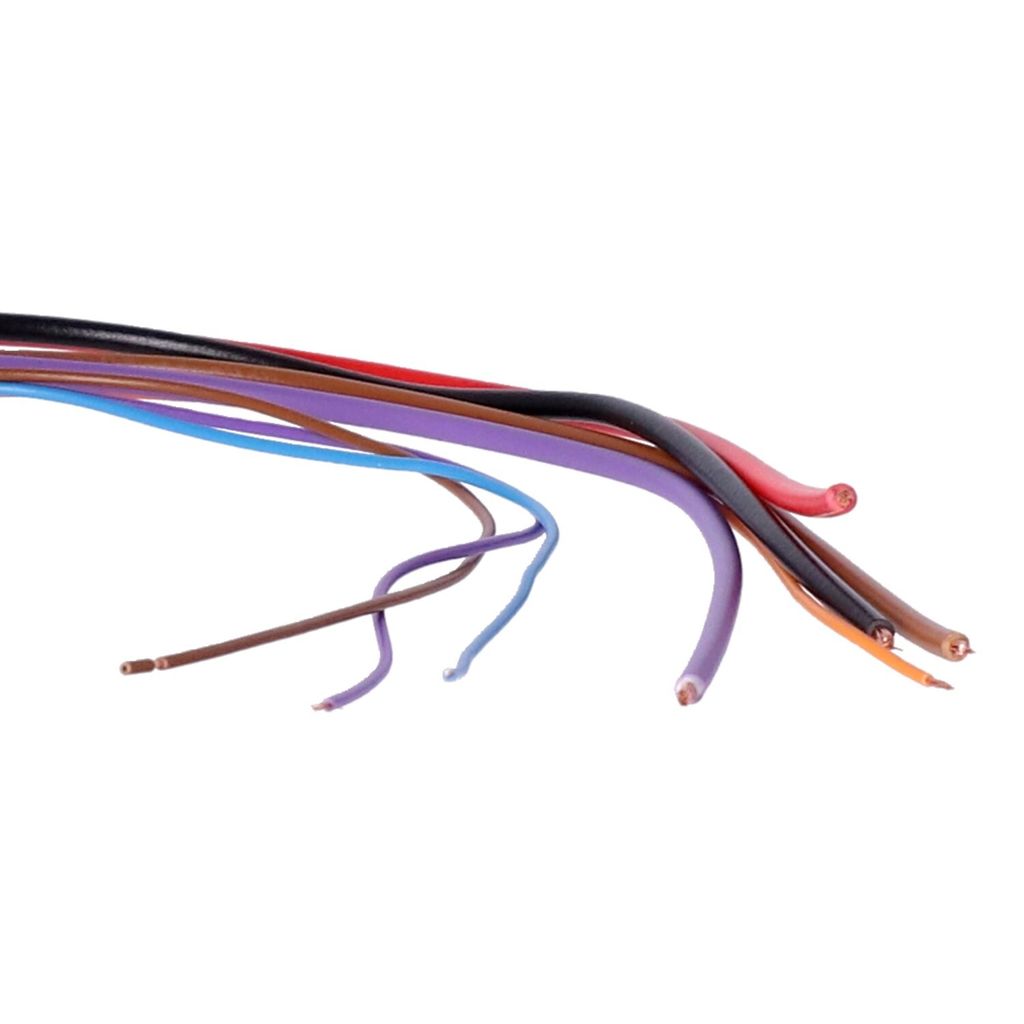

  • Connections: Inputs 0.14 mm², Outputs 0.75 mm²
  • Maximum current: 7 Ampere / 70 Watt per output
  • Maximum ambient temperature: 80 degrees Celsius
