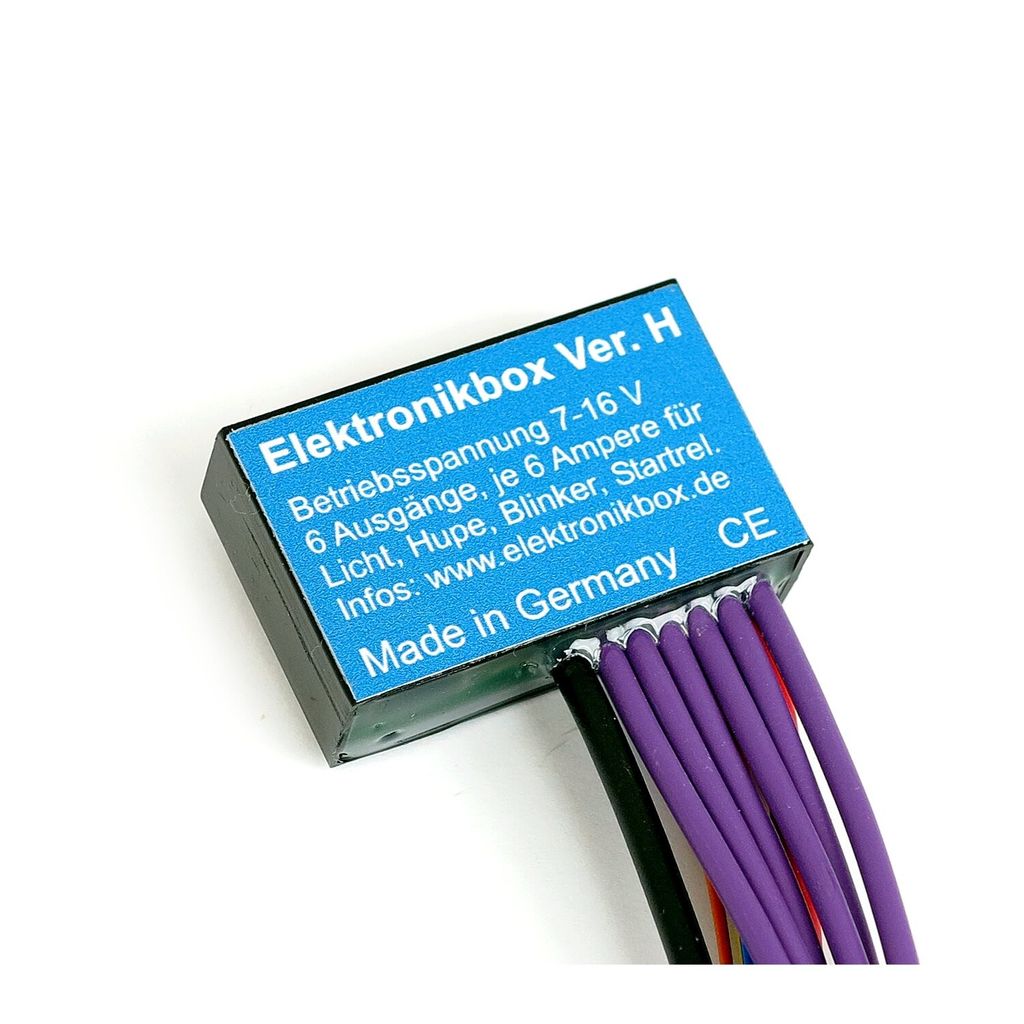

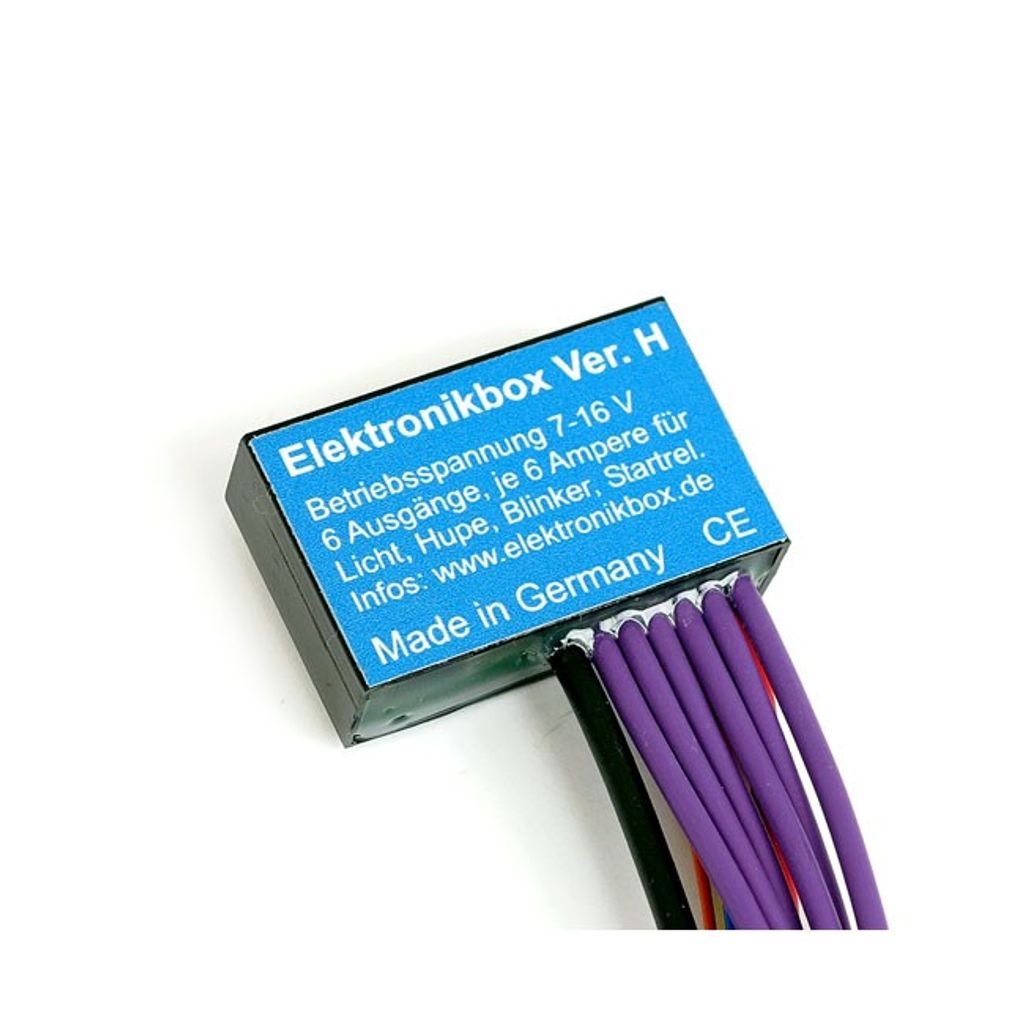

Elektronikbox Axel Joost Elektronik Brain Box H

1 960 kr

Elektronikbox för förenklad eldragning från Axel Joost Elektronik
Läs mer

567433 Elektronik Box
  • Mått: 40 mm x 12,5 mm x 25 mm
  • Inspänning: 7–16 Volt
  • Hus i polykarbonat, vattentät gjuten med epoxiharts

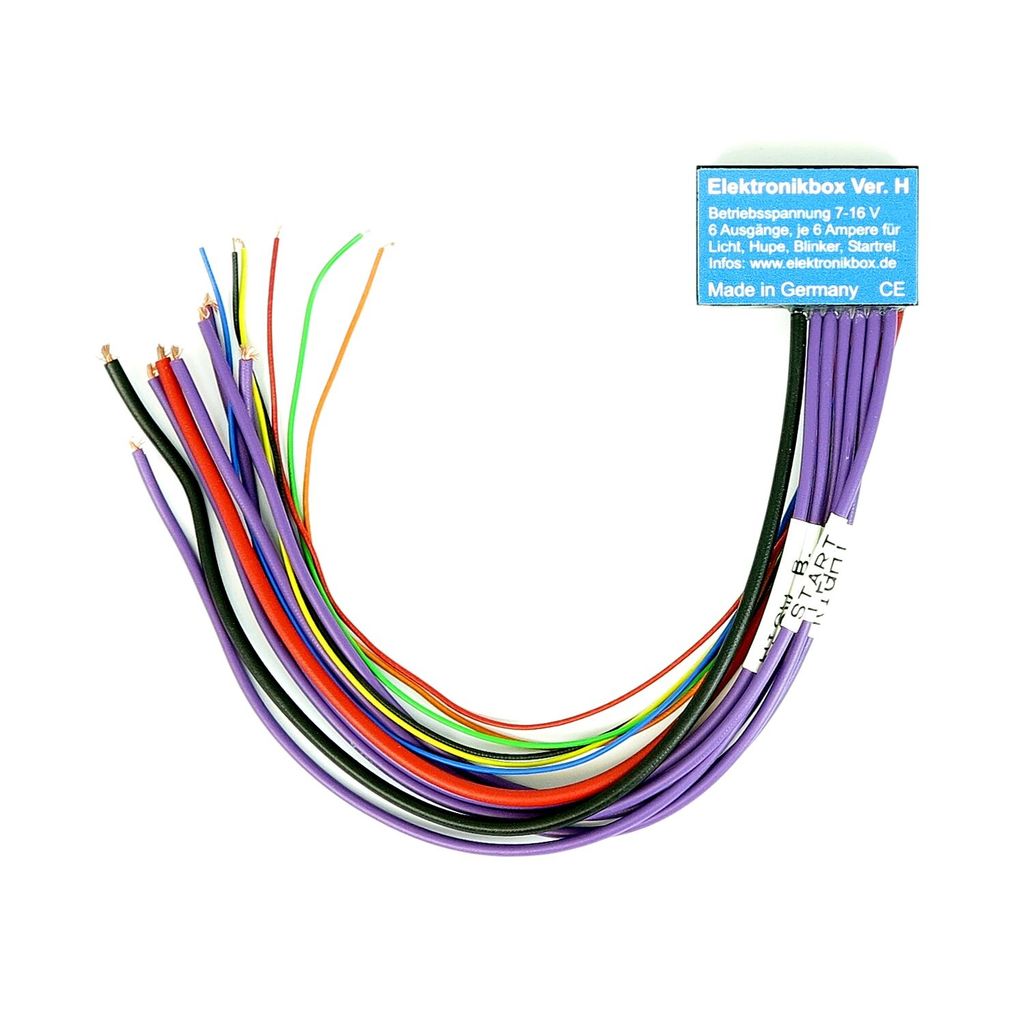

  • Anslutningar: Styrenhet 0,5 mm², förbrukare 1 mm², med 10 cm långa kablar
  • Max ström från 12V-anslutning: 15 A, max utgång 5 A per utgång och 3 A för signalhorn
  • Max omgivningstemperatur: 100 °C
  • Belysningen dimras vid start
  • Grå kabel tillagd 2025 som utgång för blinkers-LED i hastighetsmätare (för mätare med en gemensam LED)

Kompatibel med miniatyrtryckknappar och kan fästas med buntband på ramrör. Tydliga installationsanvisningar medföljer. Att ansluta startmotor direkt till boxen orsakar skador – H-D startmotor kräver 10 A för tillslaget och behöver ett extra litet bilrelä mellan elektronikboxens startutgång och startsolenoid.

Produkt-typ Wiring misc
Kategori , user 1 mm²

Axel Joost Elektronik, brain box H

  • Basic brain box; Input voltage: 7
  • 16 Volt; Connections: Control unit 0,5mm², user 1 mm², with 10 cm long wires; Max Amp. from 12V connection: 15 Amp.; Dimensions: 40 mm x 12.5 mm x 25 mm
  • When building a bike, or fully replacing the electrical wiring of an existing motorcycle, a brain box is a good option for a simple, solid and dependable wiring system
  • Lights are dimmed at starting
  • The brain boxes with handlebar wiring adapters simplify wiring and make it almost invisible when compared with some other brain boxes on the market
  • Housing is polycarbonate, waterproof cast with epoxy resin
  • Max. ambient temperature is 100 degree Celsius and maximum output is 5 Amp. per exit and 3 Amp. for horn
  • Compatible with miniature pushbutton control knobs that function with super thin wiring
  • Brain boxes can easily be tie-wrap clamped to frame tubes or similar
  • All come complete with super clear installation instructions
  • Note: Connecting starter motor directly on brain box will cause damage
  • The H-D starter motor takes 10Amp for the solenoid to switch and requires an additional small automotive relay between starter output of the brain box and the starter solenoid
  • Note: Added in 2025 is a gray cable
  • This is an output for the turn signal LED in the speedo
  • You can use this output if your speedo has only one LED for both directions
