Cylinderfotspackning Athena S410195006010 RCS 5 .015" fram/bak Evo Big Twin 84-99

70 kr

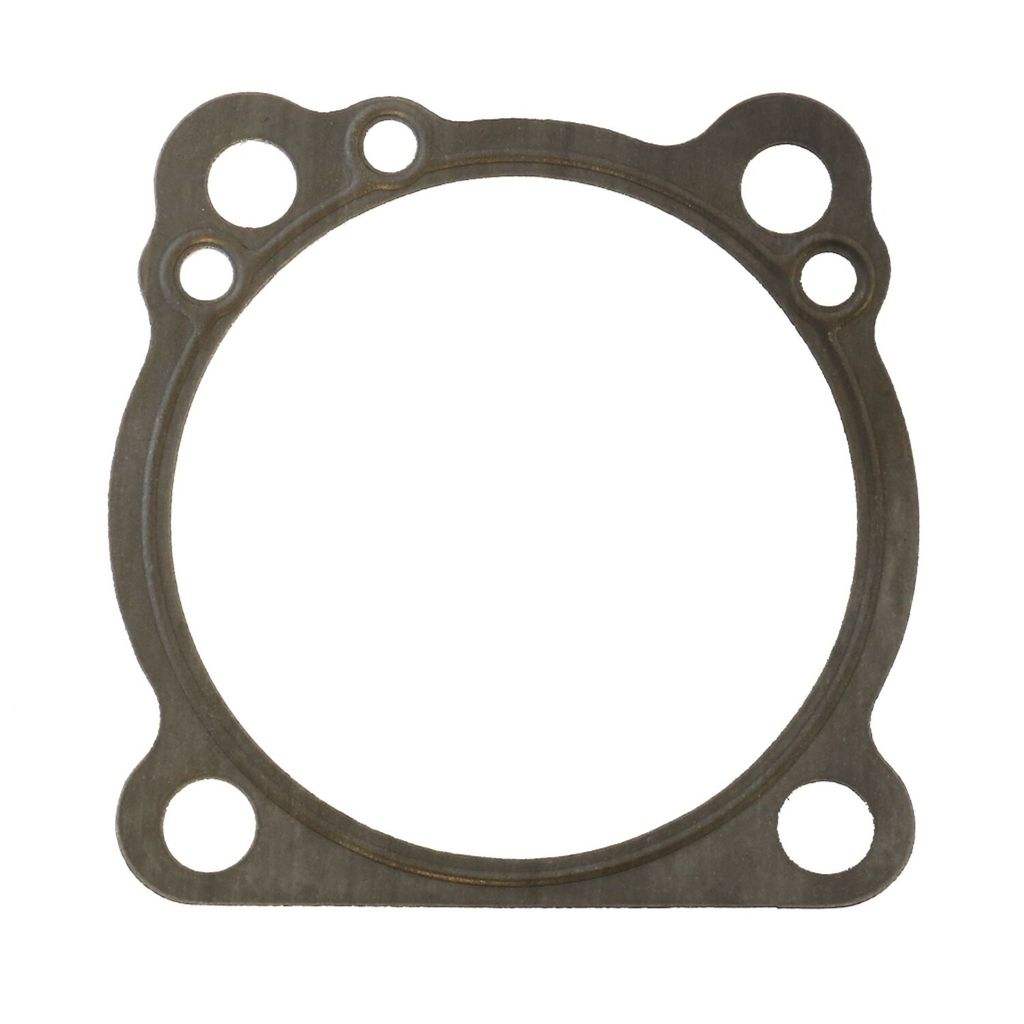

Cylinderfotspackning i stål och gummi
Läs mer

  • Säljs styckvis – bilden kan visa flera, priset gäller 1 st
980864 Athena
  • Passar främre och bakre cylinder
  • För 3" till 3-1/2" cylinderdiameter
  • Typ B
  • Tjocklek: 0,4 mm (.015")
  • Tillverkad i RCS (Rubber Coated Steel)
  • Präglad stålkärna med .001" värmebeständigt nitrilgummi på båda sidor
  • Säljs styckvis

Typ B är den senare modellen av cylinderfotspackning som delar samma innerdiameter, oljehål och pinnbultshål som typ A, men skiljer sig i den yttre profilen.

Passar: Evo Big Twin 84-99

OEM-nr: 16774-86C, 16774-86D, 16789-04

Cylinder base gasket. FR/RR .015" RCS. 5-pack

  • 3" to 3-1/2" bore
  • Front/rear
  • Type 'B'
  • 0.4mm (.015") RCS (Rubber Coated Steel)
  • Gasket with an embossed steel core with a .001" thick coating of heat resistant nitrile rubber on both sides
  • OEM replacement reference 16774-86C, 16774-86D, 16789-04
  • Note: Type 'A' and 'B' Evolution base gaskets explained
  • There are 2 types of cylinder base gaskets for Evolution models available
  • For convenience sake we call them 'type A' (early style) and 'type B' (late style)
  • Type A' gasket: Was introduced on the 1984 Evolution Big Twin models, and can be used on all of the 84-99 1340cc Evo models and will follow the contours of the cylinder base perfectly
  • They will fit 86-22 Evo XL, but stick out at the cylinder base
  • This can be a problem with silicone beaded base gaskets
  • The 'type B' is the only gasket type that 'The Factory' supplied from 1986 onwards for both Evo Big Twin and Evo XL Sportster models
  • Both type 'A' and type 'B' have identical inner bore diameter, oil hole and stud hole locations
  • Only difference between the 'A' & 'B' gaskets is the outside perimeter

Fits: 84-99 Evo Big Twin; 86-22 XL Sportster (Excl. 08-12 XR1200) (NU)
