Tändmodul Dynatek Dyna S dubbeltändning H-D 70-03
Dynatek Dyna S elektroniskt tändsystem (dual fire)
Läs mer
- Självgående elektronisk tändning (dual fire) med Hall Effect-magnetsensorer
- Sensorerna påverkas inte av smuts, olja eller förändringar i varvtal
- Förbättrar prestandan, förlänger livslängden på tändstift och ersätter brytarspetsar och kondensator
- Håller tändinställningen inom mindre än tre graders variation
- Kan användas till toppar med enkla eller dubbla tändstift
- Levereras komplett med rotor
- Enkel installation
- Tillverkad i USA
Kräver en eftermarknadsspole på 5 ohm (t.ex. DC7-1) eller en originalspole för brytartändning från tidiga Shovelhead, och rekommenderas inte med OEM-spolar. Mekanisk tändförställning (advance unit / advance weight mechanism) säljs separat och krävs för 84–99-modeller, 86–03 XL samt 80–99 Big Twin. För bästa funktion rekommenderas tändmodul och tändspole från samma tillverkare.
Passar: H-D 70-03
| Produkt-typ | Coil |
| Tillverkarens Art. Nr. | DS6-1 |
-
HämtaDS61_DS6-1.pdf51.79 KB
Electronic Ignition System
- Self-contained ignition system features Hall Effect magnetic sensors which are not sensitive to rpm changes or affected by dirt and oil
- Improves overall performance by changing the timing less than three degrees, extends plug life, and eliminates the use of points and condensers
- Can be easily installed
- Used and endorsed by many championship racers
- Made in the USA
- Operation with the Dyna S ignition system requires the use of an aftermarket 5 ohm coil such as part # DC7-1 or a stock points coil from early Shovelheads. Not recommended for operation with OEM coils.

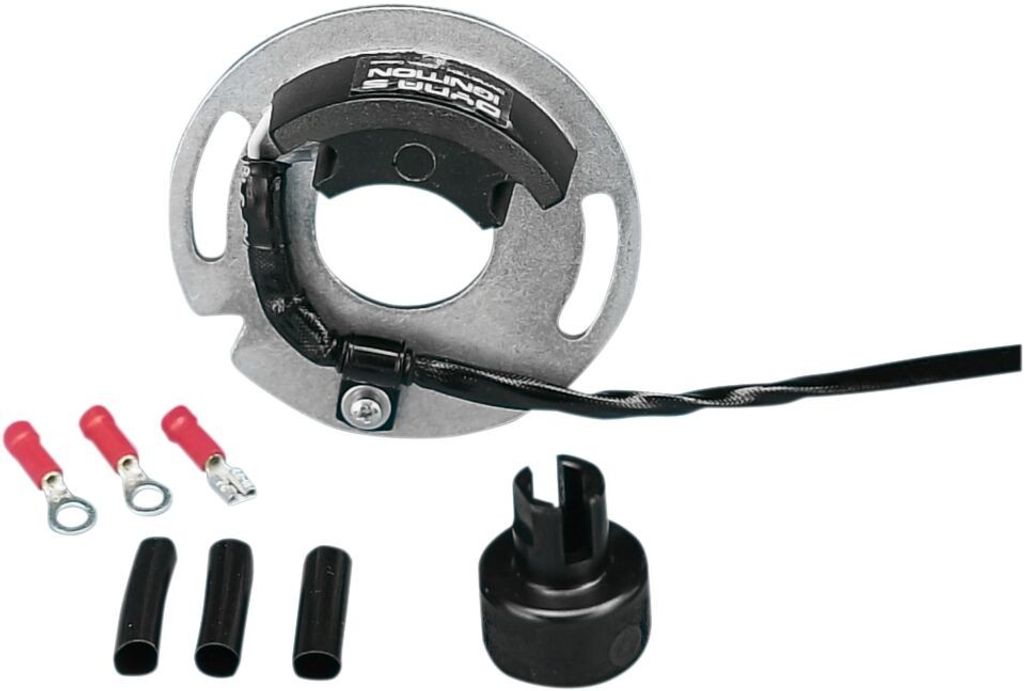

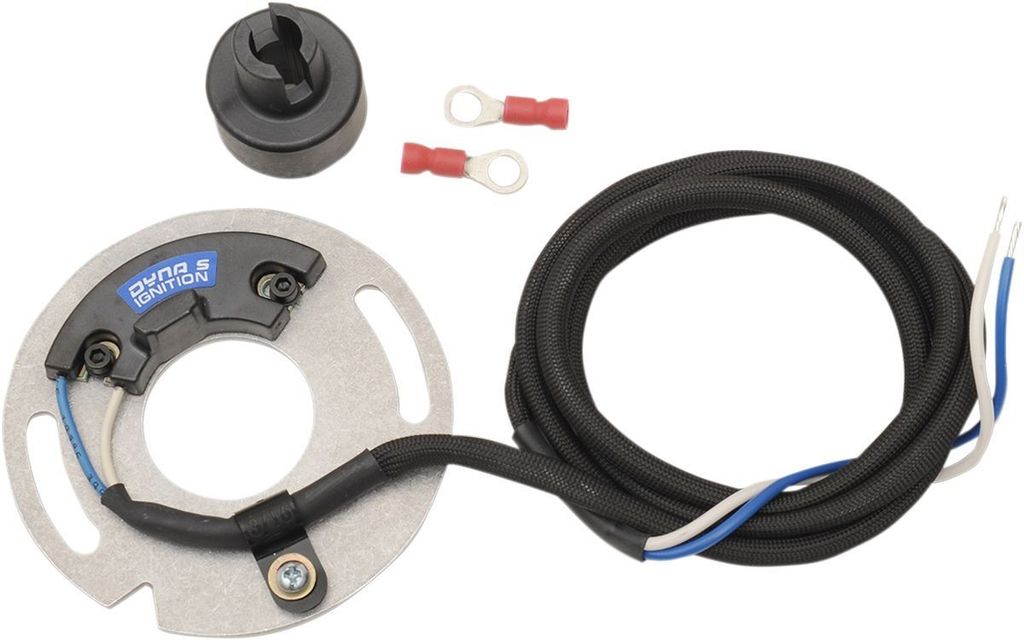

- Dyna-S ignition module. Dual fire
- Comes complete with rotor
- Can be used for single or dual plugged heads
- The required mechanical advance unit must be purchased separately
- Note: It is recommended to use ignition modules & coils of the same manufacturer
- Intermixing different brands may cause premature failure
- This is the way the earlier, pre-Twin Cam, engines work
- A single coil is used and both spark plugs fire simultaneously
- This is the simplest system
- The 'wasted' spark is sometimes said to be horsepower robbing
- Two separate coils will fire the spark plugs independently and only the spark plug of the cylinder that is on compression stroke will be fired
- It is said that these engines vibrate less and can improve power
- The effects will become more pronounced with hotter cams and higher RPM
Street applications require use of a 5-ohm coil. On '84-'99 fitment models listed, an advance weight mechanism is required. On '86-'03 XL and '80-'99 Big Twin models listed, mechanical advance unit is required.
Fits: 70-99 Big Twin (Excl. TC) and 71-03 XL Sportster (NU)
