Tändmodul Dynatek Dyna-S enkel Big Twin 70-99
Dynatek Dyna S elektroniskt single-fire-tändsystem
Läs mer
- Tänder främre och bakre cylindern oberoende av varandra för mer exakt tändinställning
- Minskar motorvibrationer, baktändningar och råbränslespill i förgasaren
- Ger förbättrad effekt över hela registret, särskilt med vassare kamaxlar
- Passar topplock med enkla eller dubbla tändstift (dual plugged)

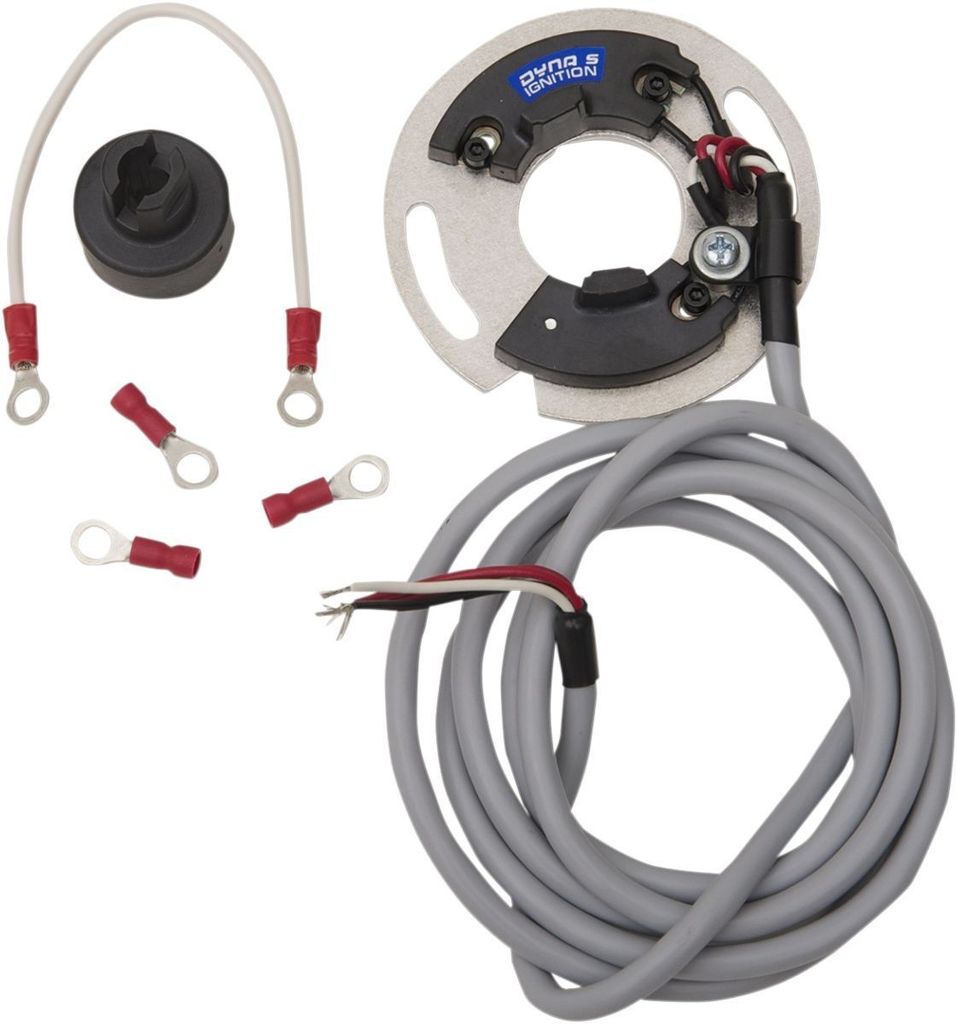

- Levereras komplett med rotor
- Tillverkad i USA
Passar inte modeller med bränsleinsprutning (EFI). Kräver särskilda Dyna-tändspolar (5 Ohm för gata eller 3 Ohm för racing) samt separat mekanisk tändförställningsenhet, och varvräknaradapter behövs vid elektrisk varvräknare.
Passar: Big Twin 70-99
| Produkt-typ | Ignition |
| Tillverkarens Art. Nr. | DS6-2 |
-
HämtaDS62_DS6-2.pdf456.17 KB
Single-Fire Electronic Ignition System
- All the features of the famous Dyna "S", plus the special feature of firing the front and rear cylinders independent of each other, allowing a much more accurate timing of each cylinder
- The stock ignition system fires both cylinders at the same time, which works fine for the front cylinder but the rear receives the "wasted" spark when the cylinder has started its intake stroke; this can result in harder starting, increased engine vibration, backfire and raw fuel being spit back into the carb, all creating a power loss
- Dyno and top-speed testing have shown a dramatic improvement in power in all areas; bikes with hotter cams show the greatest improvement
- If you truly want to get the most out of your stock, slightly modified or all-out customized Harley-Davidson, you need a Dyna "S" single-fire ignition system
- Not recommended for use with OEM coils.
- This unit must be used with special Dyna coils.
- Tach adapter is required when using an electric tach.
- Not for fuel-injected models.
- Made in the USA
- Comes complete with rotor
- Can be used for single or dual plugged heads
- The required mechanical advance unit must be purchased separately
- Note: Dyna coil recommendations: Dyna 5 Ohm for street use, Dyna 3 Ohm for race use
- Intermixing different brands may cause premature failure
- This is the way the earlier, pre-Twin Cam, engines work
- This is the simplest system
- The 'wasted' spark is sometimes said to be horsepower robbing
- Two separate coils will fire the spark plugs independently and only the spark plug of the cylinder that is on compression stroke will be fired
- It is said that these engines vibrate less and can improve power
- The effects will become more pronounced with hotter cams and higher RPM
Fits: 70-99 Big Twin (Excl. TC) and 71-03 XL Sportster (NU)
