Kamkåpssats Feuling Race Series 538 med fullslagslyftare kedjedrift oljekyld M8 H-D 17-upp
Feuling Race Series 538 Kamaxelsats för Milwaukee Eight
Läs mer
- Komplett kamaxelsats med Reaper 538-kamaxel, Race Series oljepump och High Flow kamplatta i billet
- Inkluderar Race Series hydrauliska rulllyftare med 0.200" slaglängd och kraftiga stötstänger i ett stycke med .165" godstjocklek
- Oljepump i 7075 billet-aluminium med magneter, 27 % större kuggvolym för tryck/retur samt 42 % ökad returvolym
- Ger 46 % mer oljevolym till vevaxel och vevstakslager samt 15–30 PSI högre oljetryck
- Sänker motortemperaturen med 15°–35° och oljetemperaturen med 15°–30°
- Eliminerar wet sumping, blow-by och oljiga luftfilter med 50 % minskad oljenivå i vevhuset
- Satsen innehåller även Timken/Koyo kamlager, ARP-bultar och muttrar, packningar, O-ringar, brickor, molyfett och Loctite
- Tillverkad i USA
För oljekylda Milwaukee Eight-motorer, passar inte '23-'26-modeller med VVT-motorer. Kräver ventilfjädrar för höga lyft. Reaper 538 är en aggressiv kamaxel som lämpar sig särskilt väl för motorer på 124" eller större med ökat kompressionsförhållande, modifierade topplock och avgassystem.
Passar: M8 '17-'24 utom VVT OLJE-
| Produkt-typ | Camshaft Kit |
Race Series Camchest Kit with Full Travel Lifters
- Quieter and smoother engine operation
- Increases oil pressure, scavenge volume and engine oil flow
- 15°-35° cooler engine temperatures
- 15°-30° cooler oil temperatures
- 15-30 more PSI of oil pressure
- Eliminates wet sumping, blow by and oily air cleaners
- Heavy duty .165" wall one piece pushrod reduces valvetrain harmonics and increase valve lift
- Responds well with slip-on mufflers and/or a complete exhaust system and high-flow air cleaner
- Responds well with increased bore and/or compression
- Lifters have a full 0.200 of total travel designed with a slower bleed down rate to handle heavy valve spring pressures, increase engine RPM before valve float and feature increased roller clearance for steep ramped camshafts and clearance for the front exhaust camshaft lobe flange
- Kit includes: Race Series high volume oil pump, High Flow billet camplate, Reaper Series camshaft, fulll-travel Race Series hydraulic roller lifters, fixed length pushrods, Timken/Koyo cam bearing, rocker arm studs and nuts, gaskets, O-rings, ARP cam/crank fasteners, washers, moly lube and Loctite
- Made in the USA
- Not for '23-'26 models with VVT motors.
- FEULING M8 OIL COOLED camchest kits include all necessary components from top to bottom of the camchest conveniently packaged under 1 part #
- These combination kits not only ensure each individual part is designed to work and function together but to do so in total harmony
- These camchest kits take the guess work out of the ordering process and guarantees the engine builder maximum reliability, peak performance and the coolest engine and oil temperatures obtainable
- Available in HP+ or RACE SERIES kits
- 27% more pressure and scavenge gear volume over stock
- 42% more scavenge volume with port sizing, matched passages and holes to the engine case
- 46% more oil volume to the crankshaft and connecting rod bearing
- Magnets in oil pump to help protect gears and pressure relief valve
- Test results show 2 HP gain and 2 ft/lbs of TQ gain to the rear wheel on Milwaukee Eight
- NOTE: FEULING test results show a 50% reduction of engine sump oil level
- Due to the mass call volume & inquires with requests for the M8 oil pump back cover O-ring/seal groove, we’ve added the groove! (5/11/21)
- Although Feulings in house testing on healthy engines did not show a benefit
- The O-ring may have potential benefits in certain circumstances such as engines with higher cylinder leak down, poor subseal O-ring seal, raised sump hole & or sump plug (see M8 PRO TIP below) & looser lifter to lifter bore clearances
- Aggressive camshaft with a "nasty" sound
- This camshaft revs up fast and pulls hard in engines with big bore cylinders, modified cylinder heads, inake, compression and exhaust
- The REAPER 538 grind will shine in 124" and larger cubic inch engines with added compression ratio
- Ported cylinder heads are not required but will complement the cam and add even more pulling power throughout the range
- The stock throttle body produces an excellent powerband and use of a high flow throttle body will increase peak power numbers
- FEULING recommends matching this cam with our RACE SERIES oiling system
- SE cylinder heads have high lift valvesprings but will need to be verified
- Heavy Duty one piece pushrods are also highly recommended see #4087
- 5,975
- Grind: 538 ..................Valve Lift Open Close Duration @ 50" lift @ TDC Lobe Centerline Intake .538 20.5 BTDC 38.5 ABDC 239 .180 99 Exhaust .542 48 BBDC 18 ATDC 246 .157 105 Overlap: 38 *Cam specs measured in the engine on the lifter @ 0.050" using a 1.61 rocker arm ratio DISCLAIMER: NOT LEGAL FOR SALE OR USE IN CALIFORNIA ON ANY POLLUTION CONTROLLED MOTOR VECHICLE Feuling dOEs not recommend tuning beyond stock emissions standards
- Billet 7075 aluminum oil pump which is 50% harder and stronger than the factory pump holding tighter tolerances under temperature, deeper scavenge kidneys over HP+ oil pump
- DO NOT OVERFILL OIL TANK It is important to get the correct hot oil level in your bike
- Letting the bike idle or warm up on the kickstand will naturally fill the engine case and skew the oil level in the tank
- We recommend the following steps to achieve proper oil level: 1
- Check cold oil level
- Ride the bike until operating temperature is reached
- 3
- Shut the bike off while still in the upright position. (This insures an accurate reading) 4
- Add or remove oil as needed
- Note: Special Order Product only
- To order please contact your MCS sales representative

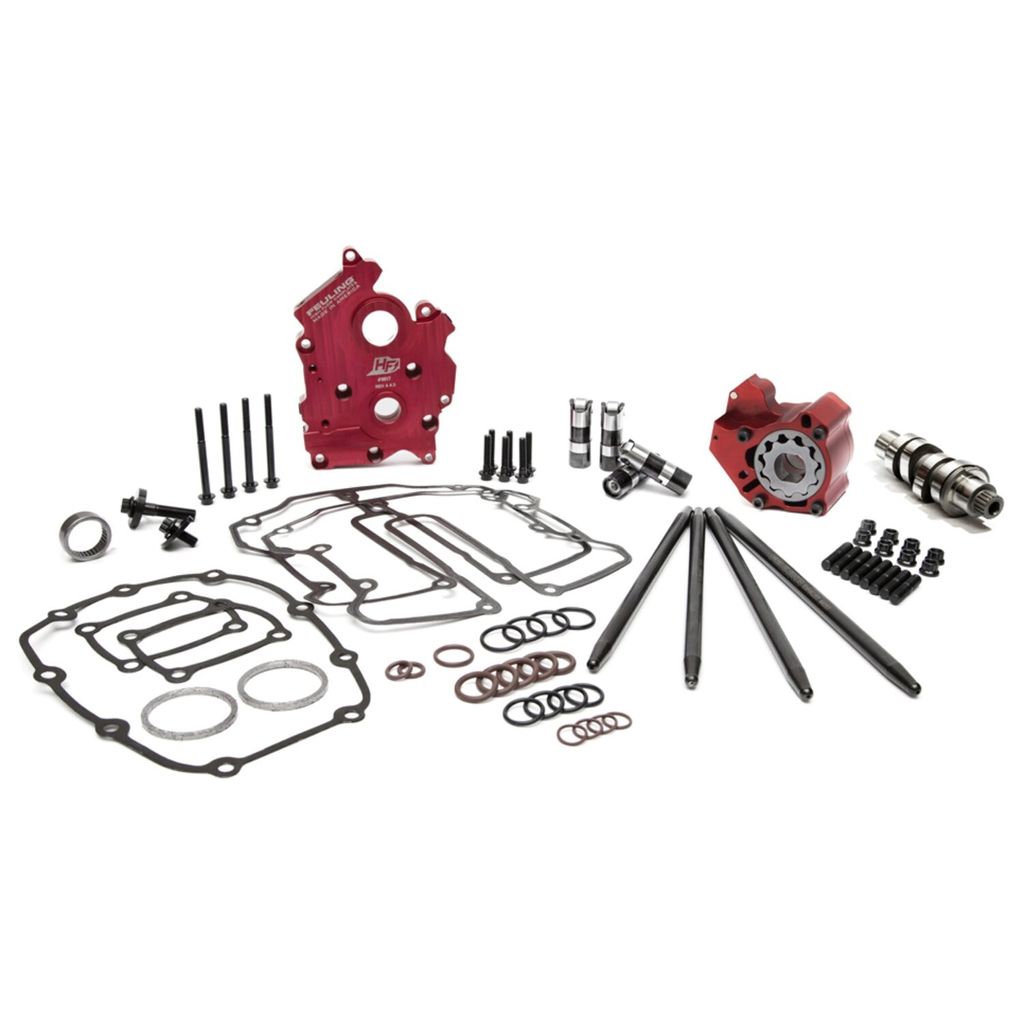

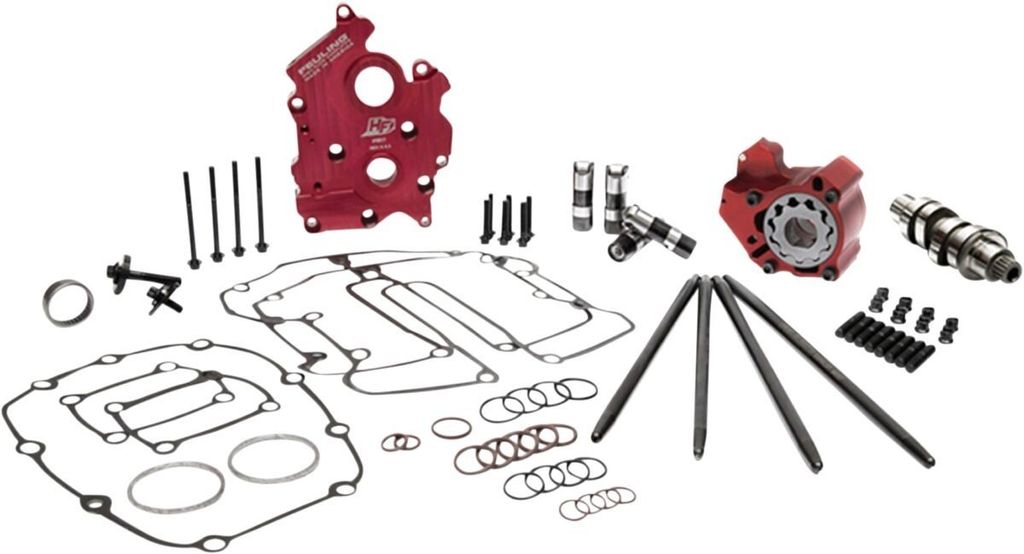

Gen 2 bolt in. Requires high lift valve springs. Includes: • Race Series High Volume Oil Pump • High Flow Billet Camplate • Reaper Series 538 Camshaft • Race Series Hydraulic Roller Lifters • One Piece Pushrods • Timken/Koyo Cam Bearing • ARP Rocker Studs and Nuts • Camplate/OilPump Fasteners • O-Rings • Gaskets • Washers • Moly lube • Loctite
Fits: M8 '17-'24 Except VVT OIL cooled, Chain Drive, Includes 538 Reaper Camshafts #1351, Cam Install kit #2030, RACE SERIES Lifters #4017, one piece pushrods #4087, RACE SERIES oil pump #7020, HIGH FLOW camplate #8017, and ARP Rocker studs and nuts, Camplate/Oil Pump Fasteners.
