Kamaxelsats Feuling Camchest .200″ billet Twin Cam 99-06
Feuling Race Series 630 kamaxelsats med kugghjulsdrivning
Läs mer
- Innehåller Race Series oljepump, High Flow kamplatta, Reaper 630-kamaxlar och hydrauliska Race Series-lyftare
- Levereras med stötstänger i en del, monteringssats, Timken/Koyo-lager, packningar, o-ringar och ARP-fästelement
- Inkluderar även avgaspackningar, molypasta, Loctite och monteringsdetaljer
- Oljepump och kamplatta tillverkade i billet 7075-aluminium
- Sänker motortemperaturen med 25°–35° och oljetemperaturen med 15°–30°
- Ger 15–30 PSI högre oljetryck och motverkar wet sumping samt blowby
- Reaper 630 ger ett brett effektregister med varvtal på 2 500–6 900+ rpm
- Tillverkad i USA
Passar inte '06 Dyna. Avsedd för högprestandamotorer med kraftigt modifierade topplock och kompressionsförhållande, och kräver arbete med förgasare/spjällhus samt uppgraderat avgassystem och insug. Kamdrevsats krävs och säljs separat (se S&S #33-4275).
Passar: Twin Cam 99-06
Race Series Camshaft Kit
- Eliminate wet sumping, blowby and oily air cleaners
- 25°- 35° cooler engine temperatures
- 15° - 30° cooler oil temperatures
- 15-30 more PSI of oil pressure
- Quieter and smoother engine operation

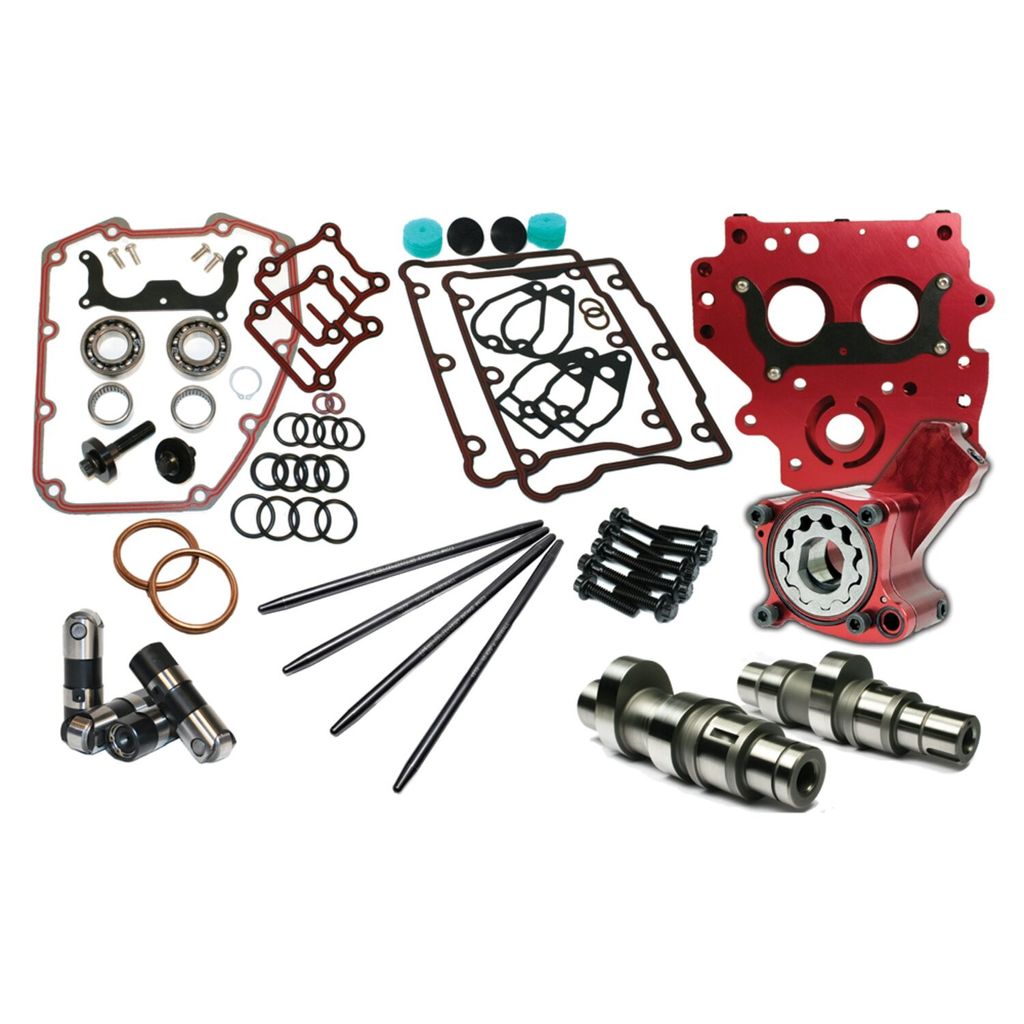

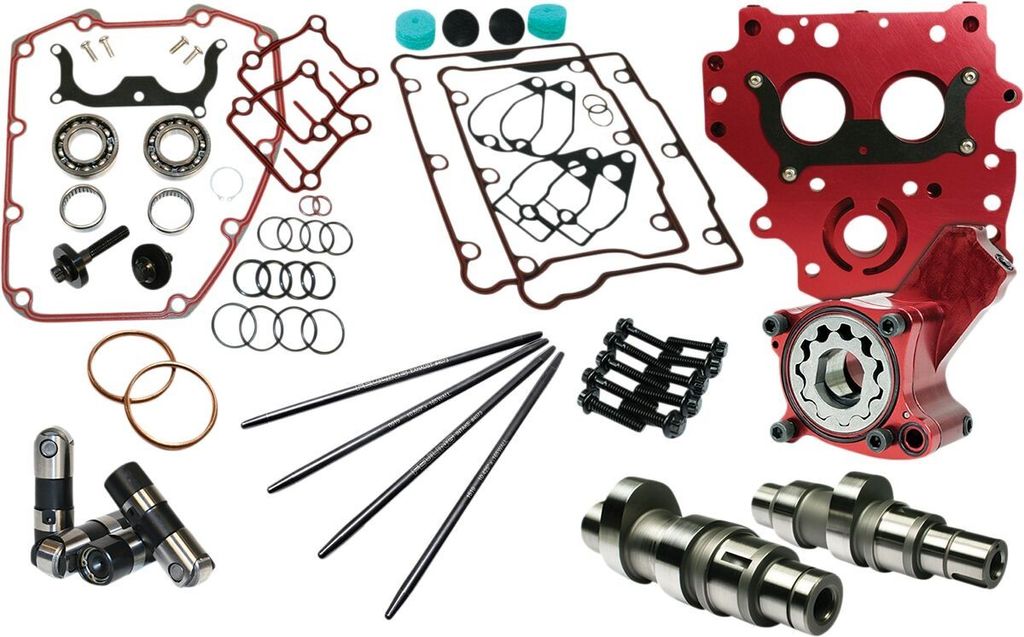

- Includes Race Series high volume oil pump, High Flow camplate, Reaper camshafts, Race Series full-travel or short-travel hydraulic roller lifters, Quick install adjustable pushrods or one-piece pushrods,Timken bearings, gaskets, O-rings, exhaust gaskets, ARP fasteners, washers, moly paste, Loctite, and hardware
- Made in the USA
- BULLETPROOF CAMCHESTS!
- FEULING camchest kits take the guess work out of your engine build by packaging the necessary components together and ensuring each part is designed to work and function together in total harmony
- We guarantee maximum reliability, peak performance and the coolest engine and oil temperatures obtainable. -RACE SERIES Kits Kits include a RACE SERIES oiling system: billet 7075 oil pump, RACE SERIES lifters, HIGH FLOW billet 7075 aluminum camplate, One Piece Pushrods
- Billet 7075 aluminum oil pump which is 50% harder and stronger than the factory pump holding tighter tolerances under temperature
- RACE SERIES hydraulic lifters have a full .200" of total travel designed with a slower bleed down rate to handle heavy valve spring pressures, increase engine RPM before valve float and feature increased roller clearance for steep ramped camshafts
- NOTE: Gear drive camchest kits MUST purchase cam gear kit separately – see S&S #33-4275 Camchest kits are available in FEULING HP+ and RACE SERIES combinations and with gear drive or chain drive REAPER camshafts
- Fitments available for '99-'17 Twin Cam engines
- More power
- 630 CAMS
- Vicious power gains, wide streetable power band from a high lift profile camshaft for high performance engines with highly modified cylinder heads and compression ratio
- Carburetor and or throttle body work required along with a performance exhaust and intake system
- Maintains low end performance with eye blurring mid and top end power
- RPM 2,500
- 6,900+ Feuling dOEs not recommend tuning beyond stock emissions standards
- To order please contact your MCS sales representative
Not for '06 Dyna. Requires cam gear kit sold separately. Includes: • Race Series Billet Oil Pump • High Flow Camplate • Reaper Series 630 Camshaft • Race Series Full-Travel Hydraulic Lifters • One Piece Pushrods • Cam Install Kit • Gaskets • O-Rings • Timken/Koyo Cam Bearings • ARP Cam/Crank/Pump/Plate Fasteners • Moly Paste • Loctite • Hardware
Fits: 99-06 Twin Cam (Excl. 2006 Dyna), Gear Drive, Includes 630 Reaper Camshafts #1010, Cam Install kit #2061, RACE SERIES Lifters #4050, One Piece Pushrods #4073, RACE SERIES oil pump #7062, Anodized camplate #8000 and ARP Camplate/Oil Pump Fasteners #8020. Requires cam gears see S&S #33-4275
