Oljepump Feuling Parts M-Eight Water Cooled H-D 17-upp

6 830 kr

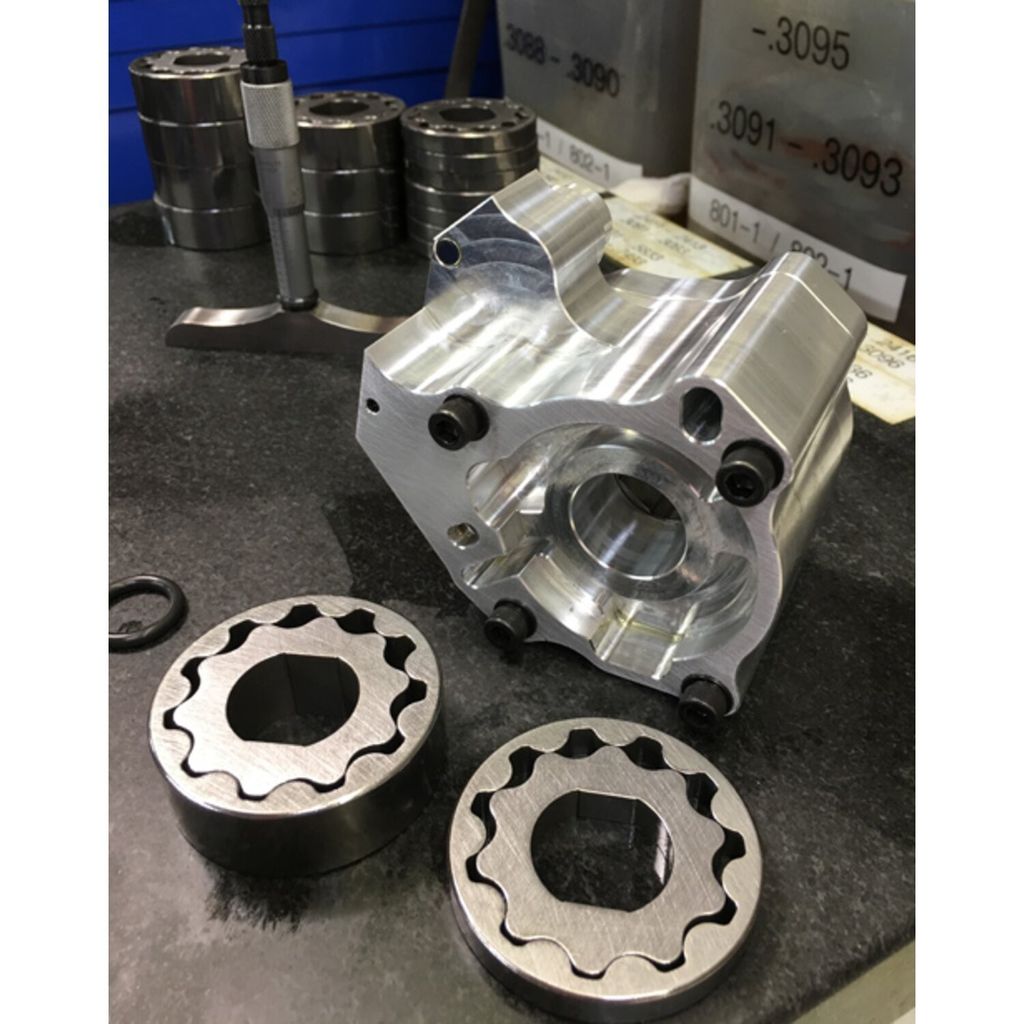

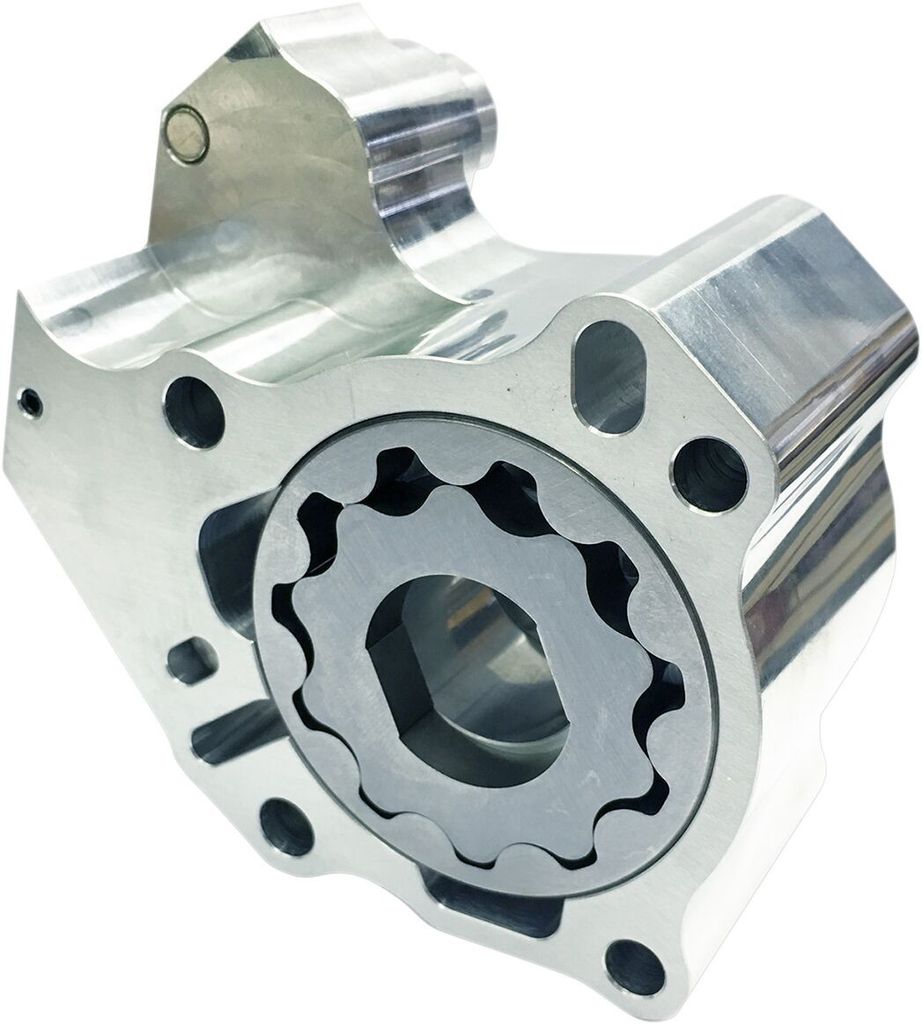

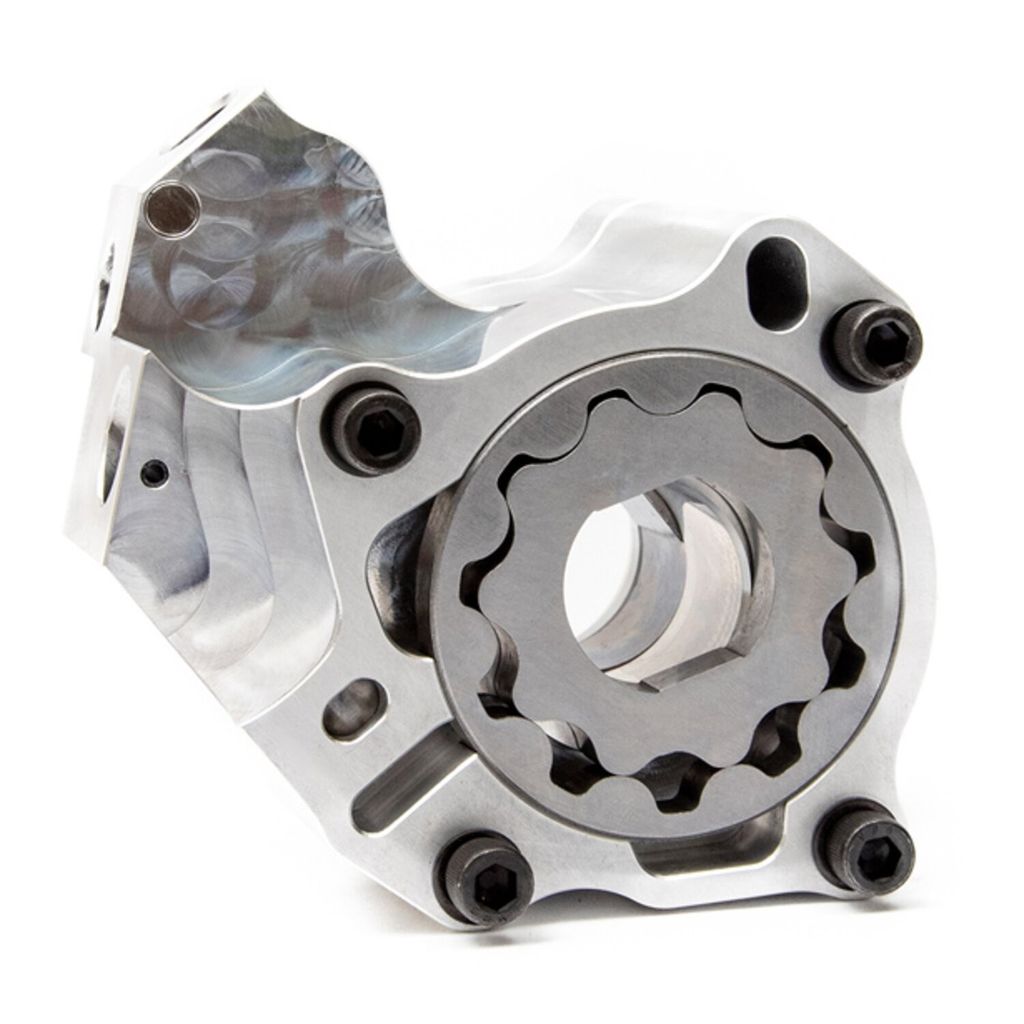

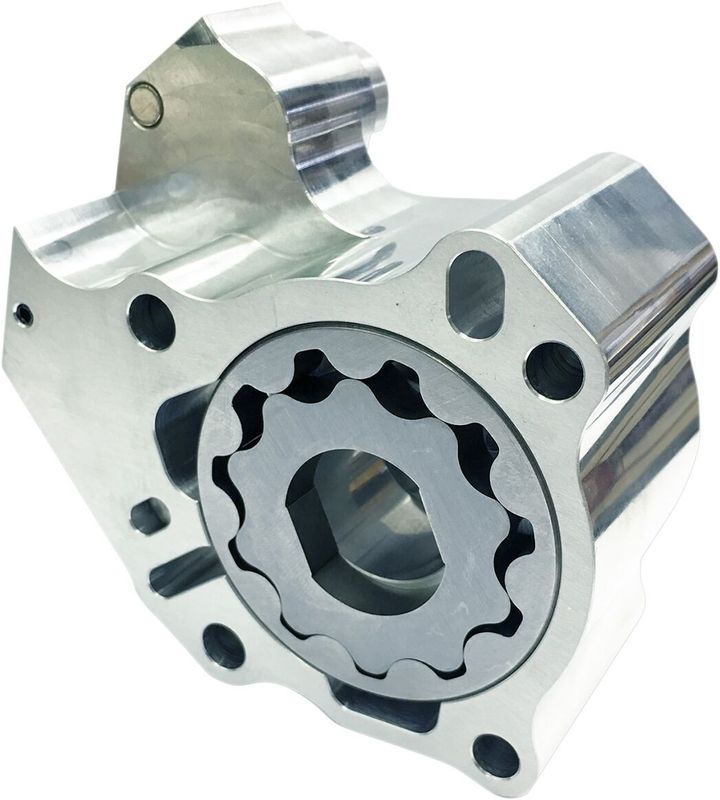

Feuling högtrycks- och högvolymsoljepump för Milwaukee-Eight
Läs mer

09320215 Feuling
  • Tillverkad i billet 6061-aluminium med natur finish
  • Högt flöde med 2.250" (5,72 cm) kuggdrev i krommolybdenstål
  • Ger 68 % mer oljevolym till vevaxel och vevstakslager samt 42 % mer returvolym
  • För M-Eight Twin-Cooled: 30 % mer tryckvolym och 53 % mer returvolym jämfört med original
  • För M-Eight oljekylda: 27 % mer tryck- och returvolym jämfört med original
  • Bänktestad övertrycksventil som tätar vid minst 30 psi (2,06 bar) och öppnar fullt vid 55–60 psi (3,79–4,13 bar)
  • Inbyggd magnet fångar upp små stålpartiklar för att skydda drev och ventil
  • Tillverkad i USA

Kräver montering tillsammans med Feuling High Flow kamplatta (artikelnr 0932-0192 / 588056). Då oljepumpens pickup sitter på höger sida fylls vevhuset naturligt och oljenivån i tanken missvisas om motorcykeln står på sidostödet på tomgång eller vid varmkörning.

Passar: M8 Touring. 17-26

Produkt-typ Pump
Tillverkarens Art. Nr. 7019

High Pressure / High Volume Oil Pump for M-Eight

  • Increased oil volume from the larger gears and properly sized passages along with the pressure relief valve seat and seal from these oil pumps is essential for proper oiling system function
  • Eliminate common pressure and scavenge issues associated with the factory oil pumps
  • Precision-machined pressure relief valve and bore
  • Every pump is bench tested, the relief valve is seated and sealed to a minimum of 30 psi with full pop-off at 55-60 psi
  • Feuling M-Eight oil pumps have the groove machined on the back cover to accept the factory crank bearing seal
  • When matched to a Feuling cam plate, pumps reduce engine and oil temperatures, increase oil pressure volume, and scavenge volume on the return side to reduce build up of oil in the crankcase
  • Increase oil flow in and out of the engine with corrected tolerances, oil passages and larger geroter gears
  • High-flow 2.250" Chrome Moly gerotor gears
  • 42% more scavenge volume with matched passages, port sizing and holes to the engine case
  • 68% more oil volume to the crankshaft and connecting rod bearing
  • Magnet to help protect gears and pressure relief valve
  • More horsepower and torque to the rear wheel
  • M-Eight Twin-Cooled motors have 30% more pressure gear volume over stock and 53% more scavenge gear volume over stock
  • M-Eight oil-cooled motors have 27% more pressure and scavenge gear volume over stock
  • Billet 6061 aluminum with natural finish
  • Increases oil pressure
  • Increased kidney passage volume
  • Eliminates blow by and wet sumping
  • Cooler oil & engine temperatures
  • Made in the USA
  • Increased and optimized scavenge port holes and galleys requires being matched to a Feuling High Flow cam plate PART #0932-0192.
  • EU: Every pump is bench tested, the relief valve is seated and sealed to a minimum of 2,06 bar with full pop-off at 3,79 bar - 4,13 bar
  • M-Eight oil pick up port is on the right side of the engine. Letting the bike idle or warm up on the kickstand will naturally fill the engine case and skew the oil level in the tank.
  • EU: High-flow 5,72 cm Chrome Moly gerotor gears
  • Magnets catch small steel particles and help prevent oil pump damage
  • Each pump is bench tested before it is shipped
  • Note: When running the Feuling HP+ oil pump you must use Feuling 588056 high flow cam plate

Fits: 17-26 M8 Touring. (Water cooled models only)
