Oljepump Feuling Water FLT/Touring. Twin Cooled 17-25
Feuling Race Series oljepump för M-Eight
Läs mer
- Tillverkad i billet 7075 aluminium med röd anodiserad finish
- High flow 2.250" gerotor-kugghjul i krommolybden
- 68% mer oljevolym till vevaxel och vevstakslager
- 42% mer returvolym med matchade kanaler och portar mot motorblocket
- Inbyggda magneter som skyddar kugghjul och övertrycksventil
- Bänktestad övertrycksventil tätad till minst 30 psi med full öppning vid 55–60 psi
- Spår på bakre kåpan för fabriksmonterad vevaxeltätning
- Tillverkad i USA
Kräver användning tillsammans med Feuling High Flow kamplatta (art.nr 588056 / PART #0932-0192). Vid användning av Kamaxlar (gear drive camshafts) krävs täckplattor (art.nr 566113). Överfyll inte oljetanken – Feuling rekommenderar en oljenivå på 90–99 % vid varm motor.
Passar: FLT/Touring. Twin Cooled 17-25
| Färg | Red |
| Produkt-typ | Pump |
| Material | 7075 Billet Aluminum |
| Tillverkarens Art. Nr. | 7021 |

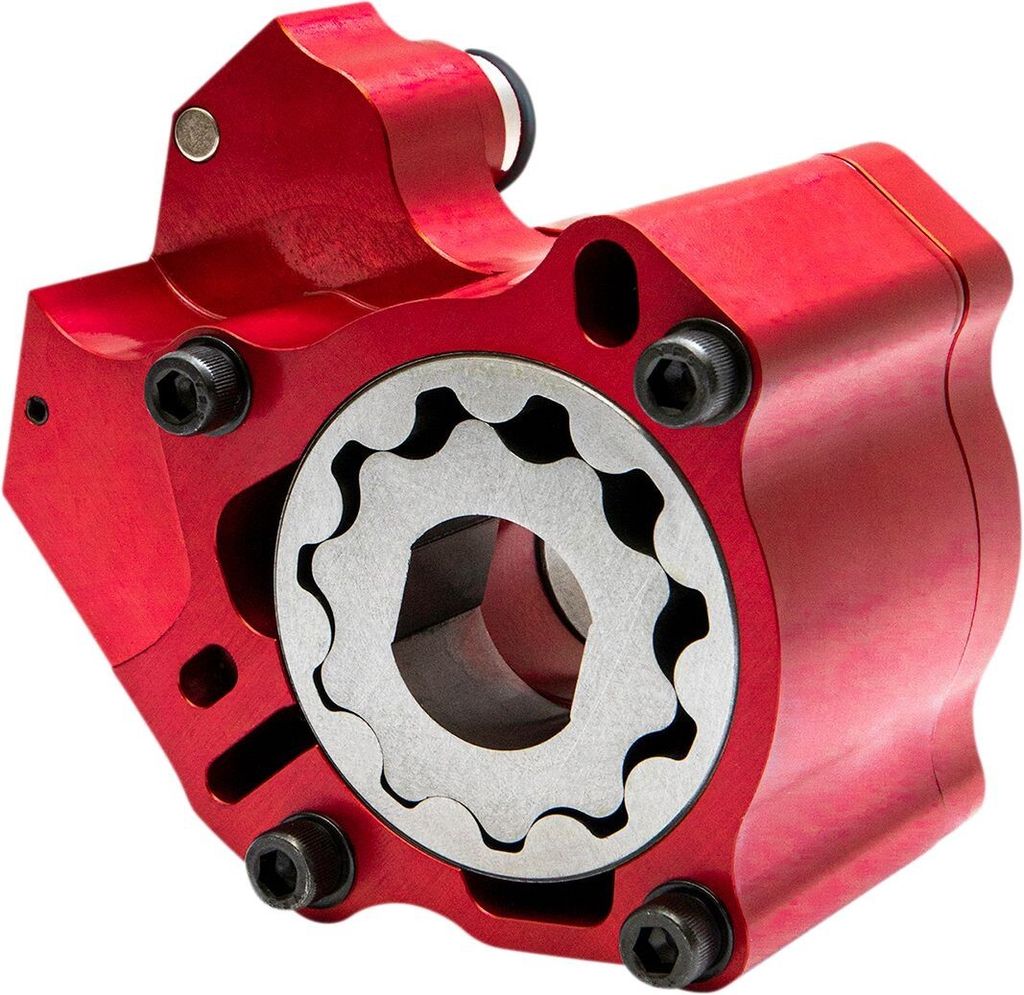

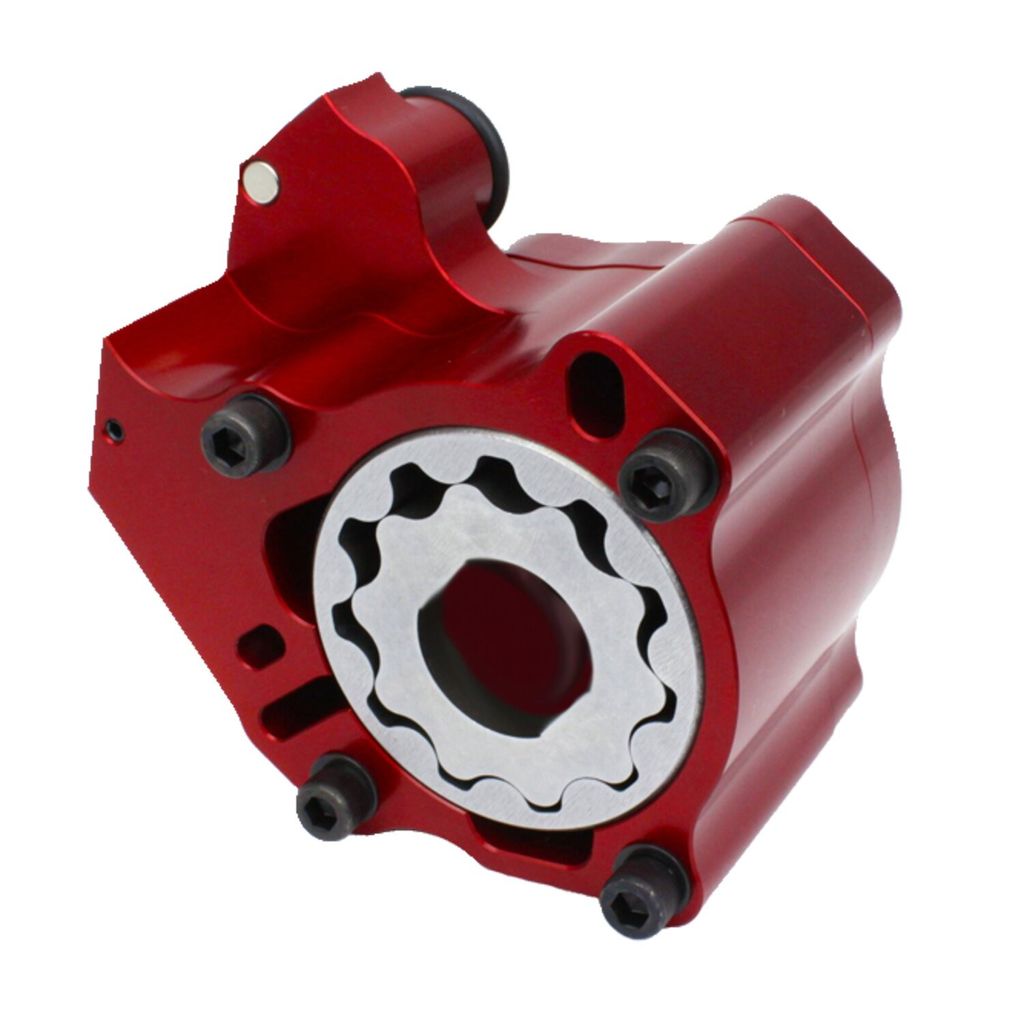

Race Series Oil Pump
- Increased oil volume from the larger gears and properly sized passages along with the pressure relief valve seat and seal from these oil pumps is essential for proper oiling system function
- Eliminate common pressure and scavenge issues associated with the factory oiling system
- Precision-machined pressure relief valve and bore
- Each oil pump is bench tested, the relief valve is seated and sealed to a minimum of 30 psi with full pop off at 55-60 psi
- FEULING M-Eight oil pumps have the groove machined on the back cover to accept the factory crank bearing seal
- Requires use of the FEULING High Flow cam plate, the combo increases oil flow in and out of the engine with corrected tolerances, oil passages and larger geroter gears
- Reduces engine and oil temperatures, increase oil pressure volume and scavenge volume on the return side to reduce build up of oil in the crankcase
- High flow 2.250” Chrome Moly gerotor gears
- 42% more scavenge volume with matched passages, port sizing and holes to the engine case
- 68% more oil volume to the crankshaft and connecting rod bearing
- Magnets to help protect gears and pressure relief valve
- Testing shows increased HP and torque to the rear wheel
- M-Eight Twin-Cooled motors have 30% more pressure gear volume over stock and 53% more scavenge gear volume over stock
- M-Eight Oil-cooled motors have 27% more pressure and scavenge gear volume over stock
- Billet 7075 aluminum with red anodized; this material holds tighter tolerance under temperature, is 50% harder and stronger than 6061 aluminum
- Features increased scavenge side kidney port volume over HP+ oil pumps
- Increases oil pressure and scavenge volume
- Cooler oil and engine temperatures
- Made in the USA
- Increased and optimized passages, portholes and galleys requiring them to be matched up to a FEULING High Flow cam plate PART #0932-0192.
- Feuling offers the HP+ and Race Series oil pump options to suit your water cooled engine build and budget needs
- Due to the mass call volume & inquires with requests for the M8 oil pump back cover O-ring/seal groove, we’ve added the groove! (5/11/21)
- Although Feuling's in-house testing on healthy engines did not show a benefit
- The O-ring may have potential benefits in certain circumstances such as engines with higher cylinder leak down, poor sub-seal O-ring seal, raised sump hole & or sump plug (see M8 PRO TIP below) & looser lifter to lifter bore clearances
- Reduces blow by & wet sumping
- DO NOT OVERFILL OIL TANK It is important to get the correct hot oil level in your bike
- Feuling recommends running the oil level 90%-99% full when hot
- Letting the bike idle or warm up on the kickstand will naturally fill the engine case and skew the oil level in the tank
- We recommend the following steps to achieve proper oil level: 1
- Check cold oil level
- Ride the bike until operating temperature is reached
- 3
- Shut the bike off while still in the upright position. (This insures an accurate reading) 4
- Add or remove oil as needed
- Note: Must use Feuling high flow cam plate, see 588056 Note: Use of gear drive camshafts require block off plates, see 566113
Fits: 17-25 FLT/Touring. Twin Cooled (with water cooled engines)
