Olja Feuling Parts System Packs M8 Touring 17-24, Trike 17-21
Komplett Race Series oljesystem och kamplatta från Feuling för M8
Läs mer
- High Flow kamplatta och oljepump tillverkade i hårdanodiserad 7075 billet-aluminium
- Ger 10-30 lbs högre oljetryck, sänker motortemperaturen 15°-25° och oljan 15°-30°
- Ökar returvolymen med 42% och oljevolymen till vevaxel och vevstake med 68%
- Vattenkyld M8-pump har 30% mer tryck- och 53% mer returvolym än original
- Oljekyld M8-pump har 27% mer tryck- och returvolym än original
- Eliminerar problem med wet sumping, vevhusventilation och oljiga luftfilter
- Passar både kedje- och kuggdrivna kamaxlar
- Satsen innehåller oljepump, lyftare, kamplatta, packningssats, lager, bultar och smörjmedel
Främre avgastlyftarens frigång mot kamaxelns fläns måste kontrolleras på M-Eight. Vid användning av kuggdrivna kamaxlar krävs täckplatta PART #0932-0036. Används med short-travel-stötstänger PART #0928-0114 på kamaxlar med standard bascirkel och Feuling short-travel-lyftare (inkluderar Feuling-profiler 405, 465, 472, 508, 521 och 592).
Passar: M8 med center-/vattenkyld
Race Series Oil System Packs For M8
- Includes FUELING High Flow billet camplate made from 7075 aluminum which is 50% harder and stronger than the factory or FUELING OE+ camplates
- Increases oil flow and volume by enlarging the oil pump reservoirs and critical oil passages including matching the oil portholes throughout the camplate to the portholes in the engine case which increases engine oil flow to the lifters, piston cooling jets, crankshaft and rod bearings
- FUELING oil pumps are bench tested, the relief valve is seated and sealed to a minimum of 30 psi with full pop off at 55-60 psi
- Increased oil volume from the larger gears and properly sized passages along with the pressure relief valve seat and seal from these oil pumps is essential for proper oiling system function
- FUELING oil pump and camplate combination eliminate common pressure and scavenge issues associated with the factory oiling systems
- FUELING M-Eight oil pumps have the groove machined on the back cover to accept the factory crank bearing seal
- Quieter and smoother engine operation
- Increase oil pressure, scavenge volume and engine oil flow
- 42% more scavenge volume with port sizing, matched passages and holes to the engine case
- 68% more oil volume to the crankshaft and connecting rod bearing
- Engine temperatures run 15°-25° cooler
- Oil temperatures run 15°-30° cooler
- 10-30 lbs more psi of oil pressure
- M-Eight Water-Cooled motor oil pump has 30% more pressure gear volume over stock and 53% more scavenge gear volume over stock
- M-Eight Oil-Cooled motor pump has 27% more pressure and scavenge gear volume over stock
- Eliminate wet sumping, blow by and oily air cleaners
- Test results show 2 horsepower gain and 2 ft./lb. of torque gain to the rear wheel on M-Eight

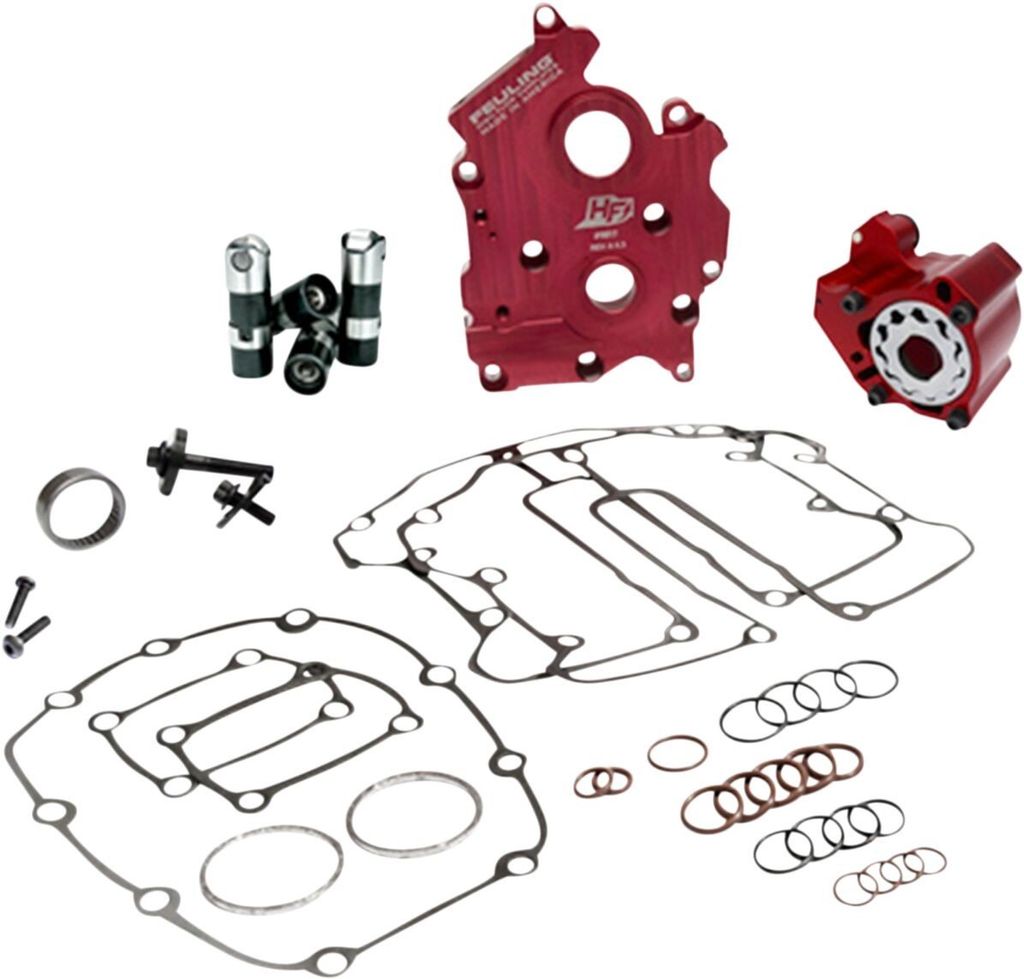

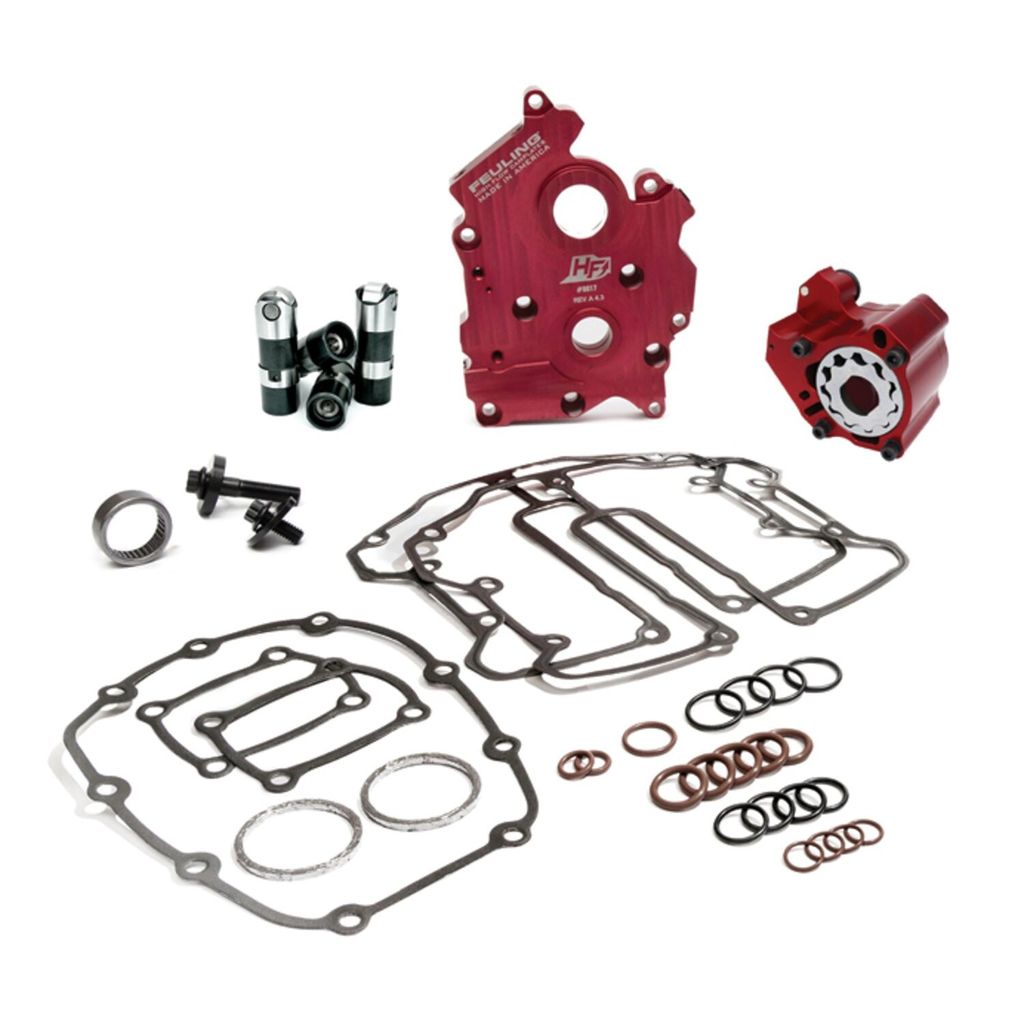

- Includes a Race Series oil pump, Race Series full-travel or short- travel hydraulic roller lifters, High Flow camplate and cam installation kit, cam bearing, cam/crank bolts and washers, engine and fastener assembly lube
- Billet 7075 aluminum oil pump is 50% harder and stronger than the factory pump; holds tighter tolerances under temperature
- Race Series oil pumps feature increased scavenge side kidney port volume over HP+ oil pumps
- Race Series full-travel hydraulic lifters have a full .200” of total travel designed with a slower bleed down rate to handle heavy valve spring pressures, increase engine rpm before valve float and feature increased roller clearance for steep ramped camshafts and clearance for the M-Eight front exhaust camshaft lobe flange
- Race Series short-travel hydraulic lifters have .115” of total travel and will increase rpm by decreasing valve float and valve-train harmonics while maintaining a quiet engine
- The travel reduction reduces the amount of oil that is required to fill the inside of the lifter which reduces oil aeration inside the lifter on steep, fast action high lift camshaft lobes
- Made in the USA
- Optional FUELING X ARP bolt kit available for the high flow camplate PART #0932-0192 and HP+ or RS oil pump combo. See PART #2401-0993, optional ARP oil pump bolts do not use washers.
- FUELING test results show as much as 50% reduction of engine sump oil level.
- M-Eight engines must check clearance on front exhaust lifter to camshaft flange fit.
- For both chain or gear drive cams
- Includes cam change gasket kit
- Kit includes all to give your bottom end a fresh start
- Great upgrade and a perfect base when installing a set of performance cams
- Due to the mass call volume & inquires with requests for the M8 oil pump back cover O-ring/seal groove, we’ve added the groove! (5/11/21)
- Although Feuling's in house testing on healthy engines did not show a benefit
- The O-ring may have potential benefits in certain circumstances such as engines with higher cylinder leak down, poor subseal O-ring seal, raised sump hole & or sump plug (see M8 PRO TIP below) & looser lifter to lifter bore clearances. -RACE SERIES Kits includes a billet 7075 hard anodized oil pump which is 50% harder and stronger than the factory pump holding tighter tolerances under temperature
- Includes Feuling grinds 405, 465, 472, 508, 521, 592) # 4088 HP+ one piece pushrods, 0.165" Wall thickness , +0.040" Longer Fits: M8 '17-20, W/ -#8022: Optional FEULING X ARP bolt kit available for the HIGHFLOW cam plate #8017 and HP+ or RS oil pump combo
- OIL LEVEL NOTE
- DO NOT OVERFILL OIL TANK It is important to get the correct hot oil level in your bike
- Feuling recommends running the oil level 90%-99% full when hot
- Letting the bike idle or warm up on the kickstand will naturally fill the engine case and skew the oil level in the tank
- We recommend the following steps to achieve proper oil level: 1
- Ride the bike until operating temperature is reached
- 3
- Shut the bike off while still in the upright position. (This insures an accurate reading) 4
- Add or remove oil as needed
- Includes: 2030, 4017ST, 7021, 8017 Note: Special Order Product only
- To order please contact your MCS sales representative
Block-off plate PART #0932-0036 required when using gear drive cams. Use with short-travel pushrods PART #0928-0114 on stock base circle camshafts with Feuling short-travel lifters (includes Feuling grinds 405, 465, 472, 508, 521 and 592).
Fits: 17-25 M8 with Center/Water cooled engines
