Oljepump och kamplatta Feuling HP Water M8. Center/Water cooled models

13 510 kr

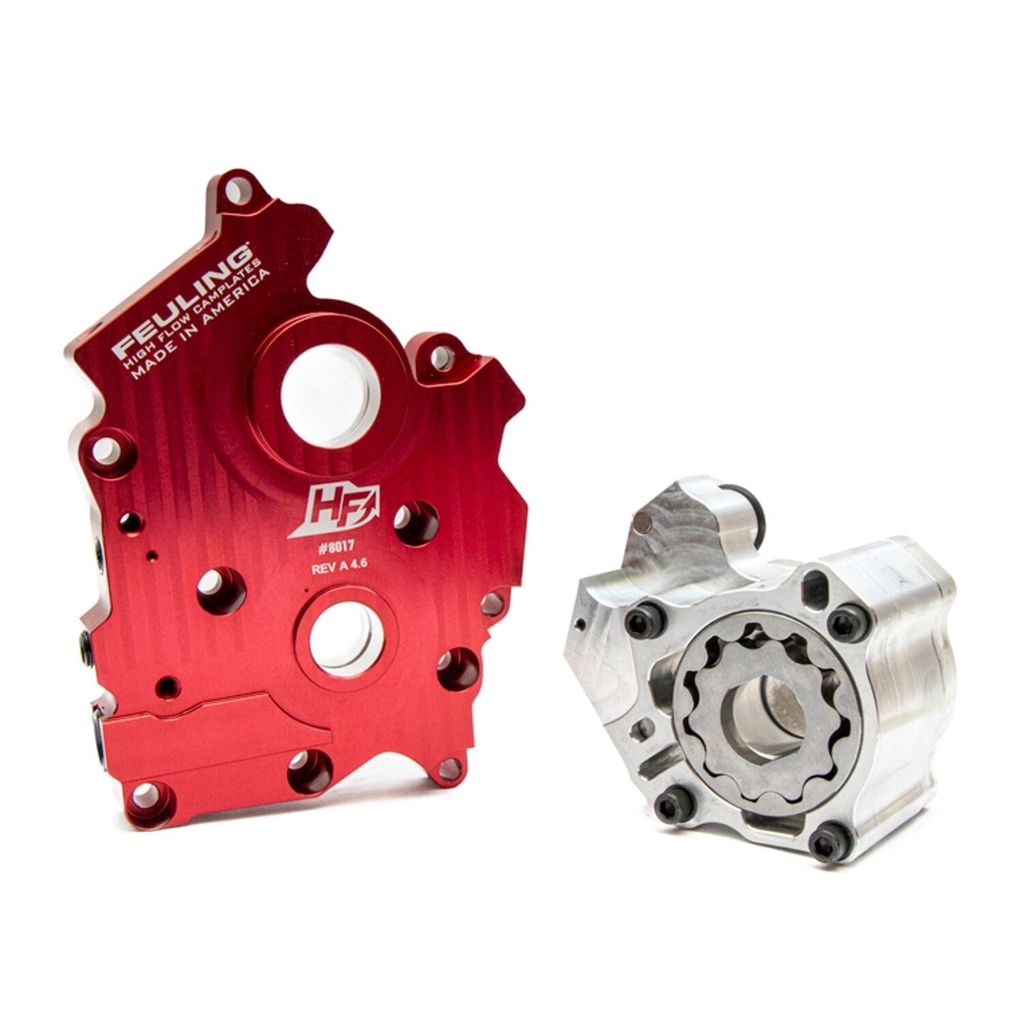

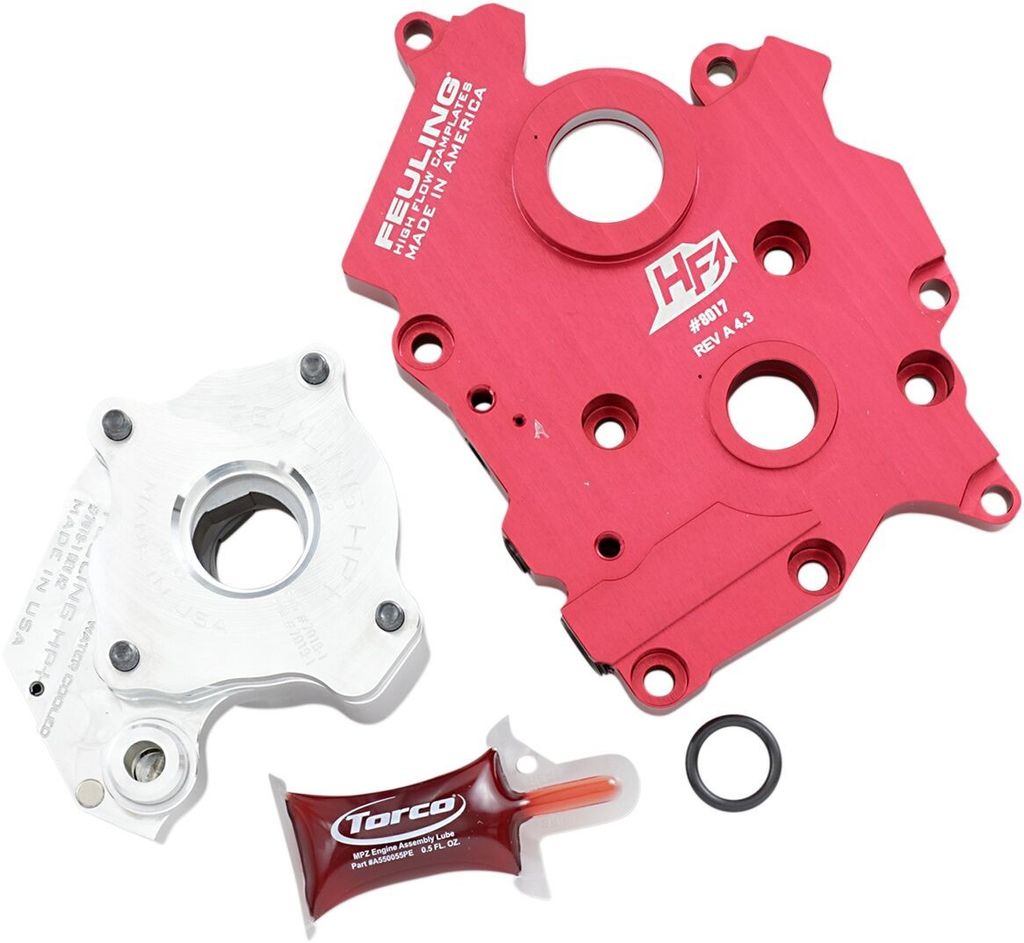

Feuling HP+ oljepump och kamplatta
Läs mer

09320230 Feuling
  • HP+ Series sats med oljepump och kamplatta för vattenkylda motorer
  • Inkluderar high-volume oljepump i 6061-billetaluminium och High Flow kamplatta i 7075-billetaluminium
  • Kamplattan är 50 % hårdare och starkare än original eller Feuling OE+
  • 30 % större tryckdrevvolym och 53 % större returdrevvolym än original samt 42 % mer returvolym
  • Ökar oljetrycket med 10–30 psi (0,69–2,06 bar) och sänker oljetemperaturen med 15°–30°
  • Minskar risken för wet sumping, blow-by och olja i luftfiltret med upp till 50 % lägre oljenivå i vevhuset
  • Bänkkörd oljepump med övertrycksventil tätad till minst 30 psi (2,06 bar) och full öppning vid 55–60 psi (3,79–4,13 bar)
  • Tillverkad i USA

Bultsats för kamplatta och oljepump finns som tillval och säljs separat (art.nr 2401-0993). För Milwaukee-Eight ska oljenivån kontrolleras med motorcykeln upprätt vid varm motor, då tomgång på sidostödet samlar olja i motorblocket.

Passar: M8. Center-/vattenkylda modeller

Färg Red
Produkt-typ Pump Kit
Tillverkarens Art. Nr. 7198

HP+ High Volume Oil Pump

  • Increase oil pressure, oil volume, engine oil flow and return oil scavenging
  • Quieter and smoother engine operation
  • Engine temperatures run 15°-25° cooler
  • Oil temperatures run 15°-30° cooler
  • 10-30 lbs more psi of oil pressure
  • Reduces wet sumping, blow by and oily air cleaners
  • Test results show 2 horsepower gain and 2 ft/lbs of torque gain to the rear wheel on M-Eight
  • Includes a billet 6061 aluminum high-volume oil pump and FEULING High Flow billet camplate made from 7075 aluminum; which is 50% harder and stronger than the factory or FEULING OE+ camplates
  • Increases oil flow and volume by enlarging the oil pump reservoirs and critical oil passages including matching the oil portholes throughout the camplate to the portholes in the engine case which increases engine oil flow to the lifters, piston cooling jets, crankshaft and rod bearings
  • Oil pumps are bench-tested; the relief valve is seated and sealed to a minimum of 30 psi with full pop-off at 55-60 psi
  • Increased oil volume from the larger gears and properly sized passages along with the pressure relief valve seat and seal from these oil pumps is essential for proper oiling system function
  • FEULING oil pump and camplate combination eliminates common pressure and scavenge issues associated with the factory oiling systems
  • FEULING M-Eight oil pumps have the groove machined on the back cover to accept the factory crank bearing seal
  • Made in the USA
  • FEULING test results show as much as 50% reduction of engine sump oil level.
  • EU: 0,69 - 2,06 more Bar of oil pressure
  • Optional Camplate/oil pump fastener kit PART #2401-0993 available separately.
  • M-Eight oil pick up port is on the right side of the engine. Letting the bike idle or warm up on the kickstand will naturally fill the engine case and skew the oil level in the tank.
  • EU: Test results show 2 horsepower gain and 2,71 Nm of torque gain to the rear wheel on M-Eight
  • EU: Oil pumps are bench-tested; the relief valve is seated and sealed to a minimum of 2,06 bar with full pop-off at 3,79 bar - 4,13 bar
  • HP+ Series oil pump & cam plate kit. Water Cooled
  • OIL LEVEL NOTE
  • DO NOT OVERFILL OIL TANK It is important to get the correct hot oil level in your bike
  • Feuling recommends running the oil level 90%-99% full when hot
  • We recommend the following steps to achieve proper oil level: 1
  • Check cold oil level
  • Ride the bike until operating temperature is reached
  • Shut the bike off while still in the upright position. (This insures an accurate reading) 4
  • 5
  • Add or remove oil as needed

Has 30% more pressure gear volume over stock, 53% more scavenge gear volume over stock and 42% more scavenge volume with port sizing, matched passages and holes to the engine case.

Fits: 17-26 M8. Center/Water cooled models
