Oljepump och kamplatta Feuling Water M8. Center/Water cooled models

15 230 kr

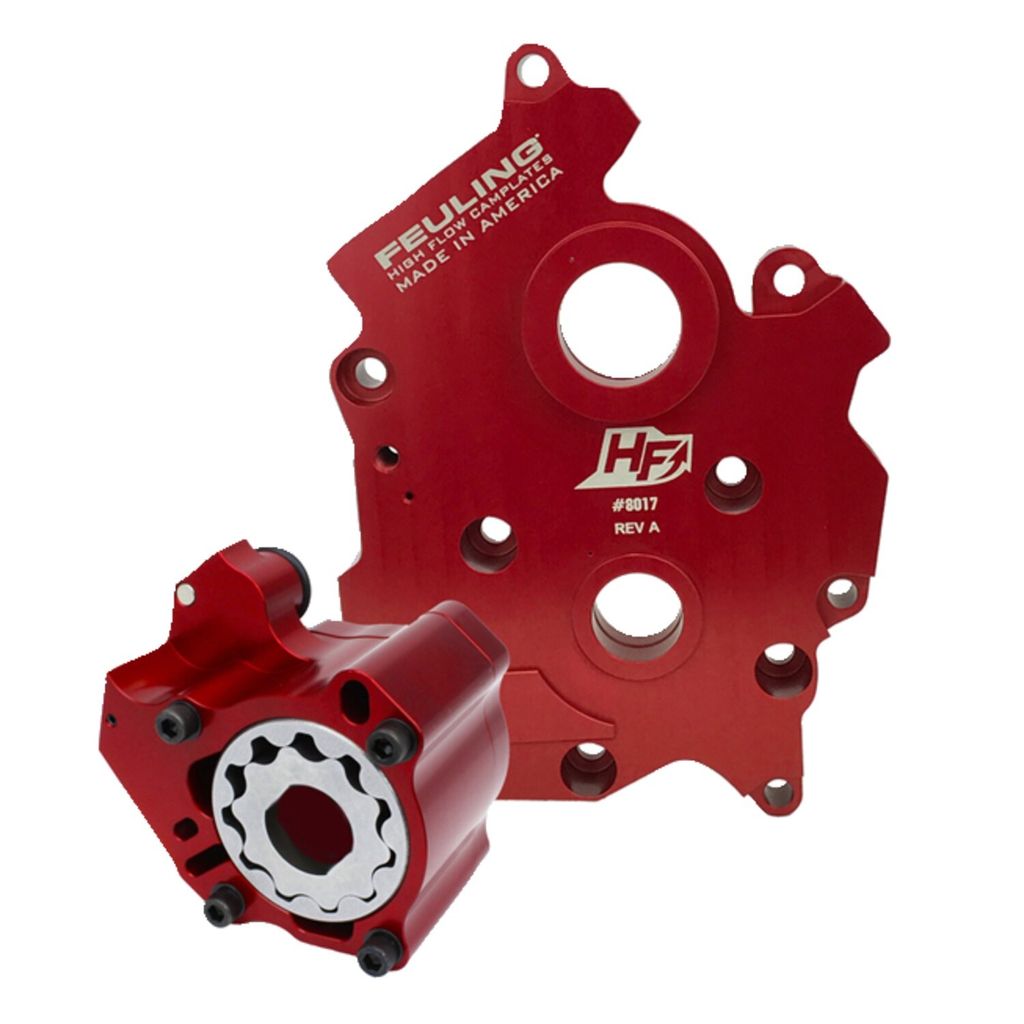

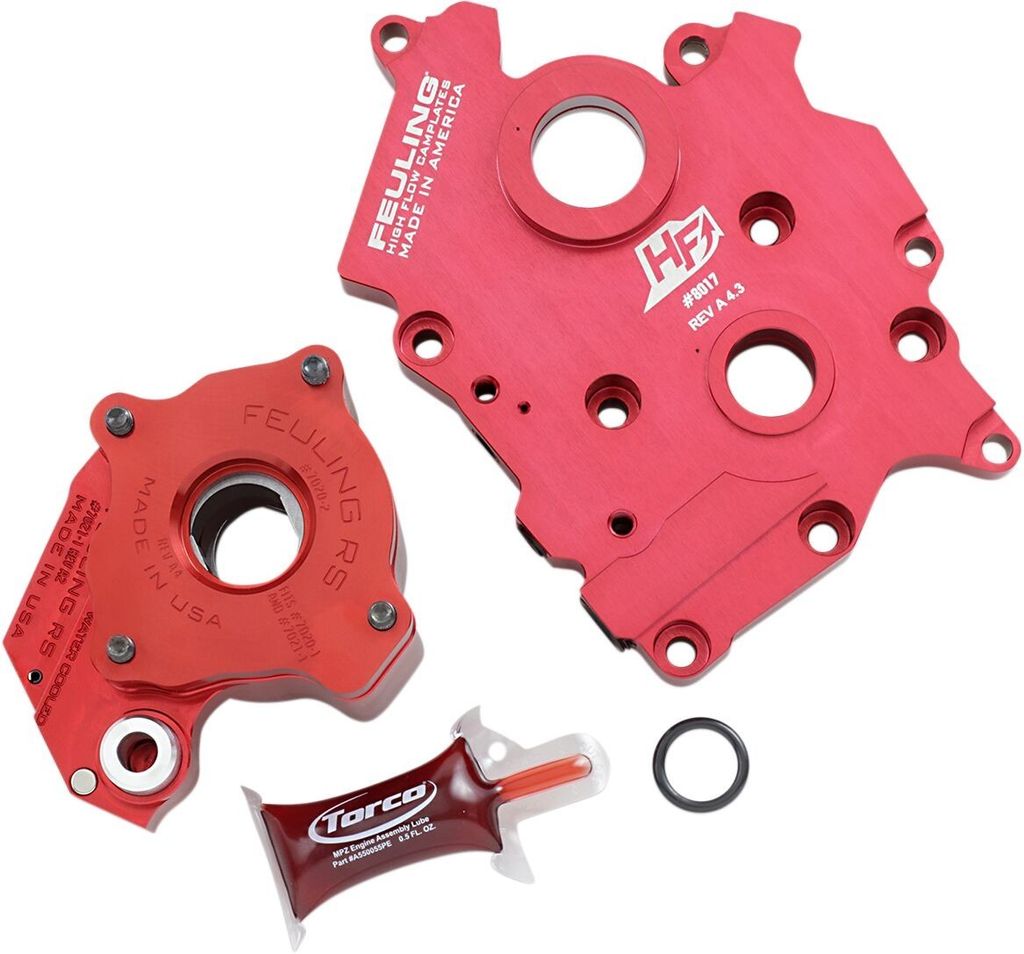

Feuling Race Series oljepump och kamplatta för vattenkylda M-Eight
Läs mer

09320231 Feuling
  • Tillverkad i USA
  • Billet 7075 hårdanodiserad oljepump och High Flow-kamplatta i 7075-aluminium
  • 50 % hårdare och starkare än originaldelar för snävare toleranser vid höga temperaturer
  • 30 % mer tryckvolym, 53 % mer returvolym och 42 % ökad returvolym via matchade oljekanaler
  • Ger 10–30 lbs högre oljetryck (psi) samt sänker motor- och oljetemperatur med 15°–30°
  • Bänktestad oljepump med övertrycksventil tätad till minst 2,06 bar (30 psi) och full öppning vid 3,79–4,13 bar (55–60 psi)
  • Fräst spår på oljepumpens bakre kåpa för montering av vevlagertätning i originalutförande
  • Minskar risken för wet sumping, vevhusventilation i luftfilter och sänker oljenivån i sumpen med upp till 50 %

Avsedd för vattenkylda Milwaukee-Eight (M-Eight). Överfyll inte oljetanken, Feuling rekommenderar en oljenivå på 90–99 % vid varm motor, kontrollerad när motorcykeln står upprätt då tomgång på sidostödet kan snedvrida oljenivån.

Passar: M8. Center-/vattenkylda modeller

Färg Red
Produkt-typ Pump
Tillverkarens Art. Nr. 7199

Race Series Oil Pump/Camplate Kit

  • Increase oil pressure, oil volume, engine oil flow and return oil scavenging
  • Quieter and smoother engine operation
  • Engine temperatures run 15°-25° cooler
  • Oil temperatures run 15°-30° cooler
  • 10-30 lbs more psi of oil pressure
  • Reduces wet sumping, blow by and oily air cleaners
  • Test results show 2 horsepower gain and 2 ft/lbs of torque gain to the rear wheel on M-Eight
  • Includes a billet 7075 hard anodized oil pump which is 50% harder and stronger than the factory pump holding tighter tolerances under temperature (Race Series M-Eight oil pumps have deeper scavenge kidneys when compared to the HP+ kidneys for increased scavenge volume)
  • Includes FEULING High Flow billet camplate made from 7075 aluminum; which is 50% harder and stronger than the factory or FEULING OE+ camplates
  • Increases oil flow and volume by enlarging the oil pump reservoirs and critical oil passages, including matching the oil portholes throughout the camplate to the portholes in the engine case, which increases engine oil flow to the lifters, piston cooling jets, crankshaft and rod bearings
  • Oil pumps are bench-tested; the relief valve is seated and sealed to a minimum of 30 psi with full pop-off at 55-60 psi
  • Increased oil volume from the larger gears and properly sized passages along with the pressure relief valve seat and seal from these oil pumps is essential for proper oiling system function
  • FEULING oil pump and camplate combination eliminates common pressure and scavenge issues associated with the factory oiling systems
  • FEULING M-Eight oil pumps have the groove machined on the back cover to accept the factory crank bearing seal
  • Made in the USA
  • FEULING test results show as much as 50% reduction of engine sump oil level.
  • The M-Eight oil pick up port is on the right side of the engine. Letting the bike idle or warm up on the kickstand will naturally fill the engine case and skew the oil level in the tank.
  • EU: Test results show 2 horsepower gain and 2,71 Nm of torque gain to the rear wheel on M-Eight
  • EU: Oil pumps are bench-tested; the relief valve is seated and sealed to a minimum of 2,06 bar with full pop-off at 3,79 bar - 4,13 bar
  • Race Series oil pump & cam plate kit. Water Cooled
  • OIL LEVEL NOTE
  • DO NOT OVERFILL OIL TANK It is important to get the correct hot oil level in your bike
  • Feuling recommends running the oil level 90%-99% full when hot
  • We recommend the following steps to achieve proper oil level: 1
  • Check cold oil level
  • Ride the bike until operating temperature is reached
  • Shut the bike off while still in the upright position. (This insures an accurate reading) 4
  • 5
  • Add or remove oil as needed

Has 30% more pressure gear volume over stock, 53% more scavenge gear volume over stock and 42% more scavenge volume with port sizing, matched passages and holes to the engine case.

Fits: 17-26 M8. Center/Water cooled models
