Hastighetsmätare Elektronikbox Axel Joost Elektronik Micro universal

2 240 kr

Axel Joost Elektronik Micro Speedo hastighetsmätare
Läs mer

723751 Elektronik Box
  • Hus i svart anodiserad aluminium, ingjutet med epoxiharts och IP65-vattentät
  • Kompakta mått: 59 mm bred, 22 mm hög och 14 mm tjock
  • Visar hastighet, trippmätare och total körsträcka via en enda knapp
  • Integrerade LED-indikatorer för blinkers, oljevarning, neutral och helljus
  • Kompatibel med hjulomkrets från 50 cm till 220 cm
  • Kompatibel med de flesta vanliga hjulsensorer (hastighetssensorer)
  • Driftspänning: 12–15 V (max 18 V)
  • Anslutningar: Ingångar 0,14 mm², 15 cm

Klarar en omgivningstemperatur på upp till 80 °C. Monteringsanvisning medföljer.

Passar: Universal

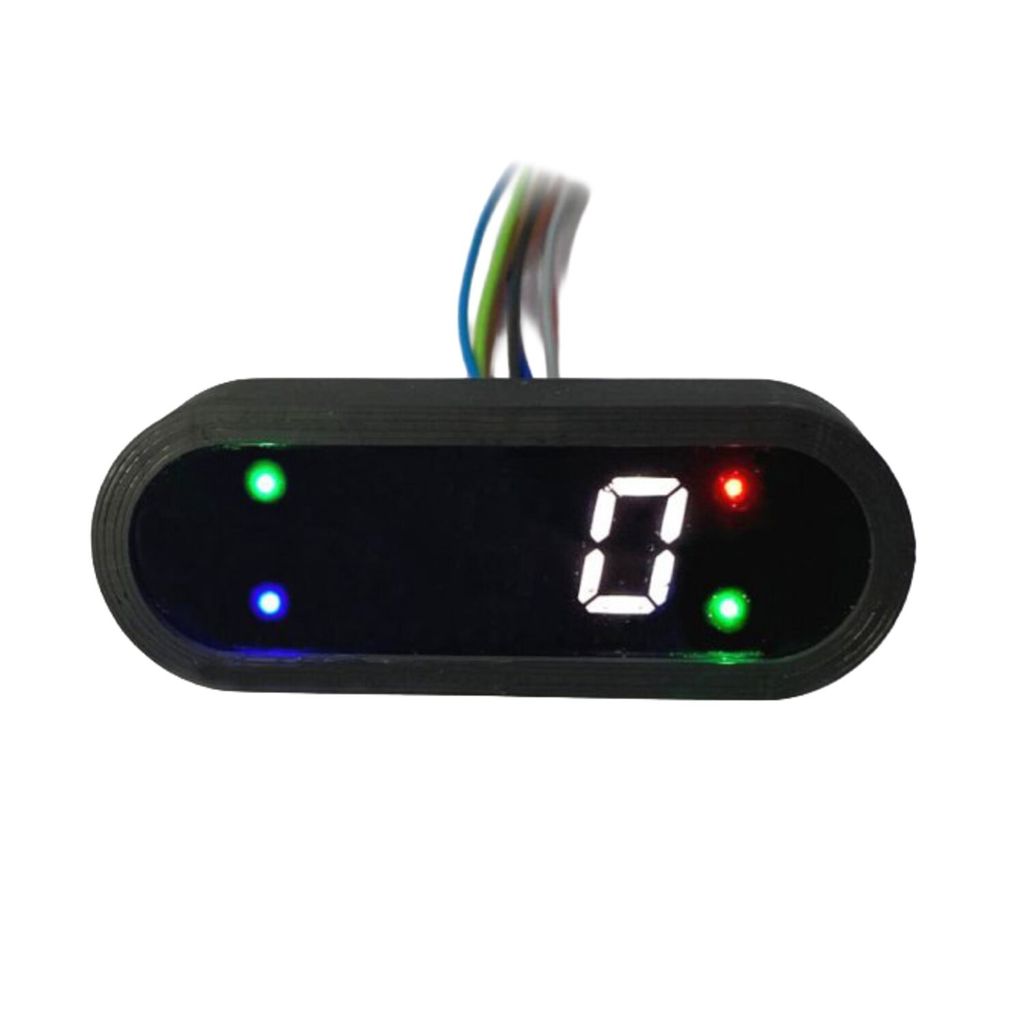

Axel Joost Elektronik, 'Micro Speedo' speedometer. Black

  • Black anodized aluminum housing
  • The 'Micro Speedo' is exacly what the name implies
  • With 59mm wide 22mm high and just 14mm thick it is absolutely 'Micro'
  • Perfect for those that prefer minimalism over a christmas tree like instrument
  • It offers speed, by pressing the single button it switches to trip meter, after that to total km
  • LEDs indicator lights show turn signal, oil warning, neutral and high beam
  • Includes instructions
  • Tripmeter
  • Compatible with wheel circumference of 50cm to 220cm
  • Compatible with most common wheel (speed) sensors
  • Housing: PLA material in epoxy resin potted, IP65 waterproof
  • Input voltage range in use: 12
  • 15 Volt
  • Absolute maximum voltage: 18 Volt
  • Connections: Inputs 0,14 mm², 15 cm
  • Maximum ambient temperature: 80 degree Celsius

Fits: Universal
