Modul bak Elektronikbox Axel Joost Elektronik Light

1 570 kr

Konverteringsmodul för bakbelysning till EU-standard
Läs mer

954148 Elektronik Box
  • Konverteringsmodul för klassiska motorcyklar utan varningsblinkersfunktion
  • Gör konvertering av USA-importerade motorcyklar till EU-regler snabbare och mer ekonomisk
  • Omvandlar signalerna från kombinerade blinkers/bromsljus till fyra separata utgångar för upp till 2 parallella broms-/bakljus och blinkers
  • Justerbar dimfunktion som dämpar bromsljuset till 30 % ljusstyrka när bromsen inte är aktiverad
  • Valbar bromsljusblinkfunktion med 3 snabba varningsblink innan fast sken
  • Mått: 40 mm x 25 mm x 12,5 mm
  • Hölje i ABS, ingjutet i vattentät 2-komponents epoxiharts
  • Spänningsintervall: 7–18 V, maxeffekt: 50 W per utgång, max omgivningstemperatur: 80 °C

Anslutningar: ingångar 0,14 mm², utgångar 0,5 qmm.

Kategori Taillights misc
Produkt-typ Taillights misc

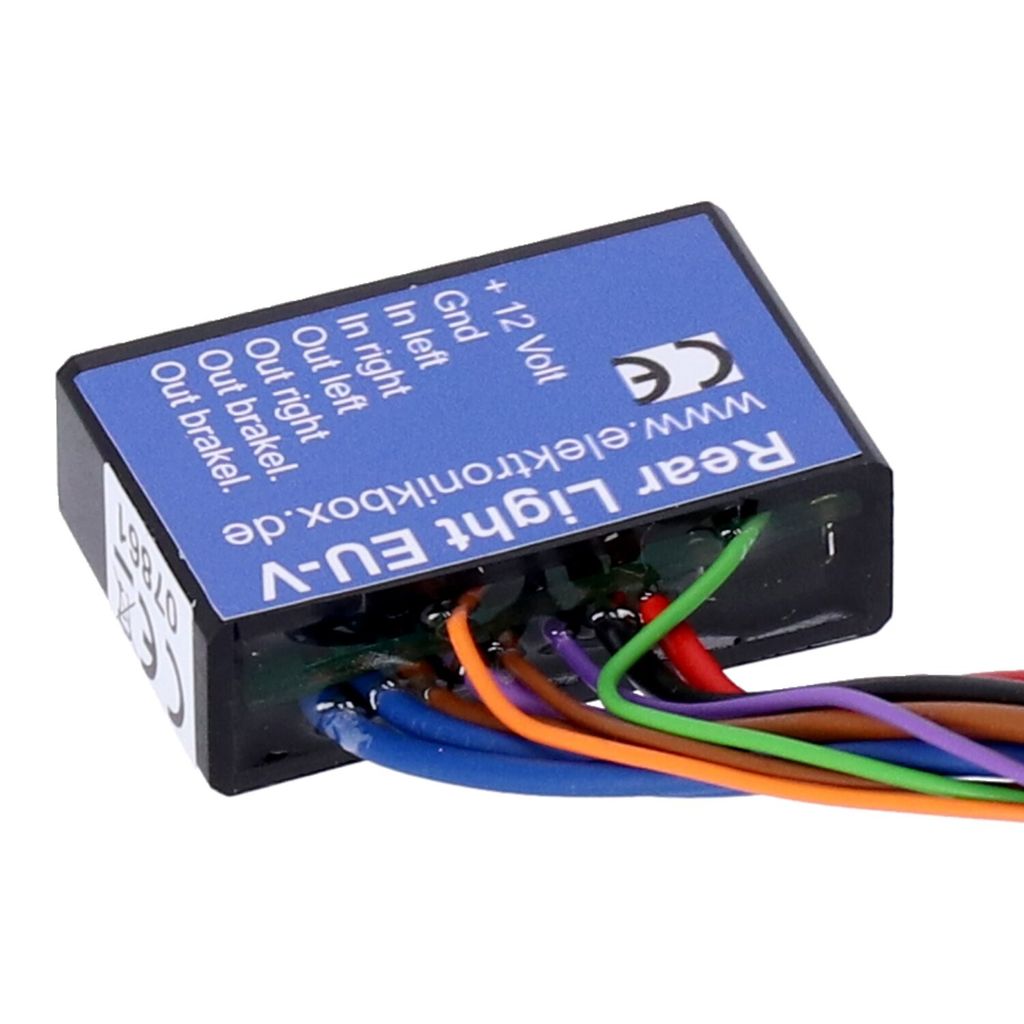

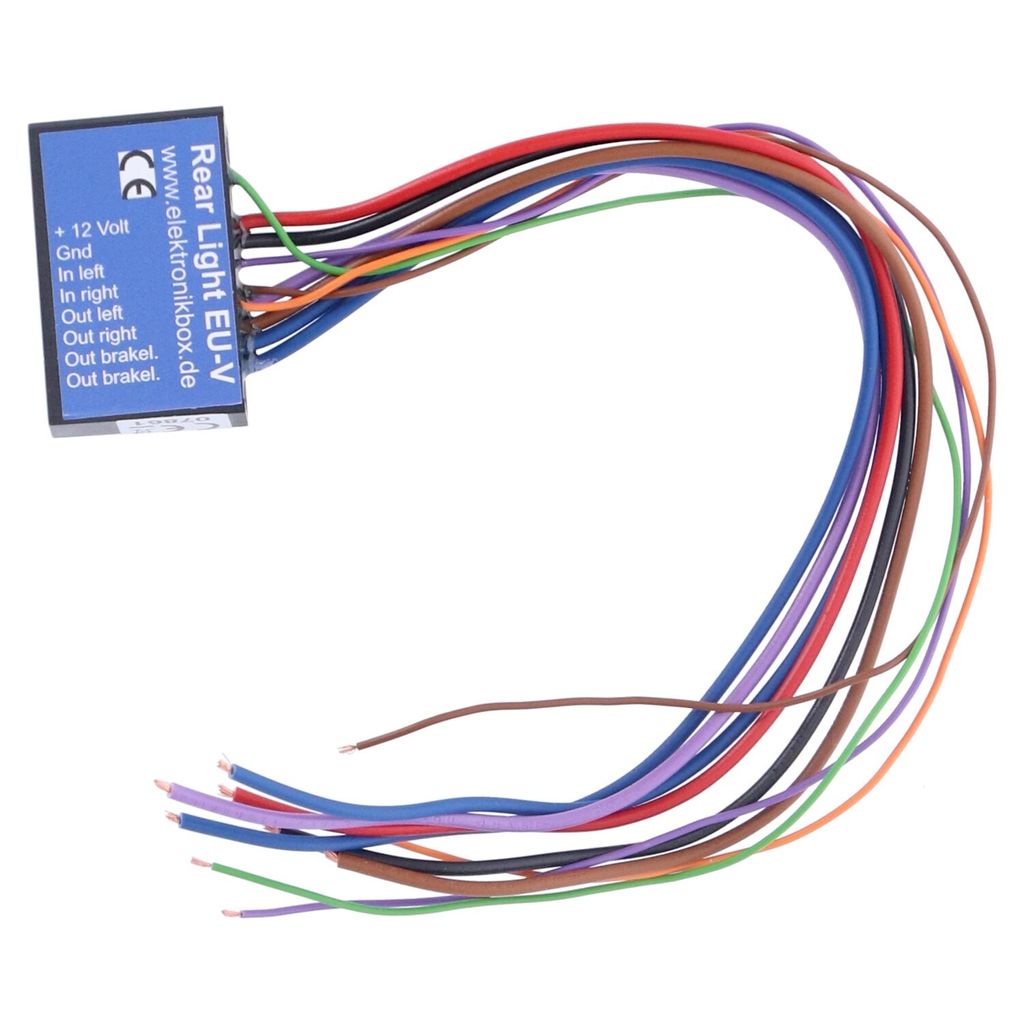

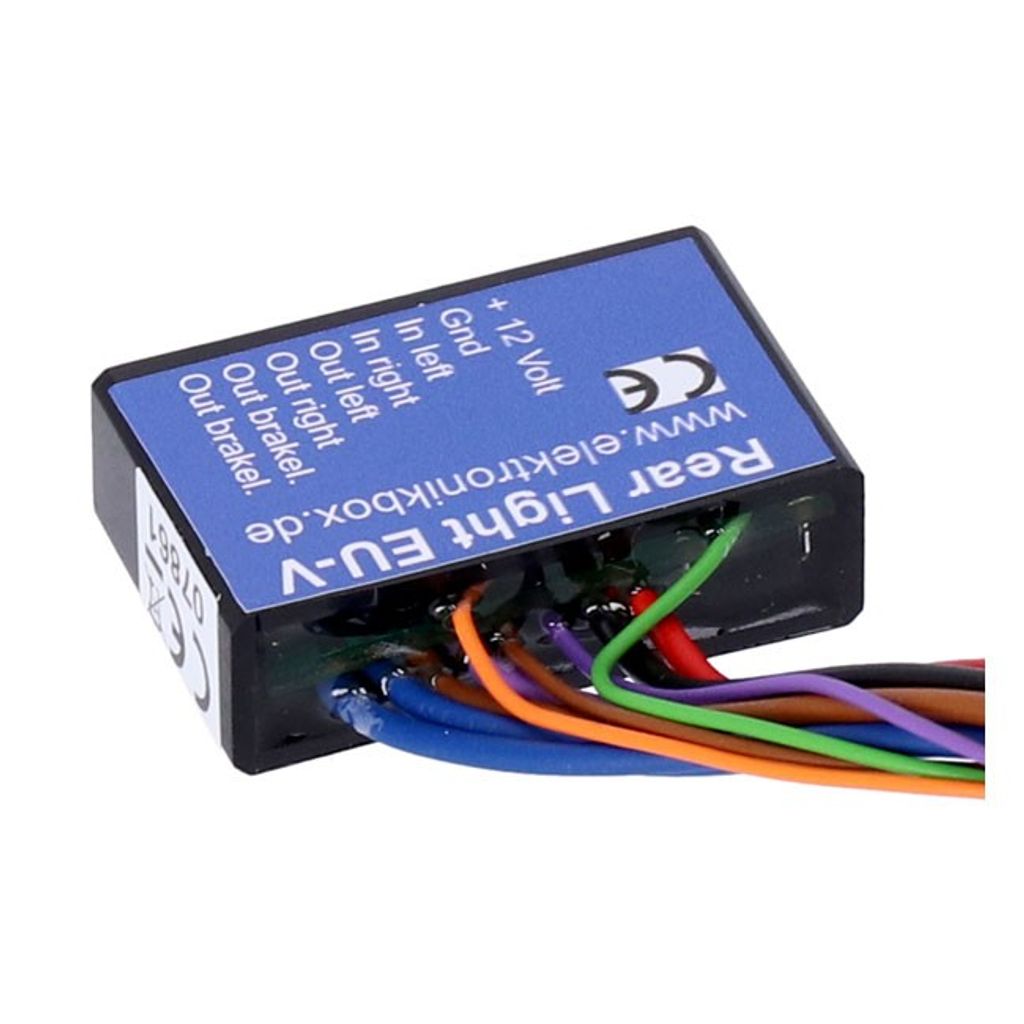

Axel Joost Elektronik, Rear Light EU-V conversion module

  • The Rear Light EU-V is a conversion module for vintage bikes without hazard light / emergency flasher function

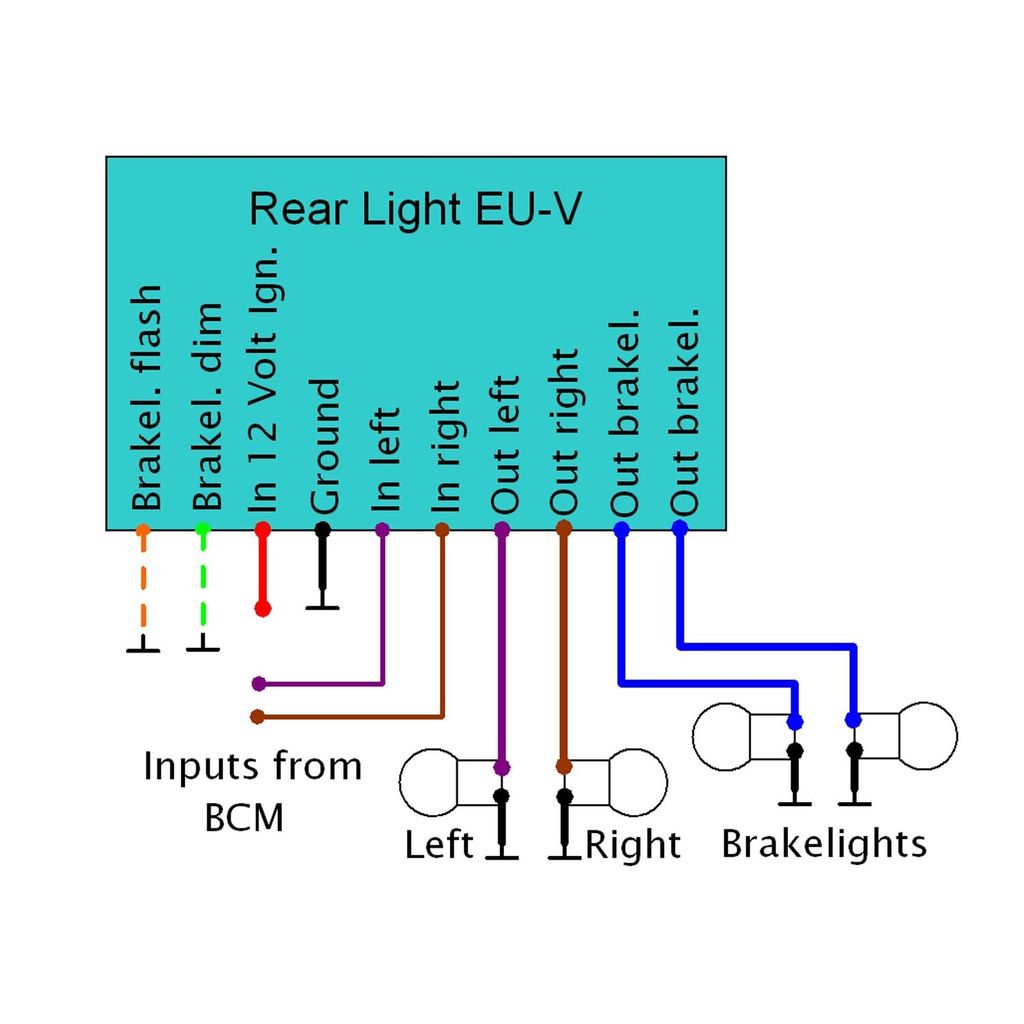

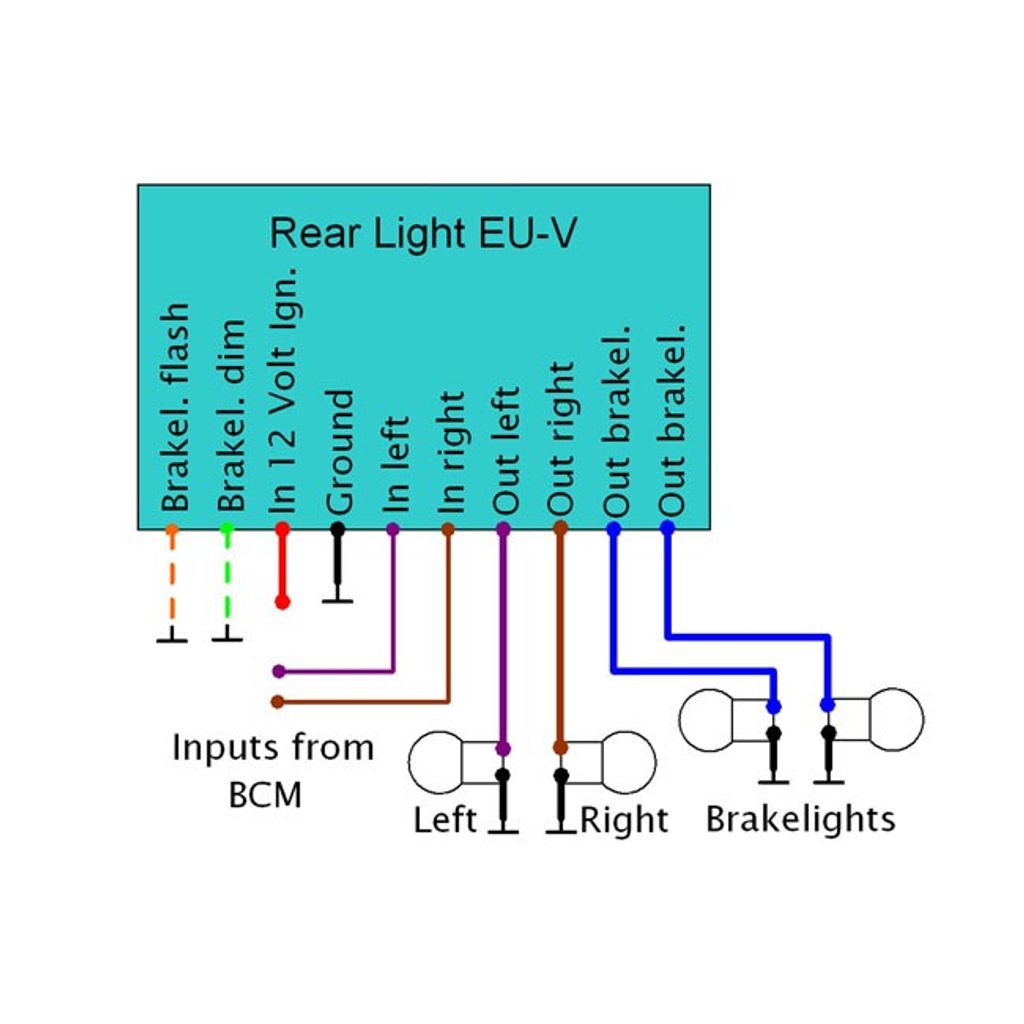

  • It converts the two signals from the original turn signal/brake light combination into four separate outputs for upto 2 (parallel) brake lights/taillights and turn signals
  • A conversion of an imported US bike to the EU regulations can be done much quicker and more economical
  • With the brakelight dim function, the brakelight is dimmed to 30 % brightness, only when the brake is not activated
  • A brakelight flasher function can optionally be activated to show a 3x fast warning flash before it stays lit
  • Dimensions: 40 mm x 25 mm x 12,5 mm
  • Body material: ABS with waterproof poured 2k epoxy resin
  • Input voltage range: 7
  • 18 Volt

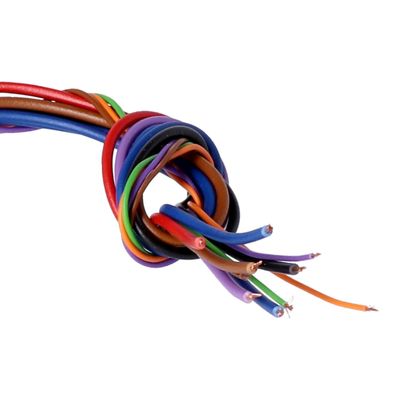

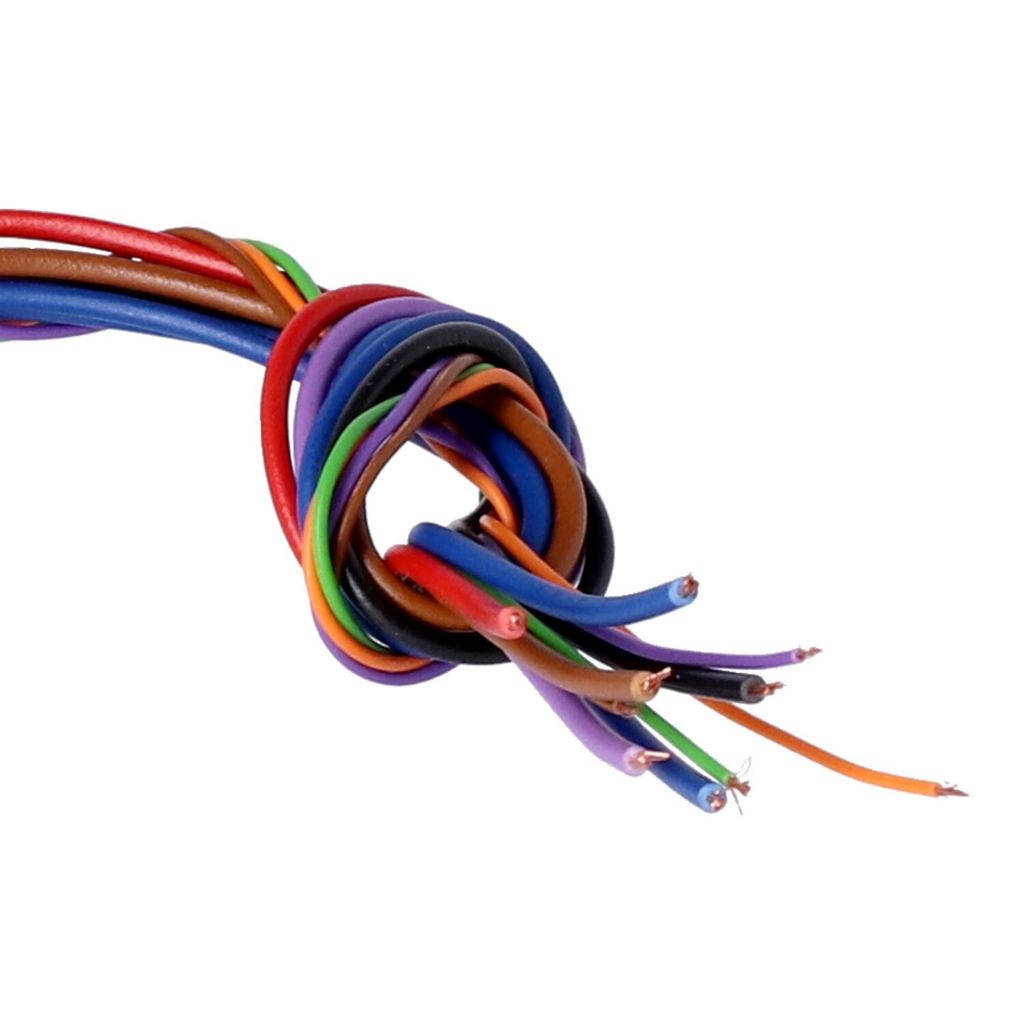

  • Connections: Inputs 0,14 mm², Outputs 0,5 qmm
  • Output power: Max
  • 50 Watt / Output
  • Maximum ambient temperature: 80 degree Celsius
