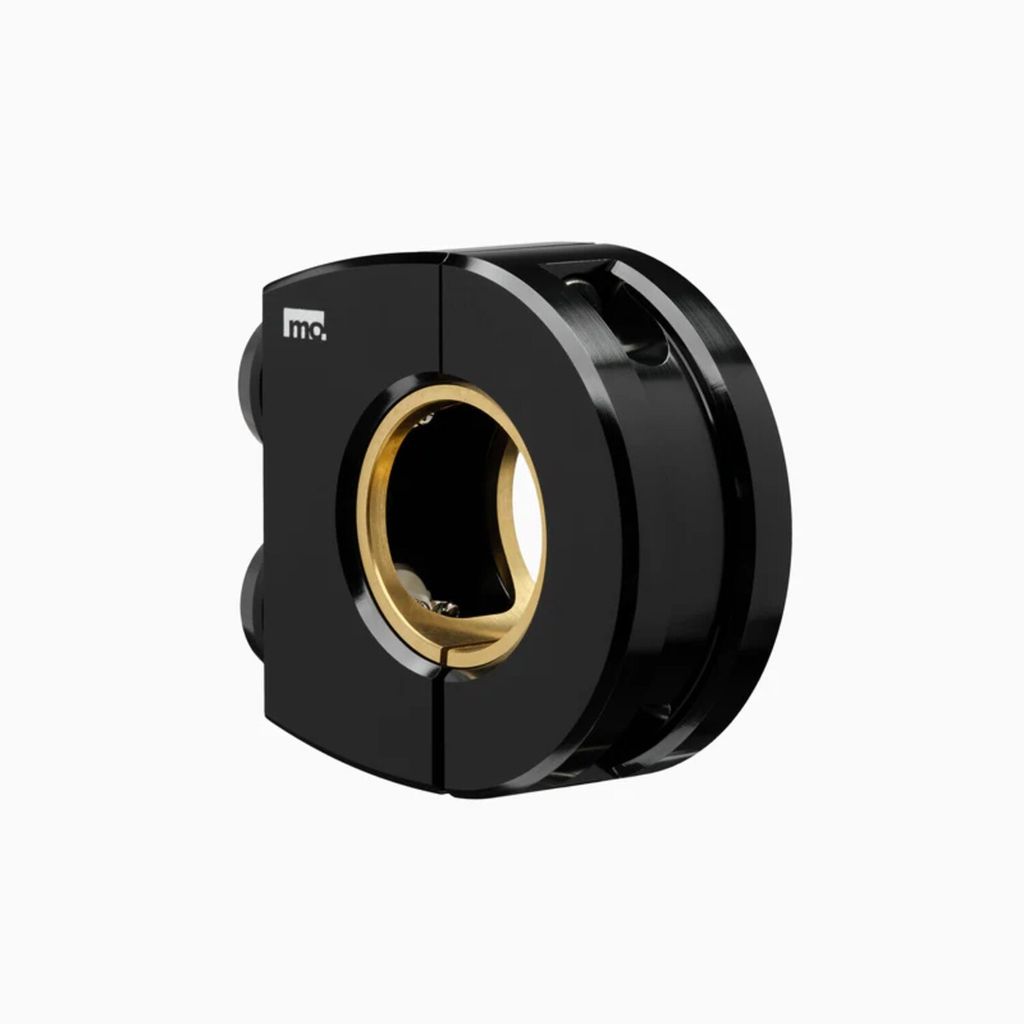

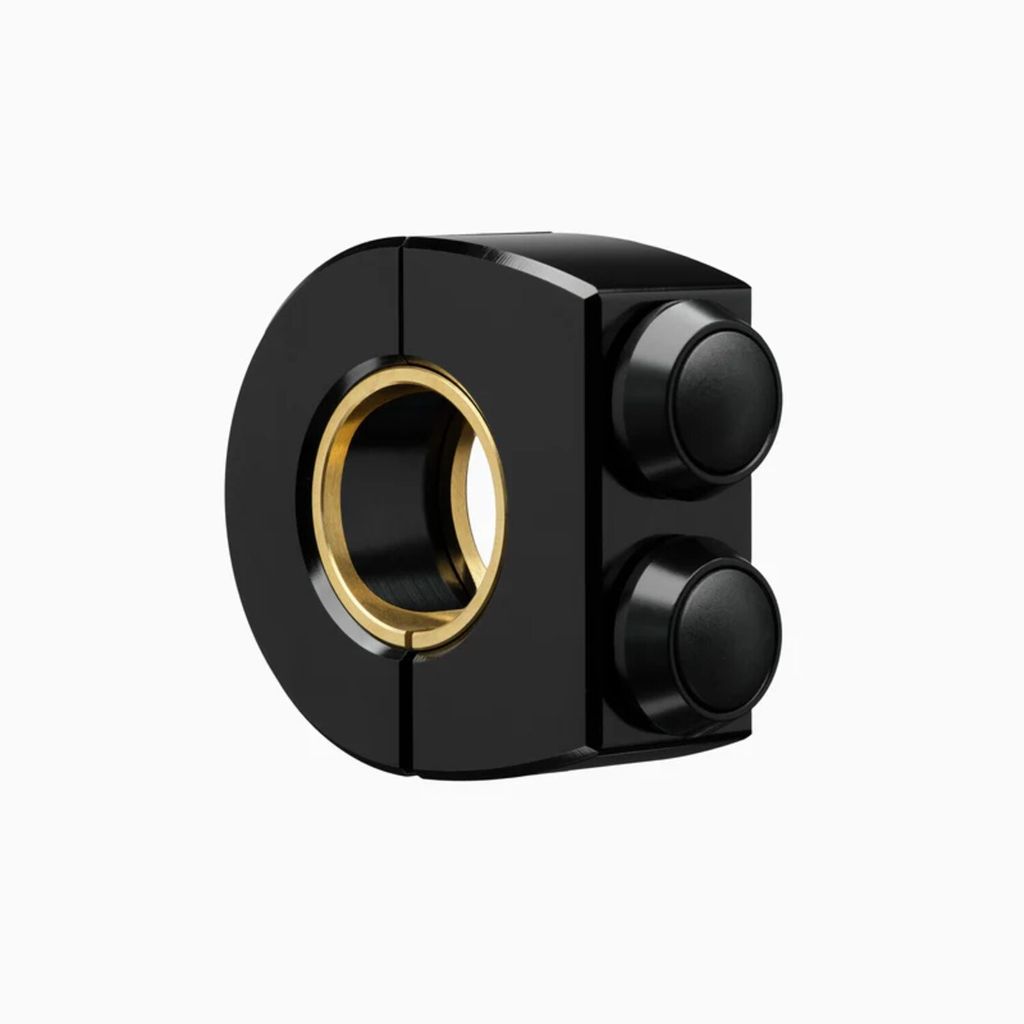

Knapphus 2 knappar Motogadget mo.switch svart
Styrarmatur i fräst aluminium för 1" och 22 mm styren
Läs mer
- Tillverkad i CNC-fräst aluminium med blanksvart anodisering
- Passar styren med 1" (25,4 mm) eller 22 mm (7/8") diameter
- Svarta tryckknappar med tydlig mekanisk tryckpunkt som fungerar med handskar
- Vibrations- och stänkvattenskyddade knappar enligt IP65
- Kan kopplas med enkel- eller tvåledarsystem (intern jordanslutning finns)
- Monteringsskruvar i M5 rostfritt stål medföljer
- Kompatibel med vanliga styrenheter som mo.unit
- Knapparna kan bytas ut separat vid behov
Används tillsammans med en elektronisk tryckknappsstyrning eller reläer (ingår ej) för att styra belysning, blinkers, elstart, tuta och andra funktioner.
Passar: Passar styren med 1" (25,4 mm) och 22 mm diameter.
mo.Switch Plain
- The mo.switch is a universal, high-quality pushbutton fitting for handlebars with 1 inch or 22 mm (7/8 inch) tube diameter in a simple, elegant design. In conjunction with an electronic push button control (not included), these beautiful CNC machined fittings can switch all electrical units such as lights, turn signals, e-starter, horn and much more.
- CNC machined from billet aluminum, the housing is available in a mirror polished finish or gloss black anodized. The compact housing allows mounting of two or more units on one handlebar.
- The two or three pushbuttons per unit, in black or stainless steel/VA, can be freely combined to match or contrast with the housing. Two (with 3 pushbutton unit one screw) recessed M5 stainless steel mounting screws clamp the pushbutton control securely and stably to any handlebar.
- The push-buttons are of high quality, very robust and protected against vibrations and splash water (IP65)
- Thanks to their sufficient size and ergonomic pressure point (light, mechanical detent), they provide a secure switching feel when actuated - even when operated with gloves. This feedback means you know immediately what you are doing without having to check the switching process every time.
- With two connections per push-button, one-wire or two-wire wiring is easily possible. A connection for earth is already provided internally for single-wire wiring. Cable routing in the handlebars is therefore simple.
- In the event of damage, the buttons are available individually and can be replaced.
- The mo.switch is of course compatible with all standard push-button controls such as the mo.unit.
- Scope of Delivery
- 1 x mo.Switch Aluminum Housing
- 2 or 3 high quality pushbuttons per unit
- Stainless steel fastening screws M5
- Black housing, with black switches, for both 1" (25.4mm) and 22mm diameter handlebars
- Great looks for virtually any custom application
- Note: Designed for use with relays
Fits: Fits 1" (25.4mm) and 22mm diameter handlebars.
