Kabelhärva Elektronikbox C-BS universal

4 420 kr

Digital kabelhärva för styrning via tryckknappar eller brytare
Läs mer

723750 Elektronik Box
  • Består av två små moduler (fram och bak) som kommunicerar via en tunn seriell busskabel
  • Styr strålkastare/bakljus, blinkers, tuta, startrelä, bromsljus och tändning med endast två tryckknappar, eller via befintliga reglage
  • Kan användas med styradapter för 1-kabelstyrning
  • Integrerade lysdioder på alla utgångar för enkel kontroll under installationen
  • Ingångar för neutrallägesbrytare och sidostödsbrytare
  • Hus i stöttålig ABS-plast, vattenavvisande ingjuten i harts
  • Mått per modul (styre och ram): 50 mm x 42 mm x 12 mm
  • Driftspänning: 6–18 V (max 20 A för 12 V-tändningsanslutning)

Minskar mängden kablar på motorcykeln och kortar installationstiden avsevärt. Personliga inställningar och funktioner programmeras direkt under installationen.

Passar: Universal

Digital harness version C-BS for button or switch control

  • Axle Joost's 'C-BS' harness stands for Control Buttons & Switches

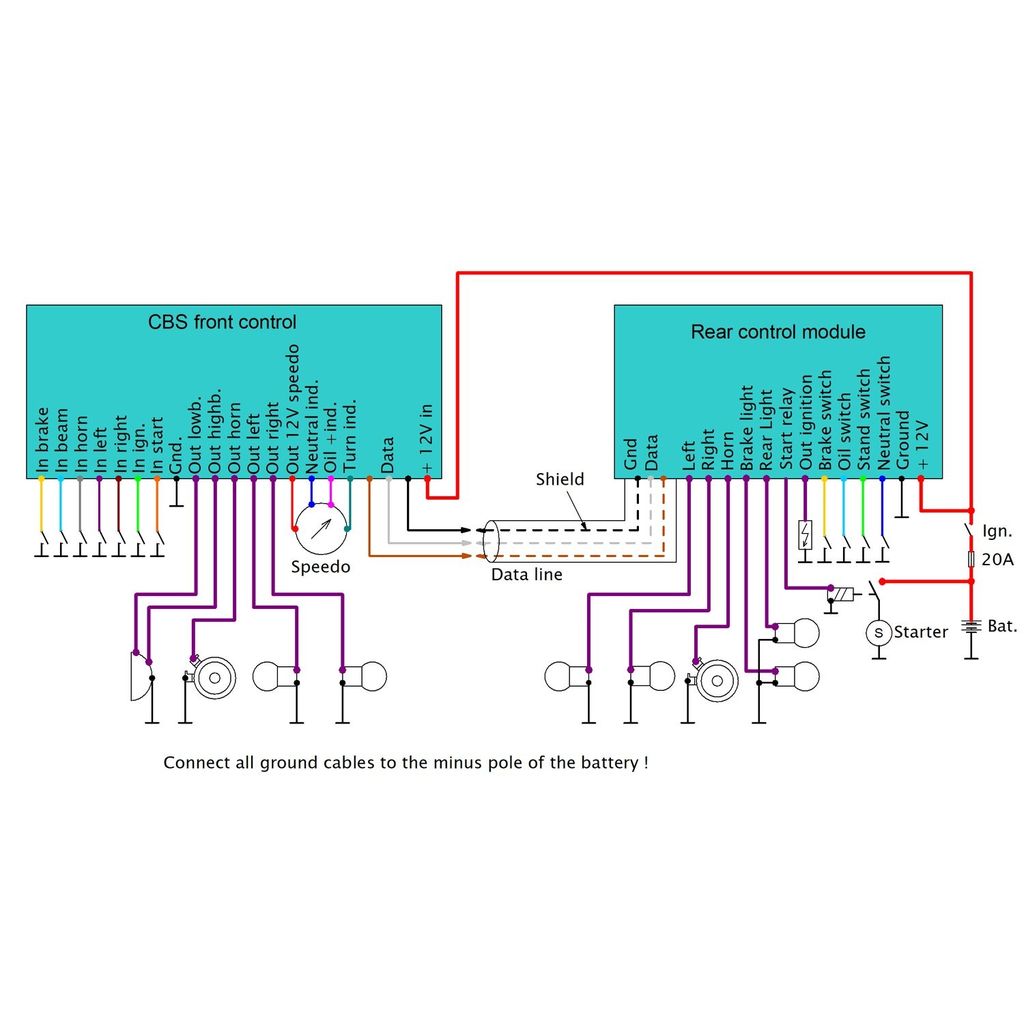

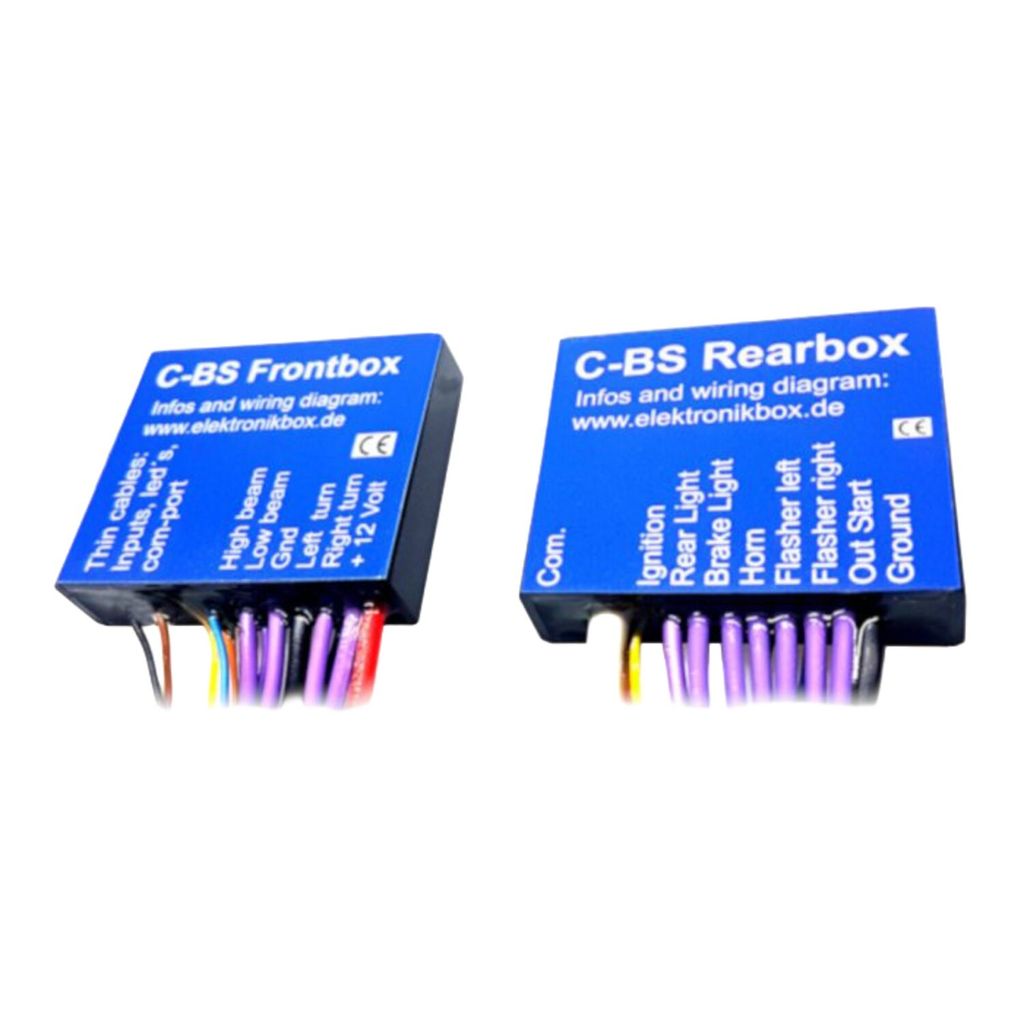

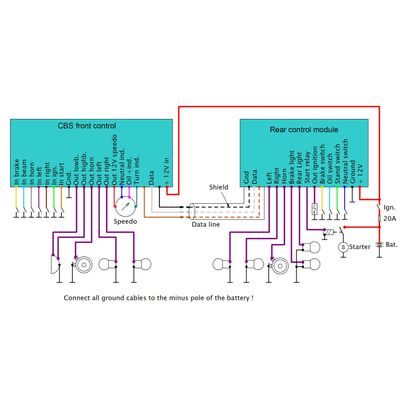

  • This C-BS harness consist of 2 small control boxes, 'front' and 'rear', that 'talk' via a thin serial bus cable
  • Switches, push buttons and power cables are wired direct to the nearest box
  • This reduces the amount of cables used on the bike and wiring installation time
  • It allows you to manually control all things you need to control (i.e. headlamp/taillight, turn signals, horn, start relay, brake light, ignition) with only 2 pushbuttons, can also be used with a handlebar adapter for 1-wire control
  • Alternatively control can also run through you existing controls & buttons
  • All outputs have integrated LEDs that allow easy testing during installation
  • Has inputs for neutral switch & side stand switch
  • You program your own preferences during installation
  • Dimensions: Handle bar - and frame module: 50 mm x 42 mm x 12 mm
  • Body material: Shock resistant ABS plastic, water resistant sealed in resin
  • Case Color: Black
  • Connections: 0.14 qmm. for input, 0.75 qmm. for power outputs
  • Power consumption in operation: 7 mA
  • Maximum temperature: 80 degree Celsius
  • Maximum output current: 5 Ampere / output, 1 Ampere for speedo
  • Input voltage range: 6-18 Volt
  • Maximum current of the 12V ignition connector: 20 Ampere

Fits: Universal
