Lastutjämnare blinkers Elektronikbox Axel Joost Elektronik Vari justerbar

1 330 kr

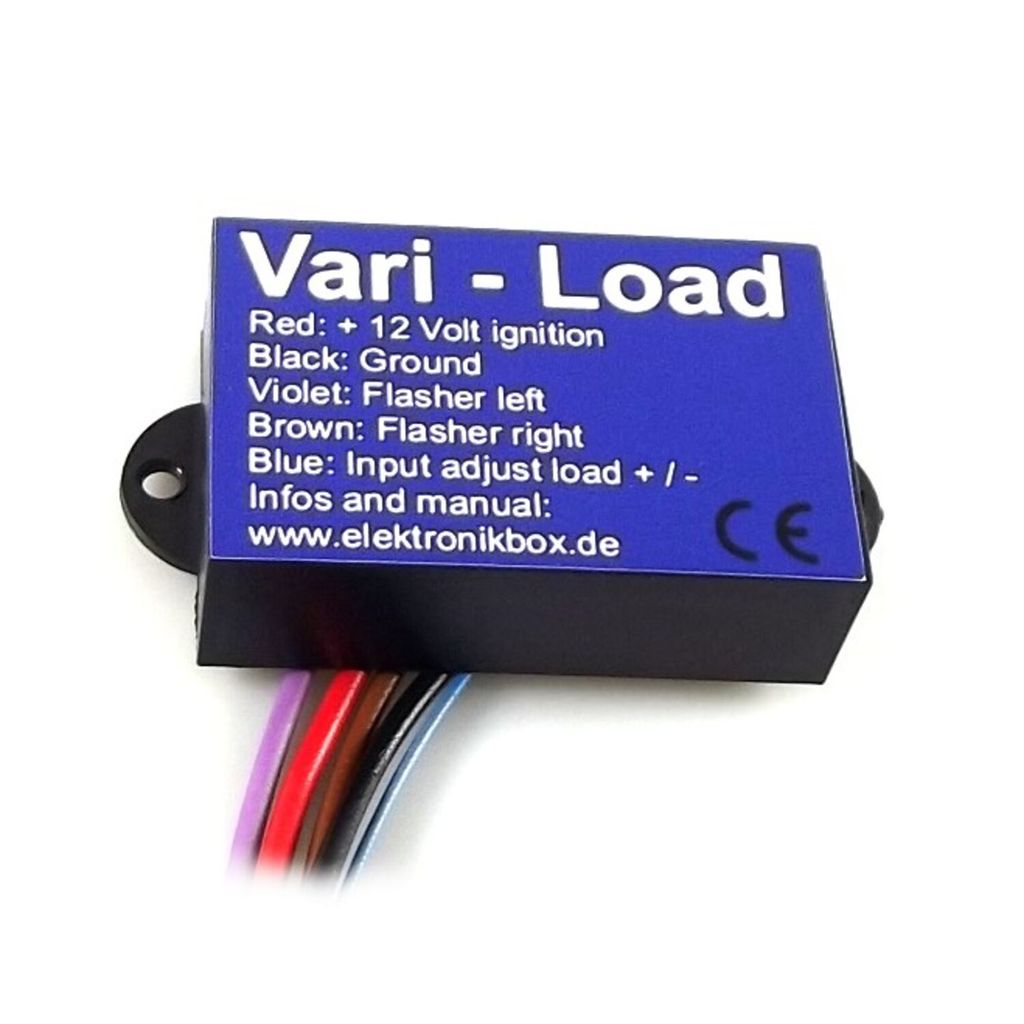

Elektronikbox Vari Load justerbar digital lastutjämnare blinkers
Läs mer

954146 Elektronik Box
  • Programmerbar lastutjämnare som gör det möjligt att använda LED-blinkers på alla motorcyklar
  • Justerbar last i 50 steg från 0 watt upp till ca 10 watt via programmeringskabeln
  • Inställt värde sparas automatiskt när kabeln kopplas bort och behålls vid nästa start
  • Inbyggd LED indikerar inställt värde och lyser med fast sken vid max- eller miniminivå
  • Förhindrar felkoder i ECU och problem med original blinkersrelä
  • Mått: 56 mm x 37 mm x 17 mm
  • Hus i vattentät gjuten ABS-plast
  • Anslutningar: ingångar 0,14 mm², utgångar 0,75 qmm

Modulen kopplas till dina blinkers och ska användas med blinkers som drar maximalt 10W totalt. Vari Load kan även användas som verktyg i verkstaden för att mäta fram rätt motstånd för ett specifikt användningsområde, med hjälp av tabellen i manualen.

VARI LOAD DIGITAL LOADEQUALIZER

  • The Vari Load is a programmable Load-Equalizer that affords you to use LED Flasher in any bike.
  • The Vari Load's power is adjusted using the thin blue cable.
  • Simply hold the blue cable against +12 volts and the load will slowly increase in 50 steps up to approximately 10 watts.
  • If you hold the blue cable against ground, the load will decrease until it reaches 0 watts.
  • As soon as you disconnect the cable from ground or +12 volts, the set load value is saved and recalled the next time you turn it on.
  • A complete cycle through all available power values ??takes approximately 20 seconds.
  • The built-in LED flashes up to 50 times when the power value changes, indirectly indicating the set value through its number of flashes.
  • As soon as one of the two limits (0 watts or approximately 10 watts) is reached, it lights up continuously.
  • Dimensions:56 mm x 37 mm x 17 mm
  • Body material:ABS
  • Input voltage range:7 - 18 Volt
  • Connections:Inputs 0,14 mm², Outputs 0,75 qmm
  • Output power range: Between 2 x 1 Watt and 2 x 15 Watt
  • Maximum ambience temperature:80 degree Celsius
  • Axel Joost Elektronik, 'Vari Load' adjustable load equalizer
  • It is simply connected to the turn signals
  • The load is 50-step variable by touching the 'programming cable' to ground (less load) or to positive +12V (more load), after which it is automatically saved
  • This will make this set-up compatible with any requirement of the bike to prevent the ECU triggering trouble codes or any issue with the OEM turn signal relay
  • Body material: ABS waterproof molded
  • Note: This module should be used with turn signals that pull a maximum of 10W total
  • Note: The Vari Load can also be used as a tool in the workshop
  • Then you will then know what resistor to use for that specific application
  • A printed table with resistors is listed the manual
